Supercharge Goldplus MF40B20ZAL
MF40B20ZAL
Total Height:
21mm
Battery Type:
Maintenance Free
Abbreviations and Battery Assemblies
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

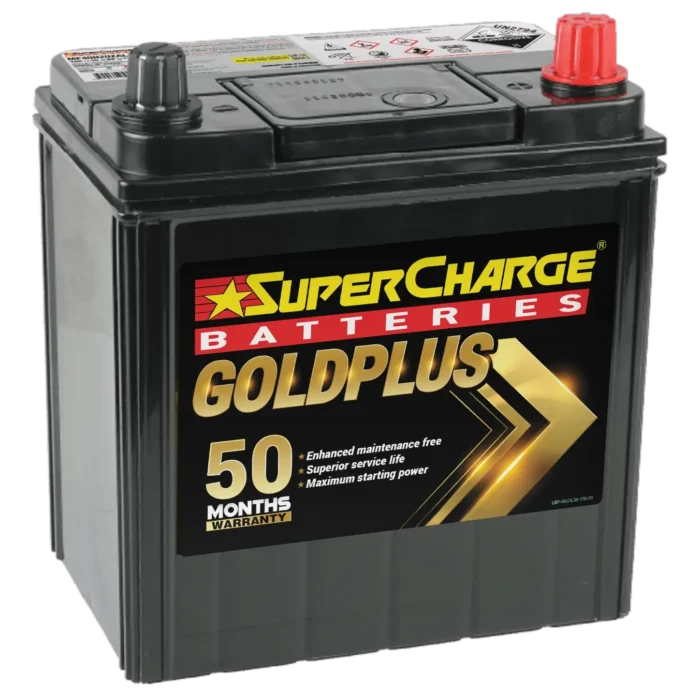

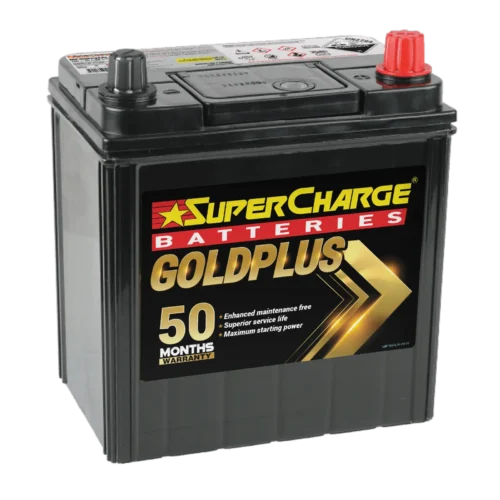

GoldPlus MF40B20ZAL Car Battery
MF40B20ZAL
12V 45AH Car Battery
The MF40B20ZAL car battery is designed to provide reliable starting power and consistent electrical performance for compatible automotive applications. Its compact format makes it suitable for vehicles requiring the MF40B20ZAL battery specification, supporting engine starting and the electrical requirements of everyday driving. The MF40B20ZAL offers a practical replacement solution when the correct battery size, configuration and terminal arrangement are required.
Choosing the correct MF40B20ZAL battery requires matching the battery to the vehicle’s specific requirements. Before installation, check the physical dimensions, terminal position, polarity and required starting performance against the vehicle manufacturer’s specifications. Confirming these details helps ensure correct fitment and compatibility with the vehicle’s electrical and charging system.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF40B20ZAL Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS40 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 400 |
| RC | 68 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
45 |
| Length, mm | 196 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly | C (Positive Right) |
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MF40B20ZAL car battery?
The MF40B20ZAL is an automotive battery designed to provide starting power and electrical energy for compatible vehicles. The correct application depends on the battery specifications required by the vehicle.
What does the “L” in MF40B20ZAL indicate?
The L identifies a particular battery configuration, commonly associated with the terminal arrangement or polarity. The terminal layout should always be compared with the vehicle’s existing battery before installation.
Why is the MF40B20ZAL battery configuration important?
The battery configuration affects how the battery fits into the vehicle and how its terminals connect to the vehicle’s electrical cables. Correct configuration helps ensure proper installation and electrical connection.
How can I check if the MF40B20ZAL is suitable for my vehicle?
Compare the MF40B20ZAL battery specifications with your vehicle manufacturer’s recommended battery requirements. Check dimensions, terminal position, polarity and starting performance, or consult a battery specialist for confirmation.
