Golf Carts & Electric Vehicle Batteries

A deep-cycle battery is designed to provide a steady amount of current over a long period of time.

These Golf Carts & EV batteries are designed to be regularly deeply discharged using most of their capacity time after time, and the plates are much thicker compared to the starting battery. Deep cycle lead acid flooded batteries usually have approx. 3% antimony lead alloy thus increasing the cycling capacity.

Deep cycle absorbed glass mat batteries are still lead-acid batteries but are sealed instead of vented. They are sealed with a rubber valve that releases excess pressure during charging. The electrolyte is held captive in a fibreglass mat that cannot be spilled. This glass mat also provided pockets that assist in the recombination of Hydrogen and Oxygen gasses( that are generated during charging) back into the water.

Gelled batteries contain acid that has been “gelled” by the addition of Silica Gel.

Trojan Golf Carts & EV

Find Out More

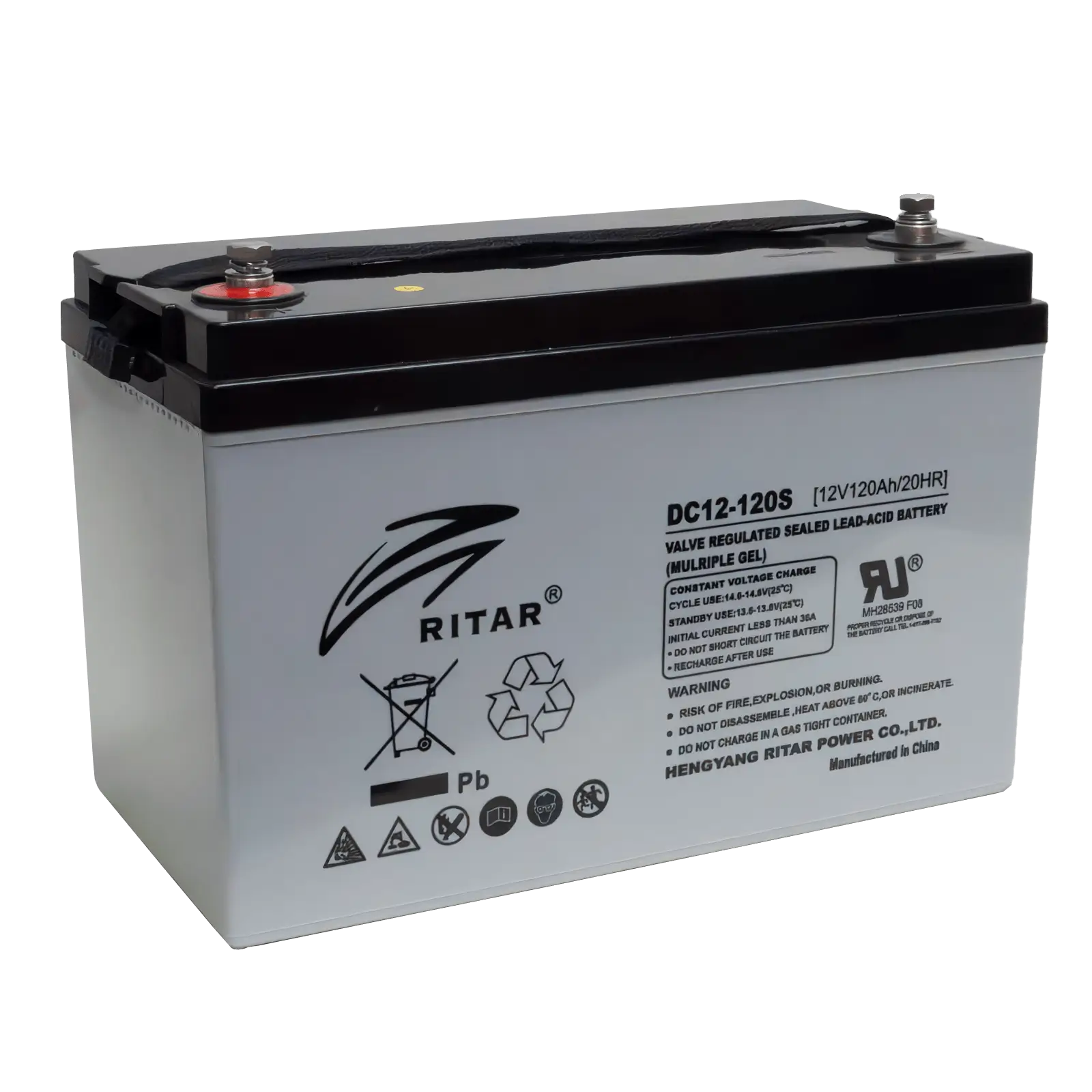

Ritar Golf Carts & EV

Find Out More

Motivaction Golf Carts & EV

Find Out More

27TMX Flooded Battery by Trojan for golf carts, utility vehicles, marine & RV applications

27TMX
Nominal Voltage:
12V
Size:
G27
RC @ 75A:
45
RC @ 25A:
175
AH(20hr):
105
Length:
323mm
Width:
168mm
Height:
235mm
Battery Type:
Maintainable


Post Style:
WNT
Datasheet

Abbreviations and Battery Assemblies

Battery Assembly

AP: Automotive Post

CV: Central Venting

CT: Centered Terminal

DFA: Dual Fit Aligned Terminals

DFP: Dual Fit Parallel Terminals

DST: Dual System Terminals

DT: Automotive Post & Stud

DWNT: Dual Wingnut

EL: End Ledge

ELPT: Embedded Low Profile

EUTR: Embedded Universal/Reverse

F1: F1 Terminal

F1-F2: F1/F2 Terminal

F2: F2 Terminal

F3: F3 Terminal

F3W: F3W Terminal

F5: F5 Terminal

F8: F8 Terminal

F9: F9 Terminal

F10: F10 Terminal

F10M8: F1 Terminal (1.25mmx15mm Stud I))

F11: F11 Terminal

F11M6: F11 Terminal (6mm/8mm Insert)

F12: F12 Terminal

F12M8: F12 Terminal (1.25mmx15mm Stud I)

F13: F13 Terminal

F14: F14 Terminal

F14M8: F14 Terminal (1.25mmx15mm Stud I)

F18: F18 Terminal

F22: F22 Terminal

F3: F3 Terminal

F5: F5 Terminal

F9: F9 Terminal

FL: Front Ledge

FDH: Fold Down Handles

HE: Hydrometer Eye

M6: M6

M8: 1.25mmx15mm Stud I

M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)

OLT: Offset Lug Terminal

PT: Pencil Terminal

RT: Recessed Terminal

RPH: Rope Handles

RTH: Retractable Handles

STD: Standard Terminal

ST: Side Terminal

TS: Top Stud Terminal

UT: Universal

WNT: Wingnut

Trojan’s 27TMX Flooded battery features advanced T2 technology for rugged durability and long-life performance. Fully recyclable and ideal for golf carts, marine & RVs.

Find the nearest authorized dealer to purchase your batteries or get expert advice.

Explore the Supercharge Vehicle Fitment Guide – Find the Perfect Battery for Your Vehicle with Ease!

Check and Register your car battery now for an extended warranty – Protect your investment today!

Share

27TMH Flooded Battery by Trojan for golf carts, marine, RVs & more

27TMH
Nominal Voltage:
12V
Size:
G27
RC @ 75A:
51
RC @ 25A:
200
AH(20hr):
115
Length:
323mm
Width:
168mm
Height:
235mm
Battery Type:
Maintainable


Post Style:
WNT
Datasheet

Abbreviations and Battery Assemblies

Battery Assembly

AP: Automotive Post

CV: Central Venting

CT: Centered Terminal

DFA: Dual Fit Aligned Terminals

DFP: Dual Fit Parallel Terminals

DST: Dual System Terminals

DT: Automotive Post & Stud

DWNT: Dual Wingnut

EL: End Ledge

ELPT: Embedded Low Profile

EUTR: Embedded Universal/Reverse

F1: F1 Terminal

F1-F2: F1/F2 Terminal

F2: F2 Terminal

F3: F3 Terminal

F3W: F3W Terminal

F5: F5 Terminal

F8: F8 Terminal

F9: F9 Terminal

F10: F10 Terminal

F10M8: F1 Terminal (1.25mmx15mm Stud I))

F11: F11 Terminal

F11M6: F11 Terminal (6mm/8mm Insert)

F12: F12 Terminal

F12M8: F12 Terminal (1.25mmx15mm Stud I)

F13: F13 Terminal

F14: F14 Terminal

F14M8: F14 Terminal (1.25mmx15mm Stud I)

F18: F18 Terminal

F22: F22 Terminal

F3: F3 Terminal

F5: F5 Terminal

F9: F9 Terminal

FL: Front Ledge

FDH: Fold Down Handles

HE: Hydrometer Eye

M6: M6

M8: 1.25mmx15mm Stud I

M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)

OLT: Offset Lug Terminal

PT: Pencil Terminal

RT: Recessed Terminal

RPH: Rope Handles

RTH: Retractable Handles

STD: Standard Terminal

ST: Side Terminal

TS: Top Stud Terminal

UT: Universal

WNT: Wingnut

The 27TMH from Trojan’s Flooded range features advanced T2 technology, delivering rugged, long-life performance. Fully recyclable and ideal for golf carts, marine, RVs & more.

Find the nearest authorized dealer to purchase your batteries or get expert advice.

Explore the Supercharge Vehicle Fitment Guide – Find the Perfect Battery for Your Vehicle with Ease!

Check and Register your car battery now for an extended warranty – Protect your investment today!

Share

SCS225 Flooded Battery by Trojan for golf carts, utility vehicles, marine & RV applications

SCS225
Nominal Voltage:
12V
Size:
30H
RC @ 75A:
57
RC @ 25A:
225
AH(20hr):
130
Length:
354mm
Width:
171mm
Height:
253mm
Battery Type:
Maintainable


Post Style:
DWNT
Datasheet

Abbreviations and Battery Assemblies

Battery Assembly

AP: Automotive Post

CV: Central Venting

CT: Centered Terminal

DFA: Dual Fit Aligned Terminals

DFP: Dual Fit Parallel Terminals

DST: Dual System Terminals

DT: Automotive Post & Stud

DWNT: Dual Wingnut

EL: End Ledge

ELPT: Embedded Low Profile

EUTR: Embedded Universal/Reverse

F1: F1 Terminal

F1-F2: F1/F2 Terminal

F2: F2 Terminal

F3: F3 Terminal

F3W: F3W Terminal

F5: F5 Terminal

F8: F8 Terminal

F9: F9 Terminal

F10: F10 Terminal

F10M8: F1 Terminal (1.25mmx15mm Stud I))

F11: F11 Terminal

F11M6: F11 Terminal (6mm/8mm Insert)

F12: F12 Terminal

F12M8: F12 Terminal (1.25mmx15mm Stud I)

F13: F13 Terminal

F14: F14 Terminal

F14M8: F14 Terminal (1.25mmx15mm Stud I)

F18: F18 Terminal

F22: F22 Terminal

F3: F3 Terminal

F5: F5 Terminal

F9: F9 Terminal

FL: Front Ledge

FDH: Fold Down Handles

HE: Hydrometer Eye

M6: M6

M8: 1.25mmx15mm Stud I

M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)

OLT: Offset Lug Terminal

PT: Pencil Terminal

RT: Recessed Terminal

RPH: Rope Handles

RTH: Retractable Handles

STD: Standard Terminal

ST: Side Terminal

TS: Top Stud Terminal

UT: Universal

WNT: Wingnut

The SCS225 from Trojan’s Flooded range features advanced T2 technology, delivering rugged, long-life performance. Fully recyclable and ideal for golf carts, utility vehicles, marine & RVs.

Find the nearest authorized dealer to purchase your batteries or get expert advice.

Explore the Supercharge Vehicle Fitment Guide – Find the Perfect Battery for Your Vehicle with Ease!

Check and Register your car battery now for an extended warranty – Protect your investment today!

Share

T105 Flooded Battery by Trojan for golf carts & utility vehicles

T105
Nominal Voltage:
6V
Size:
GC2
RC @ 75A:
115
RC @ 25A:
447
AH(20hr):
225
Length:
262mm
Width:
181mm
Height:
281mm
Battery Type:
Maintainable


Post Style:
ELPT
Datasheet

Abbreviations and Battery Assemblies

Battery Assembly

AP: Automotive Post

CV: Central Venting

CT: Centered Terminal

DFA: Dual Fit Aligned Terminals

DFP: Dual Fit Parallel Terminals

DST: Dual System Terminals

DT: Automotive Post & Stud

DWNT: Dual Wingnut

EL: End Ledge

ELPT: Embedded Low Profile

EUTR: Embedded Universal/Reverse

F1: F1 Terminal

F1-F2: F1/F2 Terminal

F2: F2 Terminal

F3: F3 Terminal

F3W: F3W Terminal

F5: F5 Terminal

F8: F8 Terminal

F9: F9 Terminal

F10: F10 Terminal

F10M8: F1 Terminal (1.25mmx15mm Stud I))

F11: F11 Terminal

F11M6: F11 Terminal (6mm/8mm Insert)

F12: F12 Terminal

F12M8: F12 Terminal (1.25mmx15mm Stud I)

F13: F13 Terminal

F14: F14 Terminal

F14M8: F14 Terminal (1.25mmx15mm Stud I)

F18: F18 Terminal

F22: F22 Terminal

F3: F3 Terminal

F5: F5 Terminal

F9: F9 Terminal

FL: Front Ledge

FDH: Fold Down Handles

HE: Hydrometer Eye

M6: M6

M8: 1.25mmx15mm Stud I

M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)

OLT: Offset Lug Terminal

PT: Pencil Terminal

RT: Recessed Terminal

RPH: Rope Handles

RTH: Retractable Handles

STD: Standard Terminal

ST: Side Terminal

TS: Top Stud Terminal

UT: Universal

WNT: Wingnut

The T105 from Trojan’s Flooded range uses advanced T2 technology for rugged durability and reliable performance. Fully recyclable and ideal for golf carts & utility vehicles.

Find the nearest authorized dealer to purchase your batteries or get expert advice.

Explore the Supercharge Vehicle Fitment Guide – Find the Perfect Battery for Your Vehicle with Ease!

Check and Register your car battery now for an extended warranty – Protect your investment today!

Share

T105-AGM-PRO AGM Battery by Trojan for demanding industrial and commercial environments

T105-AGM-PRO
Nominal Voltage:
6V
Size:
GC2
RC @ 75A:
121
RC @ 25A:
464
AH(20hr):
230
Length:
266mm
Width:
180mm
Height:
273mm
Battery Type:
Maintenance Free


Datasheet

Abbreviations and Battery Assemblies

Battery Assembly

AP: Automotive Post

CV: Central Venting

CT: Centered Terminal

DFA: Dual Fit Aligned Terminals

DFP: Dual Fit Parallel Terminals

DST: Dual System Terminals

DT: Automotive Post & Stud

DWNT: Dual Wingnut

EL: End Ledge

ELPT: Embedded Low Profile

EUTR: Embedded Universal/Reverse

F1: F1 Terminal

F1-F2: F1/F2 Terminal

F2: F2 Terminal

F3: F3 Terminal

F3W: F3W Terminal

F5: F5 Terminal

F8: F8 Terminal

F9: F9 Terminal

F10: F10 Terminal

F10M8: F1 Terminal (1.25mmx15mm Stud I))

F11: F11 Terminal

F11M6: F11 Terminal (6mm/8mm Insert)

F12: F12 Terminal

F12M8: F12 Terminal (1.25mmx15mm Stud I)

F13: F13 Terminal

F14: F14 Terminal

F14M8: F14 Terminal (1.25mmx15mm Stud I)

F18: F18 Terminal

F22: F22 Terminal

F3: F3 Terminal

F5: F5 Terminal

F9: F9 Terminal

FL: Front Ledge

FDH: Fold Down Handles

HE: Hydrometer Eye

M6: M6

M8: 1.25mmx15mm Stud I

M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)

OLT: Offset Lug Terminal

PT: Pencil Terminal

RT: Recessed Terminal

RPH: Rope Handles

RTH: Retractable Handles

STD: Standard Terminal

ST: Side Terminal

TS: Top Stud Terminal

UT: Universal

WNT: Wingnut

T105-AGM-PRO by Trojan: Recyclable AGM battery with superior power, low-temp tolerance, shock & vibration resistance & efficient charging.

Find the nearest authorized dealer to purchase your batteries or get expert advice.

Explore the Supercharge Vehicle Fitment Guide – Find the Perfect Battery for Your Vehicle with Ease!

Check and Register your car battery now for an extended warranty – Protect your investment today!

Share

6V-GEL Gel Battery by Trojan for schools, hospitals, airports & office buildings

T125-AGM-PRO
Nominal Voltage:
6V
Size:
GC2
RC @ 75A:
132
RC @ 25A:
470
AH(20hr):
233
Length:
266mm
Width:
180mm
Height:
273mm
Battery Type:
Maintenance Free


Datasheet

Abbreviations and Battery Assemblies

Battery Assembly

AP: Automotive Post

CV: Central Venting

CT: Centered Terminal

DFA: Dual Fit Aligned Terminals

DFP: Dual Fit Parallel Terminals

DST: Dual System Terminals

DT: Automotive Post & Stud

DWNT: Dual Wingnut

EL: End Ledge

ELPT: Embedded Low Profile

EUTR: Embedded Universal/Reverse

F1: F1 Terminal

F1-F2: F1/F2 Terminal

F2: F2 Terminal

F3: F3 Terminal

F3W: F3W Terminal

F5: F5 Terminal

F8: F8 Terminal

F9: F9 Terminal

F10: F10 Terminal

F10M8: F1 Terminal (1.25mmx15mm Stud I))

F11: F11 Terminal

F11M6: F11 Terminal (6mm/8mm Insert)

F12: F12 Terminal

F12M8: F12 Terminal (1.25mmx15mm Stud I)

F13: F13 Terminal

F14: F14 Terminal

F14M8: F14 Terminal (1.25mmx15mm Stud I)

F18: F18 Terminal

F22: F22 Terminal

F3: F3 Terminal

F5: F5 Terminal

F9: F9 Terminal

FL: Front Ledge

FDH: Fold Down Handles

HE: Hydrometer Eye

M6: M6

M8: 1.25mmx15mm Stud I

M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)

OLT: Offset Lug Terminal

PT: Pencil Terminal

RT: Recessed Terminal

RPH: Rope Handles

RTH: Retractable Handles

STD: Standard Terminal

ST: Side Terminal

TS: Top Stud Terminal

UT: Universal

WNT: Wingnut

The T125-AGM-PRO from Trojan’s AGM range is a recyclable AGM deep-cycle battery offering superior power, cold tolerance, shock & vibration resistance, and high charging efficiency.

Find the nearest authorized dealer to purchase your batteries or get expert advice.

Explore the Supercharge Vehicle Fitment Guide – Find the Perfect Battery for Your Vehicle with Ease!

Check and Register your car battery now for an extended warranty – Protect your investment today!

Share

T875-AGM-PRO AGM Battery by Trojan for industrial and commercial applications

T875-AGM-PRO
Nominal Voltage:
8V
Size:
GC8
RC @ 75A:
-
RC @ 25A:
322
AH(20hr):
161
Length:
266mm
Width:
180mm
Height:
273mm
Battery Type:
Maintenance Free


Datasheet

Abbreviations and Battery Assemblies

Battery Assembly

AP: Automotive Post

CV: Central Venting

CT: Centered Terminal

DFA: Dual Fit Aligned Terminals

DFP: Dual Fit Parallel Terminals

DST: Dual System Terminals

DT: Automotive Post & Stud

DWNT: Dual Wingnut

EL: End Ledge

ELPT: Embedded Low Profile

EUTR: Embedded Universal/Reverse

F1: F1 Terminal

F1-F2: F1/F2 Terminal

F2: F2 Terminal

F3: F3 Terminal

F3W: F3W Terminal

F5: F5 Terminal

F8: F8 Terminal

F9: F9 Terminal

F10: F10 Terminal

F10M8: F1 Terminal (1.25mmx15mm Stud I))

F11: F11 Terminal

F11M6: F11 Terminal (6mm/8mm Insert)

F12: F12 Terminal

F12M8: F12 Terminal (1.25mmx15mm Stud I)

F13: F13 Terminal

F14: F14 Terminal

F14M8: F14 Terminal (1.25mmx15mm Stud I)

F18: F18 Terminal

F22: F22 Terminal

F3: F3 Terminal

F5: F5 Terminal

F9: F9 Terminal

FL: Front Ledge

FDH: Fold Down Handles

HE: Hydrometer Eye

M6: M6

M8: 1.25mmx15mm Stud I

M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)

OLT: Offset Lug Terminal

PT: Pencil Terminal

RT: Recessed Terminal

RPH: Rope Handles

RTH: Retractable Handles

STD: Standard Terminal

ST: Side Terminal

TS: Top Stud Terminal

UT: Universal

WNT: Wingnut

The T875-AGM-PRO from Trojan’s AGM range is a recyclable battery offering superior power, low-temp tolerance, shock & vibration resistance plus higher discharge & charge efficiency.

Find the nearest authorized dealer to purchase your batteries or get expert advice.

Explore the Supercharge Vehicle Fitment Guide – Find the Perfect Battery for Your Vehicle with Ease!

Check and Register your car battery now for an extended warranty – Protect your investment today!

Share

T1275-AGM-PRO AGM Battery by Trojan for industrial and commercial applications

T1275-AGM-PRO
Nominal Voltage:
12V
Size:
GC12
RC @ 75A:
69
RC @ 25A:
255
AH(20hr):
133
Length:
329mm
Width:
179mm
Height:
278mm
Battery Type:
Maintenance Free


Datasheet

Abbreviations and Battery Assemblies

Battery Assembly

AP: Automotive Post

CV: Central Venting

CT: Centered Terminal

DFA: Dual Fit Aligned Terminals

DFP: Dual Fit Parallel Terminals

DST: Dual System Terminals

DT: Automotive Post & Stud

DWNT: Dual Wingnut

EL: End Ledge

ELPT: Embedded Low Profile

EUTR: Embedded Universal/Reverse

F1: F1 Terminal

F1-F2: F1/F2 Terminal

F2: F2 Terminal

F3: F3 Terminal

F3W: F3W Terminal

F5: F5 Terminal

F8: F8 Terminal

F9: F9 Terminal

F10: F10 Terminal

F10M8: F1 Terminal (1.25mmx15mm Stud I))

F11: F11 Terminal

F11M6: F11 Terminal (6mm/8mm Insert)

F12: F12 Terminal

F12M8: F12 Terminal (1.25mmx15mm Stud I)

F13: F13 Terminal

F14: F14 Terminal

F14M8: F14 Terminal (1.25mmx15mm Stud I)

F18: F18 Terminal

F22: F22 Terminal

F3: F3 Terminal

F5: F5 Terminal

F9: F9 Terminal

FL: Front Ledge

FDH: Fold Down Handles

HE: Hydrometer Eye

M6: M6

M8: 1.25mmx15mm Stud I

M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)

OLT: Offset Lug Terminal

PT: Pencil Terminal

RT: Recessed Terminal

RPH: Rope Handles

RTH: Retractable Handles

STD: Standard Terminal

ST: Side Terminal

TS: Top Stud Terminal

UT: Universal

WNT: Wingnut

The T1275-AGM-PRO from Trojan’s AGM range is a recyclable deep-cycle AGM battery delivering superior power and performance. It offers low-temperature tolerance, shock and vibration resistance, higher discharge currents, and efficient charging.

Find the nearest authorized dealer to purchase your batteries or get expert advice.

Explore the Supercharge Vehicle Fitment Guide – Find the Perfect Battery for Your Vehicle with Ease!

Check and Register your car battery now for an extended warranty – Protect your investment today!

Share
