Supercharge Goldplus MF43
MF43
Length:
23mm
Width:
138mm
Height:
186mm
Total Height:
212mm
Battery Type:
Maintenance Free
Abbreviations and Battery Assemblies
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

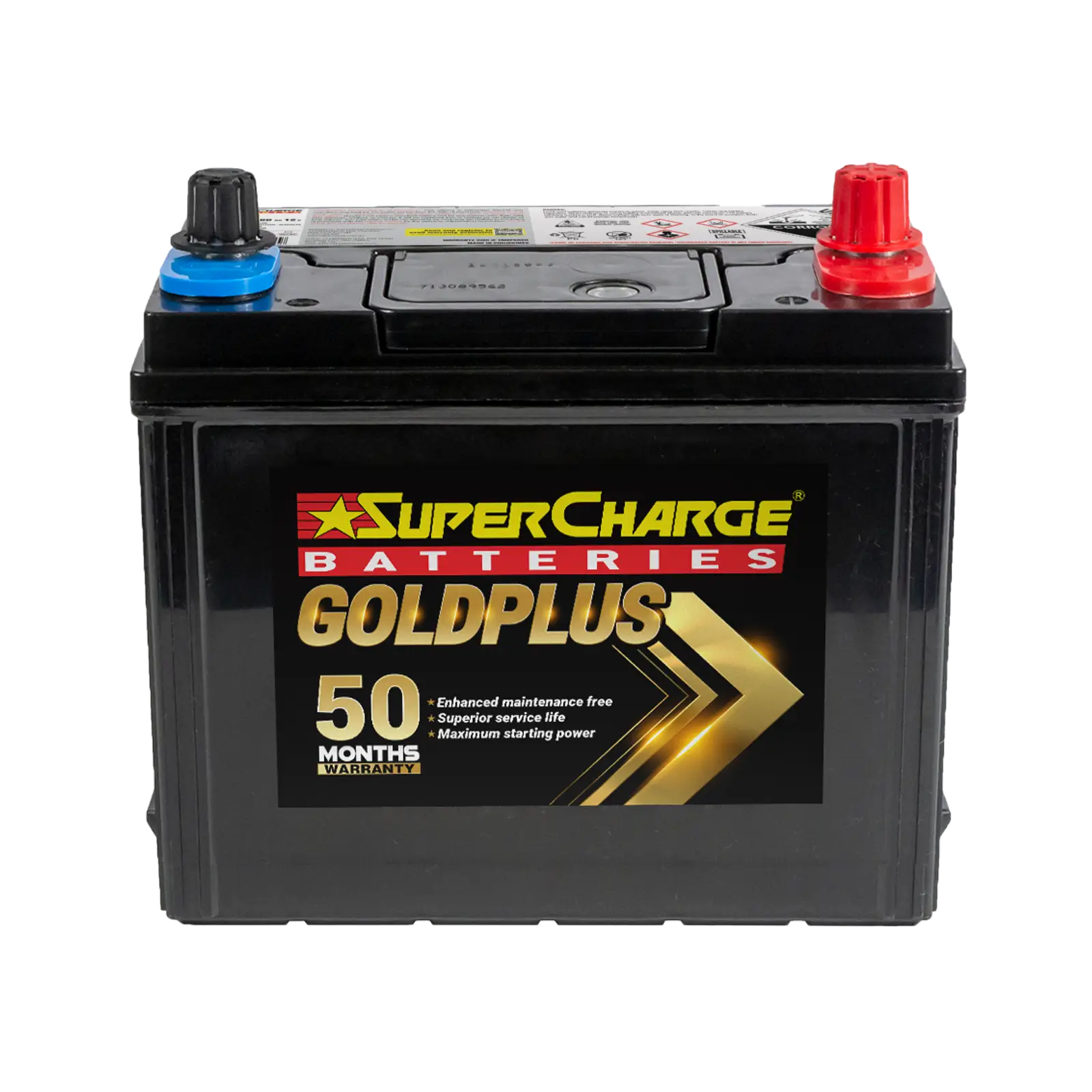

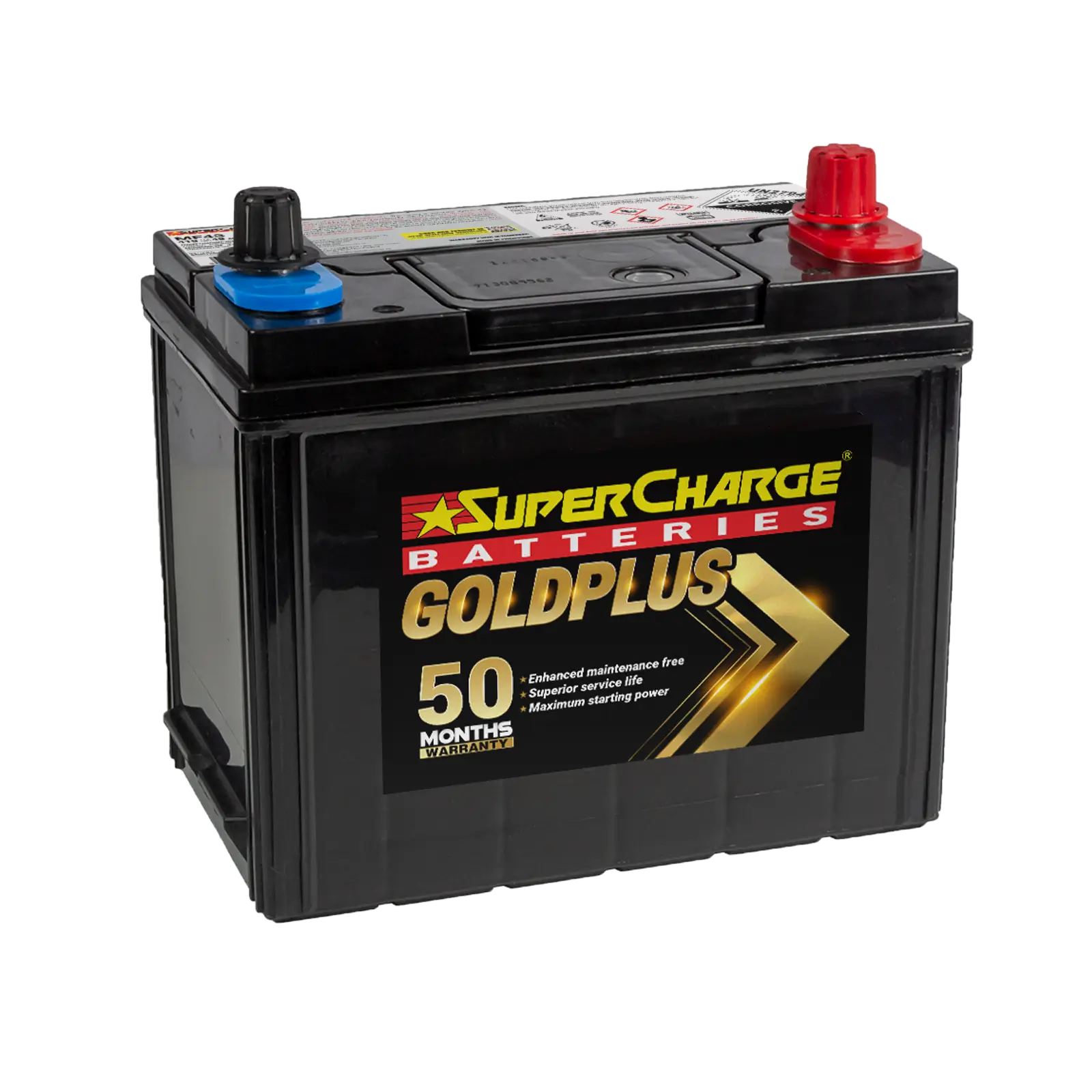

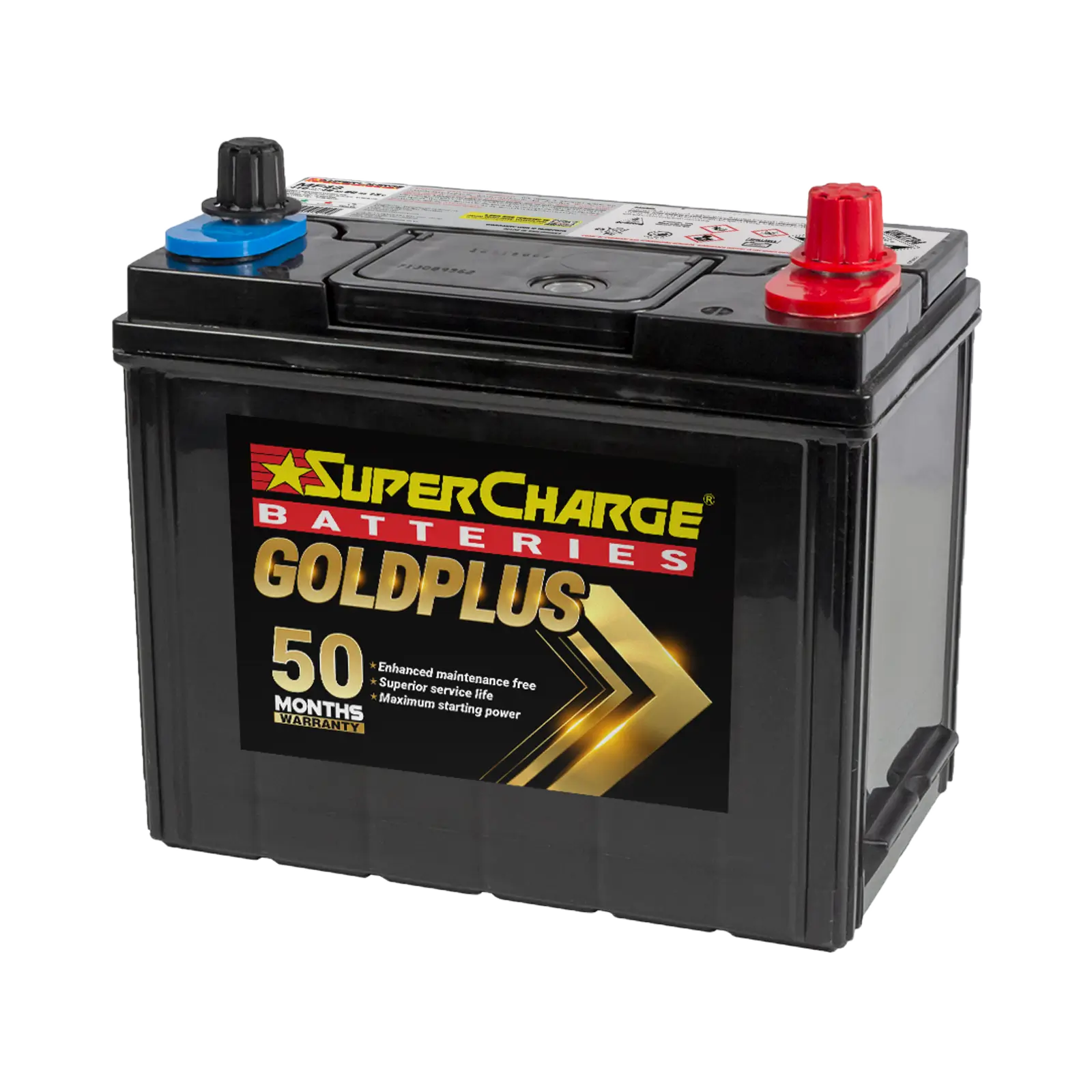

GoldPlus MF43 Car Battery
MF43
12V 46AH Car Battery
The MF43 car battery is designed to deliver dependable starting power and efficient electrical performance for everyday automotive applications. Built with a lead-calcium tropicalised power plate and high-purity lead and electrolyte, the MF43 supports effective energy delivery and consistent battery operation. Its advanced, dense and compact construction is engineered to optimise internal performance, while high-efficiency electrical flow helps support reliable power delivery when starting your vehicle.
Designed for convenience and durability, the MF43 features a fully sealed, maintenance-free design that eliminates the need for routine electrolyte top-ups under normal operating conditions. Its hardened alloys and robust intercell connections contribute to structural integrity and dependable electrical conductivity, while its high state-of-charge retention helps preserve stored energy when the vehicle is not in use. Combining practical maintenance-free operation with efficient battery technology, the MF43 is built to meet the demands of everyday driving.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF43 Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N43 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 410 |
| RC | 60 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
46 |
| Length, mm | 238 |
| Width, mm | 138 |
| Height, mm | 186 |
| Total Height, mm | 212 |
| Assembly | H (Positive Right) |
| Post Type | DFP |
| Ledge | EL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MF43 car battery?
The MF43 is a car battery designed to provide dependable starting power and efficient electrical performance. It features lead-calcium tropicalised power plates, high-purity lead and electrolyte, and compact internal construction to support reliable operation.
Is the MF43 battery maintenance-free?
Yes, the MF43 features a fully sealed, maintenance-free design. Under normal operating conditions, it does not require routine electrolyte top-ups, making it a convenient option for vehicle owners.
What features help improve the performance of the MF43 battery?
The MF43 incorporates a high-efficiency electrical flow design, dense and compact construction, and hardened alloys with intercell connections. Its lead-calcium tropicalised power plate and high-purity materials are designed to support efficient energy delivery and dependable battery performance.
How does the MF43 battery retain its charge?
The MF43 is formulated for high state-of-charge retention, helping it preserve stored electrical energy when the vehicle is not in use. Actual charge retention can vary depending on battery condition, temperature, vehicle electrical demands and storage duration.
