Supercharge Goldplus MF55B24R
MF55B24R
Battery Type:
Maintenance Free
Abbreviations and Battery Assemblies
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

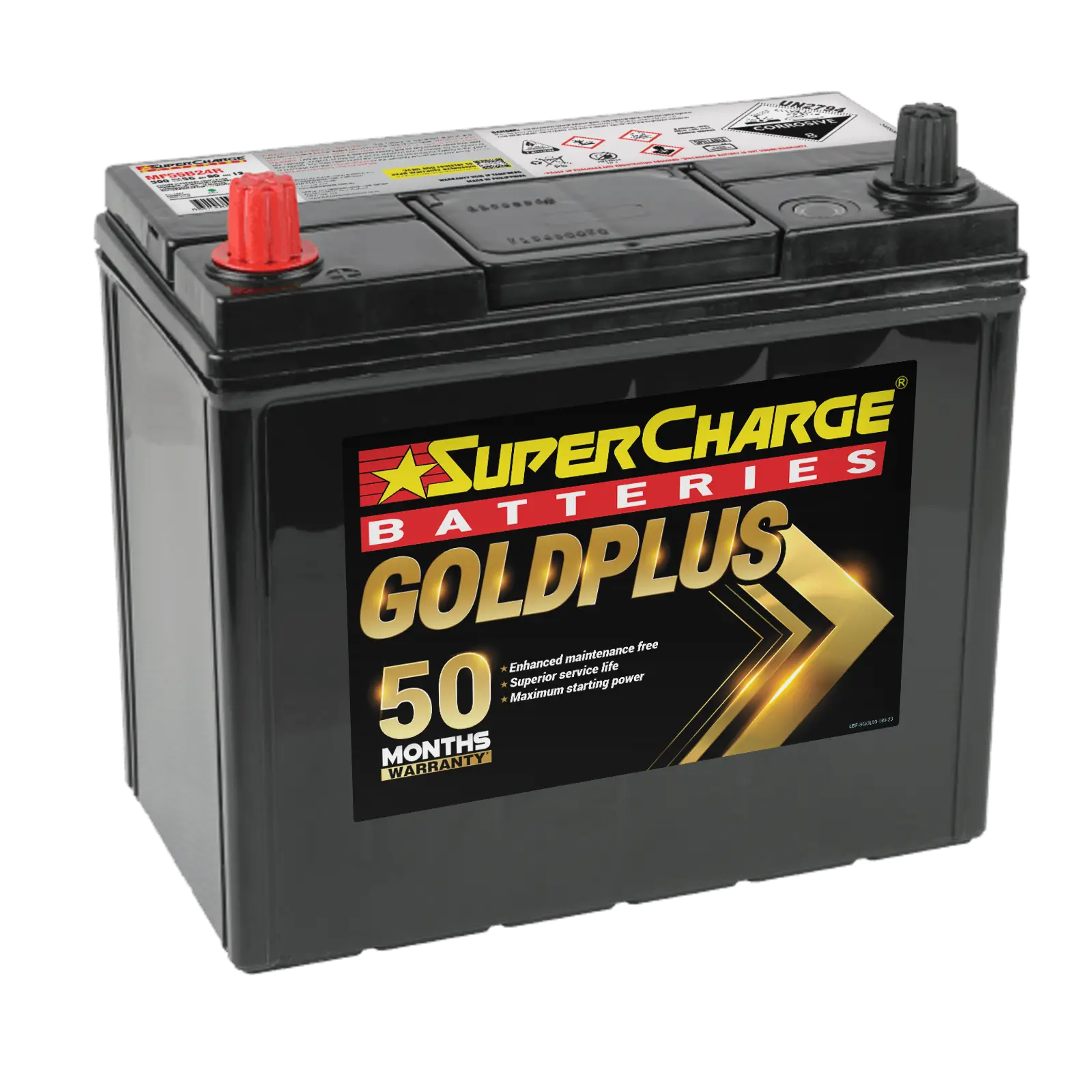

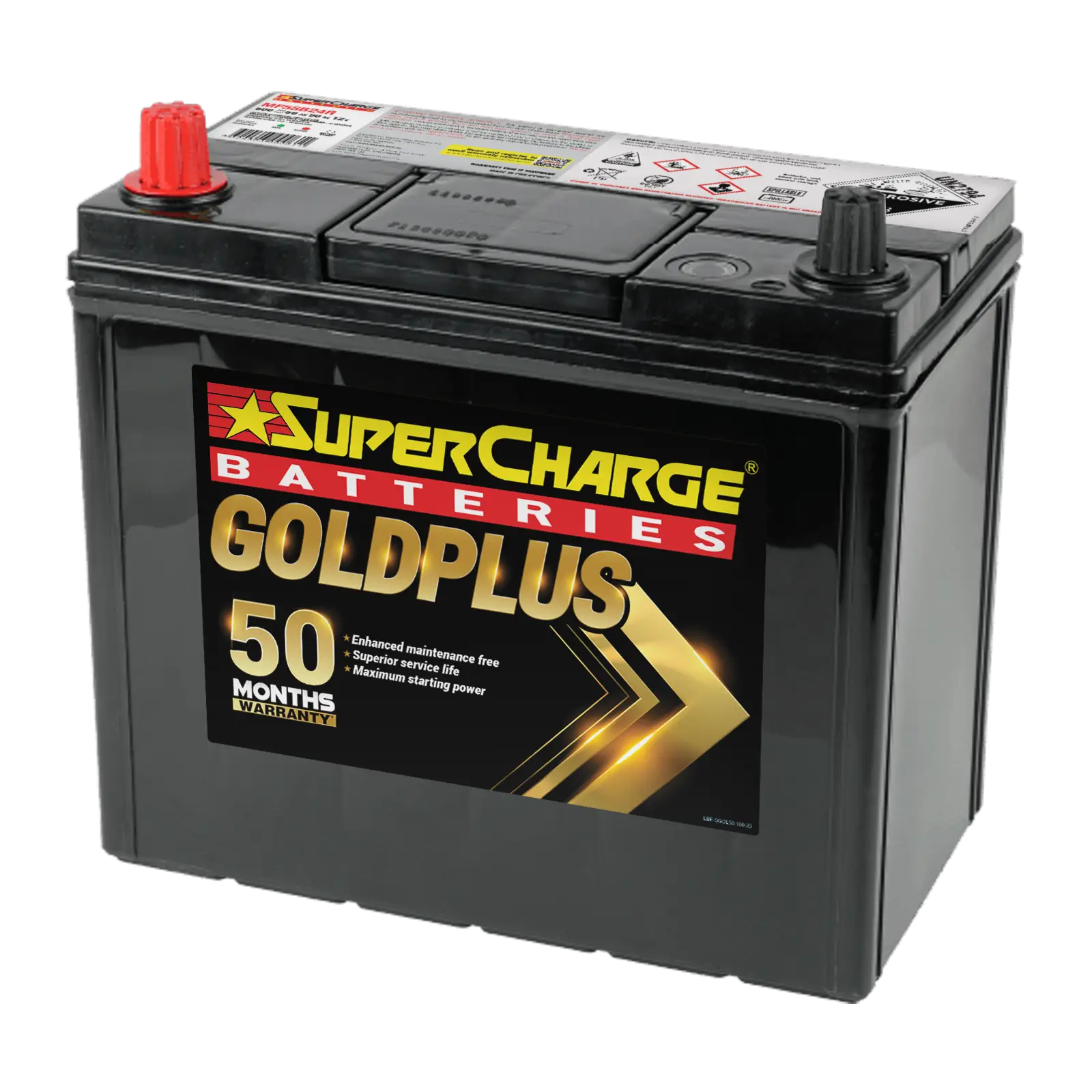

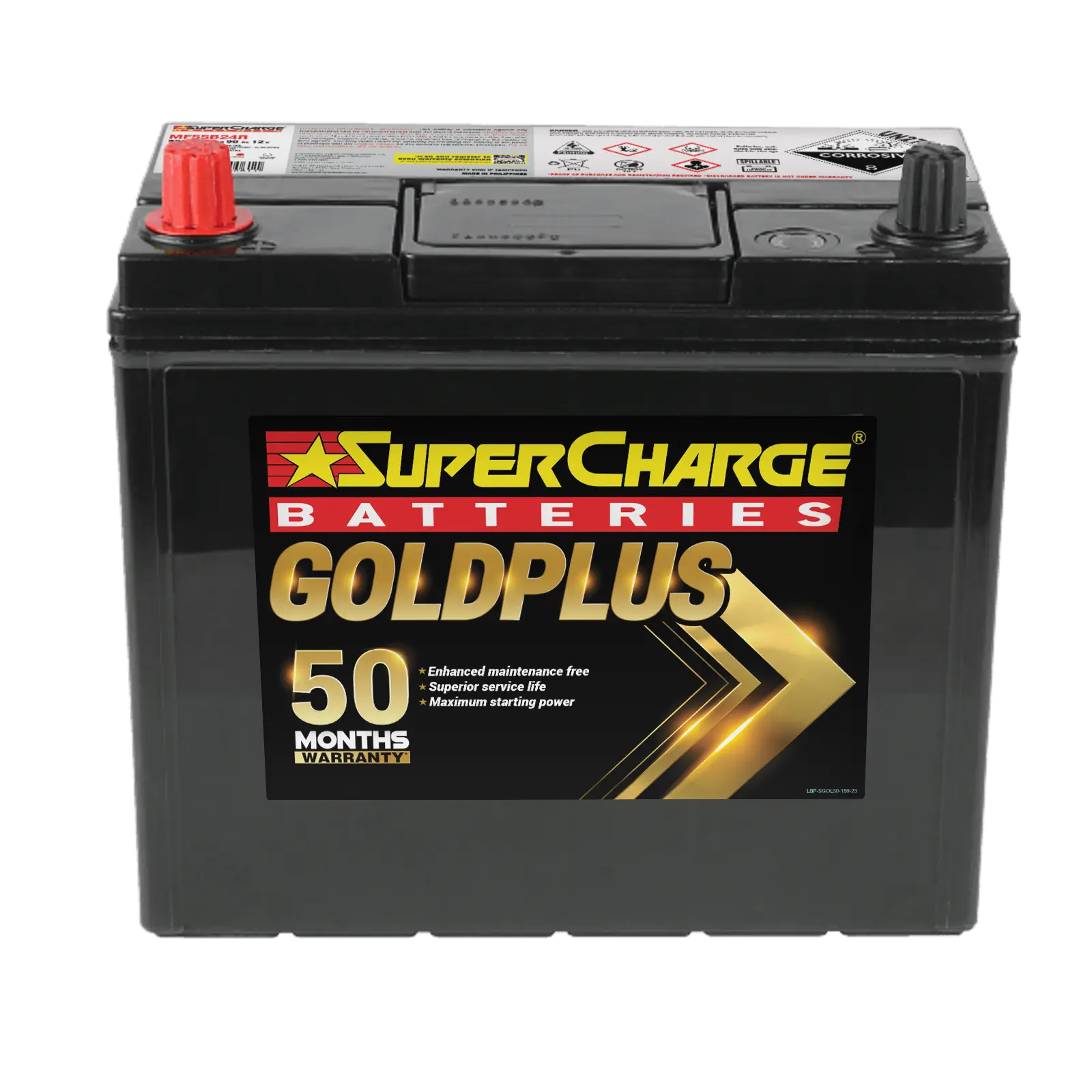

GoldPlus MF55B24R Car Battery
MF55B24R
12V 56AH Car Battery
The MF55B24R car battery is designed to provide dependable starting power and consistent electrical performance for compatible automotive applications. Its battery construction is suited to everyday vehicle use, supporting the energy demands of engine starting and essential electrical systems. The MF55B24R provides a practical replacement option for vehicles requiring this specific battery size and configuration.
For reliable battery performance, the MF55B24R should be selected according to the vehicle’s required battery specifications. Physical dimensions, terminal arrangement, polarity and starting requirements are important considerations when replacing an existing battery. Correctly matching these specifications helps support proper installation and dependable operation of the vehicle’s electrical and charging systems.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF55B24R Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS60 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 500 |
| RC | 90 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
56 |
| Length, mm | 236 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly | D (Positive Left) |
| Post Type | PT |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MF55B24R battery designed to do?
The MF55B24R battery is designed to supply the electrical power required for engine starting and support the vehicle’s essential electrical systems. It is intended for compatible automotive applications requiring its specific battery configuration.
How long does an MF55B24R battery last?
Battery service life can vary depending on driving conditions, climate, vehicle usage, charging-system condition and maintenance. Frequent short trips and prolonged periods of inactivity can place additional demands on an automotive battery.
What can affect the starting performance of an MF55B24R?
Starting performance can be affected by battery age and condition, temperature, the vehicle’s electrical load and the condition of the charging and starting systems. Slow engine cranking can be a sign that the MF55B24R battery or another part of the vehicle’s starting system should be tested.
How should an MF55B24R battery be stored when not in use?
If an MF55B24R battery is not being used for an extended period, it should be stored in appropriate conditions and checked periodically to help prevent excessive discharge. Keeping the battery in good condition during storage can help support its performance when returned to service.
