Supercharge Stop/Start MF55HEF

MF55HEF – Stop-Start Battery | Supercharge Batteries

MF55HEF

Nominal Voltage:
12V
Size:
N55H
CCA @(-18°C):
660
RC @ 25A:
100
Ah 20hr:
60
Length:
245mm
Width:
175mm
Height:
190mm
Total Height:
190mm
Battery Type:
Maintenance Free
Technology:
EFB SS
Ledge:
EL & FL
Accessibility:
TS
Hydro:
YES
Post Style:
STD
Assembly:
C
Warranty Priv:
24 mths
Warranty Comm:
12 mths

Abbreviations and Battery Assemblies

Battery Assembly
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

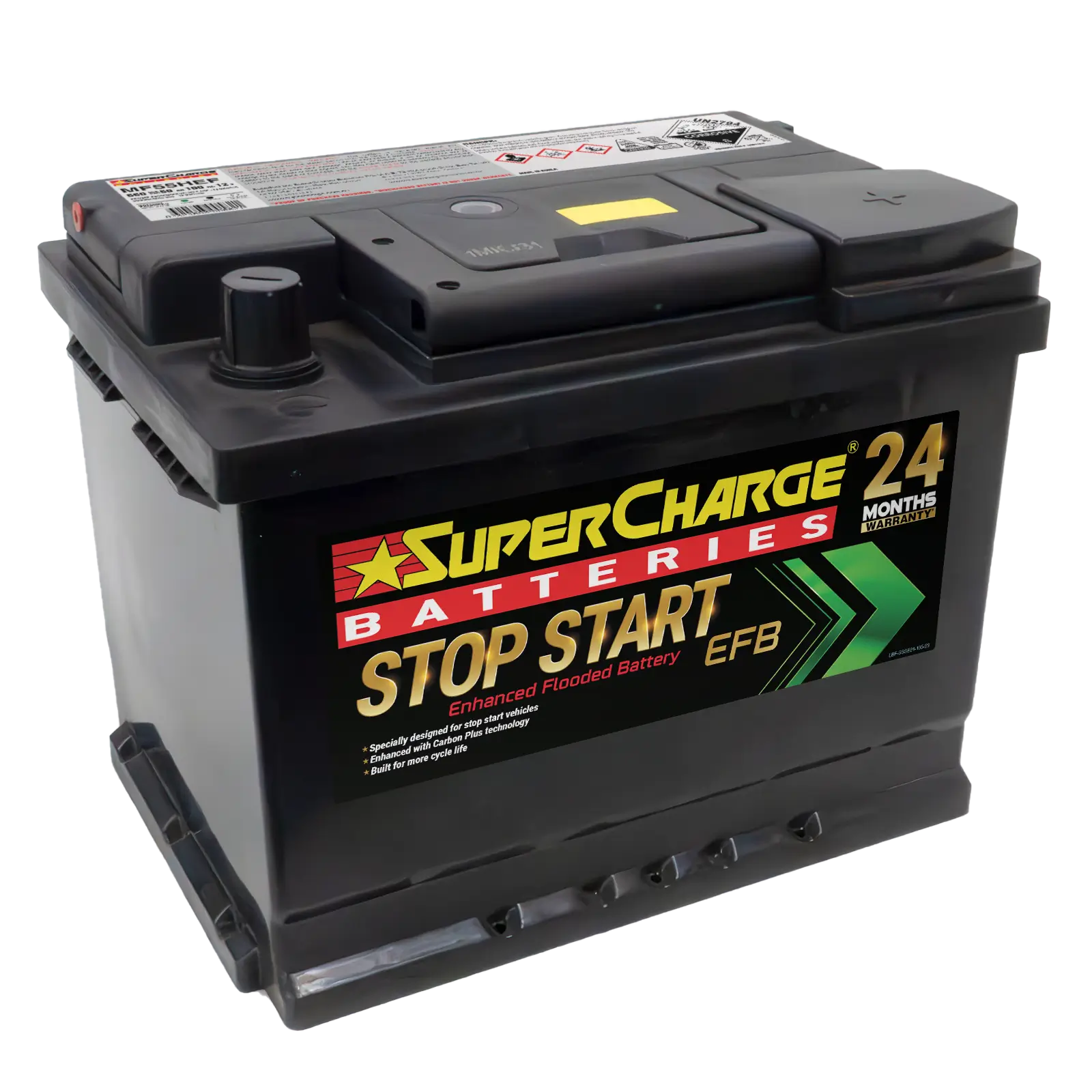

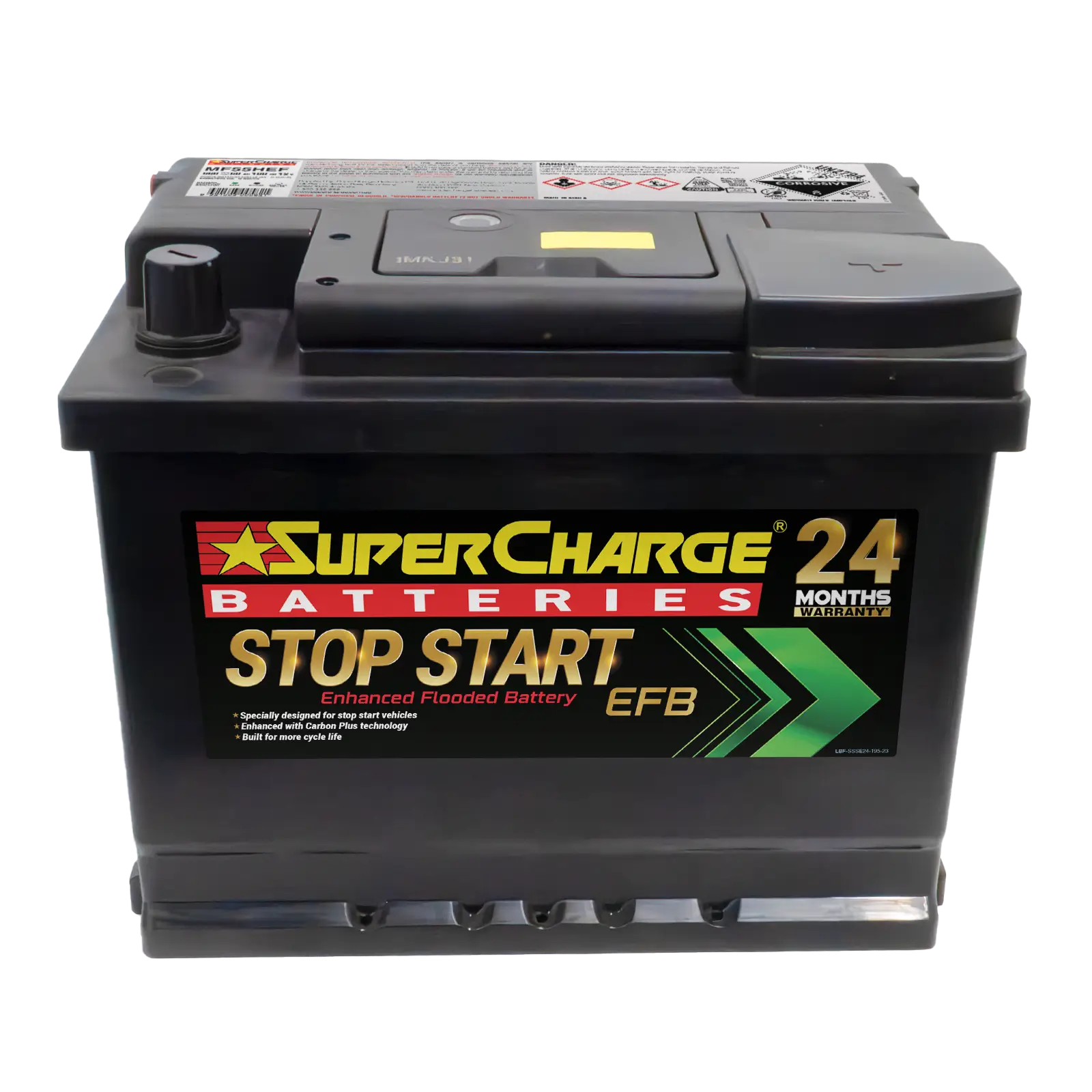

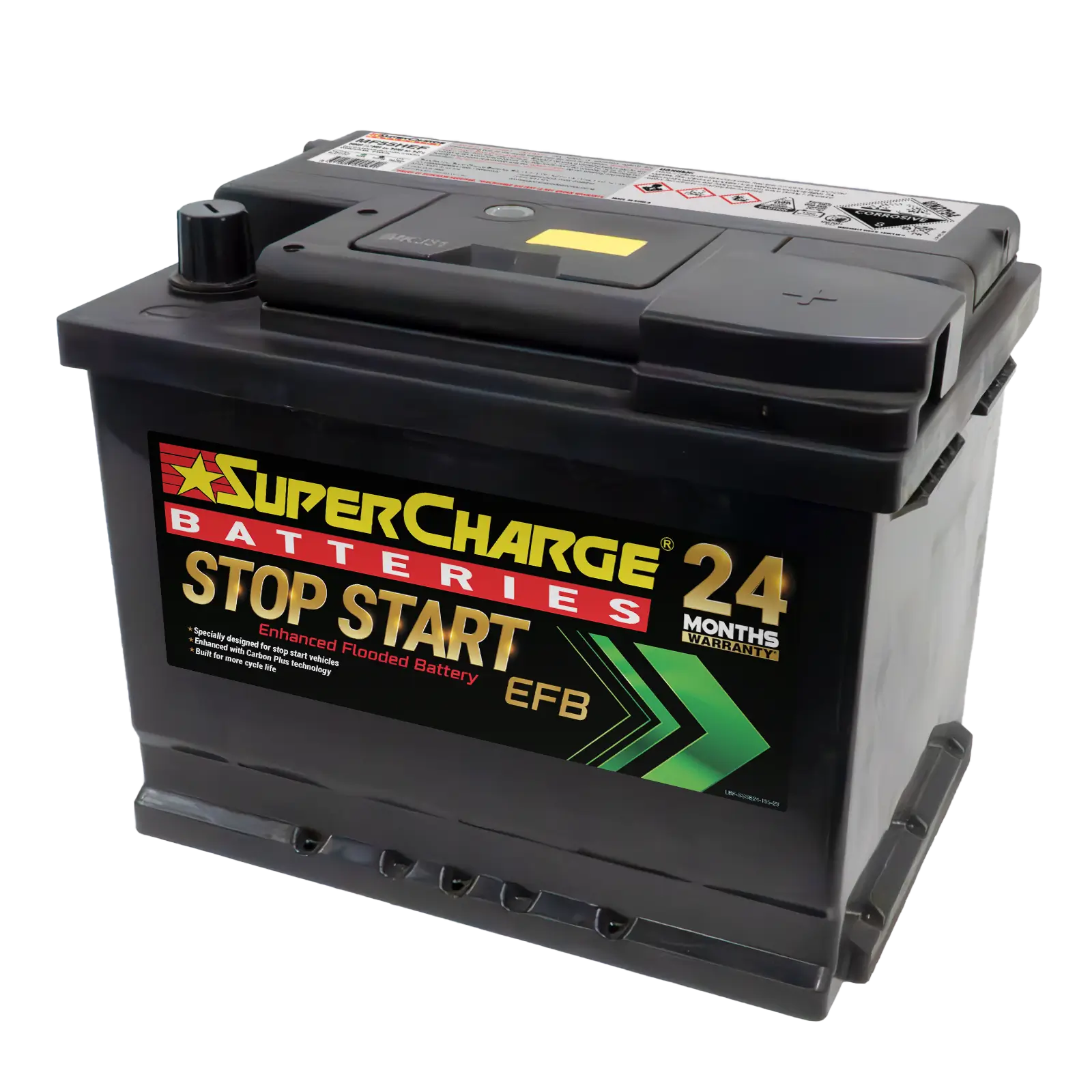

Supercharge Batteries MF55HEF Stop-Start EFB Battery for In-Cabin Installation

MF55HEF
Nominal Voltage:
12V
Size:
N55H
CCA @(-18°C):
660
RC @ 25A:
100
AH(20hr):
60
Length:
245mm
Width:
175mm
Height:
190mm
Total Height:
190mm
Battery Type:
Maintenance Free


Technology:
EFB SS
Accessibility:
TS
Post Style:
STD
Assembly:
C
Hydro:
YES
Ledge:
EL & FL
Warranty Comm:
12mths
Warranty Priv:
24mths

Abbreviations and Battery Assemblies

Battery Assembly

AP: Automotive Post

CV: Central Venting

CT: Centered Terminal

DFA: Dual Fit Aligned Terminals

DFP: Dual Fit Parallel Terminals

DST: Dual System Terminals

DT: Automotive Post & Stud

DWNT: Dual Wingnut

EL: End Ledge

ELPT: Embedded Low Profile

EUTR: Embedded Universal/Reverse

F1: F1 Terminal

F1-F2: F1/F2 Terminal

F2: F2 Terminal

F3: F3 Terminal

F3W: F3W Terminal

F5: F5 Terminal

F8: F8 Terminal

F9: F9 Terminal

F10: F10 Terminal

F10M8: F1 Terminal (1.25mmx15mm Stud I))

F11: F11 Terminal

F11M6: F11 Terminal (6mm/8mm Insert)

F12: F12 Terminal

F12M8: F12 Terminal (1.25mmx15mm Stud I)

F13: F13 Terminal

F14: F14 Terminal

F14M8: F14 Terminal (1.25mmx15mm Stud I)

F18: F18 Terminal

F22: F22 Terminal

F3: F3 Terminal

F5: F5 Terminal

F9: F9 Terminal

FL: Front Ledge

FDH: Fold Down Handles

HE: Hydrometer Eye

M6: M6

M8: 1.25mmx15mm Stud I

M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)

OLT: Offset Lug Terminal

PT: Pencil Terminal

RT: Recessed Terminal

RPH: Rope Handles

RTH: Retractable Handles

STD: Standard Terminal

ST: Side Terminal

TS: Top Stud Terminal

UT: Universal

WNT: Wingnut

MF55HEF

MF55HEF from Supercharge Batteries’ Stop-Start range is a premium EFB battery designed to exceed OE2 performance and safety standards for stop-start vehicles. It features hardened framed plates and corrosion-resistant alloys, ensuring durability and longevity. With an advanced dense and compact construction, it supports high-efficiency energy output and rapid recovery. The vibration-resistant design makes it ideal for in-cabin installation, delivering reliable power for modern stop-start automotive applications.



Explore the Ultimate Guide to Start Stop Car Batteries – Types, Tips, and Maintenance Explained!

Find the nearest authorized dealer to purchase your batteries or get expert advice.

Check and Register your car battery now for an extended warranty – Protect your investment today!

MAKE MODEL SERIES
ABARTH 695 –
ALFA ROMEO GIULIETTA –
ALFA ROMEO MITO –
AUDI A1 8X
AUDI A3 8P
FIAT 500X –
GWM HAVAL –
HOLDEN ASTRA BL
HONDA CIVIC FK
HONDA CIVIC FL
HYUNDAI TUCSON TLE
LEXUS NX300h AYZ10R
LEXUS NX300h AYZ15R
MERCEDES BENZ C200 C205
MG MG3 –
MITSUBISHI ECLIPSE CROSS YB
NISSAN JUKE F15
NISSAN JUKE F16
NISSAN X-TRAL T33
PEUGEOT 208 –
SKODA FABIA NJ
SKODA KAROQ NU
SUZUKI S-CROSS JY
TOYOTA CAMRY AXVH70R
TOYOTA CAMRY AXVH71R
TOYOTA CAMRY GSV70R
TOYOTA COROLLA MZEA12R
TOYOTA KLUGER AXUH78R
TOYOTA MIRAI JPD20
TOYOTA NOAH ZWR80R
TOYOTA RAV4 MXAA52R
TOYOTA VOXY ZWR80R
VOLKSWAGEN CADDY 2K
VOLKSWAGEN GOLF MK7
VOLKSWAGEN POLO 6C
VOLKSWAGEN POLO AE
VOLKSWAGEN POLO AW
VOLKSWAGEN POLO AW, AE

Make Model Sub Model Year Chassis Series CC Engine VIN Fuel System Body Drive Trans
LEXUS ES300h – 07/2018 – ON AXZH10 AXZH10R 2487 88kW/131kW – 1.3kWh PETROL-HEV A25AFXS I4 16V DOHC VVT JTHB21B1 DUAL INJ 4D SEDAN [JAPAN] FWD CVT
LEXUS NX300h HYBRID 11/2014 – 11/2021 AYZ15 AYZ15R 2494 105kW/50KW/114kW – 1.6kWh PETROL-HEV 2ARFXE I4 16V DOHC VVT JTJBJRBZ DIRECT INJ 4D SUV COMPACT [JAPAN] AWD CVT
LEXUS NX300h HYBRID 11/2014 – 11/2021 AYZ10 AYZ10R 2494 105kW/114kW – 1.6kWh PETROL-HEV 2ARFXE I4 16V DOHC VVT JTJYWRBZ DIRECT INJ 4D SUV COMPACT [JAPAN] FWD CVT
LEXUS RX450H – 11/2015 – 08/2022 GYL25 GYL25R 3456 123kW/50kW/230kW – 2kWh PETROL-HEV 2GRFXS V6 24V DOHC VVT JTJBGMCA DUAL INJ 4D SUV MID-SIZE [JAPAN] AWD CVT
LEXUS RZ450e – 02/2023 – ON XEBM15 XEBM15R 150kW/80kW – 71.4kWh BEV 1XM/1YM JTJAABAB ELECTRIC 4D SUV COMPACT [JAPAN] AWD AUTO
LEXUS RX450H – 10/2015 – 11/2020 GYL20 GYL20R 3456 123kW/193kW – 1.9kWh PETROL-HEV 2GRFXS V6 24V DOHC VVT GYL20 DUAL INJ 4D SUV MID-SIZE [JAPAN] FWD CVT
LEXUS LM350h SPORTS LUXURY HYBRID 06/2023 – ON AAWH15 AAWH15R 2487 134kW/40kW/140kW – 5Ah PETROL-HEV A25AFXS I4 16V DOHC VVT JTHCDAAD DUAL INJ 4D WAGON [JAPAN] AWD CVT
LEXUS LM350h SPORTS LUXURY HYBRID 06/2023 – ON AAWH10 AAWH10R 2487 134kW/140kW – 5Ah PETROL-HEV A25AFXS I4 16V DOHC VVT JTHCEABD DUAL INJ 4D WAGON [JAPAN] FWD CVT
LEXUS RX450H – 10/2015 – 07/2019 GYL25 GYL25R 3456 123kW/50kW/230kW – 2kWh PETROL-HEV 2GRFXS V6 24V DOHC VVT GYL25 DUAL INJ 4D SUV MID-SIZE [JAPAN] AWD CVT
LEXUS NX350h HYBRID 11/2021 – ON AAZH20 AAZH20R 2487 134kW – 1.6kWh PETROL-HEV A25AFXS I4 16V DOHC VVT JTJCCBAZ DUAL INJ 4D SUV COMPACT [JAPAN] FWD CVT
LEXUS NX350h HYBRID 11/2021 – ON AAZH25 AAZH25R 2487 134kW/40kW – 1.6kWh PETROL-HEV A25AFXS I4 16V DOHC VVT JTJCKBEZ DUAL INJ 4D SUV COMPACT [JAPAN] AWD CVT
LEXUS NX450h F SPORT PHEV 11/2021 – ON AAZH26 AAZH26R 2487 134kW/40kW – 1.6kWh PETROL-PHEV A25AFXS I4 16V DOHC VVT JTJCKBFZ DUAL INJ 4D SUV COMPACT [JAPAN] AWD CVT
TOYOTA VELLFIRE – 01/2015 – 06/2023 AYH30W AYH30R 2494 105kW/115kW – 1.6kWh PETROL-HEV 2ARFXE I4 16V DOHC VVT AYH30 DIRECT INJ 4D VAN – PASSENGER [JAPAN] FWD CVT
TOYOTA VOXY HYBRID 02/2014 – 06/2017 ZWR80 ZWR80R 1798 60kW/73kW – 1.3kWh PETROL-HEV 2ZRFXE I4 16V DOHC VVT ZWR80 MPFI 4D WAGON [JAPAN] FWD DVT
TOYOTA NOAH HYBRID 02/2014 – 06/2017 ZWR80 ZWR80R 1798 60kW/73kW – 1.3kWh PETROL-HEV 2ZRFXE I4 16V DOHC VVT ZWR80 MPFI 4D WAGON [JAPAN] FWD CVT
TOYOTA ESQUIRE HYBRID 02/2014 – 06/2017 ZWR80 ZWR80R 1798 60kW/73kW – 1.3kWh PETROL-HEV 2ZRFXE I4 16V DOHC VVT ZWR80 MPFI 4D WAGON [JAPAN] FWD CVT
TOYOTA MIRAI – 11/2020 – ON JPD20 JPD20 136kW – 1.2kWh HYDROGEN-HEV 3KM JTDAABAA ELECTRIC 4D SEDAN [JAPAN] AWD CVT
TOYOTA VOXY HYBRID 01/2022 – ON ZWR90 ZWR90R 1798 60kW/73kW – 1.3kWh PETROL-HEV 2ZRFXE I4 16V DOHC VVT ZWR90 MPFI 4D WAGON [JAPAN] FWD CVT
TOYOTA VELLFIRE HYBRID 06/2023 – ON AAHH40 AAHH40R 2487 134kW/140kW – 5Ah PETROL-HEV A25AFXS I4 16V DOHC VVT AAHH40 DUAL INJ 4D VAN – PASSENGER [JAPAN[ FWD CVT
TOYOTA VELLFIRE HYBRID 06/2023 – ON AAHH45 AAHH45R 2487 134kW/40kW/140kW – 5Ah PETROL-HEV A25AFXS I4 16V DOHC VVT AAHH45 DUAL INJ 4D VAN – PASSENGER [JAPAN] AWD CVT
TOYOTA NOAH HYBRID 01/2022 – ON ZWR90 ZWR90R 1798 60kW/73kW – 1.3kWh PETROL-HEV 2ZRFXE I4 16V DOHC VVT ZWR90 MPFI 4D WAGON [JAPN] FWD CVT
TOYOTA NOAH HYBRID 01/2022 – ON ZWR92 ZWR92R 1798 60kW/73kW – 1.3kWh PETROL-HEV 2ZRFXE I4 16V DOHC VVT ZWR92 MPFI 4D WAGON [JAPAN] FWD CVT
TOYOTA VOXY HYBRID 01/2022 – ON ZWR92 ZWR92R 1798 60kW/73kW – 1.3kWh PETROL-HEV 2ZRFXE I4 16V DOHC VVT ZWR92 MPFI 4D WAGON [JAPAN] FWD CVT
TOYOTA CROWN SPORT Z 11/2023 – ON AZSH36 AZSH36R 2487 105kW/137kW – 1.6kWh PETROL-HEV A25AFXS I4444 16V DOHC VVT AZSH36 DUAL INJ 4D WAGON [JAPAN] AWD CVT
TOYOTA CAMRY GX, SX, ZR 08/2020 – 06/2024 AXVH70 AXVH70R 2487 88kW/131kW – 1.6kWh PETROL-HEV A25AFXS I4 16V DOHC VVT JTNBA3HK DUAL INJ 4D SEDAN [JAPAN] FWD CVT
TOYOTA CAMRY ASCENT 11/2017 – 07/2020 AXVH71 AXVH71R 2487 88kW/131kW – 1.6kWh PETROL-HEV A25AFXS I4 16V DOHC VVT JTNB23HK DUAL INJ 4D SEDAN [JAPAN] FWD CVT
TOYOTA CAMRY GX, SX, ZR 08/2020 – 06/2024 AXVH70 AXVH70R 2487 88kW/131kW – 1.6kWh PETROL-HEV A25AFXS I4 16V DOHC VVT JTNB13HK DUAL INJ 4D SEDAN [JAPAN] FWD CVT
TOYOTA CAMRY ASCENT 08/2020 – 06/2024 AXVH70 AXVH70R 2487 88kW/131kW – 1.6kWh PETROL-HEV A25AFXS I4 16V DOHC VVT JTNB23HK DUAL INJ 4D SEDAN [JAPAN] FWD CVT
TOYOTA ALPHARD – 01/2015 – 06/2023 AYH30W AYH30R 2494 105kW/112kW – 1.6kWh PETROL-HEV 2ARFXE I4 16V DOHC VVT AYH30 DIRECT INJ 4D VAN – PASSENGER [JAPAN] FWD CVT
TOYOTA CAMRY – 07/2017 – 06/2024 AXVH70 AXVH70R 2487 88kW/131kW – 1.6kWh PETROL-HEV A25AFXS I4 16V DOHC VVT AXVH70 DUAL INJ 4D SEDAN [JAPAN] FWD CVT
TOYOTA RAV4 PHEV 06/2020 – ON AXAP54 AXAP54R 2487 134kW/40kW/131kW – 18.1kWh PETROL-PHEV A25AFXS I4 16V DOHC VVT AXAP54 DUAL INJ 4D SUV COMPACT [JAPAN] AWD CVT
TOYOTA HARRIER HYBRID 06/2020 – ON AXUH80 AXUH80R 2487 40kW/131kW – 1.6kWh PETROL-HEV A25AFXS I4 16V DOHC VVT AXUH80 DUAL INJ 4D SUV MID-SIZE [JAPAN] FWD CVT
TOYOTA CROWN HYBRID 06/2018 – ON GWS224 GWS224R 3456 132kW/220kW – 1.1kWh PETROL-HEV 8GRFXS V6 24V DOHC VVT GWS224 DUAL INJ 4D SEDAN [JAPAN] RWD CVT
TOYOTA HARRIER HYBRID 06/2020 – ON AXUH85 AXUH85R 2387 40kW/131kW – 1.6kWh PETROL-HEV A25AFXS I4 16V DOHC VVT AXUH85 DUAL INJ 4D SUV MID-SIZE [JAPAN] AWD CVT
TOYOTA ALPHARD HYBRID 06/2023 – ON AAHH45 AAHH45R 2487 134kW/40kW/140kW – 5Ah PETROL-HEV A25AFXS I4 16V DOHC VVT AAHH45 DUAL INJ 4D VAN – PASSENGER [JAPAN] AWD CVT
TOYOTA ALPHARD HYBRID 06/2023 – ON AAHH40 AAHH40R 2487 134kW/140kW – 5Ah PETROL-HEV A25AFXS I4 16V DOHC VVT AAHH40 DUAL INJ 4D VAN – PASSENGER [JAPAN] FWD CVT
TOYOTA CAMRY – 06/2024 – ON AXVH80 AXVH80R 2487 88kW/138kW – 1.6kWh PETROL-HEV A25AFXS I4 16V DOHC VVT JTNAGACK DUAL INJ 4D SEDAN [JAPAN] FWD CVT
