Supercharge Stop/Start MF66HEF

MF66HEF – Stop-Start Battery | Supercharge Batteries

MF66HEF

Nominal Voltage:
12V
Size:
N66H
CCA @(-18°C):
750
RC @ 25A:
120
Ah 20hr:
70
Length:
278mm
Width:
175mm
Height:
190mm
Total Height:
190mm
Battery Type:
Maintenance Free
Technology:
EFB SS
Ledge:
EL & FL
Accessibility:
TS
Hydro:
YES
Post Style:
STD
Assembly:
C
Warranty Priv:
24 mths
Warranty Comm:
12 mths

Abbreviations and Battery Assemblies

Battery Assembly
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

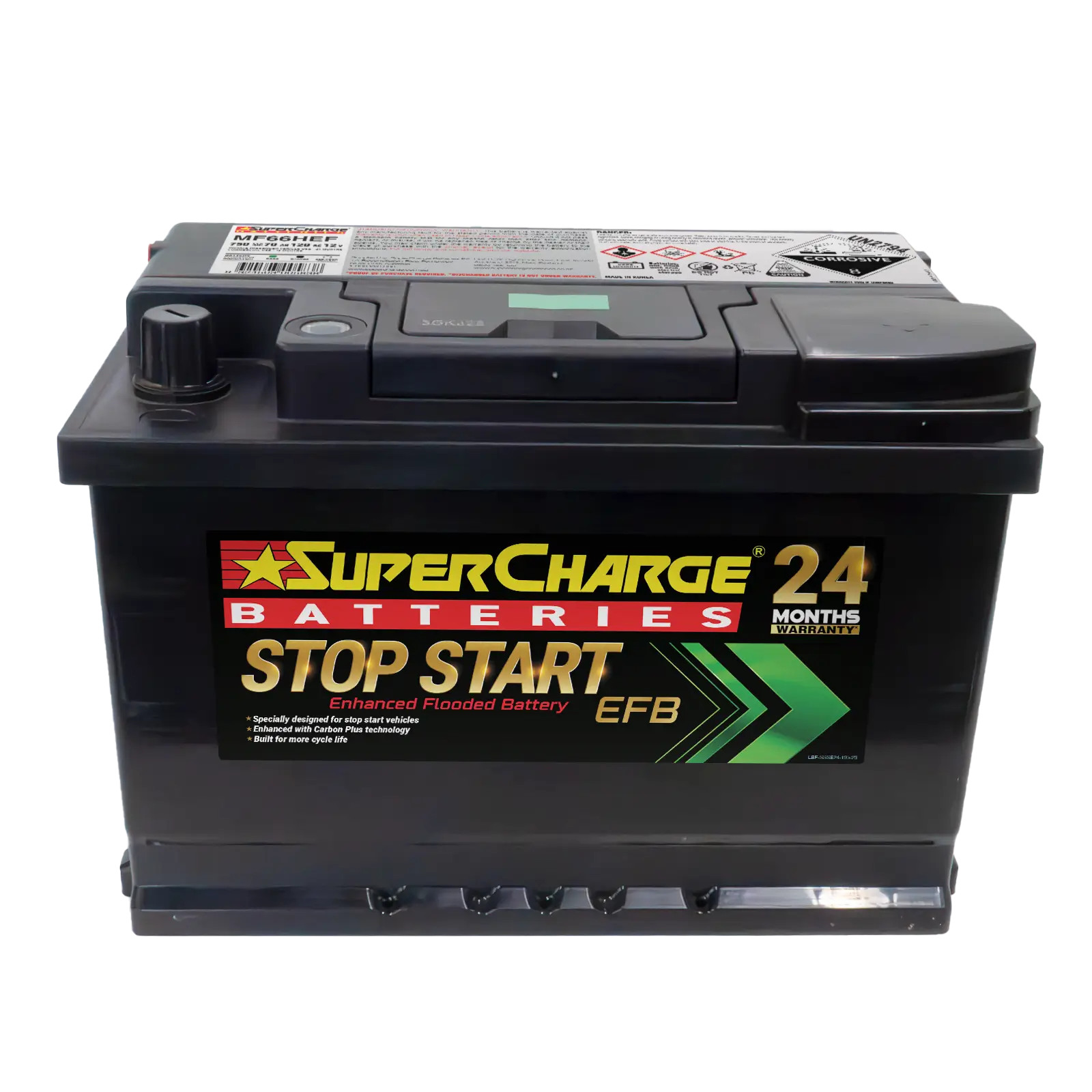

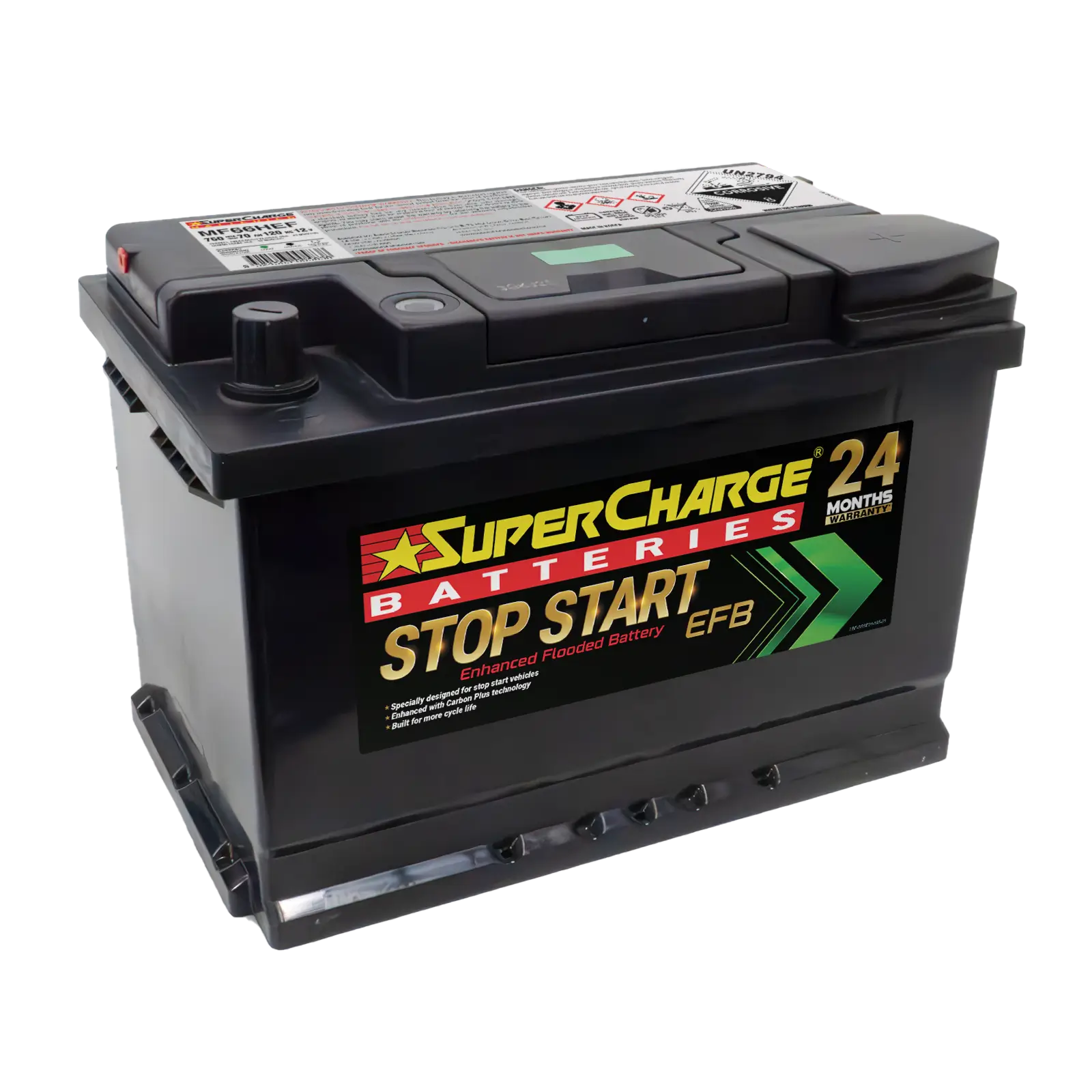

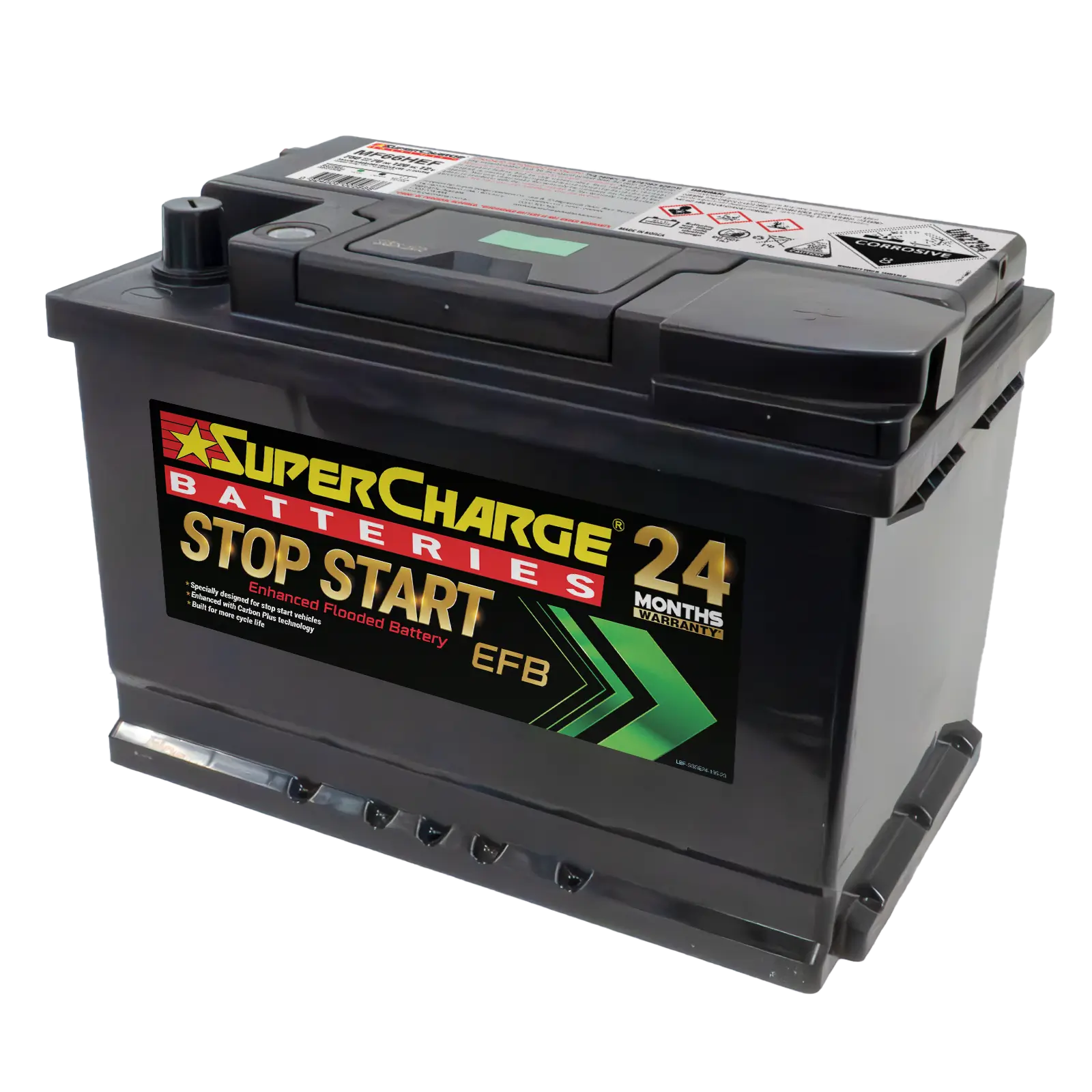

Supercharge Batteries MF66HEF Stop-Start EFB Battery for In-Cabin Installation

MF66HEF
Nominal Voltage:
12V
Size:
N66H
CCA @(-18°C):
750
RC @ 25A:
120
AH(20hr):
70
Length:
278mm
Width:
175mm
Height:
190mm
Total Height:
190mm
Battery Type:
Maintenance Free


Technology:
EFB SS
Accessibility:
TS
Post Style:
STD
Assembly:
C
Hydro:
YES
Ledge:
EL & FL
Warranty Comm:
12mths
Warranty Priv:
24mths

Abbreviations and Battery Assemblies

Battery Assembly

AP: Automotive Post

CV: Central Venting

CT: Centered Terminal

DFA: Dual Fit Aligned Terminals

DFP: Dual Fit Parallel Terminals

DST: Dual System Terminals

DT: Automotive Post & Stud

DWNT: Dual Wingnut

EL: End Ledge

ELPT: Embedded Low Profile

EUTR: Embedded Universal/Reverse

F1: F1 Terminal

F1-F2: F1/F2 Terminal

F2: F2 Terminal

F3: F3 Terminal

F3W: F3W Terminal

F5: F5 Terminal

F8: F8 Terminal

F9: F9 Terminal

F10: F10 Terminal

F10M8: F1 Terminal (1.25mmx15mm Stud I))

F11: F11 Terminal

F11M6: F11 Terminal (6mm/8mm Insert)

F12: F12 Terminal

F12M8: F12 Terminal (1.25mmx15mm Stud I)

F13: F13 Terminal

F14: F14 Terminal

F14M8: F14 Terminal (1.25mmx15mm Stud I)

F18: F18 Terminal

F22: F22 Terminal

F3: F3 Terminal

F5: F5 Terminal

F9: F9 Terminal

FL: Front Ledge

FDH: Fold Down Handles

HE: Hydrometer Eye

M6: M6

M8: 1.25mmx15mm Stud I

M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)

OLT: Offset Lug Terminal

PT: Pencil Terminal

RT: Recessed Terminal

RPH: Rope Handles

RTH: Retractable Handles

STD: Standard Terminal

ST: Side Terminal

TS: Top Stud Terminal

UT: Universal

WNT: Wingnut

MF66HEF

MF66HEF from Supercharge Batteries’ Stop-Start range is a high-performance EFB battery engineered to exceed OE2 performance and safety standards for stop-start vehicles. Built to withstand frequent discharge cycles, it features hardened framed plates and corrosion-resistant alloys for maximum durability. The dense, compact construction enhances high-efficiency energy output and quick recovery. Its vibration-resistant design makes it ideal for in-cabin installation, ensuring long-lasting reliability for modern stop-start applications.



Explore the Ultimate Guide to Start Stop Car Batteries – Types, Tips, and Maintenance Explained!

Find the nearest authorized dealer to purchase your batteries or get expert advice.

Check and Register your car battery now for an extended warranty – Protect your investment today!

MAKE MODEL SERIES
AUDI A1 GB
AUDI A3 8P
AUDI A3 8V
AUDI A3 8Y
AUDI Q2 GA
AUDI Q3 F3
BMW 130i E87
BMW X2 F39
CUPRA FORMENTOR KM
FORD FOCUS SA
FORD RANGER PX2, PX3
ISUZU D-MAX TFS
JEEP RENEGADE –
LEXUS ES250 AXZA10R
NISSAN NAVARA D23, NP300
NISSAN QASHQAI J12
NISSAN X-TRAL T33
PEUGEOT 2008 –
PEUGEOT 3008 P84
PEUGEOT PARTNER K9
RENAULT CAPTUR XJB
RENAULT MEGANE BFB
TOYOTA RAV4 MXAA52R
VOLKSWAGEN GOLF MK7
VOLKSWAGEN GOLF MK8
VOLKSWAGEN PASSAT B8
VOLKSWAGEN TIGUAN AD1
VOLKSWAGEN T-ROC A11

Make Model Sub Model Year Chassis Series CC Engine VIN Fuel System Body Drive Trans
LEXUS LS500h HYBRID 10/2017 – ON GVF50 GVF50R 3456 132kW/220kW – 1.1kWh PETROL-HEV 8GRFXS V6 24V DOHC VVT JTHBYLFF DUAL INJ 4D SEDAN [JAPAN] RWD CVT
LEXUS LC500h HYBRID 06/2017 – 03/2020 GWZ100 GWZ100R 3456 132kW/264kW – 1.1kWh PETROL-HEV 8GRFXS V6VVT JTHHY5AY DUAL INJ 2D COUPE [JAPAN] RWD CVT
LEXUS LS500h F-SPORT HYBRID 10/2017 – ON GVF50 GVF50R 3456 132kW/220kW – 1.1kWh PETROL-HEV 8GRFXS V6 24V DOHC VVT JTHBY1FF DUAL INJ 4D SEDAN [JAPAN] RWD CVT
LEXUS LC500h HYBRID 04/2020 – ON GWZ100 GWZ100R 3456 132kW/220kW – 1.1kWh PETROL-HEV 8GRFXS V6 24V DOHC VVT JTHHY5AY DUAL INJ 2D COUPE [JAPAN] RWD AUTO
LEXUS LM500h ULTRA LUXURY HYBRID 11/2023 – ON TAWH15 TAWH15 2393 64kW/76kW/202kW PETROL-HEV T24AFTS I4 16V DOHC VVT JTHAAAAD DUAL INJ I/C TURBO 4D WAGON [JAPAN] AWD AUTO
TOYOTA HILUX SR, SR5 48V 01/2024 – ON GUN126 GUN126R 2755 150kW DIESEL-MHEV 1GDFTV I4 16V DOHC MR0KE3CD CRD I/C TURBO 4D UTE – DC – CAB CHASSIS [THAILAND] 4WD AUTO
TOYOTA HILUX SR, SR5, ROGUE 48V 01/2024 – ON GUN126 GUN126R 2755 150kW DIESEL-MHEV 1GDFTV I4 16V DOHC MR0BE3CD CRD I/C TURBO 4D UTE – DC – WELLSIDE [THAILAND] 4WD AUTO
