Supercharge Goldplus MF66HR
MF66HR
RC @ 25A:
165
Battery Type:
Maintenance Free
Technology:
SMF CAL
Ledge:
EL & FL
Hydro:
YES
Abbreviations and Battery Assemblies
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

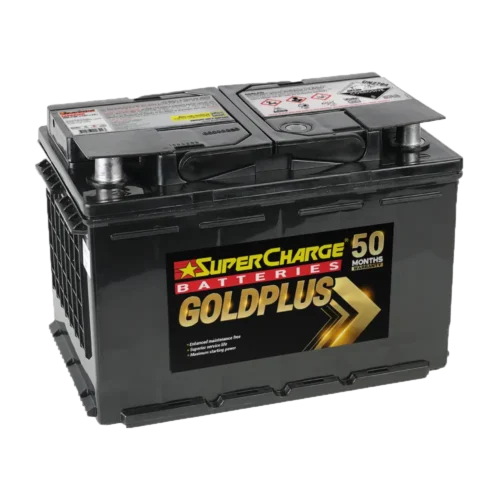

GoldPlus MF66HR Car Battery
MF66HR
12V 90AH Car Battery
The MF66HR European Automotive Battery is designed to deliver dependable starting performance and efficient electrical power for compatible European vehicles. It features a More Lead-Calcium Tropicalised Power Plate to support reliable operation in demanding conditions, while high-purity lead and electrolyte help promote efficient electrical transfer. Its advanced dense and compact construction provides a robust design suited to modern European automotive applications.
Built with hardened alloys and durable intercell connections, the MF66HR is formulated for high state of charge retention and efficient electrical flow. This fully sealed, maintenance-free European automotive battery requires no routine electrolyte maintenance during normal operation. Combining tropicalised power plate technology, compact construction and high-efficiency electrical design, the MF66HR provides a practical battery solution for compatible European vehicles.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF66HR Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N66H/LN3 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 800 |
| RC | 165 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
90 |
| Length, mm | 277 |
| Width, mm | 175 |
| Height, mm | 190 |
| Total Height, mm | 190 |
| Assembly | D (Positive Left) |
| Post Type | STD |
| Ledge | EL & Fl |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What type of battery is the MF66HR?
The MF66HR is a European Automotive Battery designed for compatible European vehicles requiring dependable starting performance and maintenance-free operation.
Is the MF66HR a maintenance-free battery?
Yes. The MF66HR is a fully sealed, maintenance-free battery designed to operate without routine electrolyte maintenance.
What technology does the MF66HR use?
The MF66HR features a More Lead-Calcium Tropicalised Power Plate, high-purity lead and electrolyte, hardened alloys and durable intercell connections to support efficient electrical performance.
What are the key features of the MF66HR?
Key features include high state of charge retention, efficient electrical flow, dense and compact construction, tropicalised power plate technology, hardened alloys and maintenance-free operation.
