Supercharge Goldplus MF77
MF77
Nominal Voltage:
12V
Size:
N77
CCA @(-18°C):
840
RC @ 25A:
165
Ah 20hr:
90
Length:
315mm
Width:
175mm
Height:
175mm
Total Height:
175mm
Battery Type:
Maintenance Free
Technology:
SMF CAL
Ledge:
EL & FL
Accessibility:
TS
Hydro:
YES
Post Style:
STD
Assembly:
C
Warranty Priv:
40 mths
Warranty Comm:
18 mths
Abbreviations and Battery Assemblies
![$specification_and_dimension['abbreviation_image']['alt']](https://www.supercharge.com.au/wp-content/uploads/2025/02/WEBP-Battery-Assembly.webp)
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

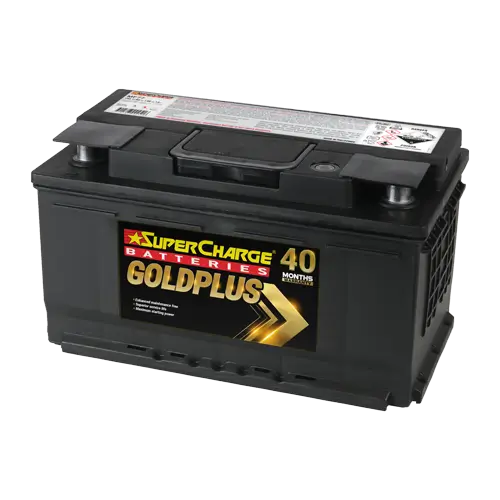

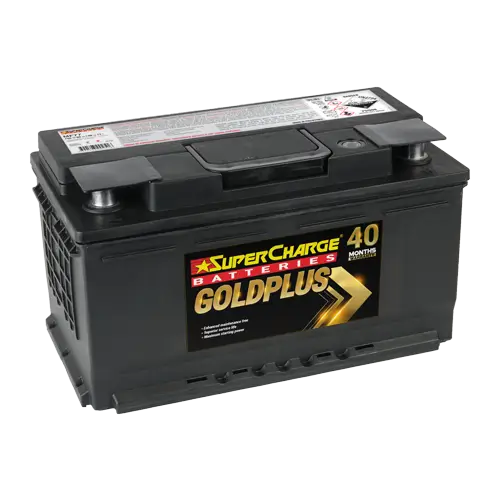

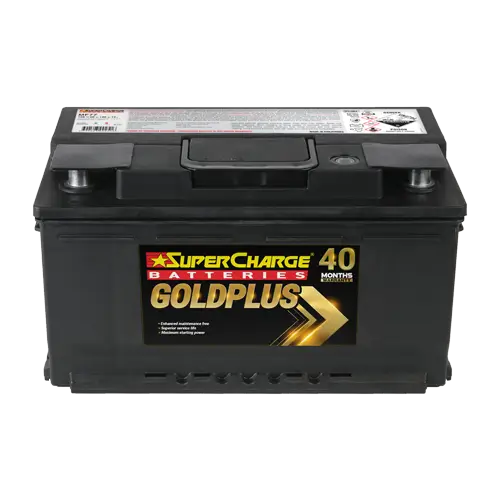

GoldPlus MF77 European Automotive Battery
MF77
12V 90AH European Automotive Battery
The MF77 battery is engineered for superior power and lasting reliability, making it ideal for vehicles that require consistent and dependable performance. Built with More Lead-Calcium Tropicalised Power Plates and a high-purity lead and electrolyte formula, the MF77 ensures excellent charge retention and reliable start-up power. Its dense, compact construction with reinforced intercell connections provides durability and stability even in demanding driving conditions.
Fully-sealed and maintenance-free, the MF77 eliminates the need for regular upkeep while optimizing electrical efficiency. Designed with hardened alloys and a high-efficiency electrical flow system, it delivers dependable performance in all weather conditions. The MF77 is a premium solution for drivers seeking long-lasting, maintenance-free power with maximum reliability.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF77 Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Find a DealerNeed help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
View the Full Buying GuideTechnical Specifications
| Size | N77/LB4 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 840 |
| RC | 165 |
| AH | 90 |
| Length, mm | 315 |
| Width, mm | 175 |
| Height, mm | 175 |
| Total Height, mm | 175 |
| Assembly | C |
| Post Type | STD |
| Ledge | EL & FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
Show Abbreviations Show Battery Assemblies Show Applications| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What makes the MF77 battery reliable?
The MF77 features dense, compact construction, reinforced intercell connections, and high-purity lead, providing consistent power and long-lasting durability.
Is the MF77 battery maintenance-free?
Yes. The MF77 is fully-sealed and maintenance-free, eliminating the need for electrolyte checks, making it convenient and hassle-free.
How does the MF77 perform in extreme conditions?
With More Lead-Calcium Tropicalised Power Plates and hardened alloys, the MF77 delivers dependable start-up power in both hot and cold weather.
How long can I expect the MF77 battery to last?
Thanks to its advanced design and efficient electrical flow system, the MF77 provides a longer lifespan than standard batteries, offering reliable performance for years.
