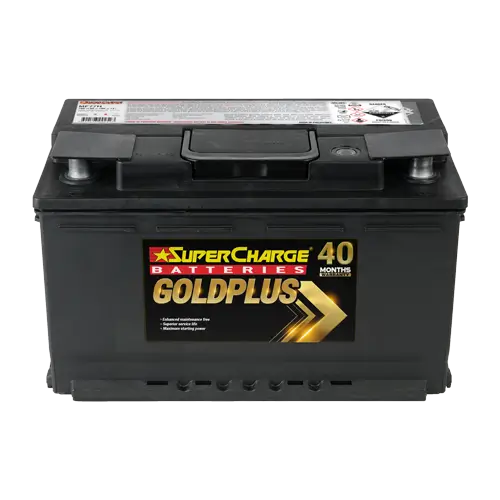

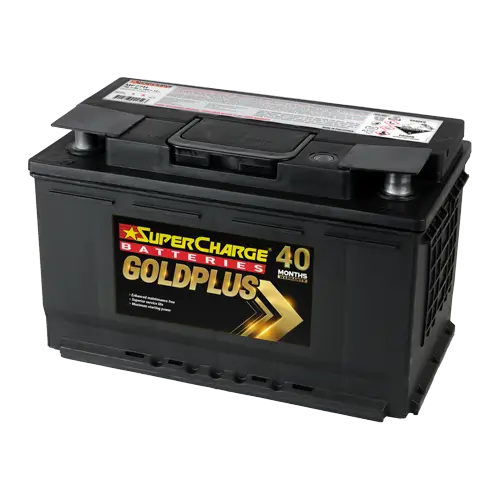

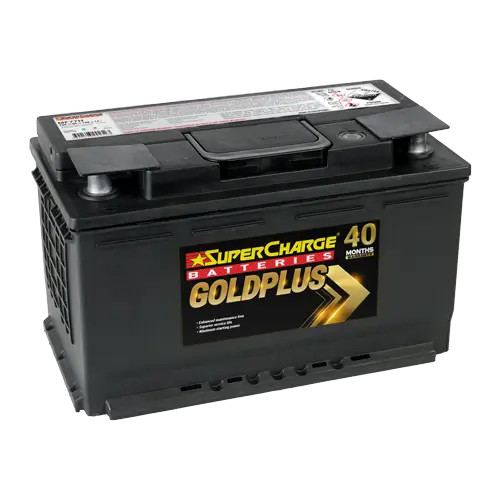

GoldPlus MF77H Car Battery
MF77H
12V 95AH Car Battery
The MF77H European Automotive Battery is engineered to provide dependable starting performance and efficient electrical power for compatible European vehicles. It features a More Lead-Calcium Tropicalised Power Plate designed to support reliable operation in demanding conditions, while high-purity lead and electrolyte help promote efficient electrical flow. Its advanced dense and compact construction provides a robust internal design suited to modern European automotive applications.
Built using hardened alloys and durable intercell connections, the MF77H is formulated for high state of charge retention and consistent electrical performance. This fully sealed, maintenance-free European automotive battery requires no routine electrolyte maintenance during normal operation. Combining tropicalised power plate technology, high-purity materials and a high-efficiency electrical flow design, the MF77H provides a practical battery solution for compatible European vehicles.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF77H Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N77H/LN4 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 840 |
| RC | 175 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
95 |
| Length, mm | 315 |
| Width, mm | 175 |
| Height, mm | 190 |
| Total Height, mm | 190 |
| Assembly | C (Positive Right) |
| Post Type | STD |
| Ledge | NL |
| Accessibility | EL & FL |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What type of battery is the MF77H?
The MF77H is a European Automotive Battery designed for compatible European vehicles requiring dependable starting performance and maintenance-free operation.
Is the MF77H a maintenance-free battery?
Yes. The MF77H is a fully sealed, maintenance-free battery designed to operate without routine electrolyte maintenance.
What technology does the MF77H use?
The MF77H features a More Lead-Calcium Tropicalised Power Plate, high-purity lead and electrolyte, hardened alloys and durable intercell connections to support efficient electrical performance.
What are the key features of the MF77H?
Key features include high state of charge retention, efficient electrical flow, dense and compact construction, tropicalised power plate technology, hardened alloys and maintenance-free operation.
