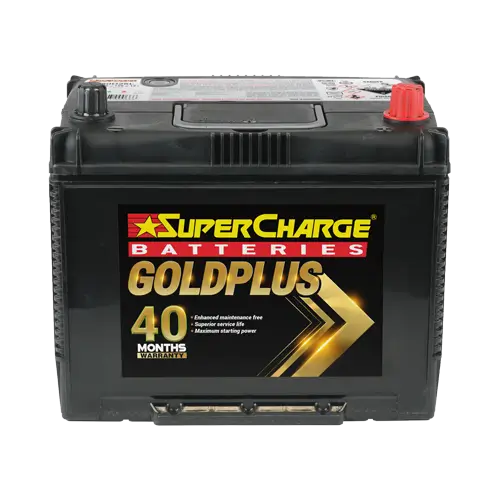

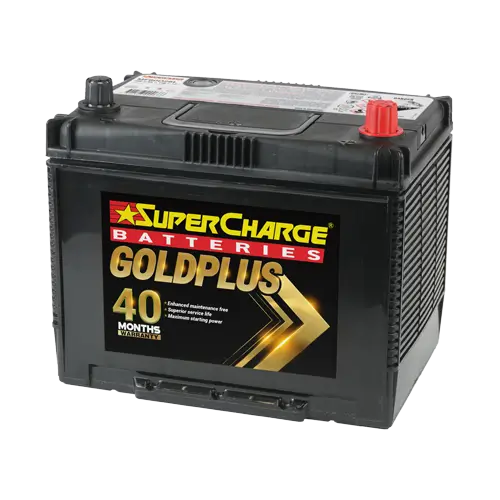

GoldPlus MF80D26L SUV & 4WD Battery
MF80D26L
12V 85AH SUV & 4WD Battery
The MF80D26L SUV & 4WD Battery is engineered for reliable starting performance across demanding automotive applications. It combines More Lead-Calcium Tropicalised Power Plates with high-purity lead and electrolyte to support efficient electrical operation. An advanced dense and compact construction provides a solid internal design, while hardened alloys and durable intercell connections are used to reinforce the battery's structure. Its high-efficiency electrical flow design helps deliver power effectively during vehicle starting.
Built for practical, low-maintenance operation, the MF80D26L battery features a fully sealed construction that requires no routine electrolyte top-ups. Its formulation is designed to provide high state-of-charge retention, helping preserve stored charge when the vehicle is parked between uses. With tropicalised plate technology, strengthened internal components and efficient electrical flow, the MF80D26L is a robust choice for SUV and 4WD starting applications.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF80D26L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right 4WD battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS70 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 750 |
| RC | 150 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
85 |
| Length, mm | 259 |
| Width, mm | 174 |
| Height, mm | 202 |
| Total Height, mm | 223 |
| Assembly | C (Positive Right) |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What type of battery is the MF80D26L?
The MF80D26L is an SUV & 4WD Battery designed for automotive starting applications. It features Lead-Calcium Tropicalised Power Plates and a fully sealed, maintenance-free design.
How is the MF80D26L constructed for durability?
The battery uses an advanced dense and compact construction, hardened alloys and robust intercell connections. These components work together to provide a strong internal structure and support consistent electrical operation.
What does the MF80D26L's high state-of-charge retention mean?
The formulation is designed to help the MF80D26L retain its stored electrical charge between periods of vehicle use. This is supported by its high-purity lead and electrolyte formulation.
Is the MF80D26L a sealed maintenance-free battery?
Yes. The MF80D26L is fully sealed and maintenance-free, so regular electrolyte top-ups are not required during normal operation.
