Supercharge Gladiator MFULD23L
MFULD23L
Nominal Voltage:
12V
Size:
D23
CCA @(-18°C):
650
RC @ 25A:
120
Ah 20hr:
75
Length:
233mm
Width:
173mm
Height:
201mm
Total Height:
222mm
Battery Type:
Maintenance Free
No. of Poles:
1
Technology:
SMF CAL
Ledge:
FL
Accessibility:
TS
Hydro:
YES
Post Style:
STD
Assembly:
C
Warranty Priv:
50 mths
Warr Priv Extn:
60 mths
Warranty Comm:
24 mths
Abbreviations and Battery Assemblies
![$specification_and_dimension['abbreviation_image']['alt']](https://www.supercharge.com.au/wp-content/uploads/2025/02/WEBP-Battery-Assembly.webp)
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

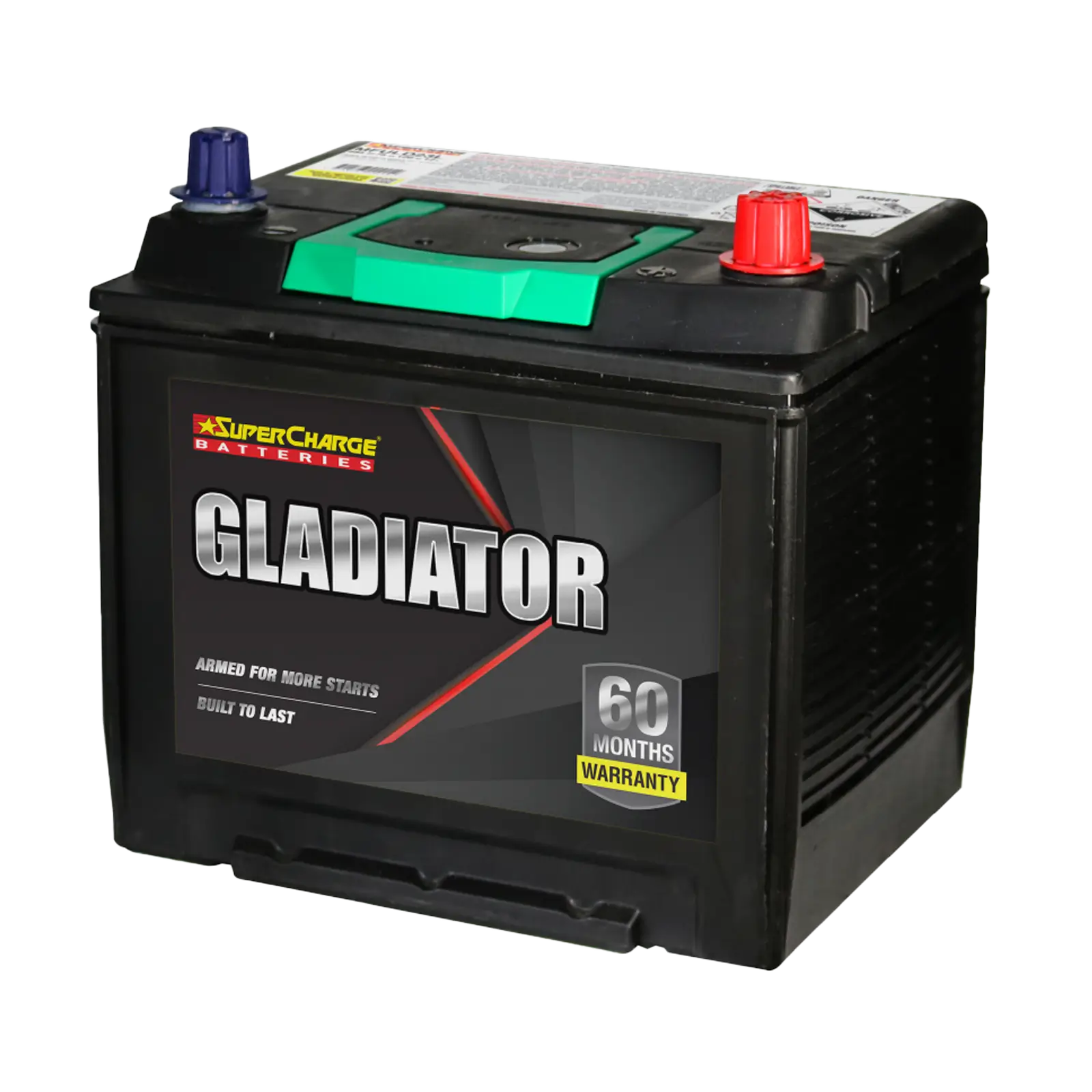

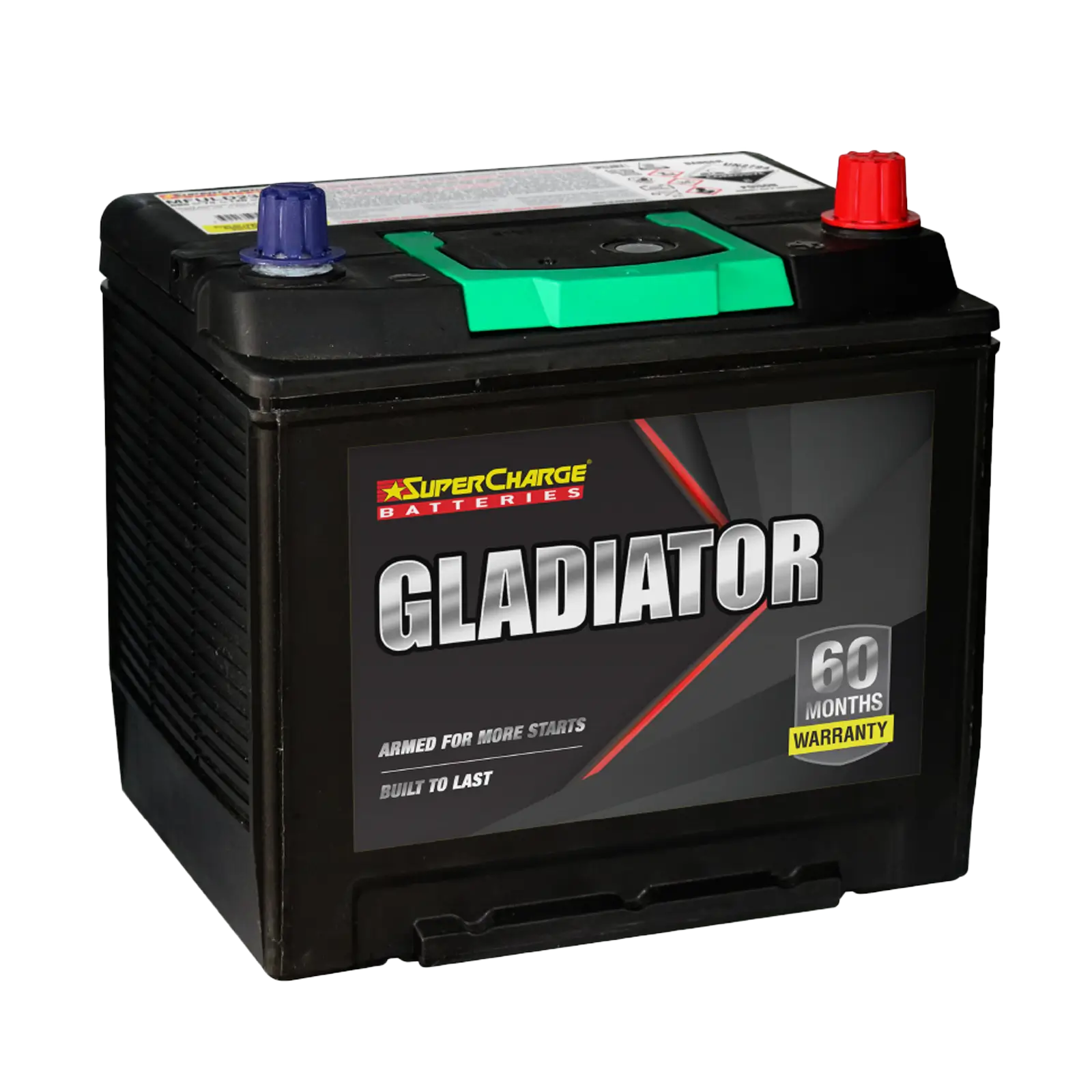

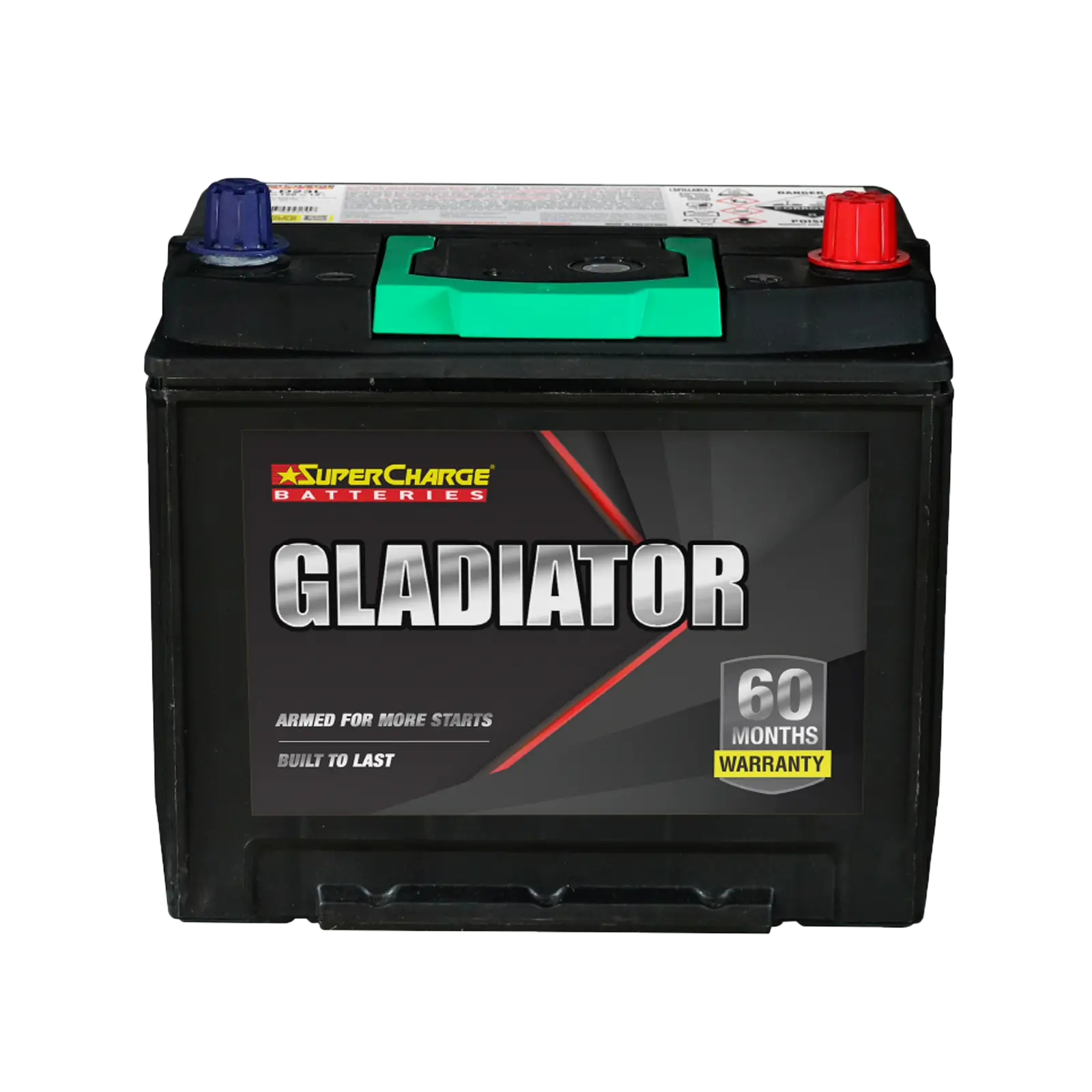

Gladiator MFULD23L Automotive Battery
MFULD23L
12V 75AH Automotive Battery
The MFULD23L represents the pinnacle of flooded battery technology, delivering outstanding performance and extended service life for modern vehicles. Designed to exceed OE2 requirements, it provides reliable starting power and consistent energy delivery across a wide range of driving conditions. With up to 100% more cycle life than older technologies, the MFULD23L is built to handle increased electrical demands while maintaining exceptional efficiency.
Engineered with tropicalised and hardened framed plates, the MFULD23L offers superior durability and resistance to harsh conditions. Its advanced dense and compact construction supports high-efficiency electrical flow and optimised heat control, ensuring stable and reliable performance. Designed for high state of charge retention and vibration resistance, the MFULD23L delivers powerful energy output, fast recovery, and long-lasting reliability for today’s vehicles.
Features
Armed for more starts
Built to last
60 months warranty
The Supercharge MFULD23L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Find a DealerNeed help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
View the Full Buying GuideTechnical Specifications
| Size | D23 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 650 |
| RC | 120 |
| AH | 75 |
| Length, mm | 233 |
| Width, mm | 173 |
| Height, mm | 201 |
| Total Height, mm | 222 |
| Assembly | C |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 50 months |
| Extended Warranty (Private Use) | 60 months |
| Warranty (Commercial Use) | 24 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
Show Abbreviations Show Battery Assemblies Show Applications| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What makes the MFULD23L different from standard batteries?
It offers up to 100% more cycle life, exceeds OE2 standards, and delivers superior performance and longevity.
Is the MFULD23L suitable for modern vehicles?
Yes, it is designed to meet the demands of modern vehicles with higher electrical loads.
How does it handle heat and harsh conditions?
It is balanced for optimised heat control and built with tropicalised plates for durability in tough environments.
Is the MFULD23L resistant to vibration?
Yes, it features a vibration-resistant design for improved durability and reliability.
Same Size Batteries
Current Selection
MFULD23L
12V 75AH Automotive Battery

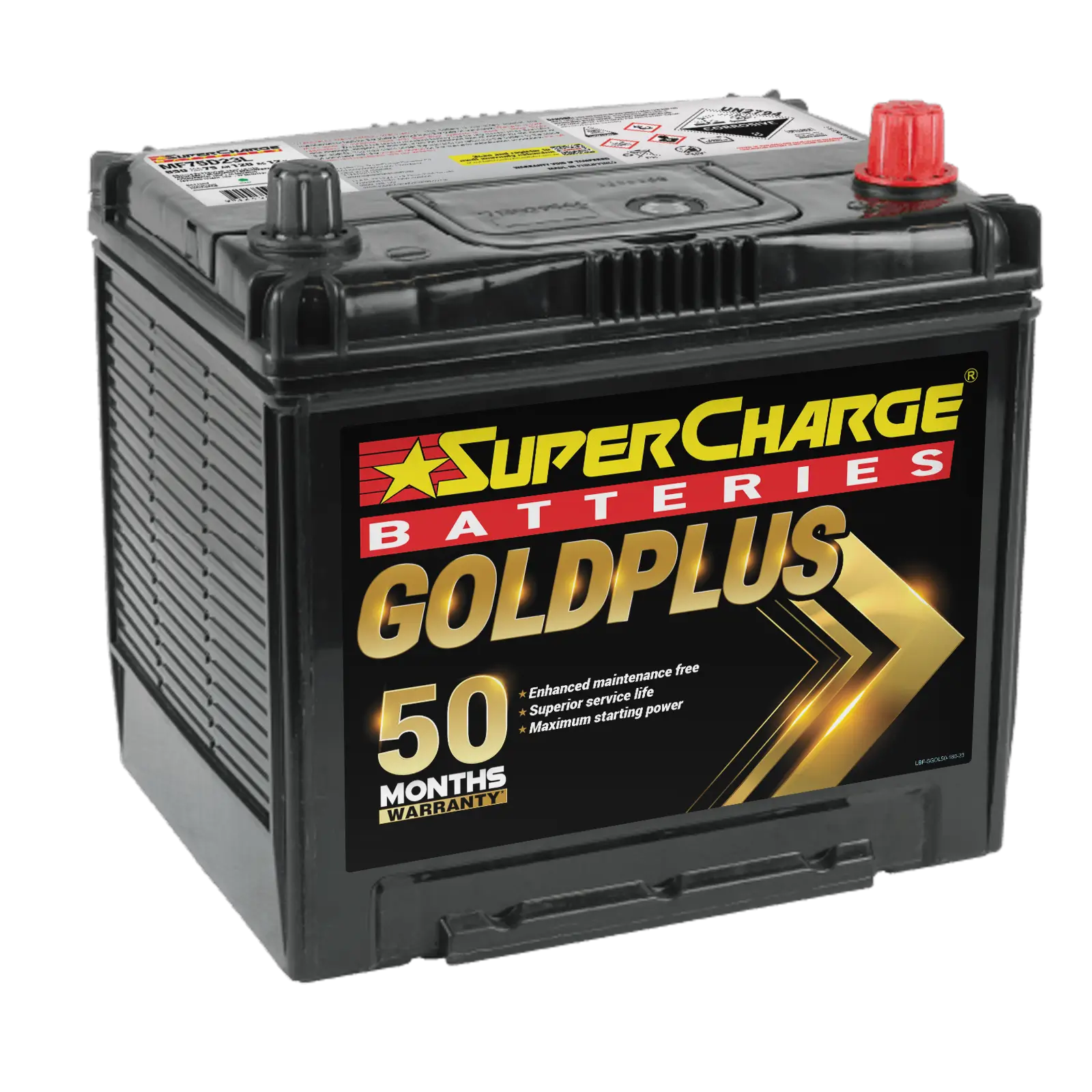

GoldPlus
