Supercharge Gladiator MFULD26R
MFULD26R
Battery Type:
Maintenance Free
Abbreviations and Battery Assemblies
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

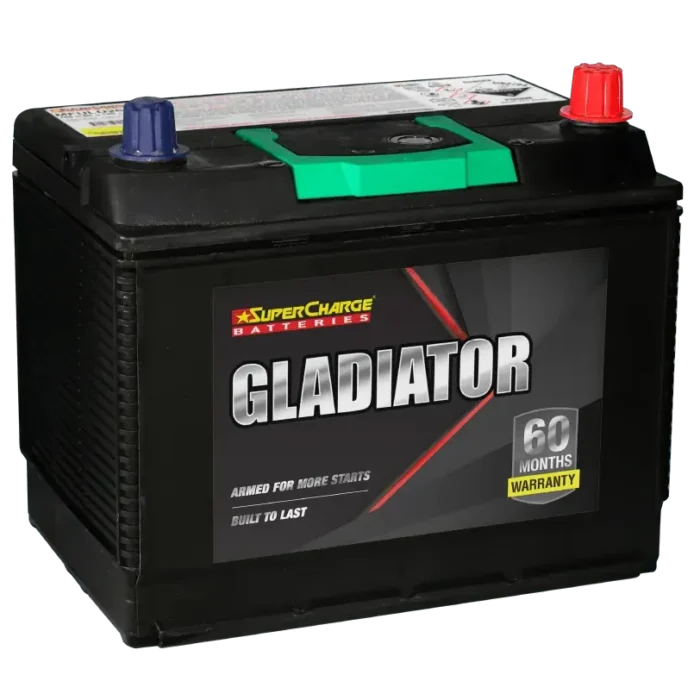

Gladiator MFULD26R Automotive Battery
MFULD26R
12V 85AH Automotive Battery
The MFULD26R automotive battery is engineered to deliver dependable starting power, enhanced durability and efficient electrical performance for a wide range of vehicle applications. Designed to exceed OE2 requirements for all vehicles, the MFULD26R features advanced battery construction and high-efficiency electrical flow to support effective energy delivery and recovery. Its optimised heat control and tropicalised, hardened framed plates help it withstand demanding operating conditions, while its vibration-resistant design supports durability during everyday driving.
Built for enhanced performance and long-term reliability, the MFULD26R features technology designed to deliver up to 100% more cycles than older battery technologies. Its dense, compact construction supports efficient energy output, while its high state-of-charge retention helps maintain stored energy when the vehicle is not in use. Combining heat management, robust internal construction and efficient electrical performance, the MFULD26R is designed to meet the demands of modern automotive applications.
Features
Armed for more starts
Built to last
60 months warranty
The Supercharge MFULD26R Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS70 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 750 |
| RC | 150 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
85 |
| Length, mm | 259 |
| Width, mm | 173 |
| Height, mm | 202 |
| Total Height, mm | 222 |
| Assembly | D (Positive Left) |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 50 months |
| Extended Warranty (Private Use) | 60 months |
| Warranty (Commercial Use) | 24 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MFULD26R automotive battery?
The MFULD26R is an automotive battery engineered to provide dependable starting power, efficient electrical performance and enhanced durability. It features advanced battery construction, tropicalised and hardened framed plates, and vibration-resistant design for demanding vehicle applications.
What are the key features of the MFULD26R battery?
The MFULD26R features up to 100% more cycles than older battery technologies, high-efficiency electrical flow, optimised heat control, compact construction and high state-of-charge retention. It is also designed to exceed OE2 requirements for all vehicles.
How does the MFULD26R battery improve durability?
The MFULD26R uses tropicalised and hardened framed plates, balanced heat control and a vibration-resistant design to help withstand demanding operating conditions. Its advanced internal construction is engineered to support durability and consistent electrical performance.
What vehicles is the MFULD26R battery suitable for?
The MFULD26R is designed for automotive applications and engineered to exceed OE2 requirements. To confirm whether it is suitable for your vehicle, check the required battery specifications, terminal configuration and physical dimensions against the manufacturer's recommendations, or consult your local battery specialist.
