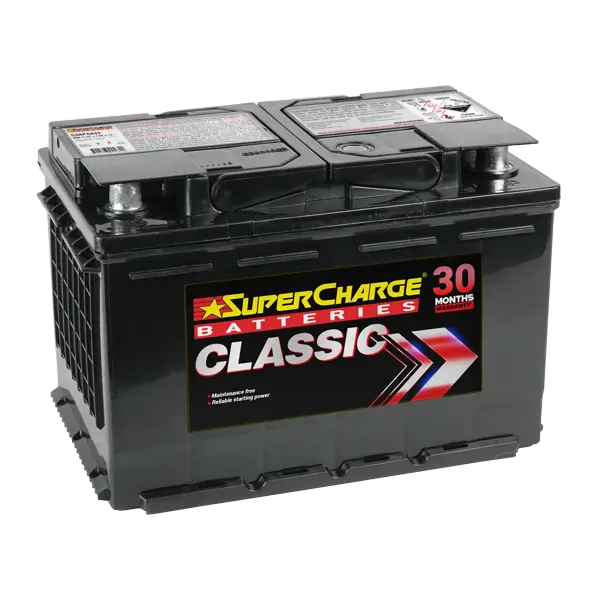

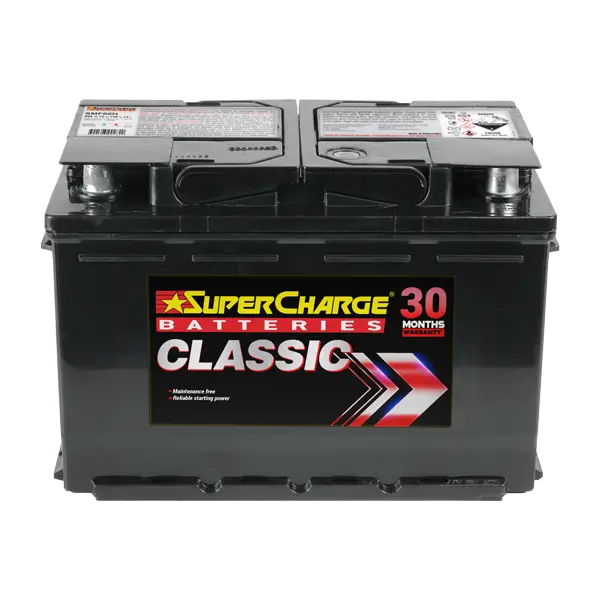

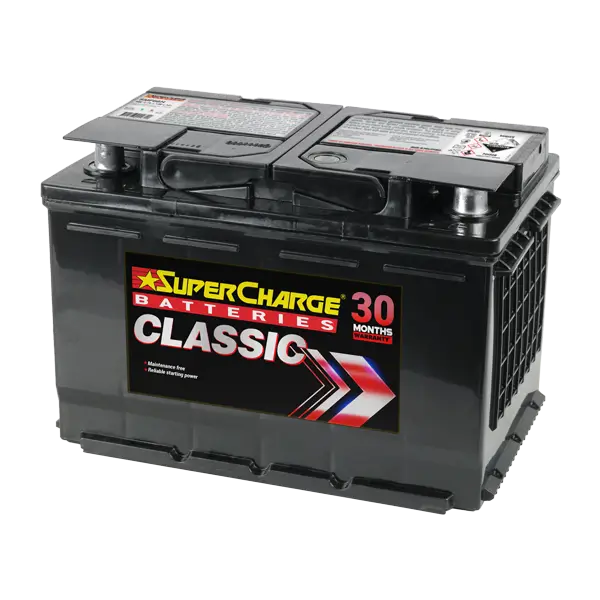

Classic N66H Car Battery
N66H
12V 74AH Car Battery
The N66H European Automotive Battery is designed to provide dependable starting power for compatible vehicles. Its fully-sealed, maintenance-free construction offers convenient operation without the need for regular battery maintenance, making it a practical solution for everyday automotive applications.
Built with Lead-Calcium Tropicalised Plates, the N66H features hardened alloys and intercell connections to support durability and reliable performance. Formulated with high-purity lead and electrolyte, this European Automotive Battery is engineered to deliver efficient power for your vehicle's starting requirements.
Features
Maintenance free
Designed for long life
Reliable Starting Power
The Supercharge N66H Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right Car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N66H/LN3 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 700 |
| RC | 130 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
75 |
| Length, mm | 277 |
| Width, mm | 175 |
| Height, mm | 190 |
| Total Height, mm | 190 |
| Assembly |
C
i
|
| Post Type | STD |
| Ledge | EL & FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 30 months |
| Commercial Use Warranty | 12 months |
| Taxi/Rideshare Warranty | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What type of battery is the N66H?
The N66H is a European Automotive Battery designed for compatible vehicles requiring a suitable European-style battery configuration.
Is the N66H a maintenance-free battery?
Yes, the N66H features a fully-sealed, maintenance-free design that eliminates the need for regular battery maintenance.
What features does the N66H battery offer?
The N66H is built with Lead-Calcium Tropicalised Plates, hardened alloys and intercell connections. Its high-purity lead and electrolyte formulation supports reliable battery performance.
How do I know if the N66H is compatible with my vehicle?
Battery compatibility depends on your vehicle's make, model, year and battery requirements. Check the Supercharge Battery Finder. Find the compatible battery for your vehicle.
