Supercharge Silverplus SMF50D20L
SMF50D20L
Battery Type:
Maintenance Free
Abbreviations and Battery Assemblies
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

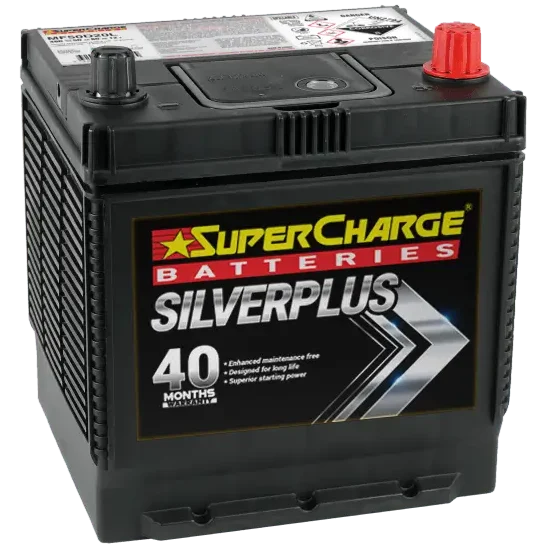

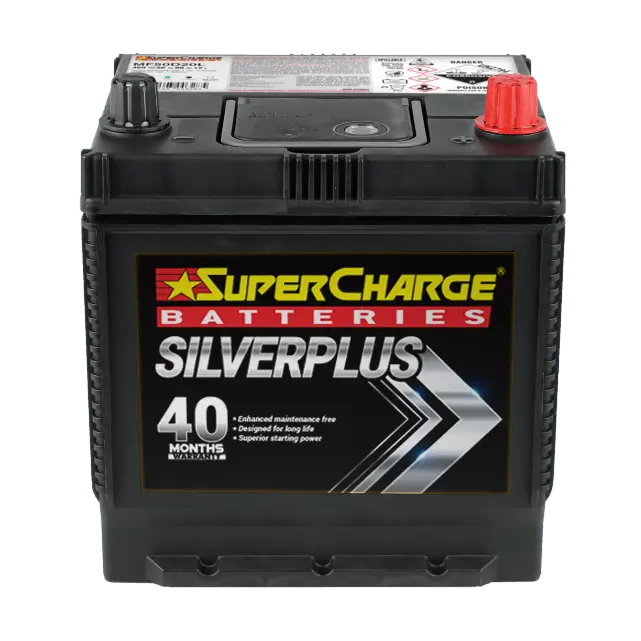

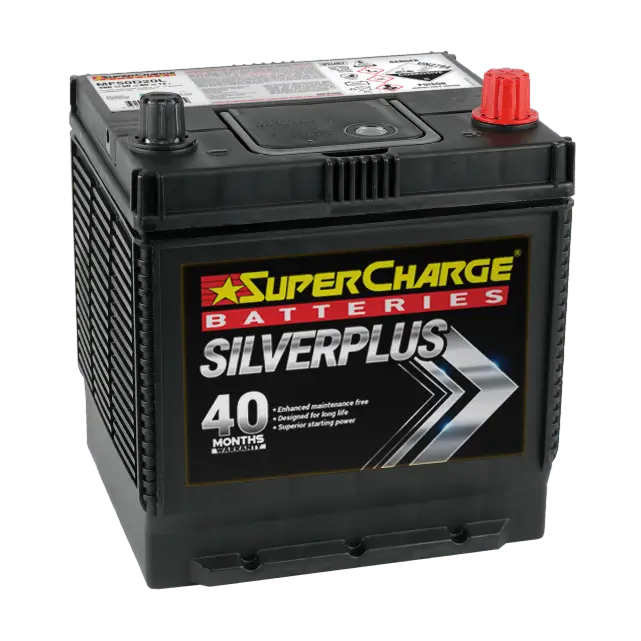

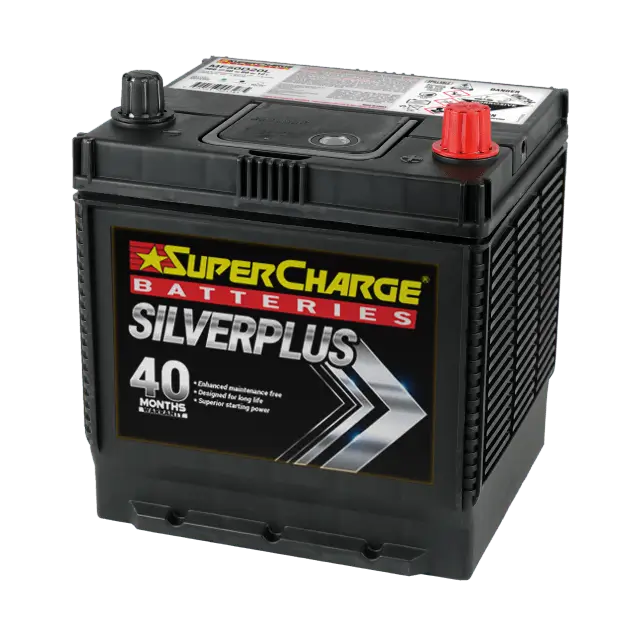

SilverPlus SMF50D20L Car Battery
SMF50D20L
12V 50AH Car Battery
The SMF50D20L Japanese Automotive Battery is designed to provide dependable starting power for compatible Japanese vehicles. Built with Lead-Calcium Tropicalised Power Plates, it supports reliable operation in demanding conditions, including warmer climates. Hardened alloys and intercell connections contribute to a durable internal structure, helping maintain consistent electrical connectivity for everyday driving.
The SMF50D20L features a fully sealed, maintenance-free design that eliminates the need for routine electrolyte top-ups. Its high-efficiency electrical flow design promotes effective power delivery, while high-purity lead and electrolyte support dependable battery operation. Combining practical durability with convenient, low-maintenance care, the SMF50D20L is suited to vehicles requiring the appropriate Japanese automotive battery specifications.
Features
Enhanced maintenance free
Designed for long life
Superior Starting Power
The Supercharge SMF50D20L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right Car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | D20 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 450 |
| RC | 80 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
50 |
| Length, mm | 200 |
| Width, mm | 172 |
| Height, mm | 200 |
| Total Height, mm | 220 |
| Assembly |
C
i
|
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 36 months |
| Extended Warranty (Private Use) | 40 months |
| Commercial Use Warranty | 18 months |
| Taxi/Rideshare Warranty | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What type of battery is the SMF50D20L?
The SMF50D20L is a Japanese Automotive Battery designed for compatible vehicles that require matching battery dimensions and electrical specifications.
What is the purpose of Lead-Calcium Tropicalised Power Plates?
These plates are designed to support reliable battery performance in demanding operating conditions, including environments with higher temperatures.
Is the SMF50D20L a maintenance-free battery?
Yes. Its fully sealed construction means routine electrolyte top-ups are not required, helping make battery care more convenient.
How does the SMF50D20L support efficient power delivery?
Its high-efficiency electrical flow design works alongside hardened alloys, intercell connections, and high-purity lead and electrolyte to support dependable electrical performance.
