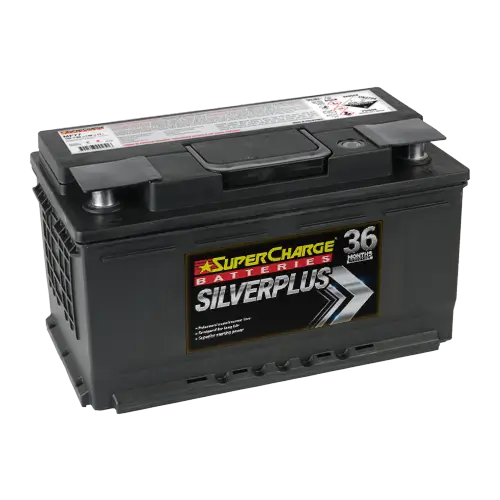

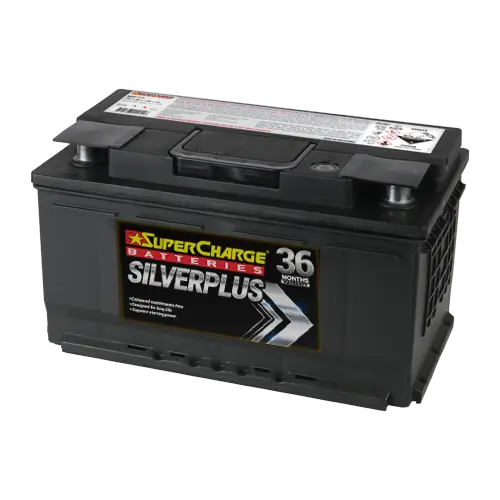

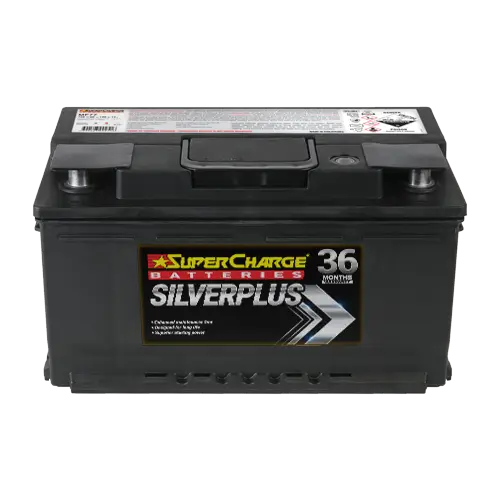

SilverPlus SMF75L Car Battery
SMF75L
12V 80AH Car Battery
The SMF75L European Automotive Battery is built to provide reliable starting power for compatible European vehicles. Featuring Lead-Calcium Tropicalised Power Plates, it is designed to support dependable operation in demanding conditions, including warmer environments. Hardened alloys and intercell connections strengthen its internal construction, helping maintain consistent electrical connectivity for everyday driving.
For added convenience, the SMF75L features a fully sealed, maintenance-free design that removes the need for routine electrolyte top-ups. Its high-efficiency electrical flow design promotes effective power delivery, while high-purity lead and electrolyte contribute to reliable operation. Combining durable construction with simplified battery care, the SMF75L is suitable for vehicles requiring compatible European automotive battery specifications.
Features
Enhanced maintenance free
Designed for long life
Superior Starting Power
The Supercharge SMF75L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right Car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N77/LB4 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 830 |
| RC | 160 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
80 |
| Length, mm | 315 |
| Width, mm | 175 |
| Height, mm | 175 |
| Total Height, mm | 175 |
| Assembly |
C
i
|
| Post Type | STD |
| Ledge | EL & FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 36 months |
| Commercial Use Warranty | 18 months |
| Taxi/Rideshare Warranty | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What vehicles is the SMF75L suitable for?
The SMF75L is a European Automotive Battery designed for compatible vehicles that require the appropriate battery dimensions, terminal arrangement, and electrical specifications.
How do tropicalised power plates support the SMF75L?
Lead-Calcium Tropicalised Power Plates are designed to help maintain dependable battery performance in demanding operating conditions, including higher temperatures.
What are the maintenance requirements for the SMF75L?
Its fully sealed construction eliminates the need for routine electrolyte top-ups, helping make ongoing battery care more convenient.
How does the SMF75L's construction contribute to reliable operation?
Hardened alloys and intercell connections help maintain structural durability, while the efficient electrical flow design and high-purity lead and electrolyte support effective power delivery.
