Supercharge Goldplus EMFN120L
EMFN120L
Battery Type:
Maintenance Free
Abbreviations and Battery Assemblies
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

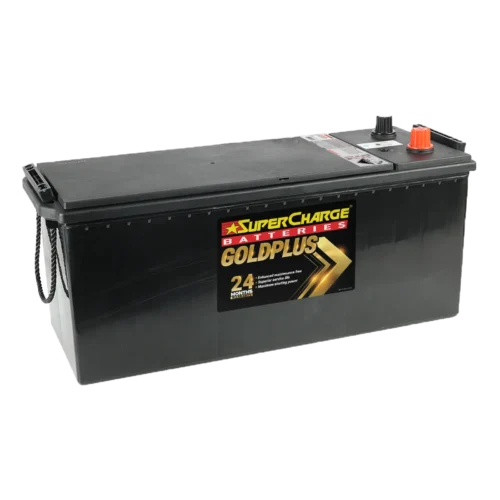

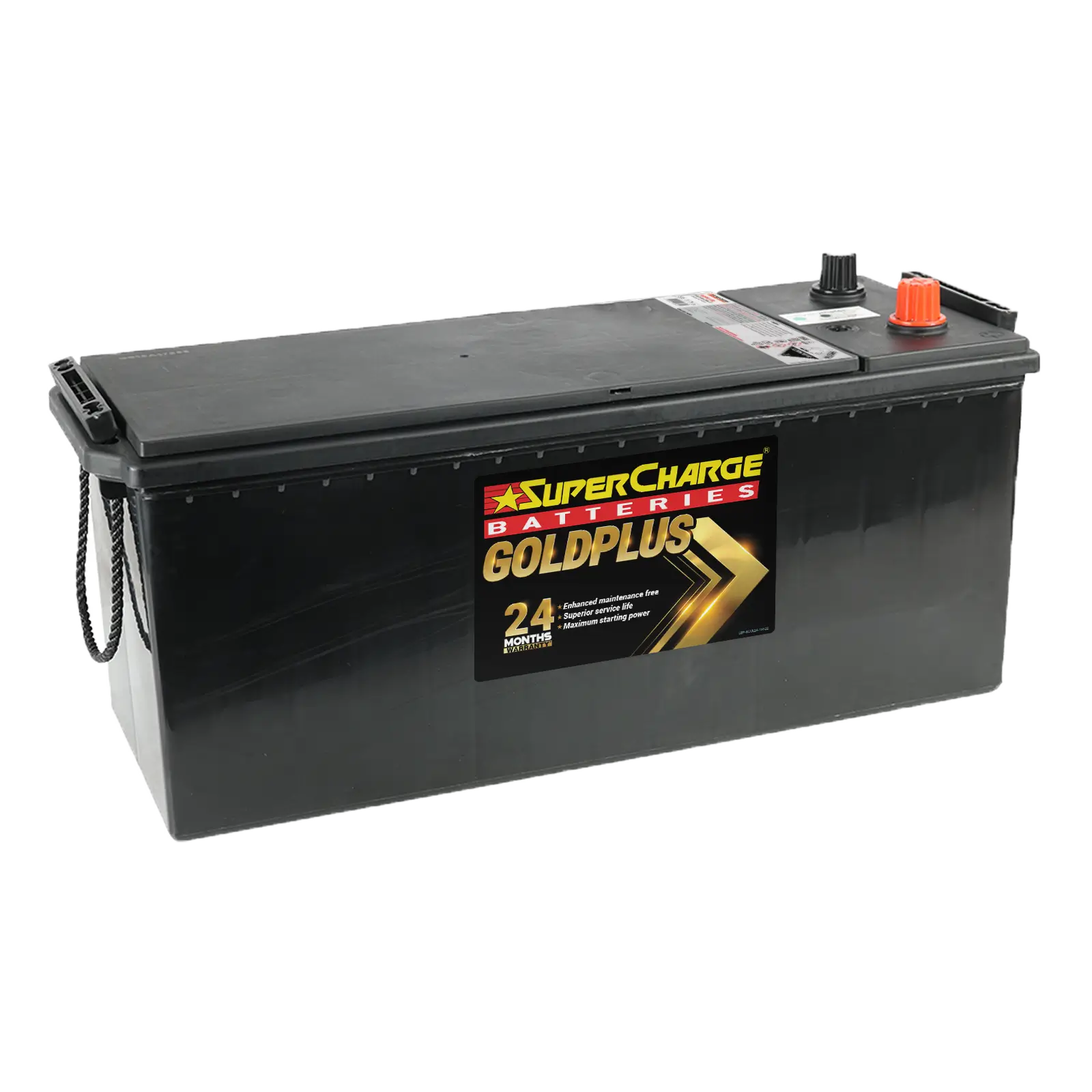

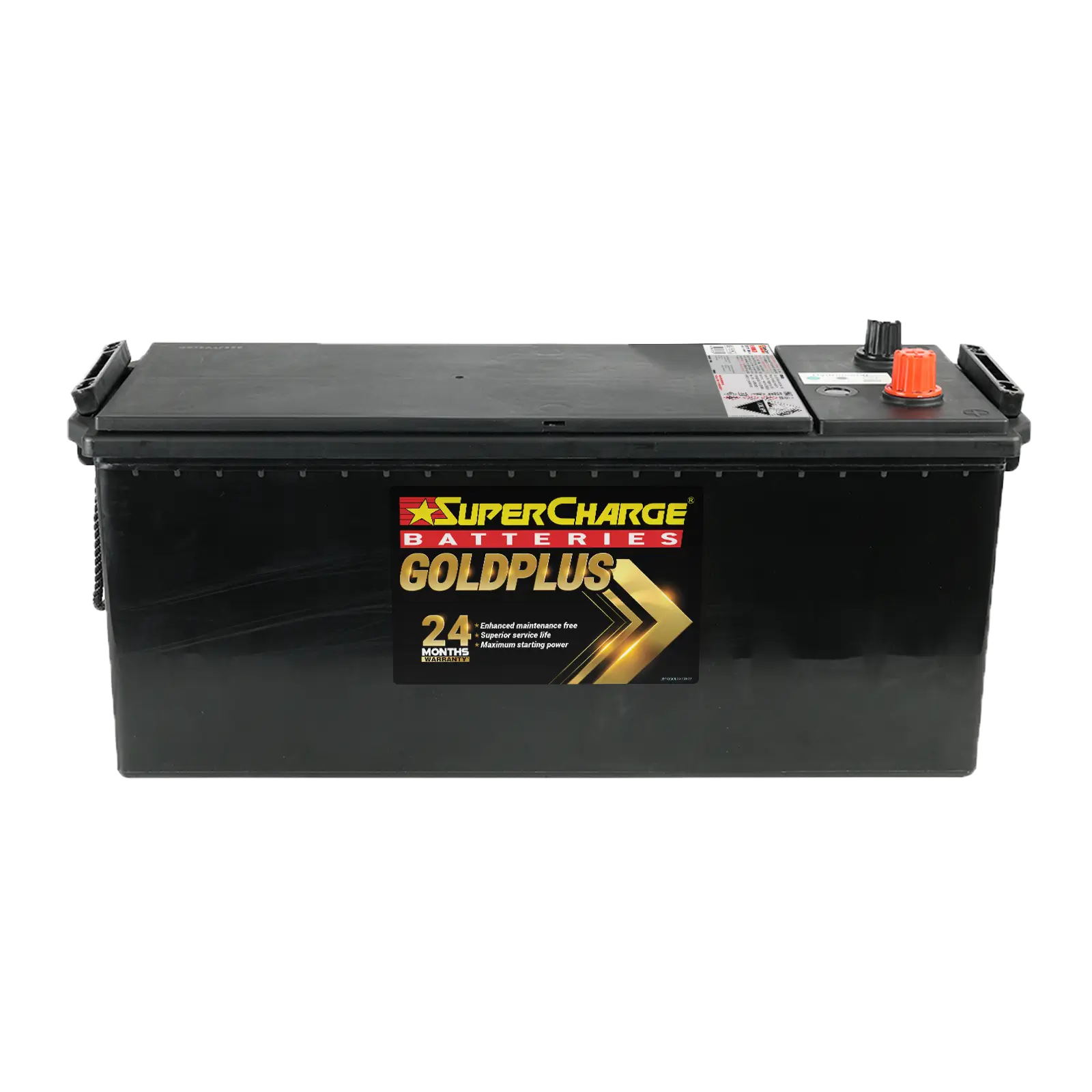

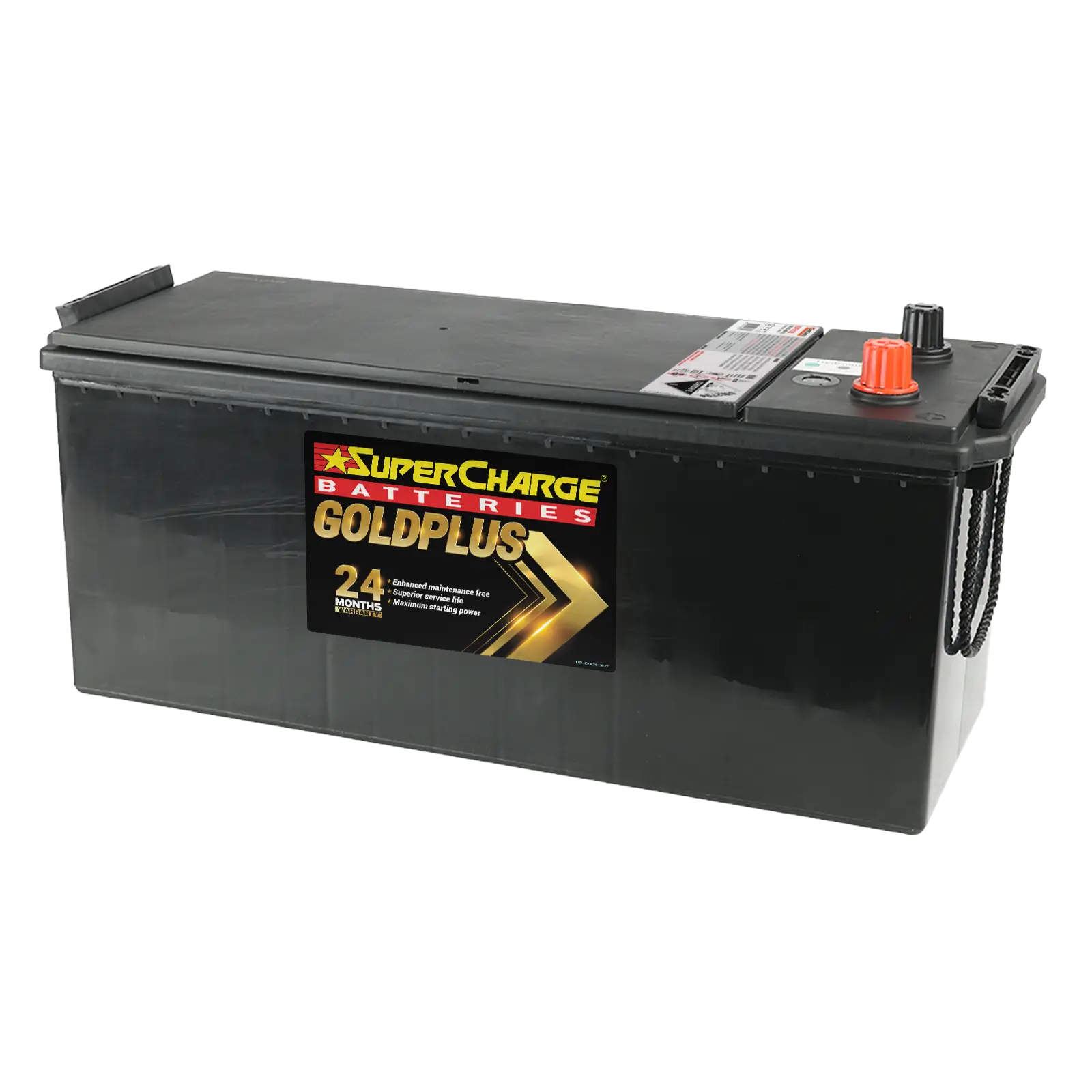

GoldPlus EMFN120L Truck Battery
EMFN120L
12V 120AH Truck Battery
The EMFN120L European Truck Battery is engineered for demanding truck applications where dependable starting performance and robust internal construction are essential. It combines More Lead-Calcium Tropicalised Power Plates with high-purity lead and electrolyte to support efficient electrical operation. Its dense and compact construction provides a strong internal structure, while hardened alloys and durable intercell connections help reinforce the battery assembly. The high-efficiency electrical flow design is engineered to support effective power transfer during engine starting.
Designed for practical use in demanding truck environments, the EMFN120L battery features a fully sealed, maintenance-free construction for convenient operation. Its formulation is developed for high state-of-charge retention, helping the battery preserve stored electrical charge between periods of vehicle use. Tropicalised power plate technology, strengthened internal components and efficient electrical flow combine to make the EMFN120L a practical starting battery solution for European truck applications.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge EMFN120L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right 4WD battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N120 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 930 |
| RC | 200 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
120 |
| Length, mm | 514 |
| Width, mm | 189 |
| Height, mm | 196 |
| Total Height, mm | 217 |
| Assembly |
E
|
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 24 months |
| Warranty (Commercial Use) | 24 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What type of battery is the EMFN120L?
The EMFN120L is a European Truck Battery designed for automotive starting applications. It features Lead-Calcium Tropicalised Power Plates and a fully sealed, maintenance-free construction.
What helps the EMFN120L provide efficient electrical performance?
The battery combines high-purity lead and electrolyte with a high-efficiency electrical flow design to support effective electrical transfer during engine starting and vehicle operation.
How is the EMFN120L built for demanding truck applications?
Its advanced dense and compact construction is complemented by hardened alloys and durable intercell connections. Together, these features provide a robust internal structure designed for demanding use.
Does the EMFN120L need regular electrolyte top-ups?
No. The EMFN120L is fully sealed and maintenance-free, so routine electrolyte top-ups are not required during normal operation. It is also formulated for high state-of-charge retention to help maintain stored charge between uses.
