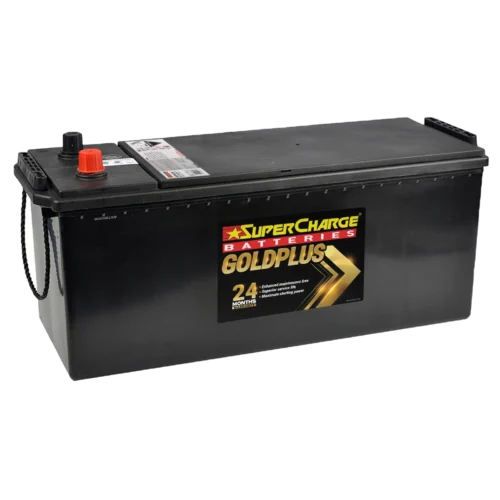

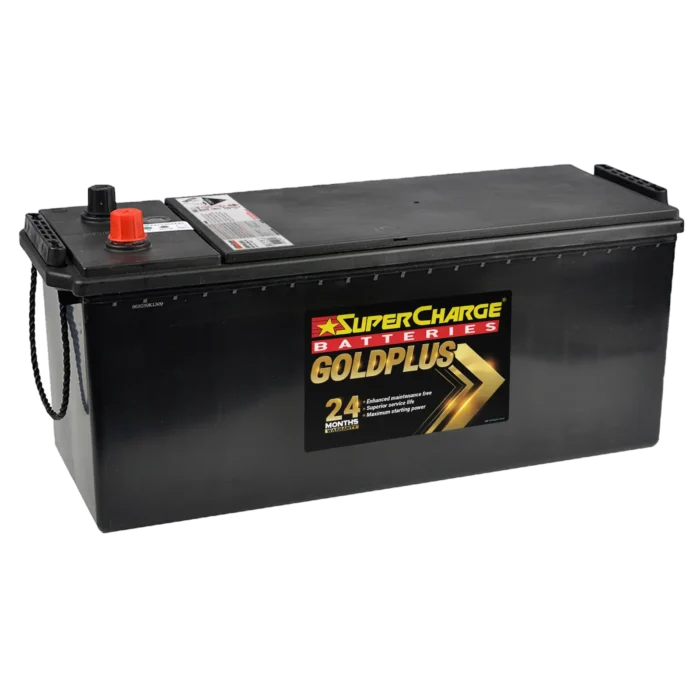

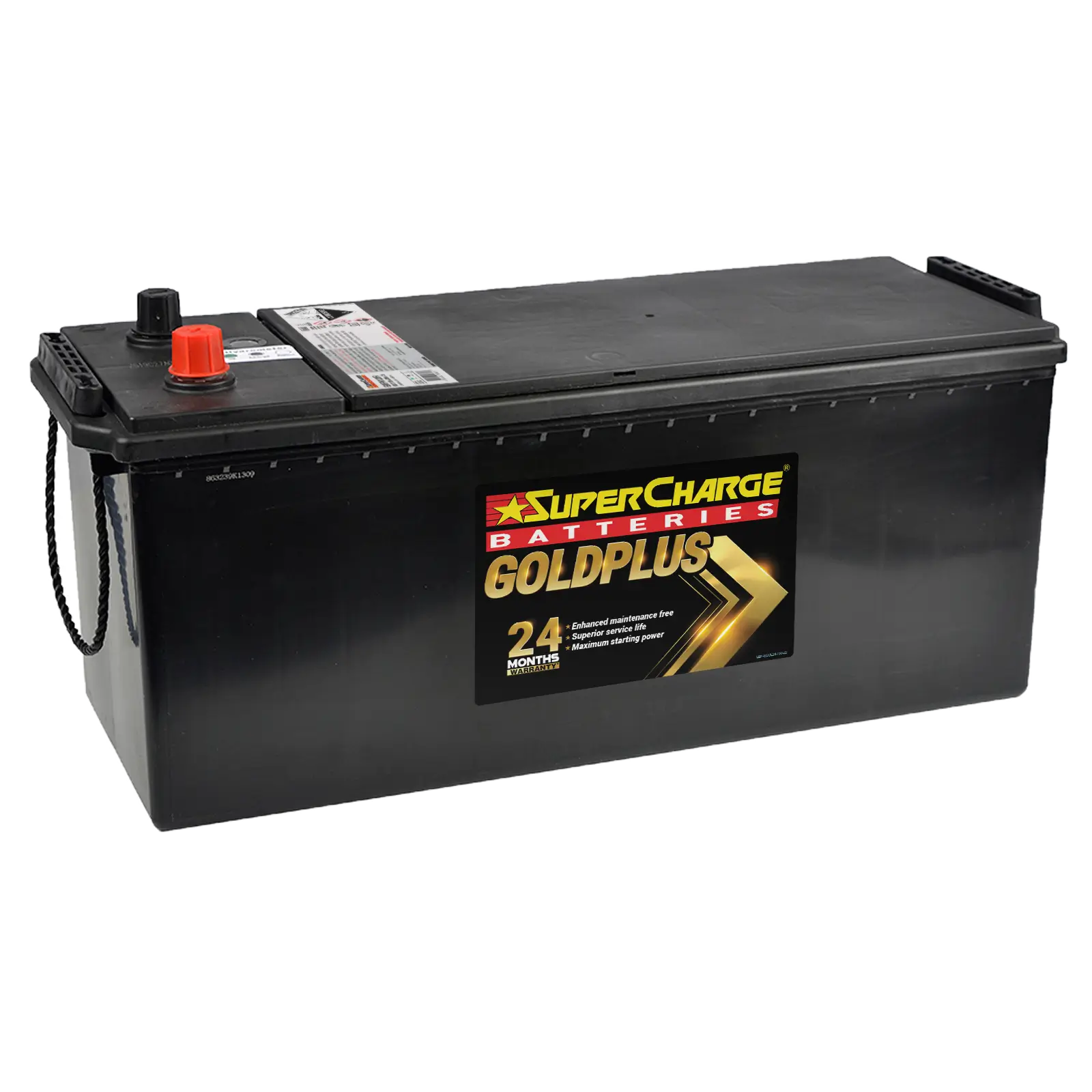

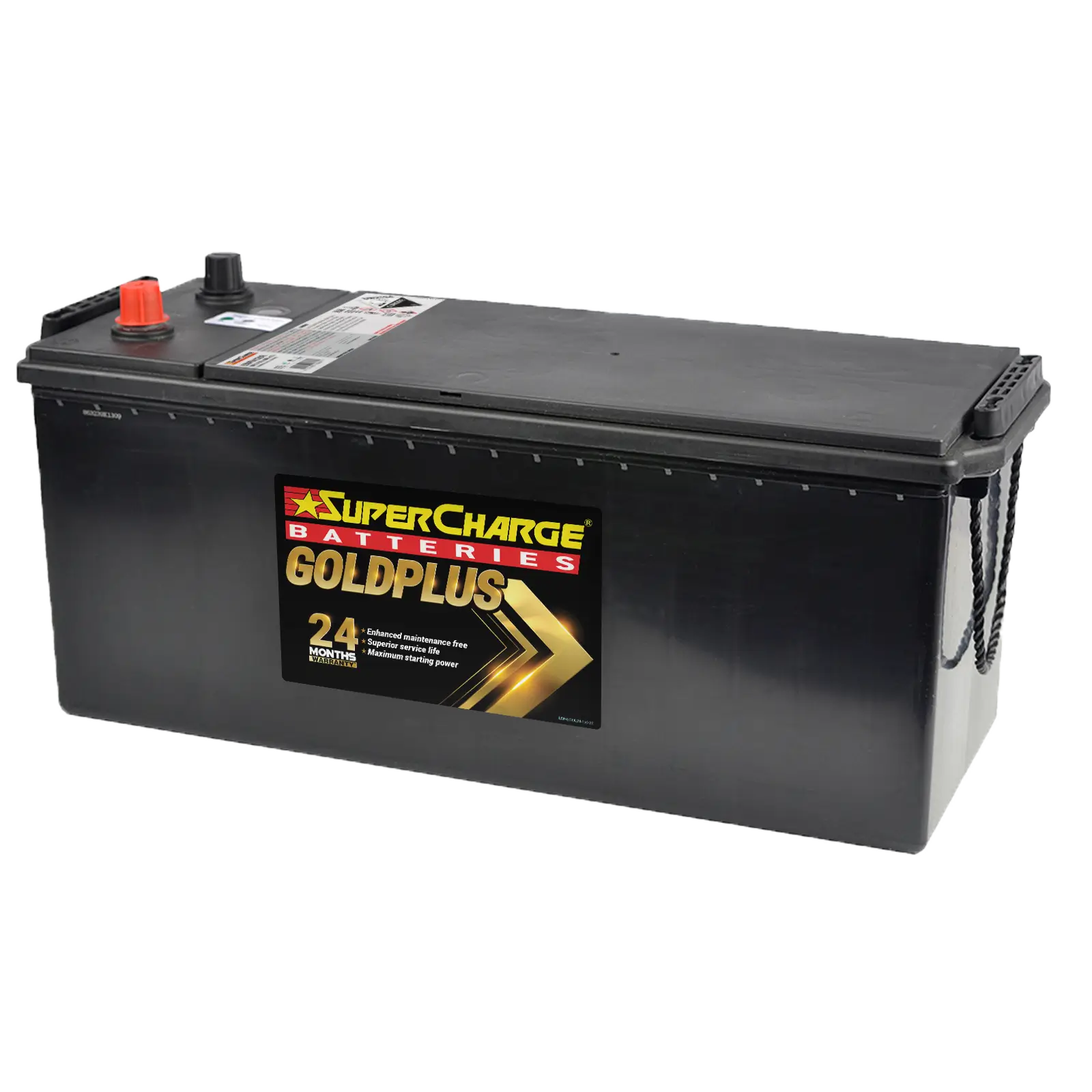

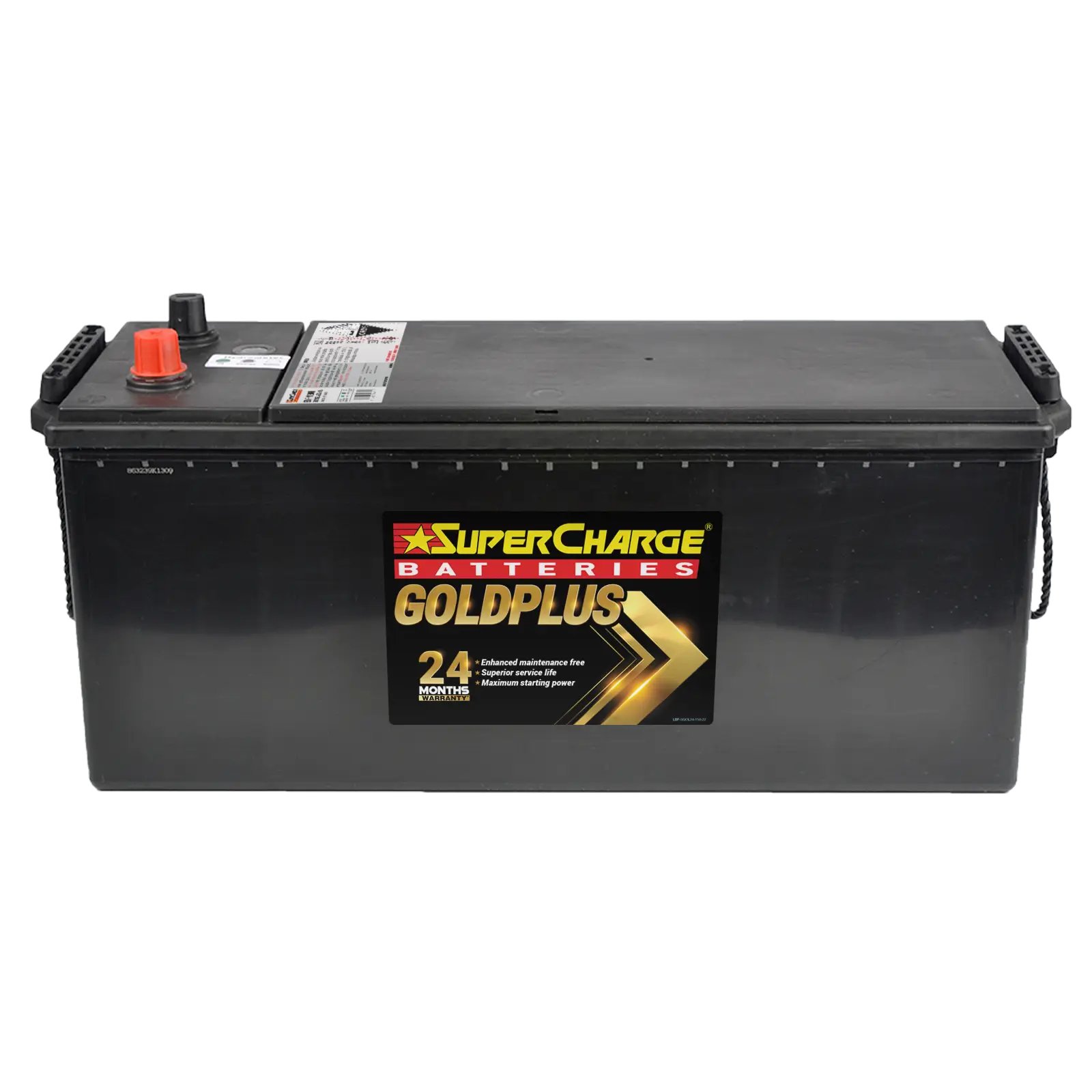

GoldPlus EMFN120R Truck Battery
EMFN120R
12V 120AH Truck Battery
The EMFN120R European Truck Battery is designed for demanding truck applications where robust construction and consistent starting performance are essential. It combines More Lead-Calcium Tropicalised Power Plates with high-purity lead and electrolyte to support efficient electrical operation. The advanced dense and compact construction provides a strong internal structure, while hardened alloys and durable intercell connections help reinforce the battery assembly. Its high-efficiency electrical flow design is engineered to support effective power delivery during engine starting.
For convenient operation in demanding truck environments, the EMFN120R battery features a fully sealed, maintenance-free construction. Its formulation is designed for high state-of-charge retention, helping preserve stored electrical charge between periods of vehicle use. The combination of tropicalised power plate technology, reinforced internal components and efficient electrical flow makes the EMFN120R a practical starting battery solution for European truck applications.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge EMFN120R Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right 4WD battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N120 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 930 |
| RC | 200 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
120 |
| Length, mm | 514 |
| Width, mm | 189 |
| Height, mm | 196 |
| Total Height, mm | 217 |
| Assembly |
F
|
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 24 months |
| Warranty (Commercial Use) | 24 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the EMFN120R battery designed for?
The EMFN120R is a European Truck Battery designed for automotive starting applications. It combines Lead-Calcium Tropicalised Power Plates with a fully sealed, maintenance-free construction.
What technology is used in the EMFN120R?
The EMFN120R features More Lead-Calcium Tropicalised Power Plates, high-purity lead and electrolyte, hardened alloys and durable intercell connections. Its electrical flow design is also engineered for efficient power transfer.
How does the EMFN120R support durability?
An advanced dense and compact construction provides a robust internal structure, while hardened alloys and durable intercell connections help strengthen the battery assembly for demanding truck applications.
Is the EMFN120R a maintenance-free European Truck Battery?
Yes. The EMFN120R is fully sealed and maintenance-free, so routine electrolyte top-ups are not required during normal operation. Its formulation is also designed for high state-of-charge retention to help preserve stored charge between uses.
