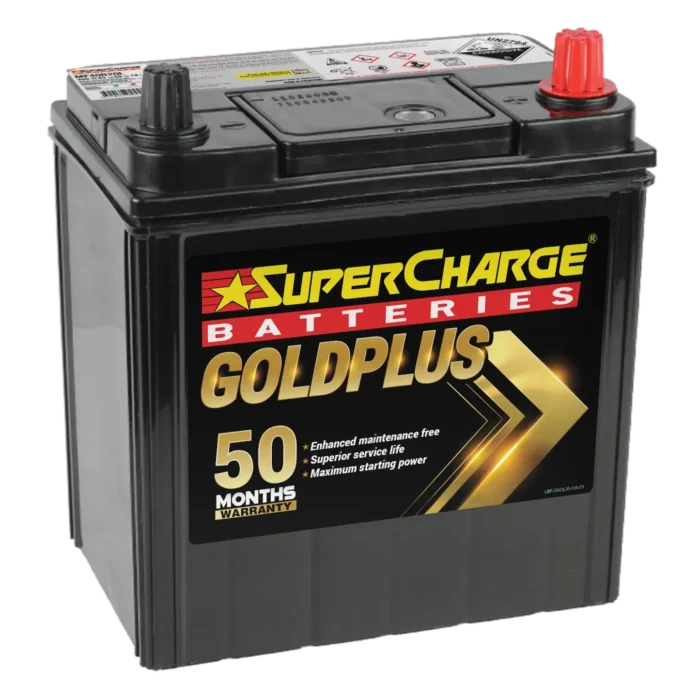

12V 45AH Car Battery
The MF40B20L car battery is designed to provide dependable starting power and efficient electrical performance for compatible automotive applications. Its compact battery format is suited to vehicles requiring the MF40B20L specification, supporting engine starting and the electrical demands of everyday driving. The MF40B20L provides a practical battery solution for applications where a specific battery size, configuration and terminal arrangement are required.
When selecting an MF40B20L battery, correct fitment is essential for reliable vehicle operation. The battery should be matched with the vehicle manufacturer’s requirements, including physical dimensions, terminal position, polarity and starting performance. Checking these specifications before installation helps ensure the MF40B20L is correctly positioned and compatible with the vehicle’s electrical and charging system.
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF40B20L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
| Size | NS40 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 400 |
| RC | 68 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
45 |
| Length, mm | 196 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly | C (Positive Right) |
| Post Type | PT |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
The MF40B20L is an automotive battery designed to provide starting power and electrical energy for compatible vehicles. Its suitability depends on the battery specifications required by the individual vehicle.
The L in the MF40B20L battery code identifies a particular configuration of the battery, commonly relating to its terminal arrangement or polarity. Always confirm the terminal layout against the vehicle’s existing battery before installation.
The terminal position determines how the battery connects to the vehicle’s electrical cables. Correctly matching the MF40B20L terminal configuration helps ensure the cables reach the terminals properly and the battery can be installed correctly.
Check the vehicle manufacturer’s recommended battery specifications, including battery dimensions, terminal position, polarity and required starting performance. A battery specialist or vehicle battery finder can also help confirm whether the MF40B20L battery is suitable for your vehicle.
