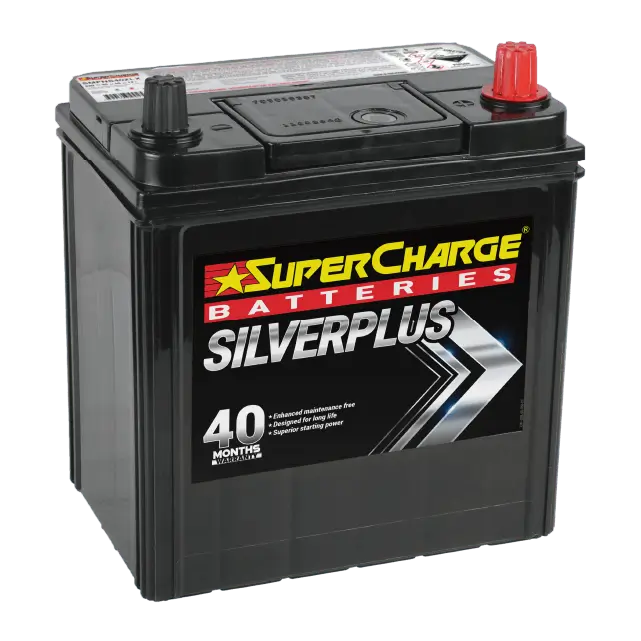

SilverPlus SMFNS40ZLX Car Battery
SMFNS40ZLX
12V 40AH Car Battery
The SMFNS40ZLX Japanese Automotive Battery is designed to provide dependable starting power for compatible Japanese vehicles. It features Lead-Calcium Tropicalised Power Plates, developed to support reliable performance in demanding operating conditions. Its construction incorporates hardened alloys and intercell connections to help maintain structural durability and consistent electrical performance.
Designed for convenience, the SMFNS40ZLX is a fully sealed, maintenance-free battery that eliminates the need for routine electrolyte top-ups. Its high-efficiency electrical flow design supports effective power delivery, while high-purity lead and electrolyte contribute to dependable battery operation. Built for everyday automotive use, the SMFNS40ZLX offers a practical power solution for compatible Japanese vehicles.
Features
Enhanced maintenance free
Designed for long life
Superior Starting Power
The Supercharge SMFNS40ZLX Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right Car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS40 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 350 |
| RC | 62 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
40 |
| Length, mm | 196 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly |
C
i
|
| Post Type | PT |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 36 months |
| Extended Warranty (Private Use) | 40 months |
| Commercial Use Warranty | 18 months |
| Taxi/Rideshare Warranty | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What type of battery is the SMFNS40ZLX?
The SMFNS40ZLX is a Japanese Automotive Battery designed for compatible Japanese vehicles that require the appropriate battery specifications.
What are the benefits of Lead-Calcium Tropicalised Power Plates?
These plates are designed to support dependable battery performance under demanding operating conditions, including warmer climates.
Does the SMFNS40ZLX require regular maintenance?
No. The SMFNS40ZLX features a fully sealed, maintenance-free design, eliminating the need for routine electrolyte top-ups.
How does the SMFNS40ZLX support reliable electrical performance?
Its high-efficiency electrical flow design, hardened alloys, intercell connections, and high-purity lead and electrolyte contribute to effective power delivery and dependable operation.
