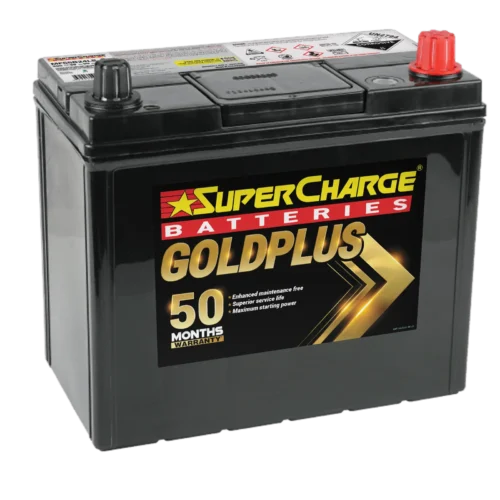

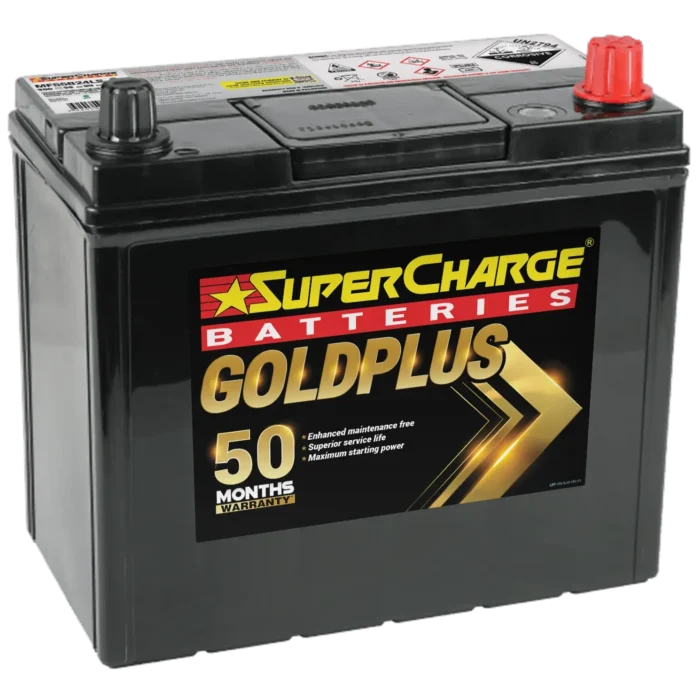

GoldPlus MF55B24LS Car Battery
MF55B24LS
12V 56AH Car Battery
The MF55B24LS car battery is designed to provide dependable starting power and efficient electrical performance for compatible automotive applications. Featuring lead-calcium tropicalised power plates, high-purity lead and electrolyte, it is engineered to support effective energy delivery and dependable operation in demanding conditions. Its advanced, dense and compact construction helps optimise internal efficiency, while its high-efficiency electrical flow design supports effective power transfer during vehicle starting and normal operation.
Built for convenience and durability, the MF55B24LS battery features a fully sealed, maintenance-free design that eliminates the need for routine electrolyte top-ups under normal operating conditions. Hardened alloys and intercell connections support structural strength and electrical conductivity, while high state-of-charge retention helps preserve stored energy when the vehicle is not in use. Combining efficient electrical performance with practical maintenance-free operation, the MF55B24LS is engineered to meet the demands of everyday automotive use.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF55B24LS Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS60 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 500 |
| RC | 90 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
56 |
| Length, mm | 236 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly | C (Positive Right) |
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
How do lead-calcium power plates improve the MF55B24LS battery?
The MF55B24LS car battery uses lead-calcium tropicalised power plates designed to support dependable starting performance and durability in demanding operating conditions. Their tropicalised construction is intended to help the battery cope with warmer environments.
What is the benefit of high-purity lead and electrolyte in the MF55B24LS?
High-purity lead and electrolyte are key materials in the MF55B24LS battery, supporting the electrochemical processes involved in storing and delivering electrical energy. Combined with its efficient electrical flow design, these materials help support effective battery operation.
How does the MF55B24LS maintain electrical efficiency?
The MF55B24LS combines a dense, compact internal structure with hardened alloys and intercell connections. These design features support structural integrity and electrical conductivity, helping energy flow efficiently through the battery during operation.
Does the MF55B24LS battery require electrolyte top-ups?
No. The MF55B24LS battery features a fully sealed, maintenance-free design that eliminates the need for routine electrolyte top-ups under normal operating conditions. Its high state-of-charge retention also helps preserve stored energy when the vehicle is not in use, although actual retention varies with temperature, battery condition and storage duration.
