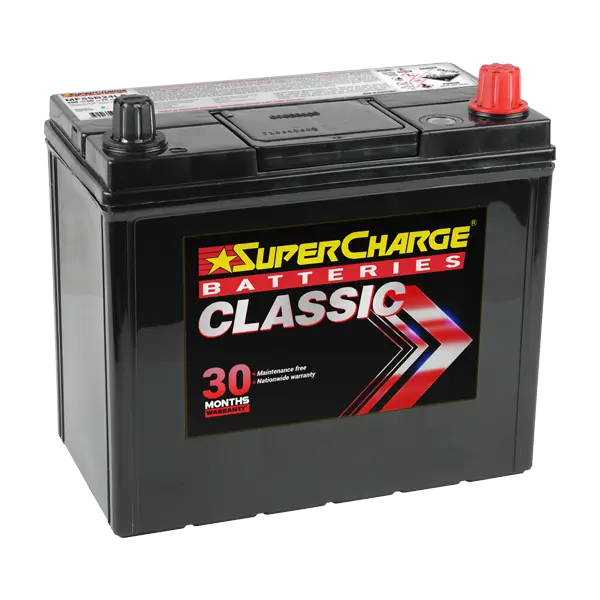

Classic NS60LS Car Battery
NS60LS
12V 48AH Car Battery
The NS60LS Japanese Automotive Battery is designed to deliver dependable starting power and reliable performance for compatible vehicles. Featuring a fully-sealed, maintenance-free design, the NS60LS helps minimise routine battery maintenance while providing a practical solution for everyday driving. Its Lead-Calcium Tropicalised Plates are engineered to support durability in demanding operating conditions, making it a suitable option for motorists seeking a reliable automotive battery.
Built with hardened alloys and intercell connections, the NS60LS supports reliable internal connectivity and consistent electrical performance. Formulated with high-purity lead and electrolyte, this Japanese Automotive Battery is manufactured with a focus on quality and durability. For Australian drivers seeking a dependable replacement battery, the NS60LS combines maintenance-free convenience with carefully engineered construction. Always check your vehicle's battery specifications to confirm compatibility before purchasing.
Features
Maintenance free
Designed for long life
Reliable Starting Power
The Supercharge NS60LS Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right Car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS60 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 450 |
| RC | 75 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
48 |
| Length, mm | 236 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly |
C
i
|
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 30 months |
| Commercial Use Warranty | 12 months |
| Taxi/Rideshare Warranty | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What type of battery is the NS60LS?
The NS60LS is a Japanese Automotive Battery designed for compatible vehicles requiring this battery specification. Always verify your vehicle's battery requirements before purchasing.
Is the NS60LS battery maintenance-free?
Yes, the NS60LS features a fully-sealed, maintenance-free design that helps reduce the need for routine battery maintenance.
What are the key features of the NS60LS battery?
The NS60LS features Lead-Calcium Tropicalised Plates, hardened alloys and intercell connections, and high-purity lead and electrolyte to support reliable performance and durability.
How do I check if the NS60LS is compatible with my vehicle?
Check the Supercharge Battery Finder to find the compatible battery for your vehicle.
