Supercharge Goldplus MF55R
MF55R
Battery Type:
Maintenance Free
Abbreviations and Battery Assemblies
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

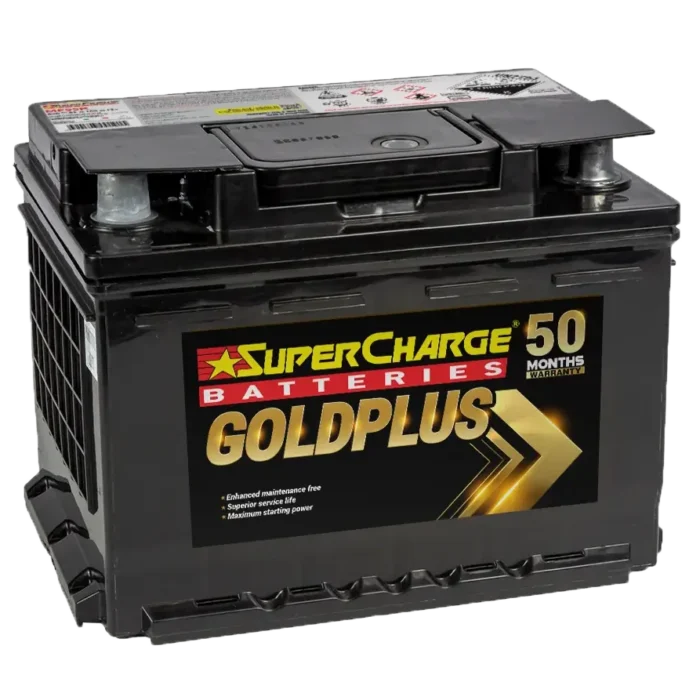

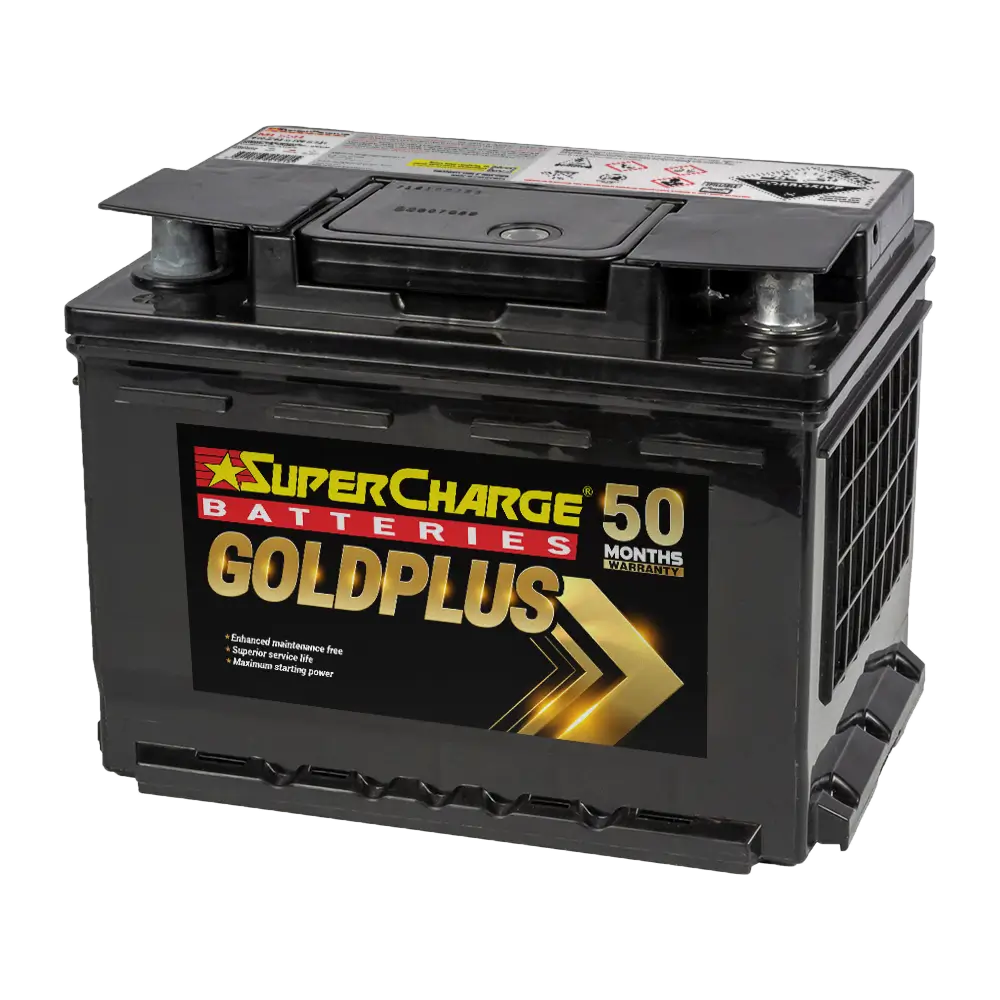

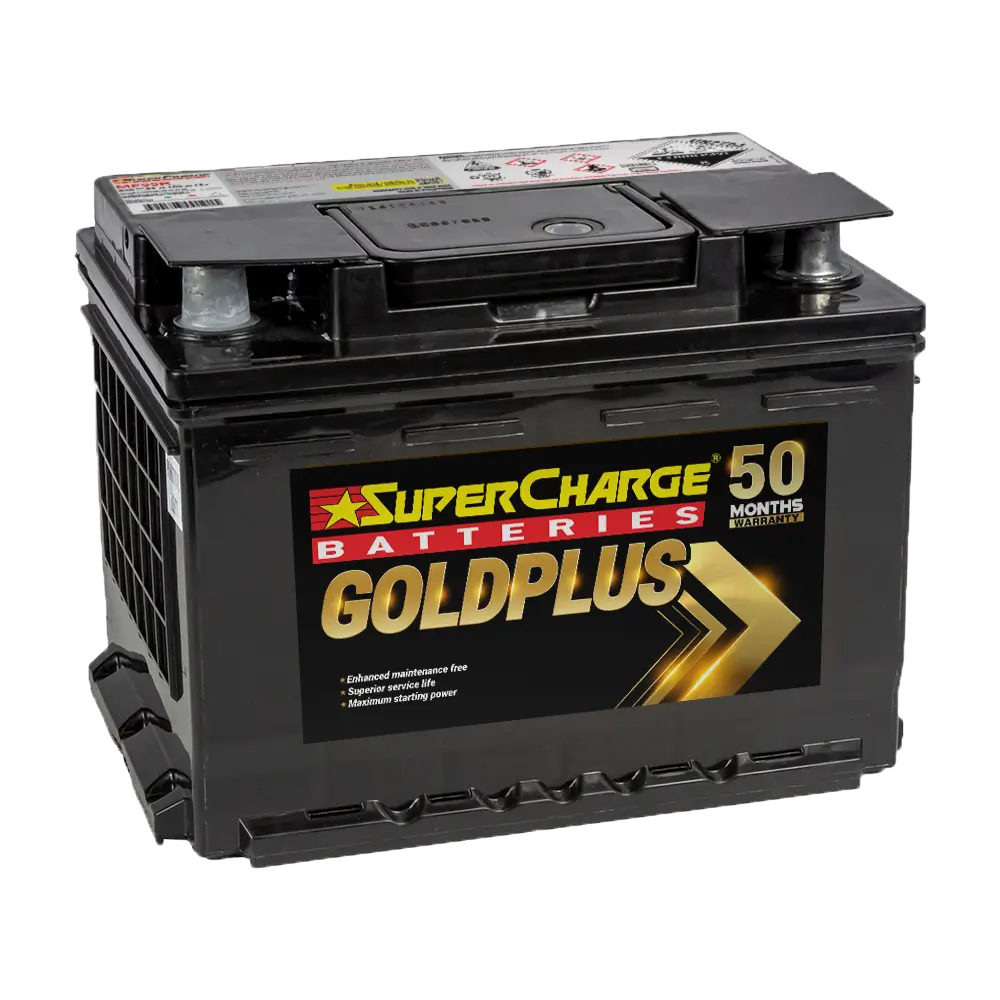

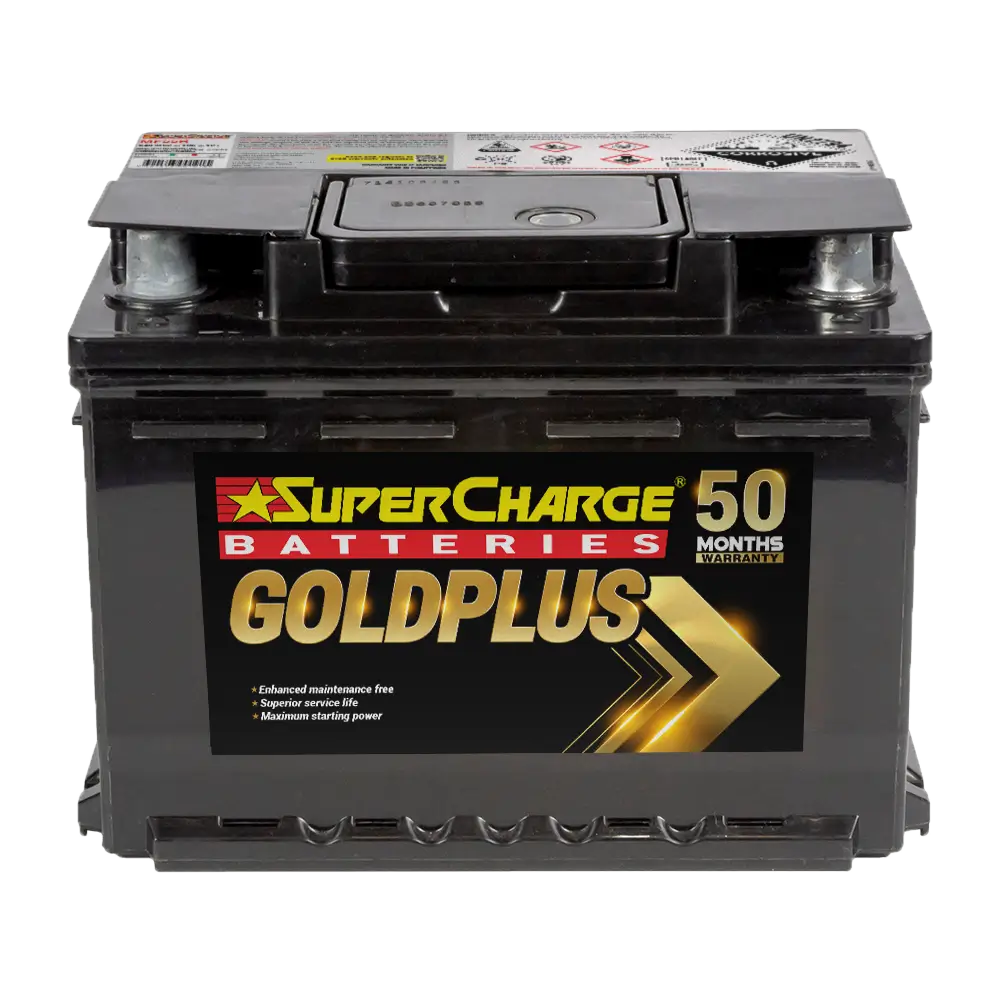

GoldPlus MF55R Car Battery
MF55R
12V 62AH Car Battery
The MF55R European automotive battery is designed to deliver dependable starting power and efficient electrical performance for compatible European vehicles. Featuring lead-calcium tropicalised power plates and high-purity lead and electrolyte, the MF55R supports effective energy delivery and dependable operation under demanding conditions. Its advanced, dense and compact construction is engineered to promote internal efficiency, while its high-efficiency electrical flow design helps transfer energy effectively during engine starting and everyday vehicle operation.
Built for durability and convenience, the MF55R car battery features a fully sealed, maintenance-free design that eliminates the need for routine electrolyte top-ups under normal operating conditions. Hardened alloys and intercell connections help support structural integrity and electrical conductivity, while high state-of-charge retention helps preserve stored energy when the vehicle is not in use. For European automotive applications, confirming the correct MF55R specifications against the vehicle manufacturer's requirements helps ensure proper fitment and compatibility with the vehicle's electrical and charging systems.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF55R Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N55/LB2 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 640 |
| RC | 105 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
62 |
| Length, mm | 242 |
| Width, mm | 175 |
| Height, mm | 175 |
| Total Height, mm | 175 |
| Assembly | D (Positive Left) |
| Post Type | STD |
| Ledge | EL & FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
How does the MF55R battery's dense construction support performance?
The MF55R European automotive battery features advanced, dense and compact internal construction designed to support efficient electrical performance. Combined with its high-efficiency electrical flow design, this construction helps facilitate effective energy transfer during battery operation.
What makes the MF55R battery suitable for demanding temperatures?
The MF55R uses lead-calcium tropicalised power plates designed to support dependable performance in challenging operating conditions, including warmer environments. Actual battery performance and service life depend on operating temperature, charging conditions and vehicle usage.
How do intercell connections contribute to MF55R battery performance?
The MF55R battery uses hardened alloys and intercell connections to support structural strength and electrical conductivity within the battery. These components help facilitate the movement of electrical energy between internal cells during operation.
Does the MF55R European automotive battery require regular electrolyte maintenance?
No. The MF55R features a fully sealed, maintenance-free design that eliminates the need for routine electrolyte top-ups under normal operating conditions. Its high state-of-charge retention also helps preserve stored energy when the vehicle is not in use, although retention varies with storage conditions and battery health.
