Supercharge Silverplus SMF53R
SMF53R
Battery Type:
Maintenance Free
Abbreviations and Battery Assemblies
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

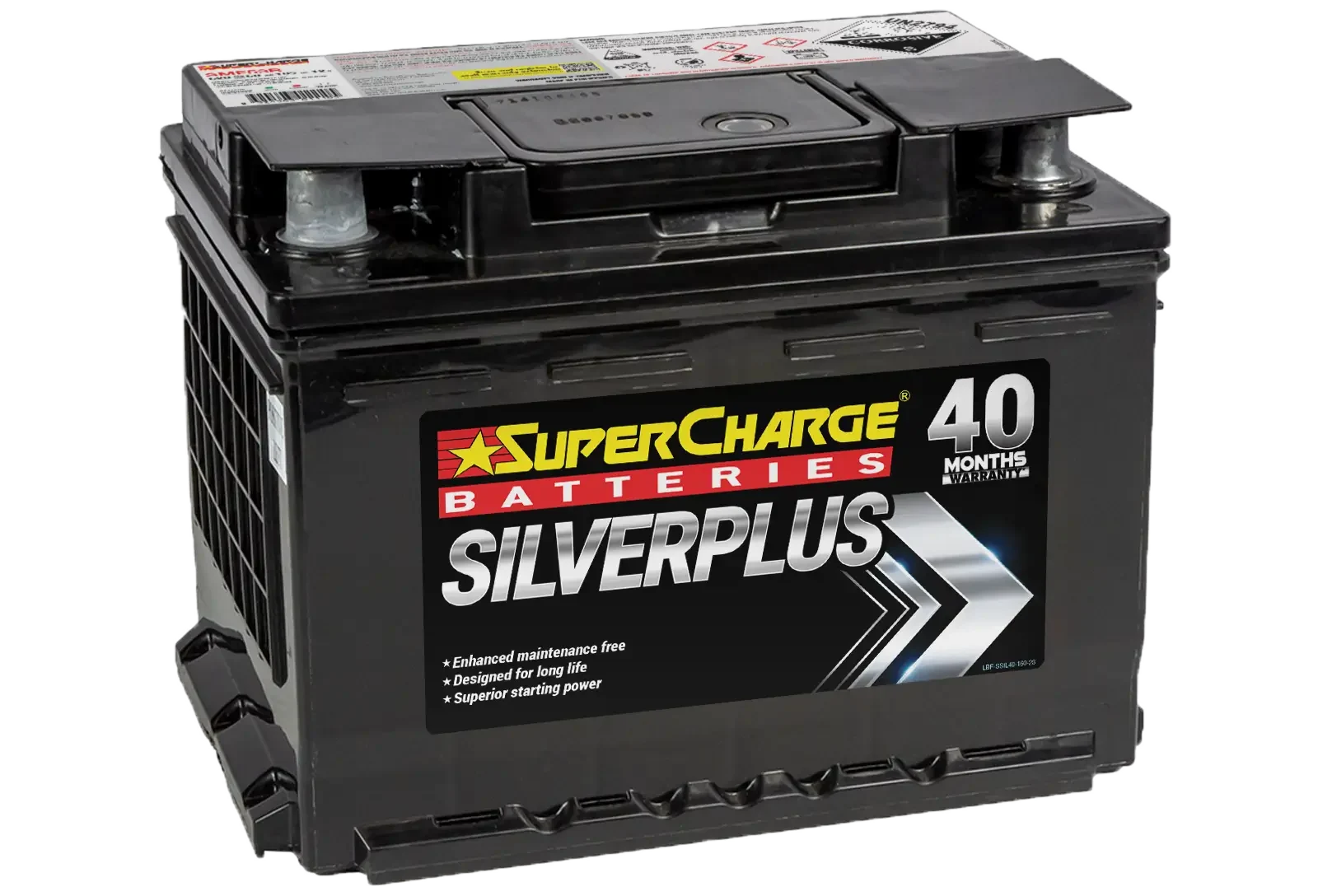

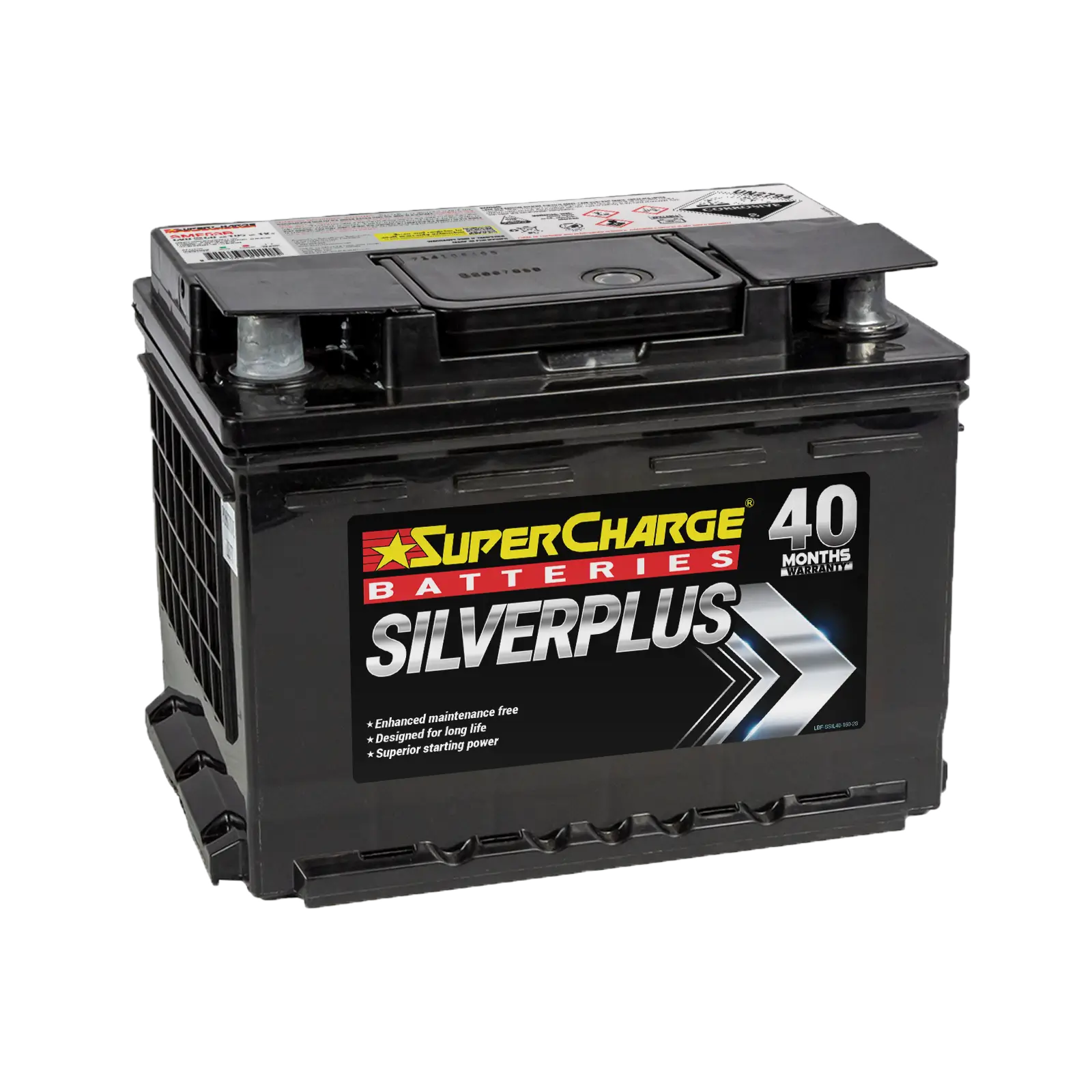

SilverPlus SMF53R Car Battery
SMF53R
12V 60AH Car Battery
The SMF53R European Automotive Battery is developed to provide reliable starting power for compatible European vehicles. Featuring Lead-Calcium Tropicalised Power Plates, it is designed to support consistent operation in demanding conditions, including warmer environments. Hardened alloys and intercell connections contribute to a robust internal structure, helping maintain dependable electrical connectivity for everyday automotive use.
The SMF53R combines durable construction with a fully sealed, maintenance-free design that eliminates the need for routine electrolyte top-ups. Its high-efficiency electrical flow design helps deliver power effectively, while high-purity lead and electrolyte support reliable operation. With practical features designed for convenience and dependable performance, the SMF53R is suited to vehicles requiring compatible European automotive battery specifications.
Features
Enhanced maintenance free
Designed for long life
Superior Starting Power
The Supercharge SMF53R Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right Car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N55/LB2 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 620 |
| RC | 105 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
60 |
| Length, mm | 242 |
| Width, mm | 175 |
| Height, mm | 175 |
| Total Height, mm | 175 |
| Assembly |
D
i
|
| Post Type | STD |
| Ledge | EL & FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 36 months |
| Extended Warranty (Private Use) | 40 months |
| Commercial Use Warranty | 18 months |
| Taxi/Rideshare Warranty | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What vehicles is the SMF53R suitable for?
The SMF53R is a European Automotive Battery intended for vehicles that require matching battery dimensions, terminal placement, and electrical specifications.
What role do tropicalised power plates play in the SMF53R?
The Lead-Calcium Tropicalised Power Plates are designed to support dependable operation under demanding conditions, including higher-temperature environments.
How does the SMF53R simplify battery maintenance?
Its fully sealed construction means routine electrolyte top-ups are not required, helping reduce ongoing maintenance tasks.
How do the SMF53R's internal components support reliable operation?
Hardened alloys and intercell connections contribute to structural durability, while the efficient electrical flow design and high-purity lead and electrolyte help support effective power delivery.
