Supercharge Stop-Start MFD23EF
MFD23EF
Nominal Voltage:
12V
Size:
D23
CCA @(-18°C):
685
RC @ 25A:
112
Ah 20hr:
67
Length:
231mm
Width:
172mm
Height:
200mm
Total Height:
220mm
Battery Type:
Maintenance Free
Technology:
EFB SS
Ledge:
FL
Accessibility:
TS
Hydro:
YES
Post Style:
STD
Assembly:
C
Warranty Priv:
36 mths
Warranty Comm:
12 mths
Abbreviations and Battery Assemblies
![$specification_and_dimension['abbreviation_image']['alt']](https://www.supercharge.com.au/wp-content/uploads/2025/02/WEBP-Battery-Assembly.webp)
AP:
Automotive Post
CT:
Centered Terminal
CV:
Central Venting
DFA:
Dual Fit Aligned Terminals
DFP:
Dual Fit Parallel Terminals
DST:
Dual System Terminals
DT:
Automotive Post & Stud
DWNT:
Dual Wingnut
EL:
End Ledge
ELPT:
Embedded Low Profile
EUTR:
Embedded Universal/Reverse
F1:
F1 Terminal
F1-F2:
F1/F2 Terminal
F10:
F10 Terminal
F10M8:
F1 Terminal (1.25mmx15mm Stud I))
F11:
F11 Terminal
F11M6:
F11 Terminal (6mm/8mm Insert)
F12:
F12 Terminal
F12M8:
F12 Terminal (1.25mmx15mm Stud I)
F13:
F13 Terminal
F14:
F14 Terminal
F14M8:
F14 Terminal (1.25mmx15mm Stud I)
F18:
F18 Terminal
F2:
F2 Terminal
F22:
F22 Terminal
F3:
F3 Terminal
F3W:
F3W Terminal
F5:
F5 Terminal
F8:
F8 Terminal
F9:
F9 Terminal
FDH:
Fold Down Handles
FL:
Front Ledge
HE:
Hydrometer Eye
M6:
M6
M8:
1.25mmx15mm Stud I
M8-DT:
Automotive Post & Stud (1.25mmx15mm Stud I)
OLT:
Offset Lug Terminal
PT:
Pencil Terminal
RPH:
Rope Handles
RT:
Recessed Terminal
RTH:
Retractable Handles
ST:
Side Terminal
STD:
Standard Terminal
T1:
T1
T11:
T11
T12:
T12
T2:
T2
T6:
T6
T6A:
T6A
TM:
Twin Marine Terminal - Type M
TS:
Top Stud Terminal
UT:
Universal
WNT:
Wingnut

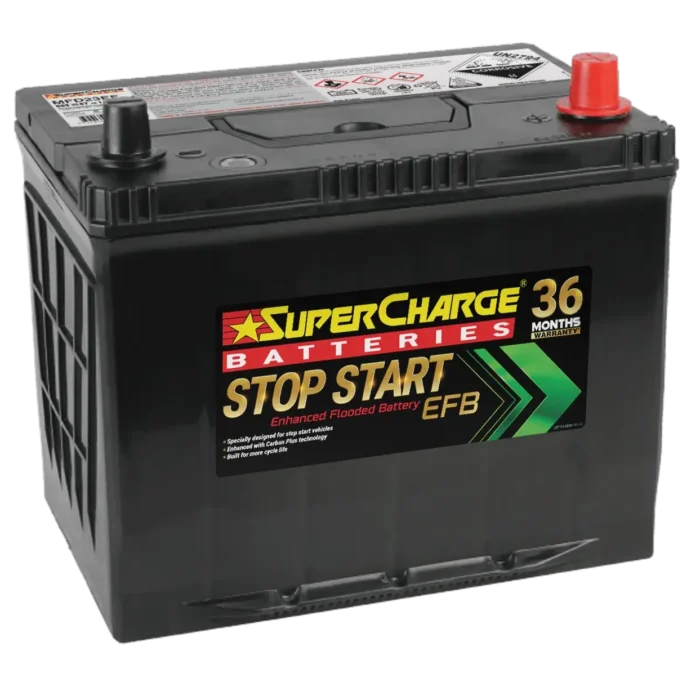

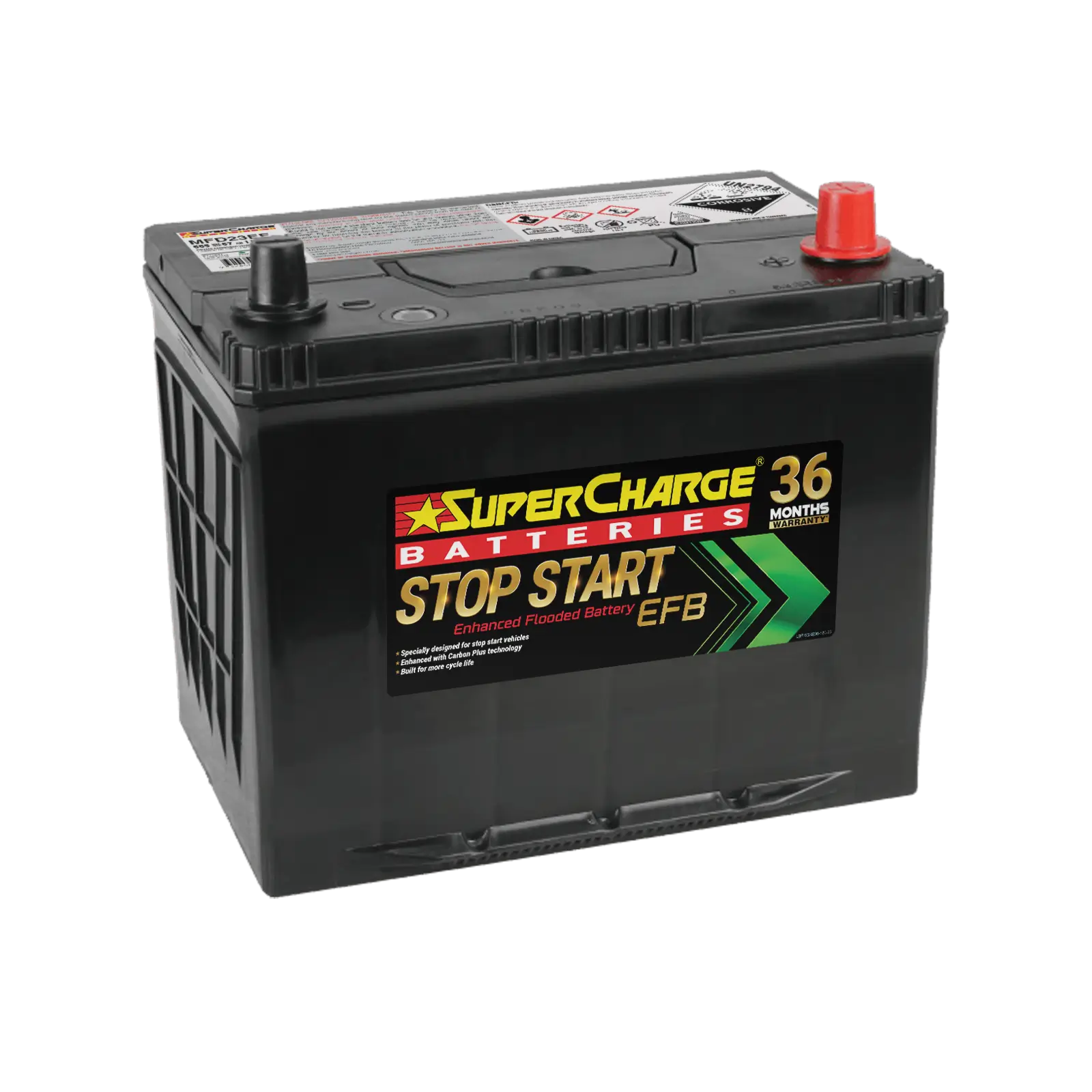

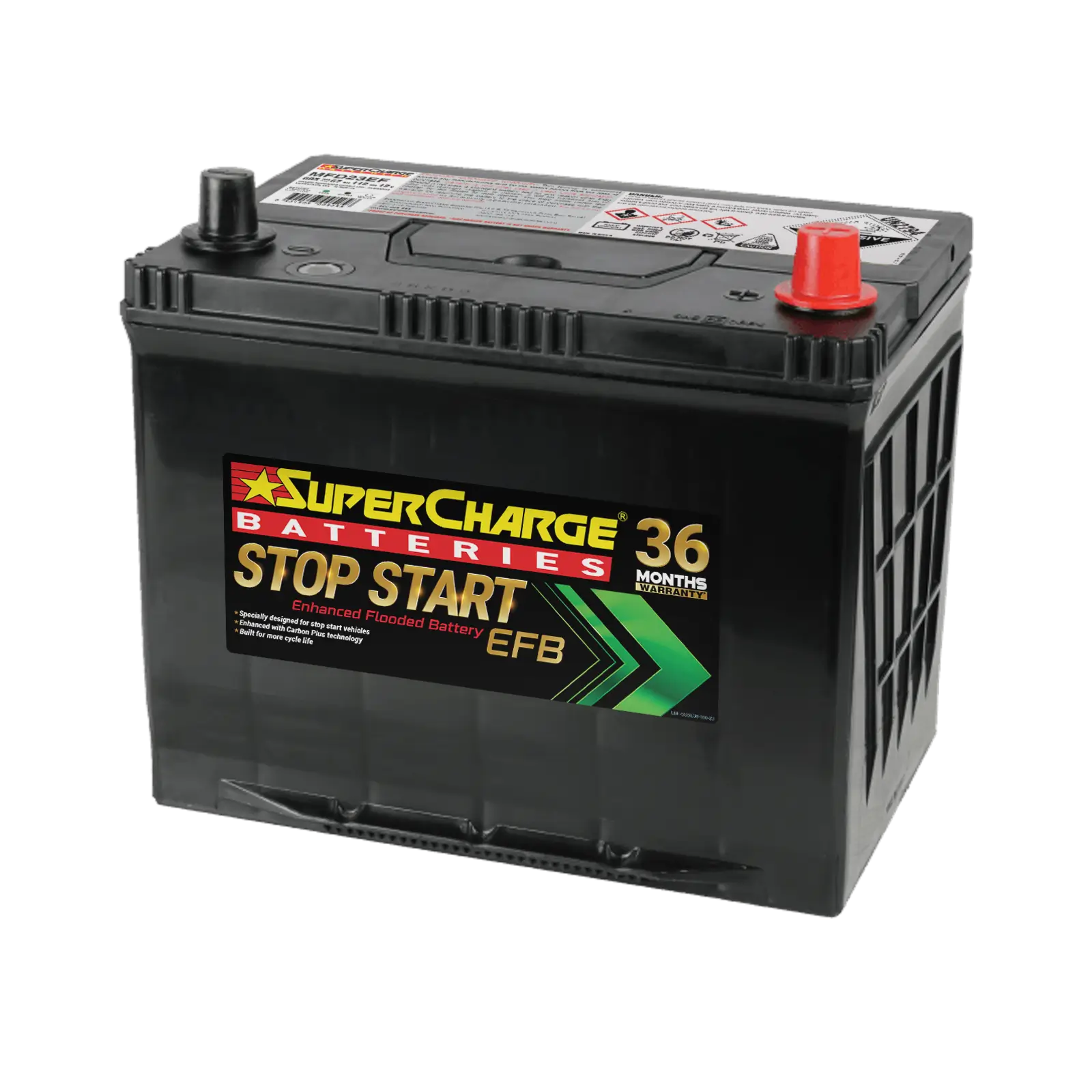

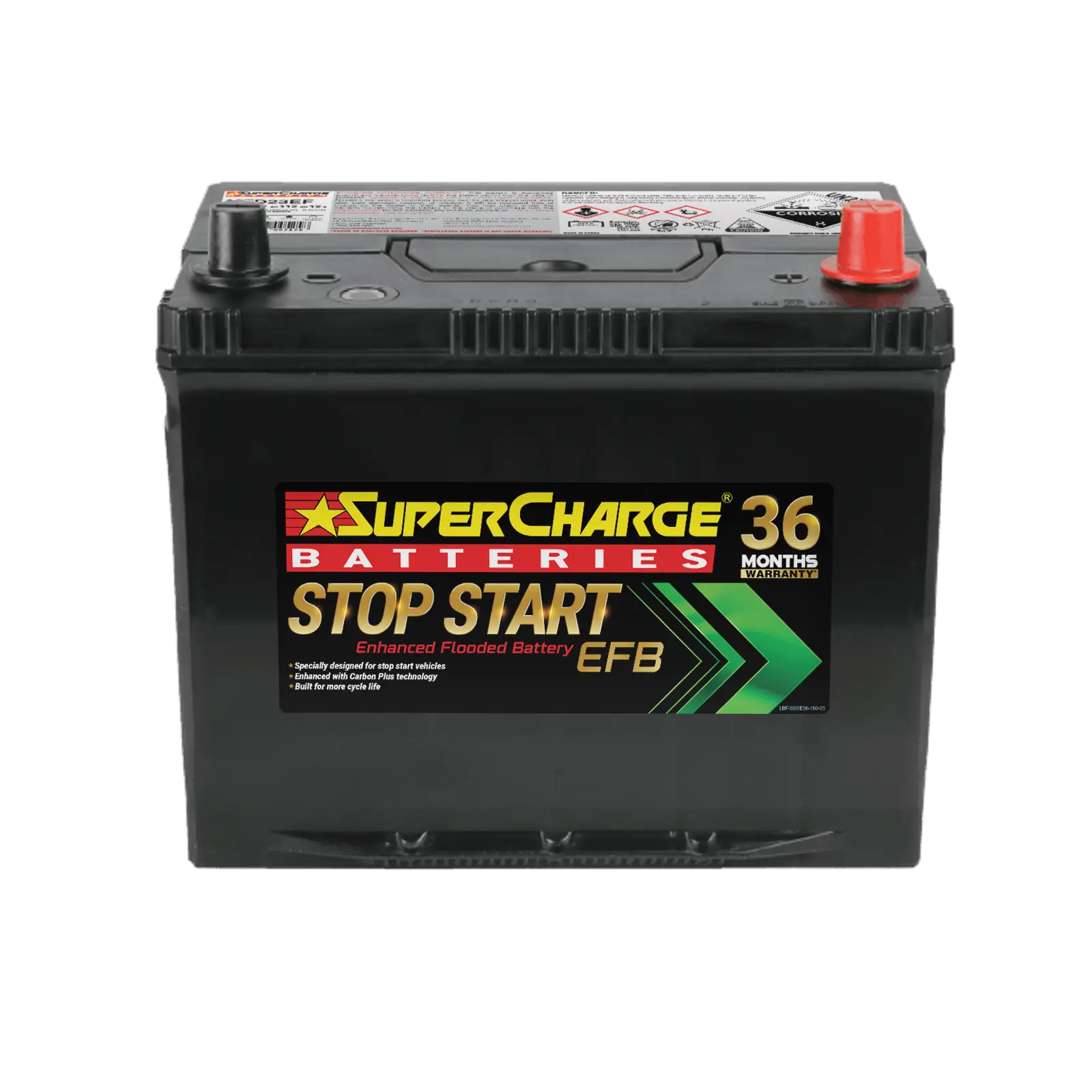

Stop-Start MFD23EF EFB Battery
MFD23EF
12V 67AH EFB Battery
The MFD23EF is a high-performance battery designed to handle the increased demands of modern stop-start vehicles. Built to exceed OE2 performance and safety specifications, it delivers reliable power even under frequent engine restarts and heavy electrical loads. Its advanced dense and compact construction enhances energy efficiency, ensuring strong output and rapid recovery for consistent vehicle performance.
Engineered with hardened framed plates and corrosion-resistant alloys, the MFD23EF offers superior durability and long service life. Its vibration-resistant design provides added stability in tough driving conditions, while its ability to withstand repeated discharge cycles makes it ideal for stop-start systems. Specifically suited for in-cabin installation, this battery is a dependable and safe choice for vehicles requiring enhanced performance and resilience.
Features
Specially designed for stop start vehicles
Enhanced with Carbon Plus technology
Built for more cycle life
The Supercharge MFD23EF Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Find a DealerNeed help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
View the Full Buying GuideTechnical Specifications
| Size | D23 |
| Volts | 12V |
| Technology | EFB SS |
| CCA | 685 |
| RC | 112 |
| AH | 67 |
| Length, mm | 231 |
| Width, mm | 172 |
| Height, mm | 200 |
| Total Height, mm | 220 |
| Assembly | C |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 36 months |
| Warranty (Commercial Use) | 12 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
Show Abbreviations Show Battery Assemblies Show Applications| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What type of vehicles is the MFD23EF suitable for?
The MFD23EF is specifically designed for stop-start vehicles that require frequent engine restarts and higher energy demands.
Can this battery handle frequent discharge cycles?
Yes, it is built to withstand repeated discharge and recharge cycles, making it ideal for stop-start systems.
Is the MFD23EF safe for in-cabin installation?
Yes, it is designed with safety in mind and is suitable for in-cabin use.
How durable is this battery?
It features hardened framed plates, corrosion-resistant alloys, and a vibration-resistant design for long-lasting durability.
