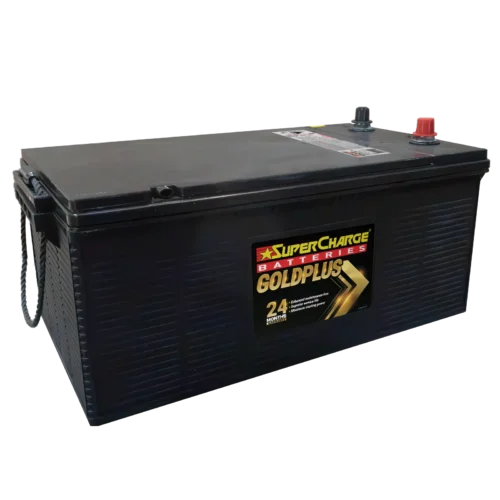

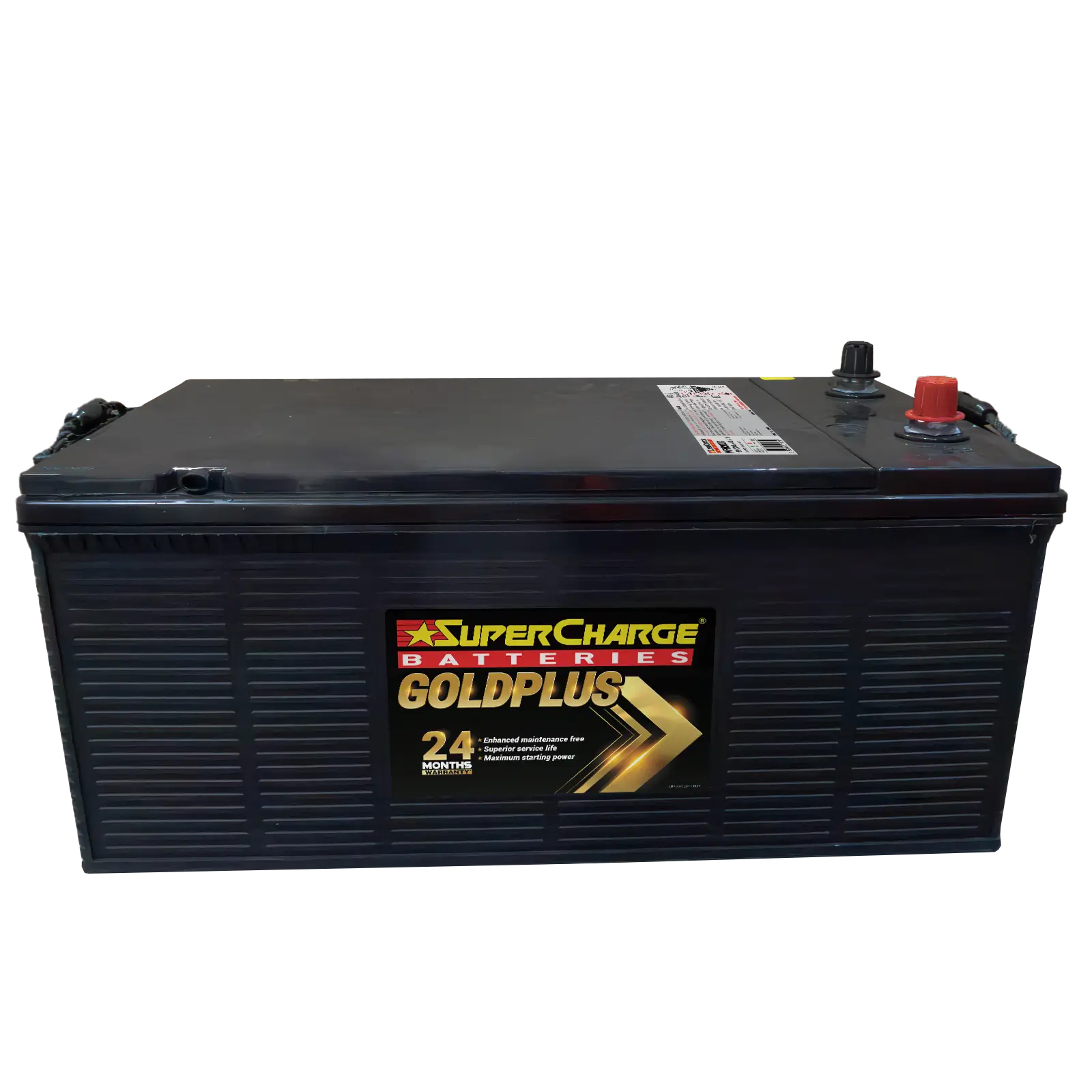

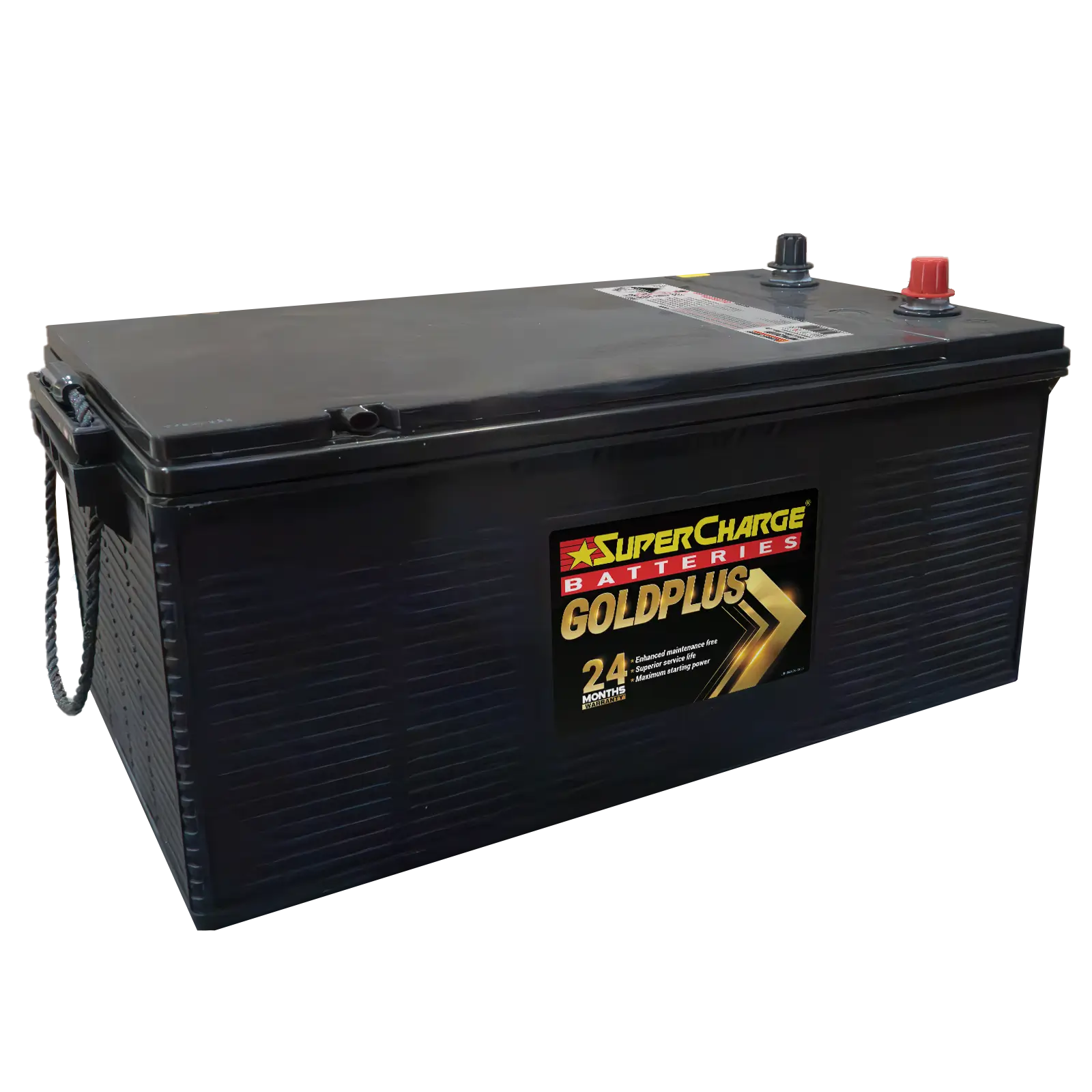

GoldPlus MFN200L Truck Battery
MFN200L
12V 200AH Truck Battery
The MFN200L Truck Battery is built for demanding truck applications, combining durable internal construction with technology designed to support consistent starting performance. It features More Lead-Calcium Tropicalised Power Plates, high-purity lead and electrolyte to promote efficient electrical operation. The advanced dense and compact construction provides a solid internal structure, while hardened alloys and durable intercell connections reinforce the battery assembly. Its high-efficiency electrical flow design is engineered to support effective power transfer when starting the engine.
For straightforward operation, the MFN200L battery uses a fully sealed, maintenance-free construction that reduces routine servicing requirements. Its formulation is designed for high state-of-charge retention, helping preserve stored electrical charge between periods of vehicle use. Tropicalised power plate technology, strengthened internal components and efficient electrical flow combine to make the MFN200L a practical starting battery for demanding truck applications.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MFN200L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right 4WD battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N200 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 1250 |
| RC | 408 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
200 |
| Length, mm | 524 |
| Width, mm | 278 |
| Height, mm | 225 |
| Total Height, mm | 251 |
| Assembly |
E
|
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 24 months |
| Warranty (Commercial Use) | 24 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MFN200L battery designed for?
The MFN200L is a Truck Battery designed for automotive starting applications. It combines Lead-Calcium Tropicalised Power Plates with a robust, sealed construction.
How does the MFN200L's internal design support demanding use?
Its dense and compact construction is reinforced with hardened alloys and durable intercell connections. Together, these features provide a strong internal structure for demanding truck applications.
What helps the MFN200L deliver electrical power efficiently?
The battery uses a high-efficiency electrical flow design alongside high-purity lead and electrolyte to support effective electrical transfer during engine starting.
Is the MFN200L maintenance-free?
Yes. The MFN200L is fully sealed and maintenance-free, so routine electrolyte top-ups are not required during normal operation. It is also formulated for high state-of-charge retention to help preserve stored charge between uses.
