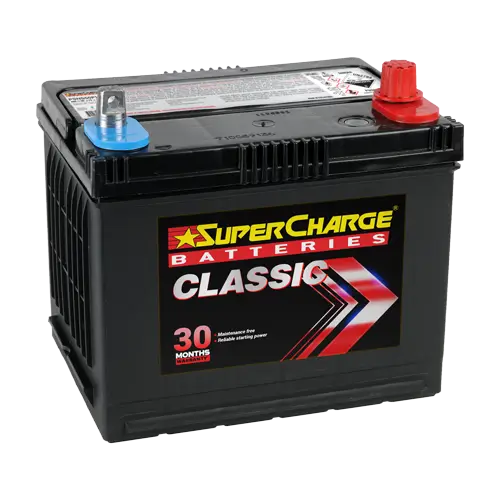

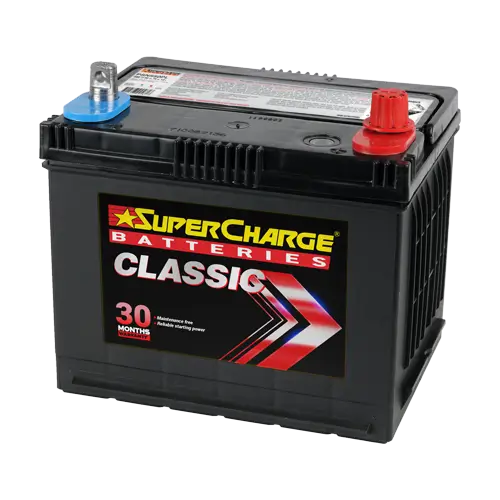

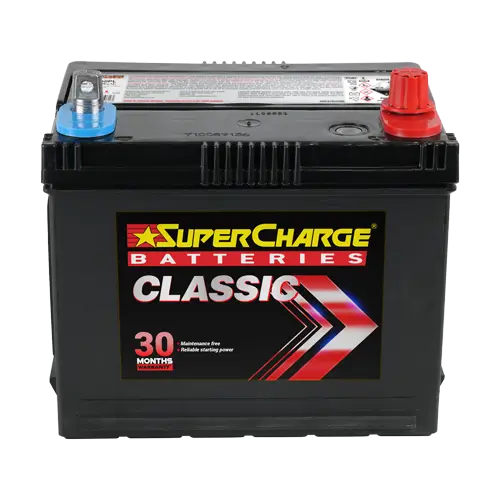

Classic NS50PL Car Battery
NS50PL
12V 40AH Car Battery
The NS50PL Automotive Battery is designed to provide dependable starting performance for compatible vehicles. Built with Lead-Calcium Tropicalised Plates, it features a durable internal structure assembled using hardened alloys and intercell connections. These components, combined with high-purity lead and electrolyte, support consistent battery operation for everyday automotive applications.
For added convenience, the NS50PL battery features a fully sealed, maintenance-free design that eliminates the need for regular electrolyte top-ups. Its combination of tropicalised plate technology, robust internal connections and quality materials makes it a practical option for motorists seeking a low-maintenance automotive battery. Before purchasing, check your vehicle's specifications to ensure the NS50PL meets the required battery fitment and performance requirements.
Features
Maintenance free
Designed for long life
Reliable Starting Power
The Supercharge NS50PL Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right Car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | A46 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 480 |
| RC | 75 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
40 |
| Length, mm | 237 |
| Width, mm | 171 |
| Height, mm | 182 |
| Total Height, mm | 203 |
| Assembly |
C
i
|
| Post Type | DFP |
| Ledge | EL & FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 30 months |
| Commercial Use Warranty | 12 months |
| Taxi/Rideshare Warranty | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What type of battery is the NS50PL?
The NS50PL is an Automotive Battery designed for compatible vehicles requiring this battery specification.
Is the NS50PL battery maintenance-free?
Yes. The NS50PL features a fully sealed, maintenance-free design, eliminating the need for regular electrolyte top-ups.
What are the key features of the NS50PL battery?
The NS50PL features Lead-Calcium Tropicalised Plates, hardened alloys and intercell connections, and high-purity lead and electrolyte to support dependable battery performance.
How do I find the right battery for my vehicle?
Check the Supercharge Battery Finder to find the compatible battery for your vehicle. You can use it to identify a suitable battery based on your vehicle's details and confirm the required fitment before purchasing.
