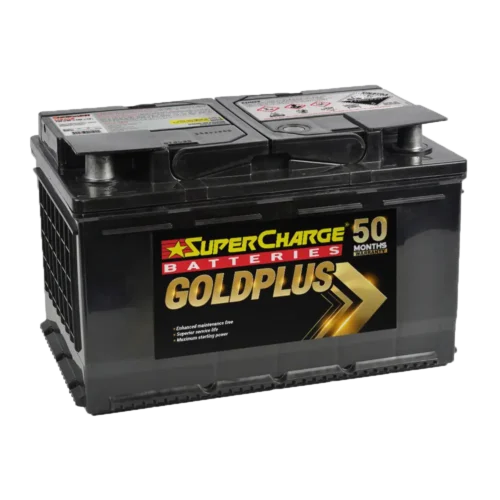

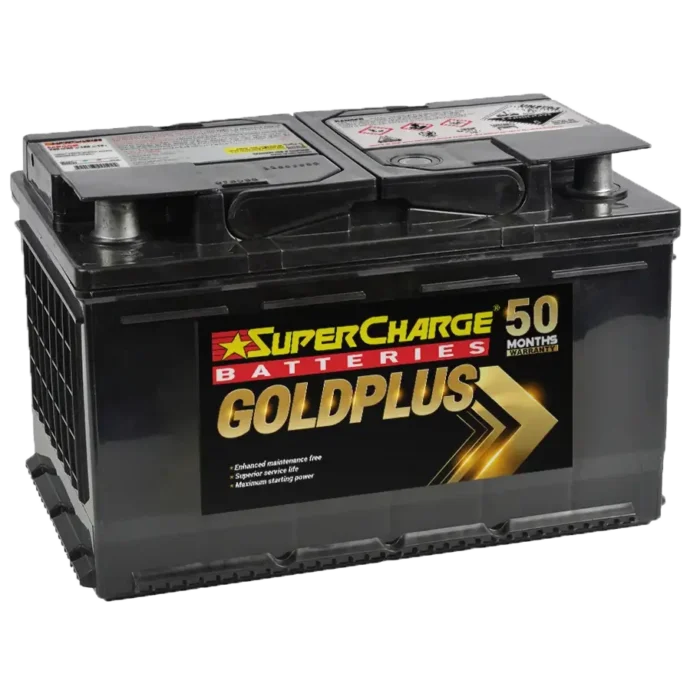

MF66R
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
MF66H

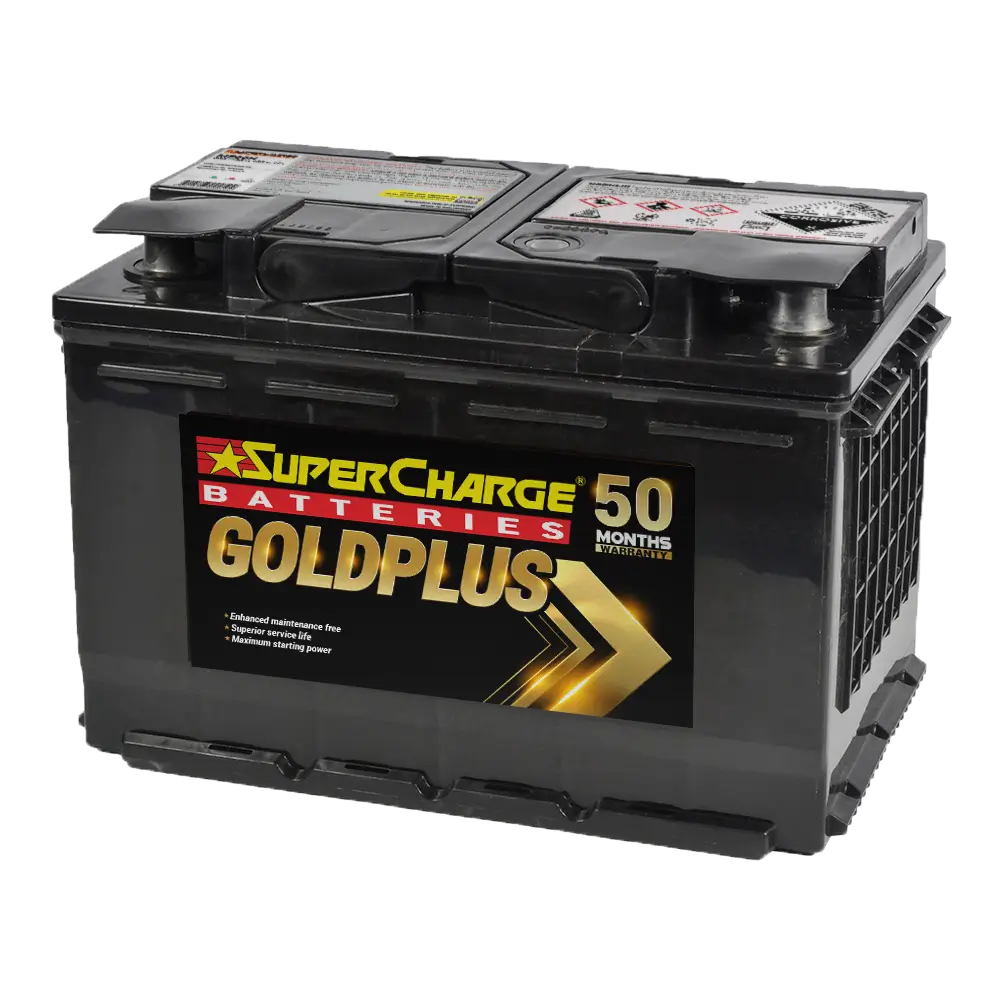

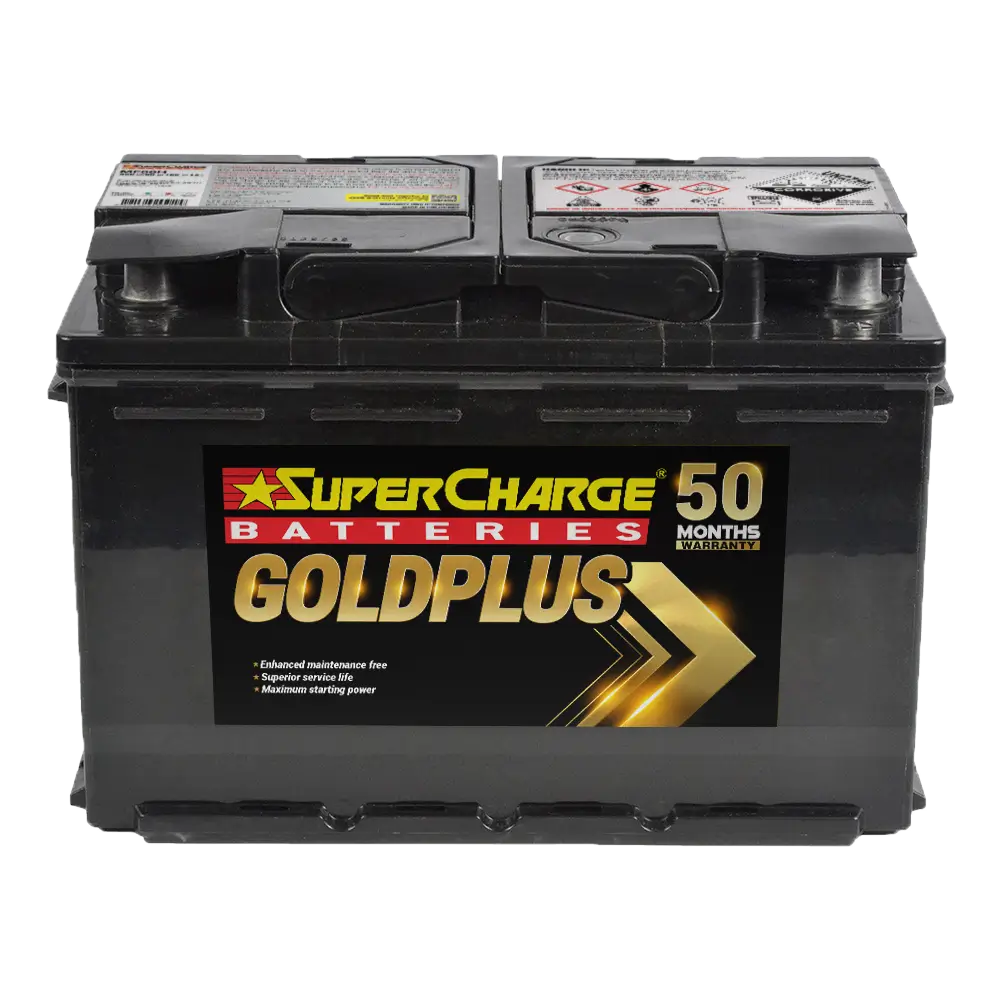

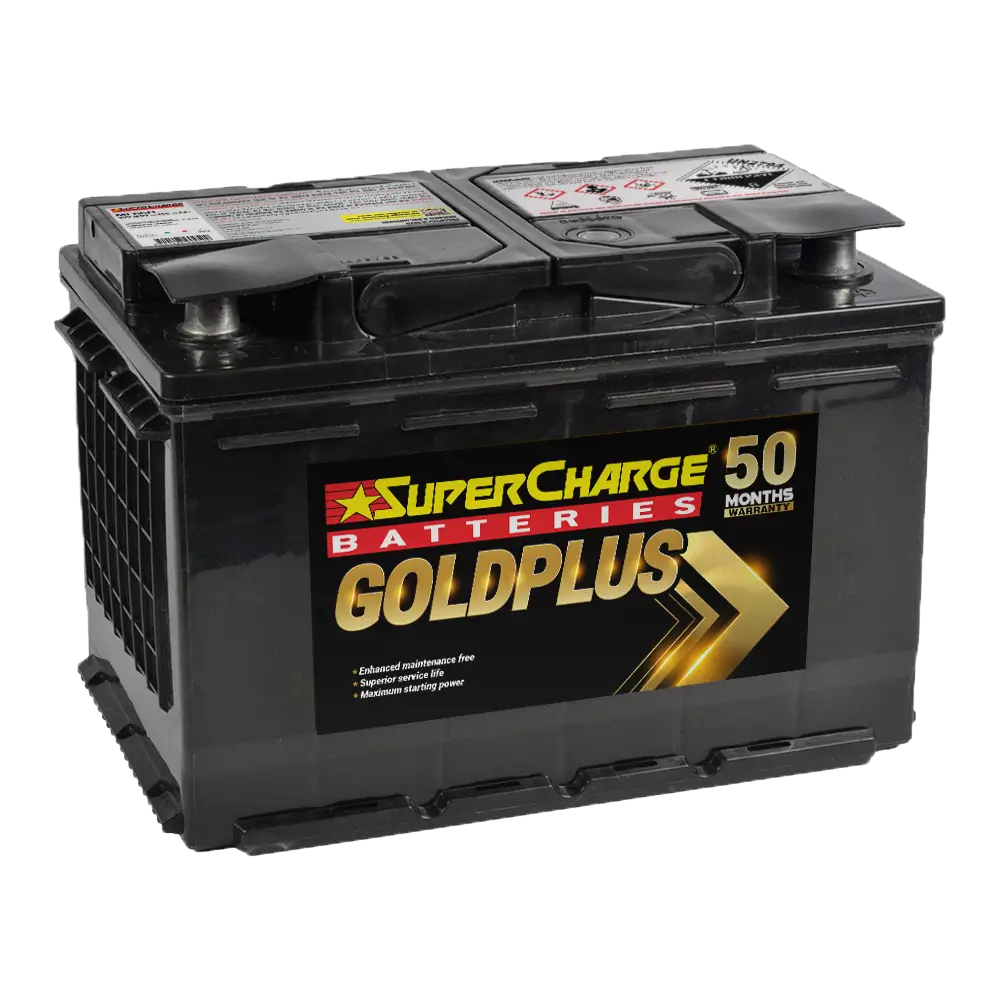

GoldPlus MF66H European Automotive Battery
MF66H
12V 90AH European Automotive Battery
The MF66H is engineered with an advanced battery design that exceeds OE2 requirements, delivering exceptional performance and a longer service life. Built with More Lead-Calcium Tropicalised Power Plates and formulated for high state-of-charge retention, it ensures consistent reliability even in demanding environments. Its advanced dense and compact construction provides superior durability, while hardened alloys and intercell connections enhance structural strength and electrical stability.
As a fully-sealed Maintenance-Free battery, the MF66H offers convenience without compromising efficiency. Its high-efficiency electrical flow design supports optimal power delivery, making it ideal for modern automotive applications. Formulated with high-purity lead and electrolyte, it delivers cleaner, more reliable energy output, ensuring long-lasting performance and dependable starting power.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF66H Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Find a DealerTechnical Specifications
| Size | N66H/LN3 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 800 |
| RC | 165 |
| AH | 90 |
| Length, mm | 277 |
| Width, mm | 175 |
| Height, mm | 190 |
| Total Height, mm | 190 |
| Assembly | C |
| Post Type | STD |
| Ledge | EL & FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
Need to see the abbreviations?
Show Abbreviations| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
Need to see the battery assemblies?
Show Battery Assemblies| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
Vehicle Fitment Guide – Check Compatible Models
Show Applications| Make | Model | Year |
| Alfa Romeo | 159 | 2006-2010 |
| Alfa Romeo | 164 | 1987-1998 |
| Alfa Romeo | 166 | 1999-2009 |
| Audi | A3 | 2004-2013 |
| Audi | A4 | 1997-2001 |
| Audi | A6 | 1997-1997 |
| Audi | Q3 | 2013-2015 |
| Audi | Q5 | 2009-2010 |
| Audi | S3 | 1999-2011 |
| BMW | 116i | 2003-2011 |
| BMW | 130i | 2007-2010 |
| BMW | 316i | 1991-2001 |
| BMW | 318i | 2005-2008 |
| BMW | 320Ci | 2002-2006 |
| BMW | 320i | 1991-2013 |
| BMW | 323Ci | 1999-2000 |
| BMW | 323i | 1995-2012 |
| BMW | 325i | 1991-2014 |
| BMW | 328Ci | 1999-2000 |
| BMW | 328i | 1995-2000 |
| BMW | 335i | 2006-2014 |
| BMW | 520i | 1996-2000 |
| BMW | 523i | 1996-2000 |
| BMW | 633CSi | 1977-1980 |
| Chevrolet | Corvette | 2021-2026 |
| Chevrolet | Silverado | 2011-2026 |
| Chevrolet | Tahoe | 2011-2014 |
| Citroen | Berlingo | 2011-2017 |
| Citroen | C5 | 2008-2010 |
| Fiat | Scudo | 2008-2016 |
| Ford | Ranger | 2016-2022 |
| Ford | Territory | 2011-2016 |
| Holden | Astra | 2015-2018 |
| Holden | Calais | 2006-2017 |
| Holden | Caprice | 2006-2015 |
| Holden | Captiva | 2006-2012 |
| Holden | Commodore | 2006-2017 |
| Holden | Statesman | 2006-2010 |
| Honda | CRV | 2014-2015 |
| HSV | Clubsport | 2012-2017 |
| HSV | Clubsport GXP | 2010-2011 |
| HSV | Clubsport R8 | 2006-2015 |
| HSV | Grange | 2007-2013 |
| HSV | GTS | 2006-2017 |
| HSV | GTSR Maloo | 2017-2017 |
| HSV | Maloo | 2012-2015 |
| HSV | Maloo R8 | 2008-2015 |
| HSV | Senator | 2008-2015 |
| Hyundai | i30 | 2012-2026 |
| Hyundai | iX35 | 2013-2015 |
| Hyundai | Santa Fe | 2018-2024 |
| Hyundai | Tucson | 2015-2021 |
| Isuzu | D-Max | 2020-2026 |
| Isuzu | Mu-X | 2021-2026 |
| Jaguar | X Type | 2004-2010 |
| Jaguar | XJS | 1992-1995 |
| Jeep | Cherokee | 2014-2022 |
| Jeep | Wrangler | 2018-2023 |
| Kia | Cerato | 2009-2013 |
| Kia | Seltos | 2019-2022 |
| Kia | Sorento | 2017-2026 |
| LDV | G10 | 2015-2026 |
| Lexus | RC F | 2014-2021 |
| Lexus | RX500h | 2022-2026 |
| Mazda | BT50 | 2020-2029 |
| Mercedes Benz | A180 CDI | 2005-2010 |
| Mercedes Benz | B180 CDI | 2006-2012 |
| Mercedes Benz | C200 | 2007-2014 |
| Mercedes Benz | C200 CDI | 2011-2014 |
| Mercedes Benz | C300 | 2017-2018 |
| Mercedes Benz | CLC200 | 2008-2011 |
| Mercedes Benz | E350 | 2005-2013 |
| Mercedes Benz | E350 CDI | 2009-2016 |
| Mercedes Benz | SL500 | 2006-2015 |
| Mercedes Benz | SL600 | 2006-2012 |
| Mercedes Benz | SLK200 | 2000-2008 |
| Mercedes Benz | SLK300 | 2010-2011 |
| Mercedes Benz | SLK350 | 2008-2019 |
| Mercedes Benz | Viano | 2006-2014 |
| Mercedes Benz | X250d | 2017-2026 |
| MG | GS | 2017-2020 |
| MG | ZST | 2020-2026 |
| Mini | Cooper | 2007-2010 |
| Mini | Cooper D | 2007-2014 |
| Mini | One | 2007-2014 |
| Mitsubishi | Outlander | 2021-2026 |
| Nissan | Navara | 2005-2026 |
| Nissan | Pathfinder | 2005-2026 |
| Opel | Astra | 2012-2013 |
| Peugeot | 308 | 2008-2017 |
| Peugeot | 407 | 2006-2011 |
| Peugeot | 508 | 2011-2018 |
| Porsche | 911 | 1995-1997 |
| Renault | Clio | 2013-2020 |
| Renault | Fluence | 2010-2015 |
| Renault | Kangoo | 2001-2020 |
| Renault | Laguna | 2008-2011 |
| Renault | Megane | 2008-2016 |
| Skoda | Octavia | 2005-2015 |
| Skoda | Superb | 2010-2016 |
| Toyota | Fortuner | 2015-2026 |
| Toyota | GR Yaris | 2020-2026 |
| Toyota | Hiace | 2019-2026 |
| Toyota | Hilux | 2015-2026 |
| Toyota | Kluger | 2021-2022 |
| Toyota | Soarer | 2001-2010 |
| Volkswagen | Amarok | 2010-2022 |
| Volkswagen | Caddy | 2010-2015 |
| Volkswagen | Crafter | 2007-2018 |
| Volkswagen | Golf | 2003-2013 |
| Volkswagen | Jetta | 2007-2009 |
| Volkswagen | Multivan | 2010-2020 |
| Volkswagen | Passat | 2008-2010 |
| Volkswagen | Scirocco | 2009-2017 |
| Volkswagen | Tiguan | 2007-2016 |
Downloads
Frequently Asked Questions
What makes the MF66H different from standard automotive batteries?
The MF66H exceeds OE2 requirements and uses advanced Lead-Calcium Tropicalised Power Plates, a dense compact construction, and high-purity materials—resulting in superior performance, longer life, and higher durability compared to standard batteries.
Is the MF66H truly maintenance-free?
Yes. The MF66H is fully sealed and designed as a Maintenance-Free battery, meaning you don’t need to top up electrolyte levels or perform regular fluid checks.
Does the MF66H hold its charge well during periods of non-use?
Absolutely. It is formulated for high state-of-charge retention, allowing it to maintain reliable power even during extended storage or infrequent vehicle use.
Is the MF66H suitable for harsh climates or heavy-use environments?
Yes. The MF66H's hardened alloys, intercell connections, and tropicalised power plate technology make it well-suited for extreme temperatures, demanding driving conditions, and high electrical load applications.
Similar Batteries
Current Selection
MF66H
12V 90AH European Automotive Battery
SilverPlus
Classic
Need to find a compatible battery for your vehicle?
Find a Battery

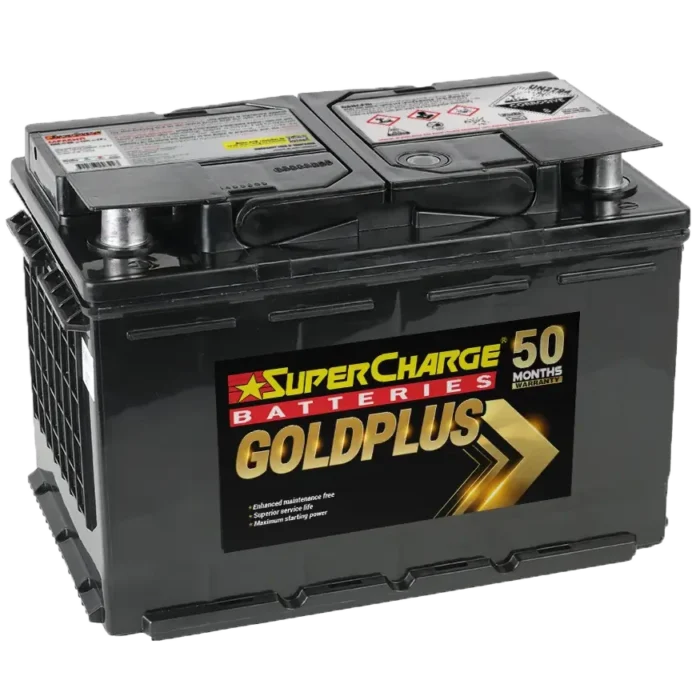

MF66HR
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut

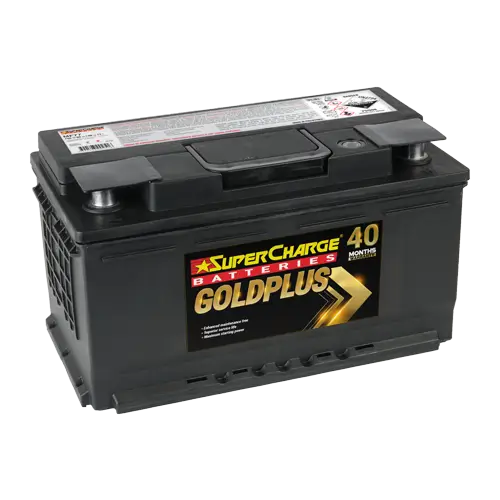

MF77
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut

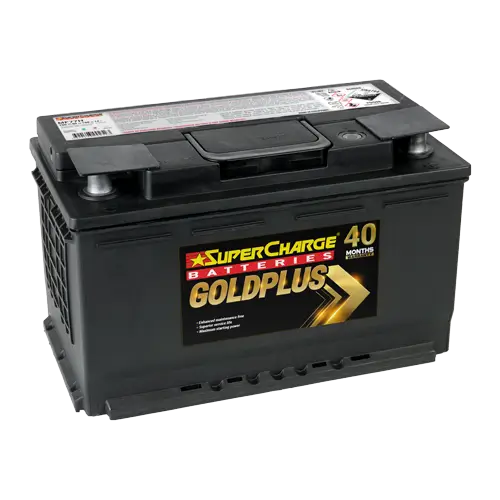

MF77H
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
MF77HRX
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
MF88
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut

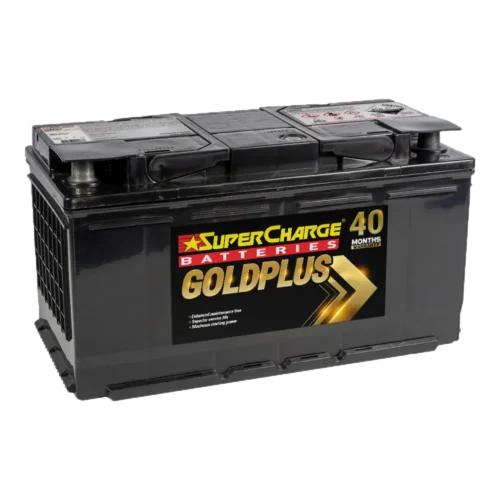

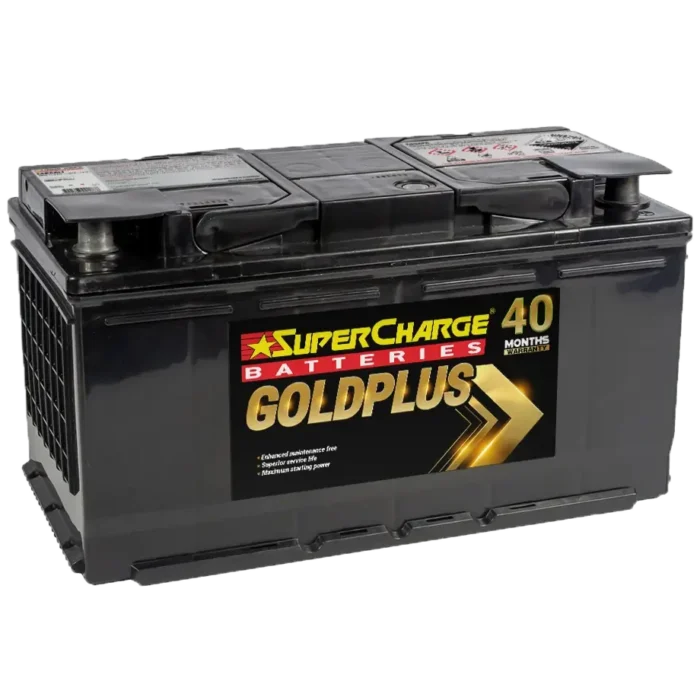

MF88H
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
