MFULD23L

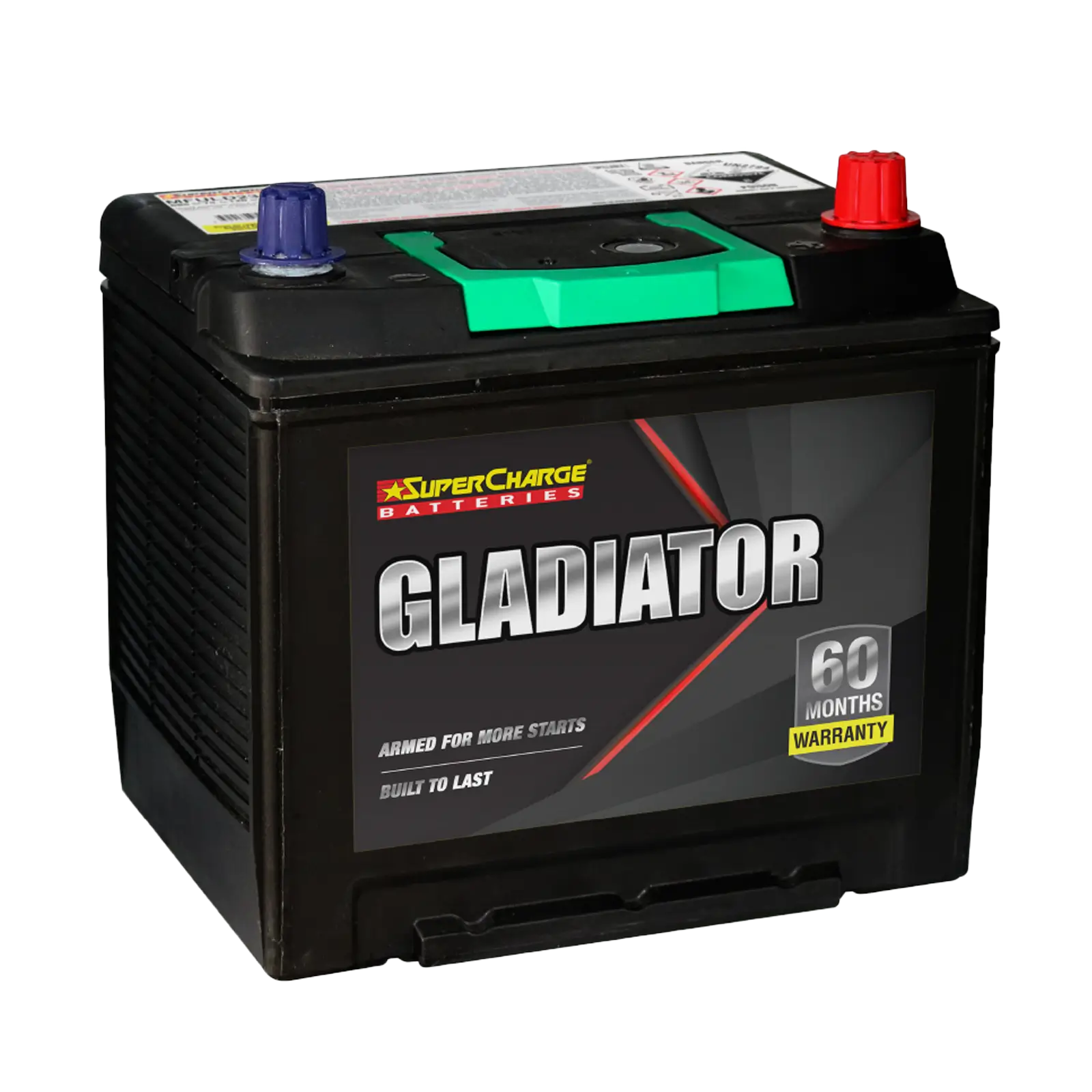

Gladiator MFULD23L Automotive Battery
MFULD23L
12V 75AH Automotive Battery
The MFULD23L represents the pinnacle of flooded battery technology, delivering outstanding performance and extended service life for modern vehicles. Designed to exceed OE2 requirements, it provides reliable starting power and consistent energy delivery across a wide range of driving conditions. With up to 100% more cycle life than older technologies, the MFULD23L is built to handle increased electrical demands while maintaining exceptional efficiency.
Engineered with tropicalised and hardened framed plates, the MFULD23L offers superior durability and resistance to harsh conditions. Its advanced dense and compact construction supports high-efficiency electrical flow and optimised heat control, ensuring stable and reliable performance. Designed for high state of charge retention and vibration resistance, the MFULD23L delivers powerful energy output, fast recovery, and long-lasting reliability for today’s vehicles.
Features
Armed for more starts
Built to last
60 months warranty
The Supercharge MFULD23L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | D23 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 650 |
| RC | 120 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
75 |
| Length, mm | 233 |
| Width, mm | 173 |
| Height, mm | 201 |
| Total Height, mm | 222 |
| Assembly | C (Positive Right) |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 50 months |
| Extended Warranty (Private Use) | 60 months |
| Warranty (Commercial Use) | 24 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What makes the MFULD23L different from standard batteries?
It offers up to 100% more cycle life, exceeds OE2 standards, and delivers superior performance and longevity.
Is the MFULD23L suitable for modern vehicles?
Yes, it is designed to meet the demands of modern vehicles with higher electrical loads.
How does it handle heat and harsh conditions?
It is balanced for optimised heat control and built with tropicalised plates for durability in tough environments.
Is the MFULD23L resistant to vibration?
Yes, it features a vibration-resistant design for improved durability and reliability.
Same Size Batteries
MFULD23R
Gladiator MFULD23R Automotive Battery
MFULD23R
12V 75AH Automotive Battery
The MFULD23R represents the pinnacle of flooded battery technology, delivering outstanding performance and extended service life for modern vehicles. Designed to exceed OE2 requirements, it provides reliable starting power and consistent energy delivery across a wide range of driving conditions. With up to 100% more cycle life than older technologies, the MFULD23R is built to handle increased electrical demands while maintaining exceptional efficiency.
Engineered with tropicalised and hardened framed plates, the MFULD23R offers superior durability and resistance to harsh conditions. Its advanced dense and compact construction supports high-efficiency electrical flow and optimised heat control, ensuring stable and reliable performance. Designed for high state of charge retention and vibration resistance, the MFULD23R delivers powerful energy output, fast recovery, and long-lasting reliability for today’s vehicles.
Features
Armed for more starts
Built to last
60 months warranty
The Supercharge MFULD23R Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | D23 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 650 |
| RC | 120 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
75 |
| Length, mm | 233 |
| Width, mm | 173 |
| Height, mm | 201 |
| Total Height, mm | 222 |
| Assembly | D (Positive Left) |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 50 months |
| Extended Warranty (Private Use) | 60 months |
| Warranty (Commercial Use) | 24 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What vehicles is the MFULD23R suitable for?
The MFULD23R is suitable for a wide range of modern vehicles requiring reliable performance and higher energy efficiency.
How long does the MFULD23R last compared to standard batteries?
It offers up to 100% more cycle life than older battery technologies.
Is the MFULD23R built for harsh conditions?
Yes, it features tropicalised plates and optimised heat control for durability in demanding environments.
Does it resist vibration?
Yes, it is designed with a vibration-resistant structure for enhanced durability and longevity.
Same Size Batteries
MFULD26L

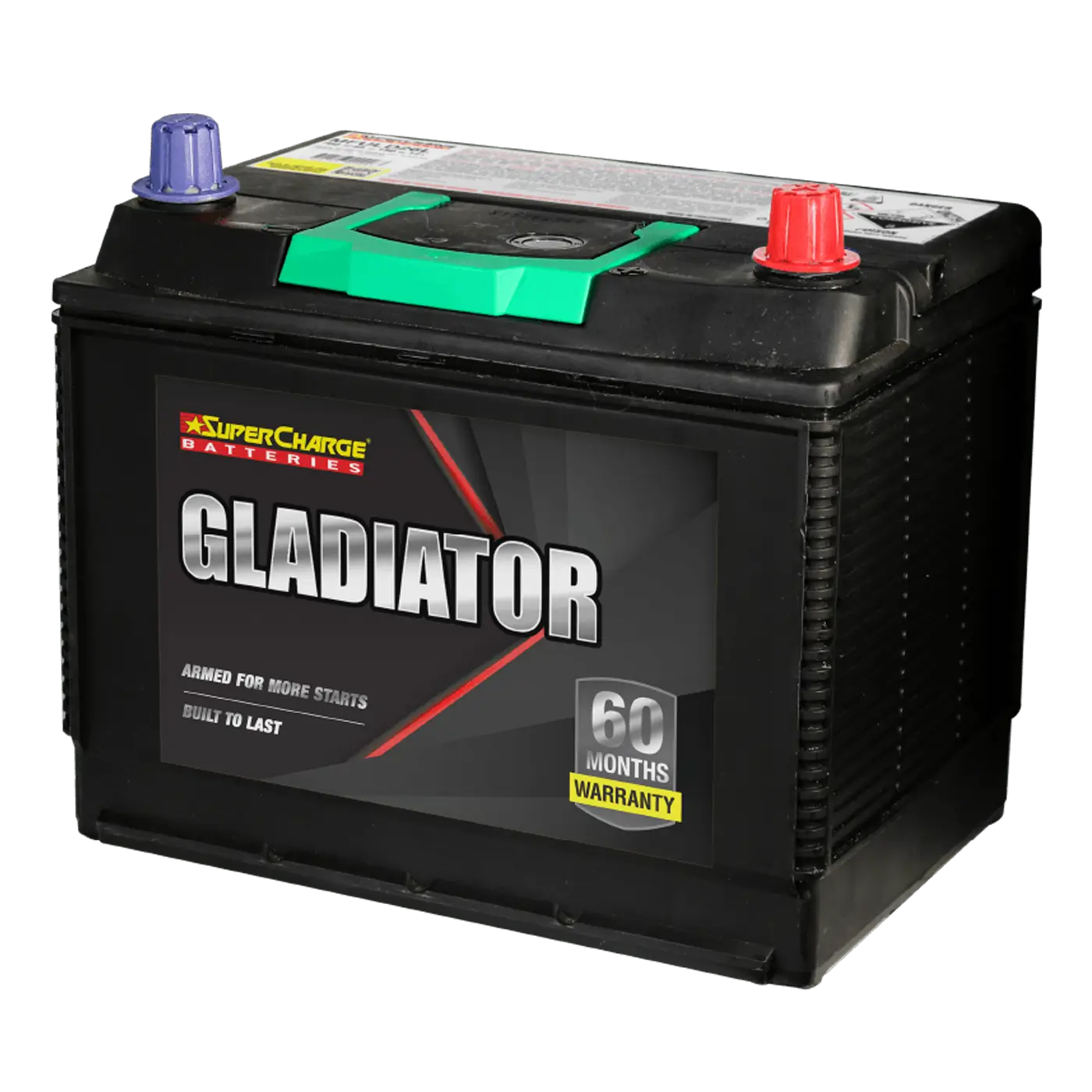

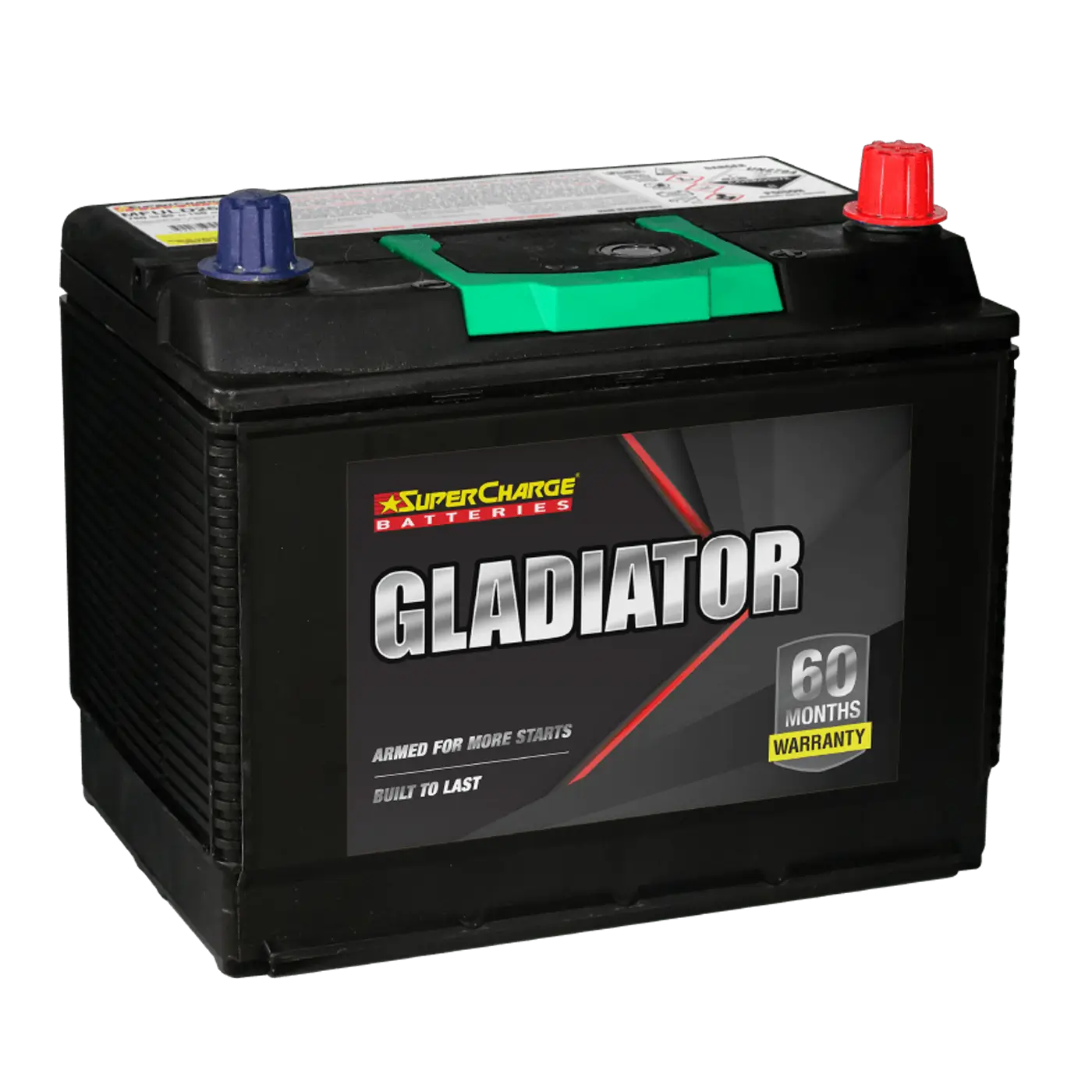

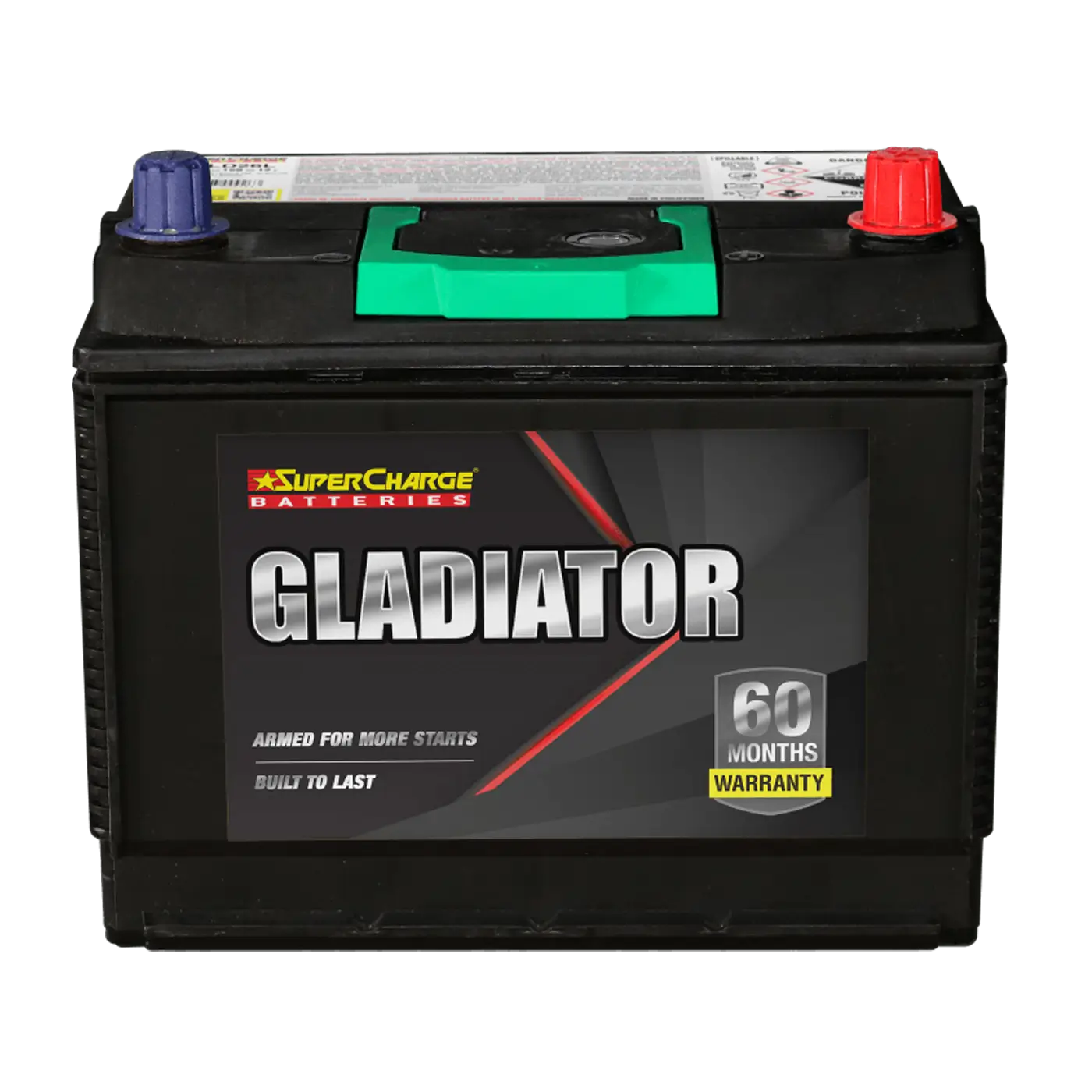

Gladiator MFULD26L Automotive Battery
MFULD26L
12V 85AH Automotive Battery
The MFULD26L represents the pinnacle of flooded battery technology, delivering outstanding performance and extended service life for modern vehicles. Designed to exceed OE2 requirements, it provides reliable starting power and consistent energy delivery across a wide range of driving conditions. With up to 100% more cycle life than older technologies, the MFULD26L is built to handle increased electrical demands while maintaining exceptional efficiency.
Engineered with tropicalised and hardened framed plates, the MFULD26L offers superior durability and resistance to harsh conditions. Its advanced dense and compact construction supports high-efficiency electrical flow and optimised heat control, ensuring stable and reliable performance. Designed for high state of charge retention and vibration resistance, the MFULD26L delivers powerful energy output, fast recovery, and long-lasting reliability for today’s vehicles.
Features
Armed for more starts
Built to last
60 months warranty
The Supercharge MFULD26L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS70 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 750 |
| RC | 150 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
85 |
| Length, mm | 259 |
| Width, mm | 173 |
| Height, mm | 202 |
| Total Height, mm | 222 |
| Assembly | C (Positive Right) |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 50 months |
| Extended Warranty (Private Use) | 60 months |
| Warranty (Commercial Use) | 24 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What makes the MFULD26L different from standard batteries?
It delivers up to 100% more cycle life, exceeds OE2 standards, and offers improved efficiency and durability.
Is the MFULD26L suitable for modern vehicles?
Yes, it is designed to support vehicles with higher electrical demands and advanced systems.
How does it perform in harsh conditions?
It features tropicalised plates and optimised heat control for reliable performance in extreme environments.
Is the MFULD26L resistant to vibration?
Yes, it includes a vibration-resistant design to enhance durability and extend service life.
Same Size Batteries

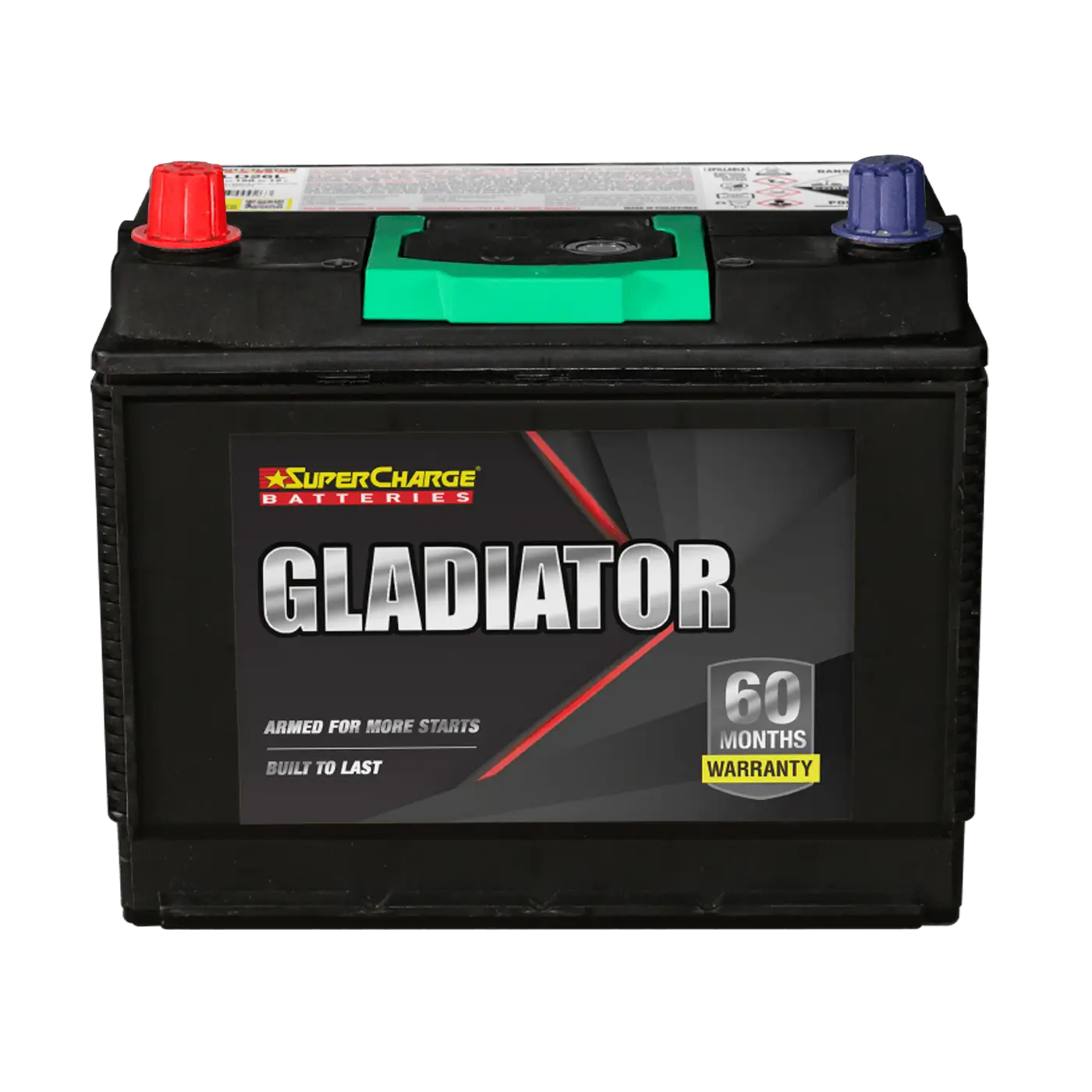

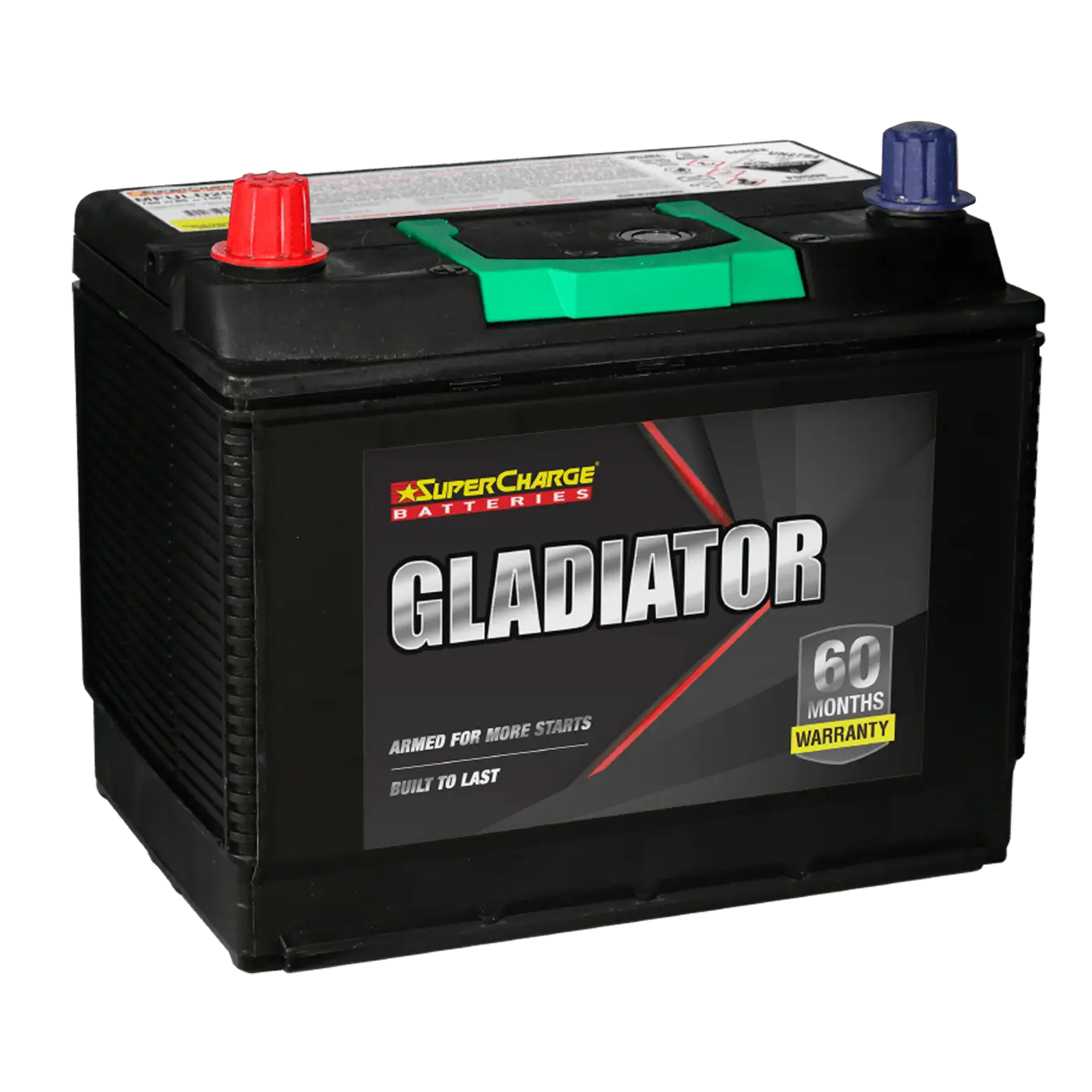

MFULD26R

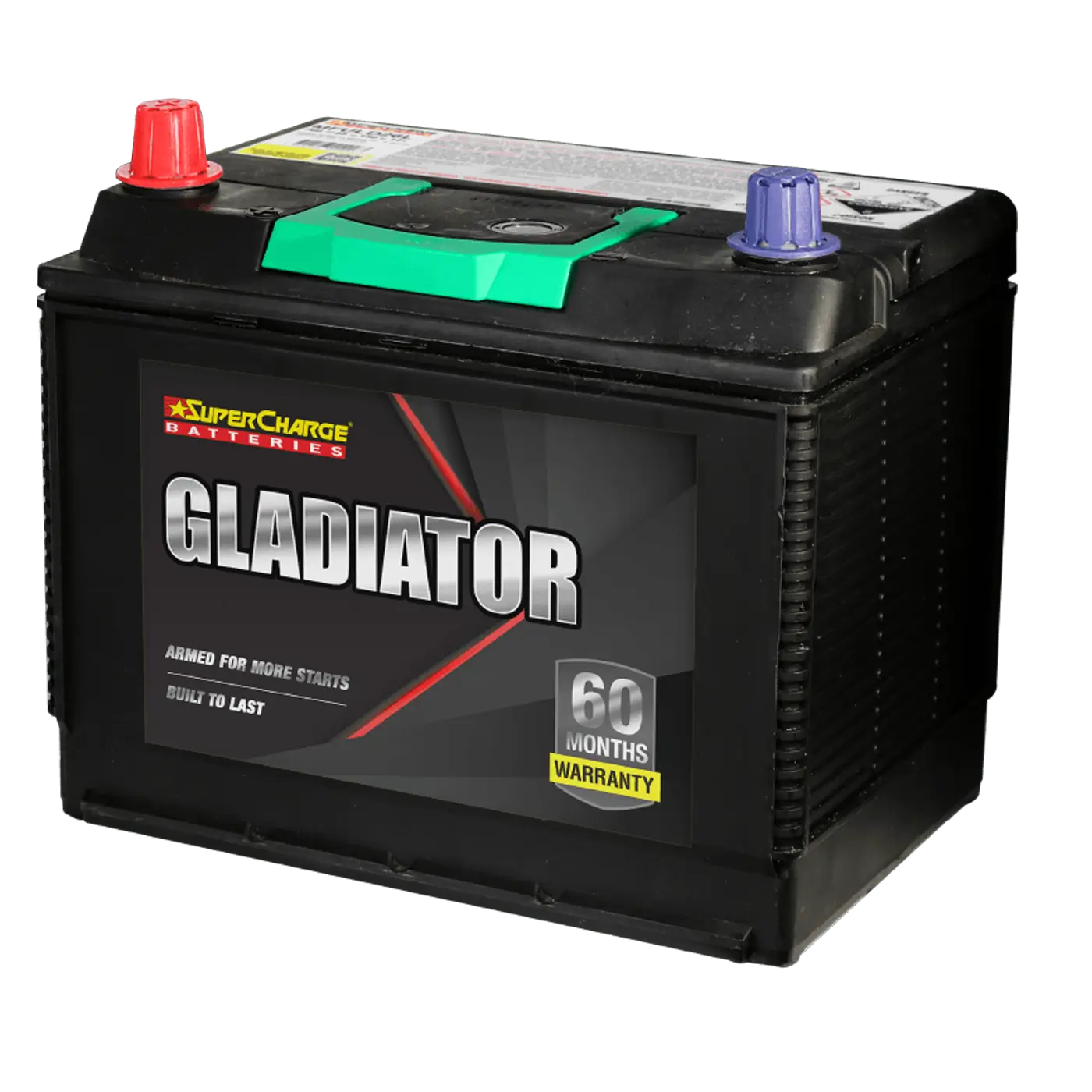

Gladiator MFULD26R Automotive Battery
MFULD26R
12V 85AH Automotive Battery
The MFULD26R automotive battery is engineered to deliver dependable starting power, enhanced durability and efficient electrical performance for a wide range of vehicle applications. Designed to exceed OE2 requirements for all vehicles, the MFULD26R features advanced battery construction and high-efficiency electrical flow to support effective energy delivery and recovery. Its optimised heat control and tropicalised, hardened framed plates help it withstand demanding operating conditions, while its vibration-resistant design supports durability during everyday driving.
Built for enhanced performance and long-term reliability, the MFULD26R features technology designed to deliver up to 100% more cycles than older battery technologies. Its dense, compact construction supports efficient energy output, while its high state-of-charge retention helps maintain stored energy when the vehicle is not in use. Combining heat management, robust internal construction and efficient electrical performance, the MFULD26R is designed to meet the demands of modern automotive applications.
Features
Armed for more starts
Built to last
60 months warranty
The Supercharge MFULD26R Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS70 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 750 |
| RC | 150 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
85 |
| Length, mm | 259 |
| Width, mm | 173 |
| Height, mm | 202 |
| Total Height, mm | 222 |
| Assembly | D (Positive Left) |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 50 months |
| Extended Warranty (Private Use) | 60 months |
| Warranty (Commercial Use) | 24 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MFULD26R automotive battery?
The MFULD26R is an automotive battery engineered to provide dependable starting power, efficient electrical performance and enhanced durability. It features advanced battery construction, tropicalised and hardened framed plates, and vibration-resistant design for demanding vehicle applications.
What are the key features of the MFULD26R battery?
The MFULD26R features up to 100% more cycles than older battery technologies, high-efficiency electrical flow, optimised heat control, compact construction and high state-of-charge retention. It is also designed to exceed OE2 requirements for all vehicles.
How does the MFULD26R battery improve durability?
The MFULD26R uses tropicalised and hardened framed plates, balanced heat control and a vibration-resistant design to help withstand demanding operating conditions. Its advanced internal construction is engineered to support durability and consistent electrical performance.
What vehicles is the MFULD26R battery suitable for?
The MFULD26R is designed for automotive applications and engineered to exceed OE2 requirements. To confirm whether it is suitable for your vehicle, check the required battery specifications, terminal configuration and physical dimensions against the manufacturer's recommendations, or consult your local battery specialist.
Same Size Batteries
MFULD31L

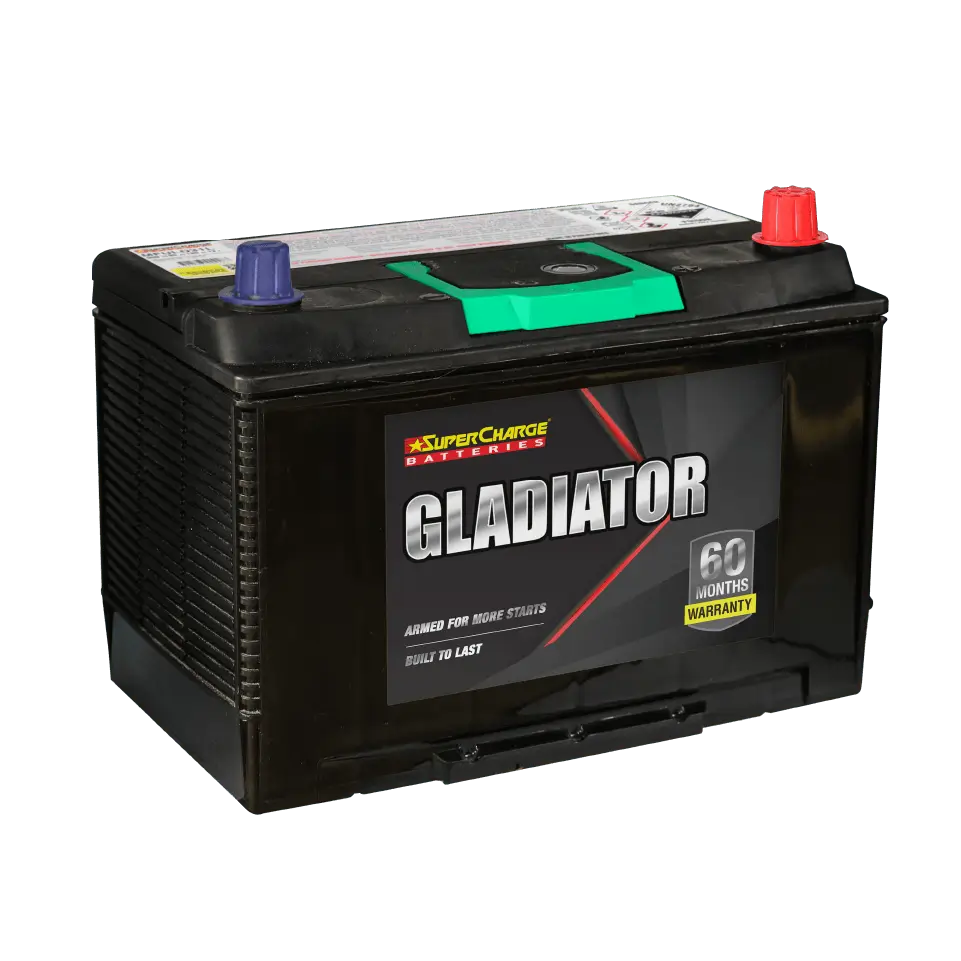

Gladiator MFULD31L Automotive Battery
MFULD31L
12V 95AH Automotive Battery
The MFULD31L automotive battery is designed to deliver dependable starting power, efficient energy transfer and lasting durability across demanding automotive applications. Engineered to exceed OE2 requirements for all vehicles, the MFULD31L combines high-efficiency electrical flow with advanced, dense battery construction to support effective energy output and recovery. Its tropicalised, hardened framed plates and optimised heat control help manage challenging operating conditions, while its vibration-resistant construction provides added durability for everyday vehicle use.
Featuring advanced battery technology, the MFULD31L is engineered to provide up to 100% more cycles than older technologies, supporting extended cycling performance. Its high state-of-charge retention helps preserve stored energy, while its compact internal design promotes efficient electrical performance. With a combination of heat management, robust plate construction and enhanced energy efficiency, the MFULD31L is built to support the electrical demands of automotive applications.
Features
Armed for more starts
Built to last
60 months warranty
The Supercharge MFULD31L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N70 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 850 |
| RC | 180 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
95 |
| Length, mm | 304 |
| Width, mm | 173 |
| Height, mm | 203 |
| Total Height, mm | 223 |
| Assembly | C (Positive Right) |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 50 months |
| Extended Warranty (Private Use) | 60 months |
| Warranty (Commercial Use) | 24 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MFULD31L automotive battery?
The MFULD31L is an automotive battery developed for dependable starting performance and efficient energy delivery. It incorporates advanced internal construction, hardened framed plates and vibration-resistant features to support durability in demanding driving conditions.
What benefits does the MFULD31L battery offer?
The MFULD31L offers up to 100% more cycles than older battery technologies, efficient electrical flow, optimised heat control and high state-of-charge retention. It is also engineered to exceed OE2 requirements for all vehicles.
Is the MFULD31L battery designed for hot climates?
The MFULD31L features tropicalised and hardened framed plates, along with a design balanced for optimised heat control. These features help it withstand challenging operating conditions, including environments where managing battery heat is important.
How can I check if the MFULD31L fits my vehicle?
To confirm compatibility, compare the MFULD31L's dimensions, terminal layout, battery specifications and required starting performance with your vehicle manufacturer's recommendations. You can also consult a battery specialist or use a vehicle battery finder to identify the correct battery for your application.
Same Size Batteries
MFULD31R

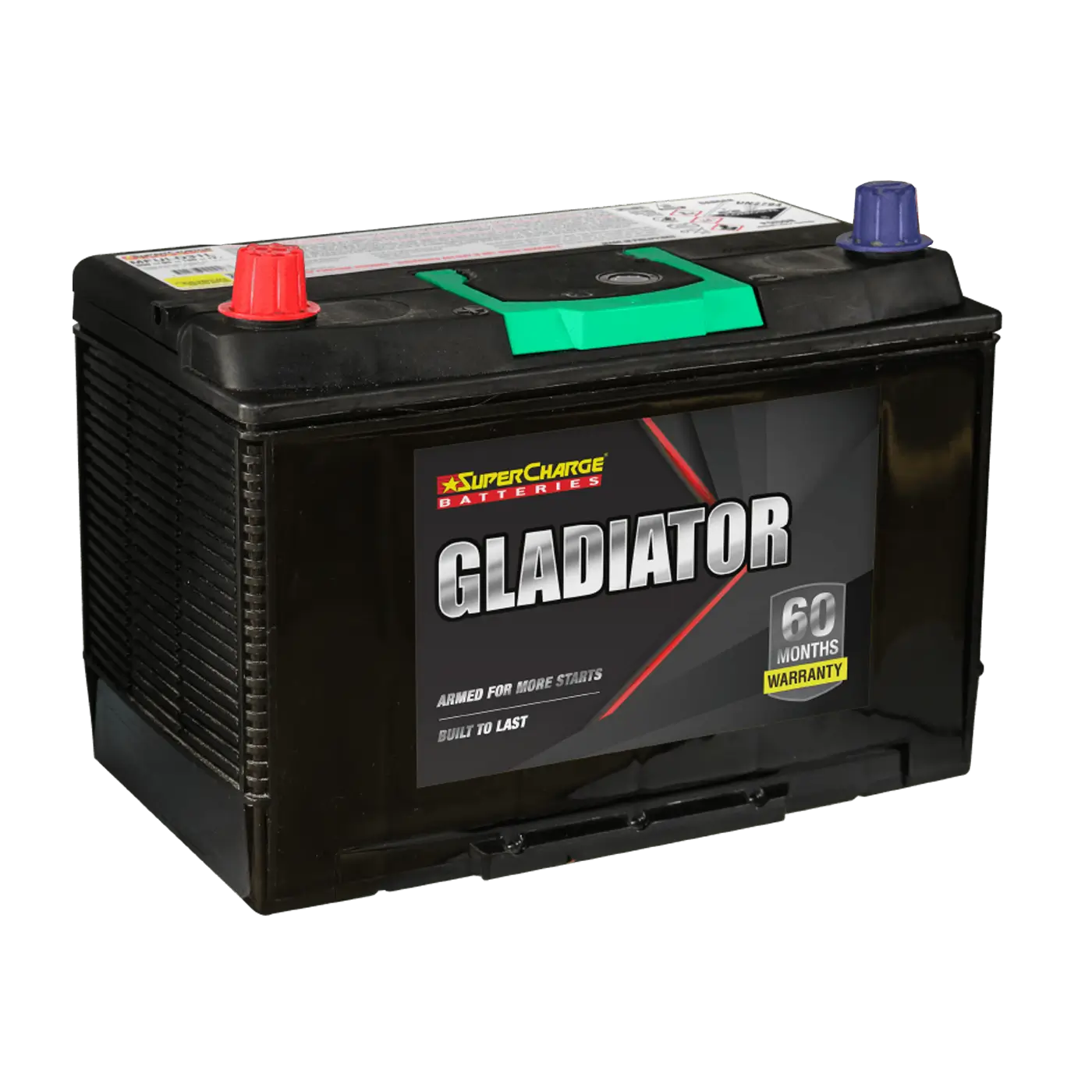

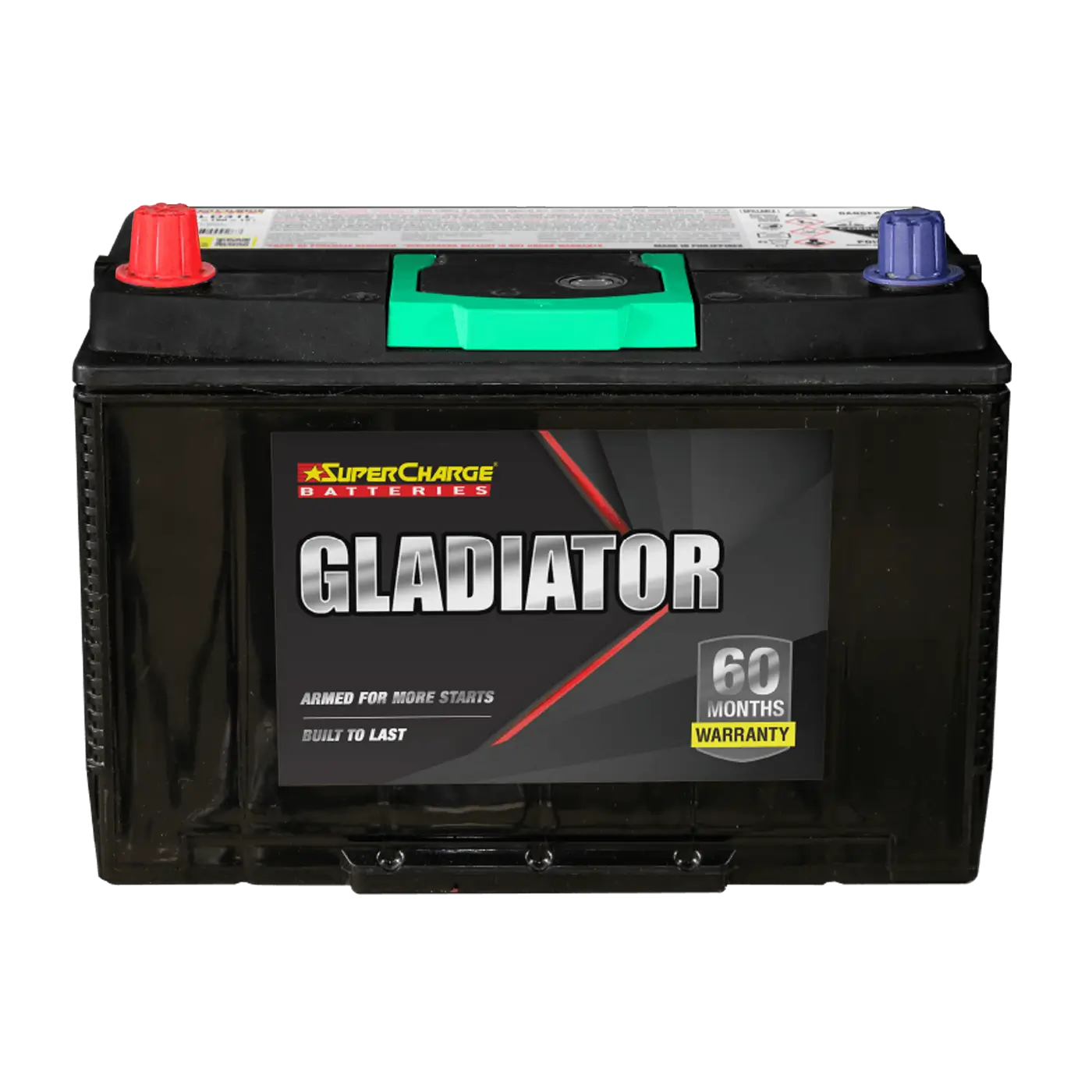

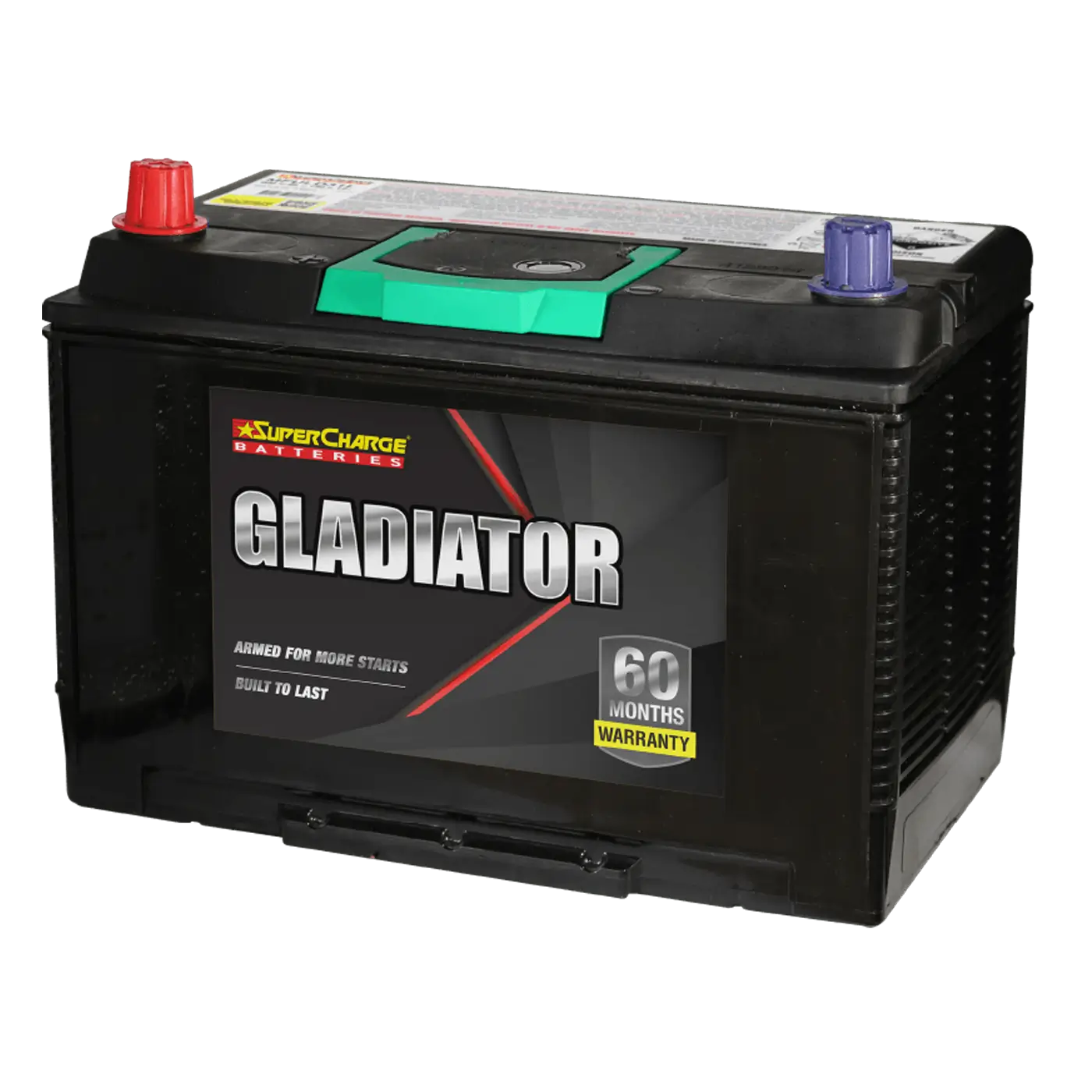

Gladiator MFULD31R Automotive Battery
MFULD31R
12V 95AH Automotive Battery
The MFULD31R automotive battery is engineered to provide dependable starting power, efficient electrical performance and enhanced durability for automotive applications. Designed to exceed OE2 requirements for all vehicles, the MFULD31R incorporates high-efficiency electrical flow and advanced, dense battery construction to support effective energy delivery and recovery. Its tropicalised, hardened framed plates help withstand demanding operating conditions, while its optimised heat control and vibration-resistant design contribute to dependable performance in everyday driving environments.
Built with advanced battery technology, the MFULD31R is designed to deliver up to 100% more cycles than older battery technologies. Its high state-of-charge retention helps preserve stored energy, while its compact construction supports efficient energy output and recovery. Combining robust plate design, effective heat management and enhanced electrical efficiency, the MFULD31R is developed to meet the demands of automotive use while supporting long-term battery performance.
Features
Armed for more starts
Built to last
60 months warranty
The Supercharge MFULD31R Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N70 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 850 |
| RC | 180 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
95 |
| Length, mm | 304 |
| Width, mm | 173 |
| Height, mm | 203 |
| Total Height, mm | 223 |
| Assembly | D (Positive Left) |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 50 months |
| Extended Warranty (Private Use) | 60 months |
| Warranty (Commercial Use) | 24 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MFULD31R automotive battery?
The MFULD31R is an automotive battery designed to deliver reliable starting power and efficient electrical performance. It features advanced internal construction, tropicalised and hardened framed plates, and a vibration-resistant design to support durability in demanding conditions.
What are the main features of the MFULD31R battery?
Key features of the MFULD31R include up to 100% more cycles than older battery technologies, high-efficiency electrical flow, optimised heat control, compact battery construction and high state-of-charge retention. It is also engineered to exceed OE2 requirements for all vehicles.
How does the MFULD31R battery handle demanding operating conditions?
The MFULD31R incorporates tropicalised, hardened framed plates and a design balanced for heat control. Its vibration-resistant construction also helps it withstand the movement and vibrations associated with everyday vehicle operation.
How do I know if the MFULD31R battery is compatible with my vehicle?
Check the required battery dimensions, terminal configuration, electrical specifications and starting requirements against your vehicle manufacturer's recommendations. A battery specialist or vehicle battery finder can help confirm whether the MFULD31R is the correct fit for your vehicle.
