Amp-Tech Lithium Batteries
POWERFUL, RELIABLE, SAFE. Made from the highest quality LifeP04, complete with cell and safety certifications.
Lithium battery technology gives highest energy density and highest electrode potential difference offering the greatest kilowatt˜hour capacity per˜unit˜weight. This technology has been proven to give superior performance as compared to lead˜acid battery technology.
Premium 26700 cylindrical cells
Features
- UL1642, IEC62619, IEC62133 listed with Cycle life greater than 6000 times @ 80% DOD
- High Quality BMS with dedicated active Cell balancing
- Enhanced circuit board protection preventing overcharge, over discharge, short circuit, and cell imbalance
- Reliable and durable internal structure
- Smaller size and less weight – only 3/4 physical size of equivalent AGM battery
- Complete product compliance with certified safety and quality certificates
- Manufactured in ISO-certified facilities and passed EU standards
| Type | Size | Nominal Voltage | Technology | AH @ | Overall Dimension (mm) | Post | Assembly | Warranty (mths) | Data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (V) | 20hrs | L | W | H | TH | Style | Priv | Comm | Sheet | ||||||||||
| Amptech Lithium 3 | |||||||||||||||||||

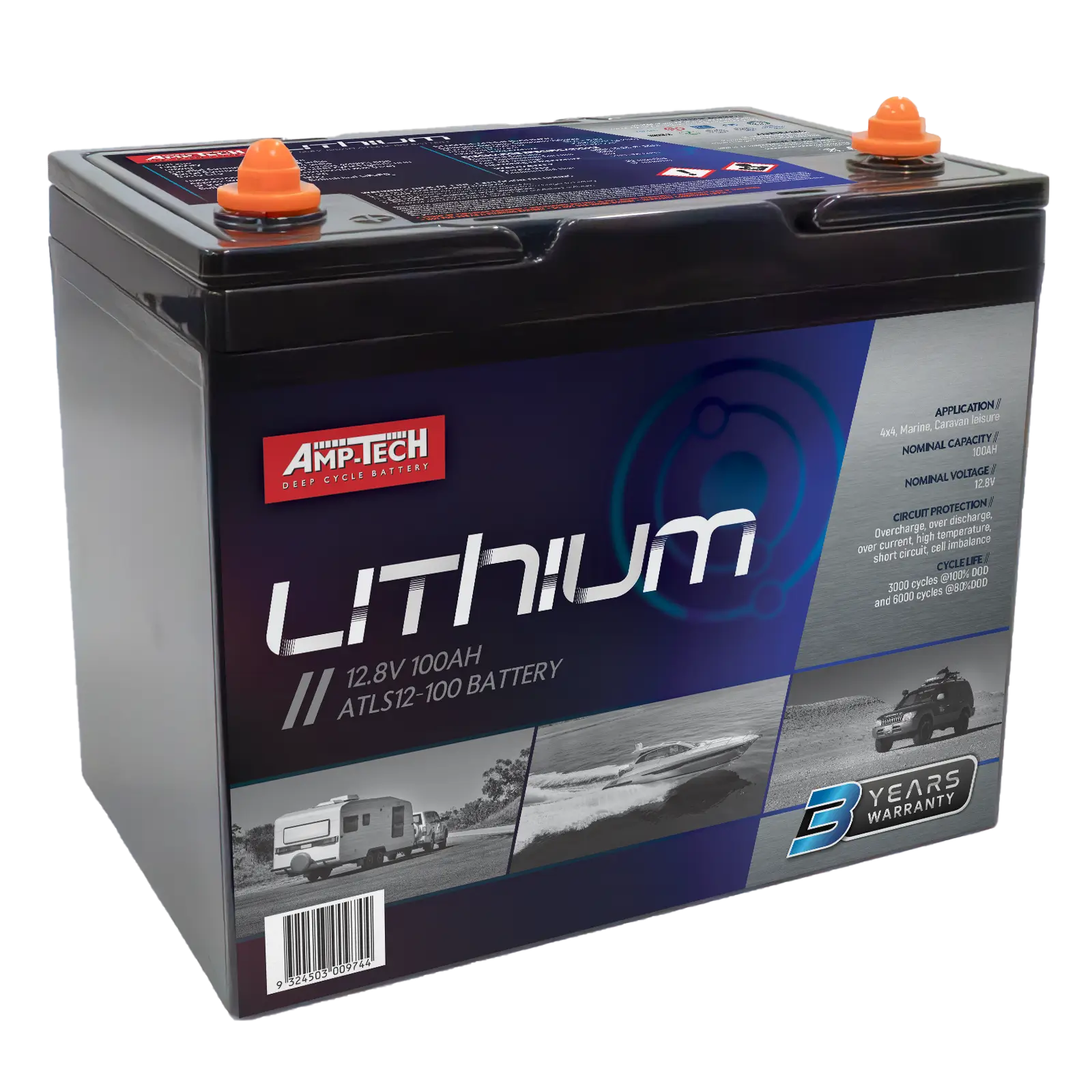

| ATLS12-100 | G24 | 12.8 | LiFePO4 | 100 | 260 | 170 | 208 | 208 | - | D | 36 | 12 | |||||||
| ATLS12-100-BT | G24 | 12.8 | LiFePO4 | 100 | 260 | 170 | 208 | 208 | - | D | 36 | 12 | |||||||

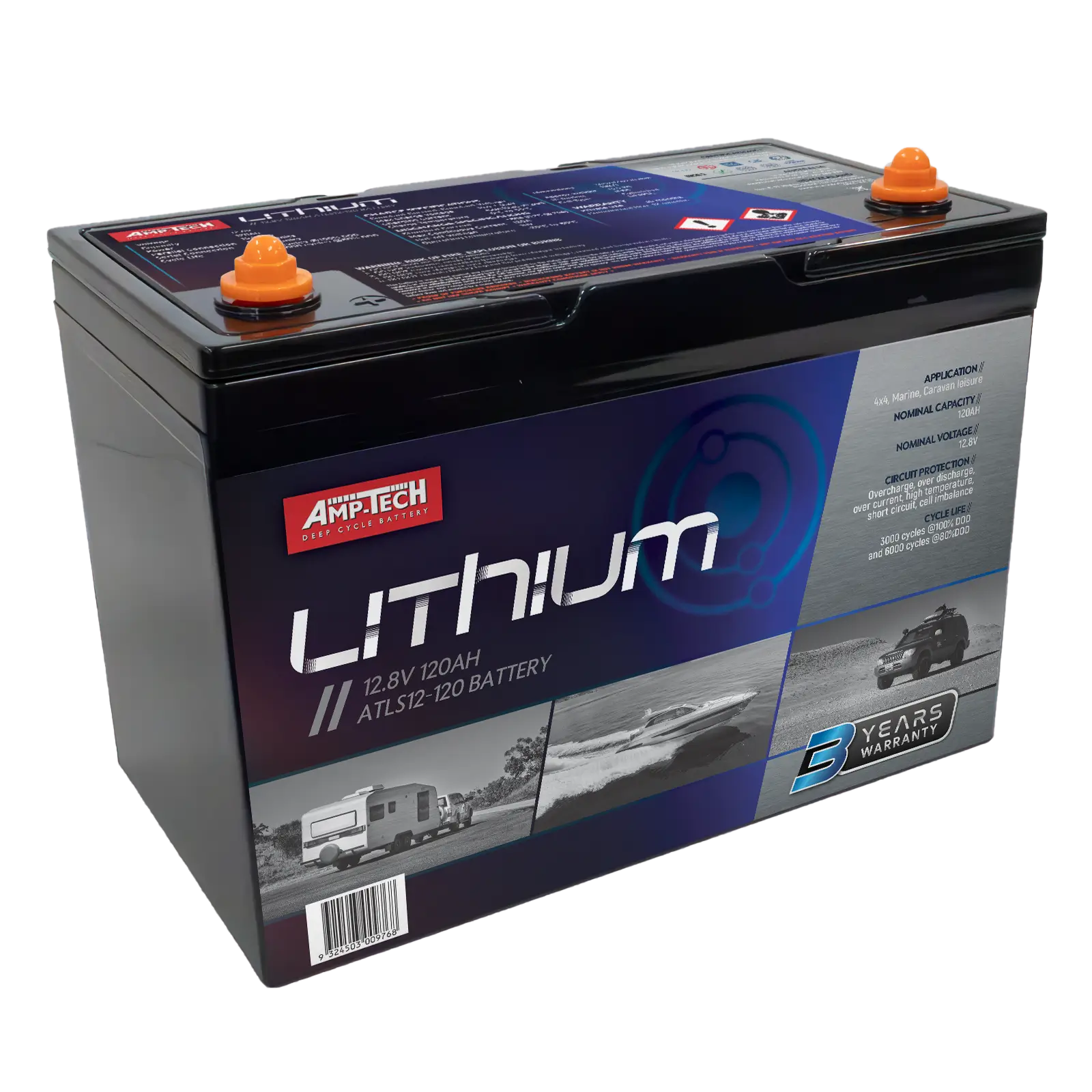

| ATLS12-120 | G27 | 12.8 | LiFePO4 | 120 | 305 | 169 | 210 | 210 | - | D | 36 | 12 | |||||||
| ATLS12-120-BT | G27 | 12.8 | LiFePO4 | 120 | 305 | 169 | 210 | 210 | - | D | 36 | 12 | |||||||
| ATLS12-130 | G31 | 12.8 | LiFePO4 | 130 | 330 | 173 | 216 | 216 | - | D | 36 | 12 | |||||||
| ATLS12-130-BT | G31 | 12.8 | LiFePO4 | 130 | 330 | 173 | 216 | 216 | - | D | 36 | 12 | |||||||

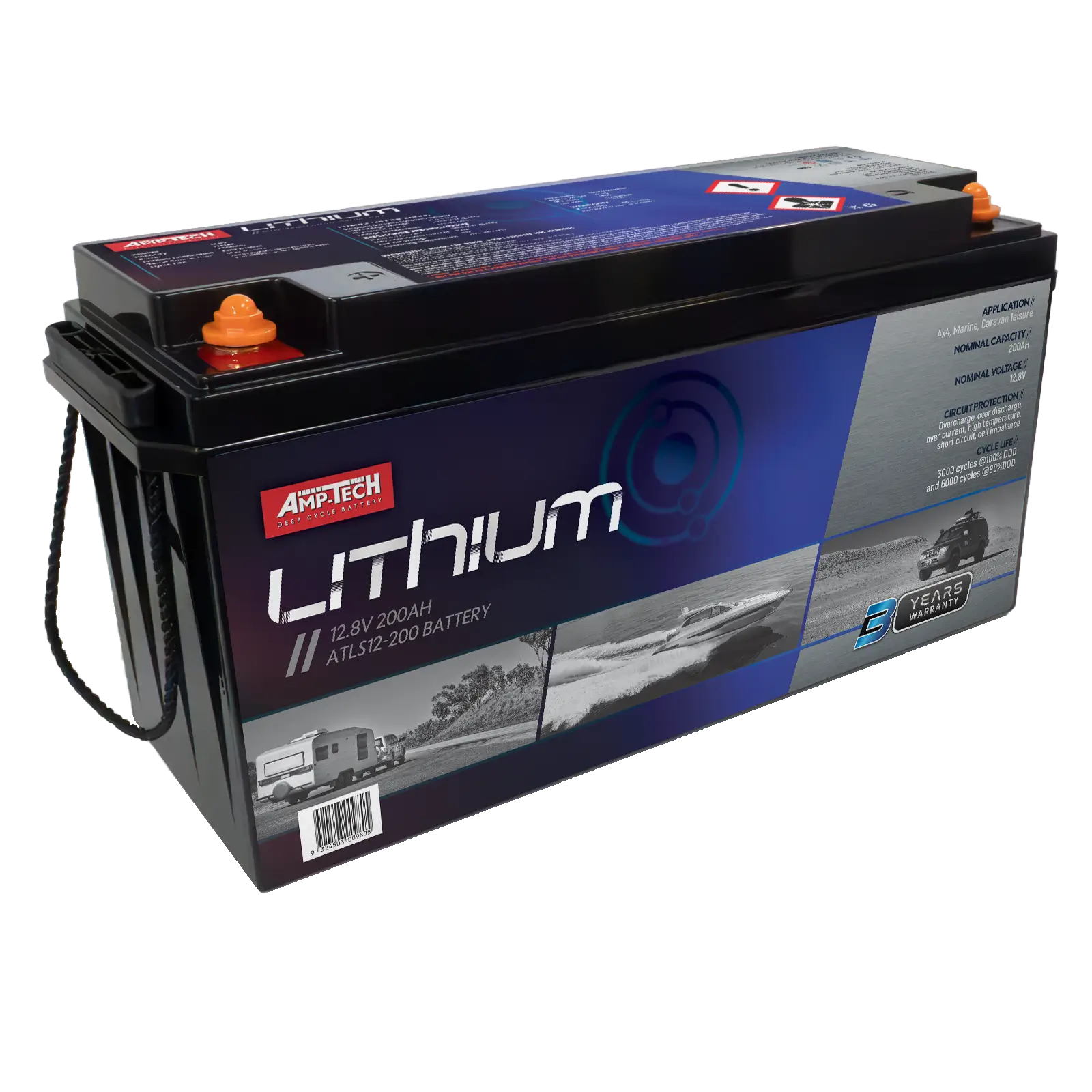

| ATLS12-200 | G49 | 12.8 | LiFePO4 | 200 | 490 | 171 | 240 | 240 | - | D | 36 | 12 | |||||||
| Type | Size | Nominal Voltage | Technology | AH @ | Overall Dimension (mm) | Post | Assembly | Warranty (mths) | Data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (V) | 20hrs | L | W | H | TH | Style | Priv | Comm | Sheet | ||||||||||
| Amptech Lithium 3 - Small Case Size* | |||||||||||||||||||
| ATLS12-75 | 12.8 | LiFePO4 | 75 | 228 | 138 | 208 | 208 | - | D | 36 | 12 | ||||||||
| ATLS12-50 | 12.8 | LiFePO4 | 50 | 197 | 165 | 169 | 169 | m6 | C | 36 | 12 | ||||||||
| ATLS12-35 | 12.8 | LiFePO4 | 35 | 194 | 132 | 173 | 173 | m6 | D | 36 | 12 | ||||||||
| ATLS12-9 | 12.8 | LiFePO4 | 9 | 151 | 65 | 91 | 91 | t1 | E | 36 | 12 | ||||||||
| Type | Size | Nominal Voltage | Technology | AH @ | Overall Dimension (mm) | Post | Assembly | Warranty (mths) | Data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (V) | 20hrs | L | W | H | TH | Style | Priv | Comm | Sheet | ||||||||||
| Amptech Lithium 5 - Slimline - with reset button | |||||||||||||||||||
| ATLG12-100BT-FT | 12.8 | LiFePO4 | 100 | 507 | 110 | 227 | 227 | - | E | 60 | 12 | ||||||||

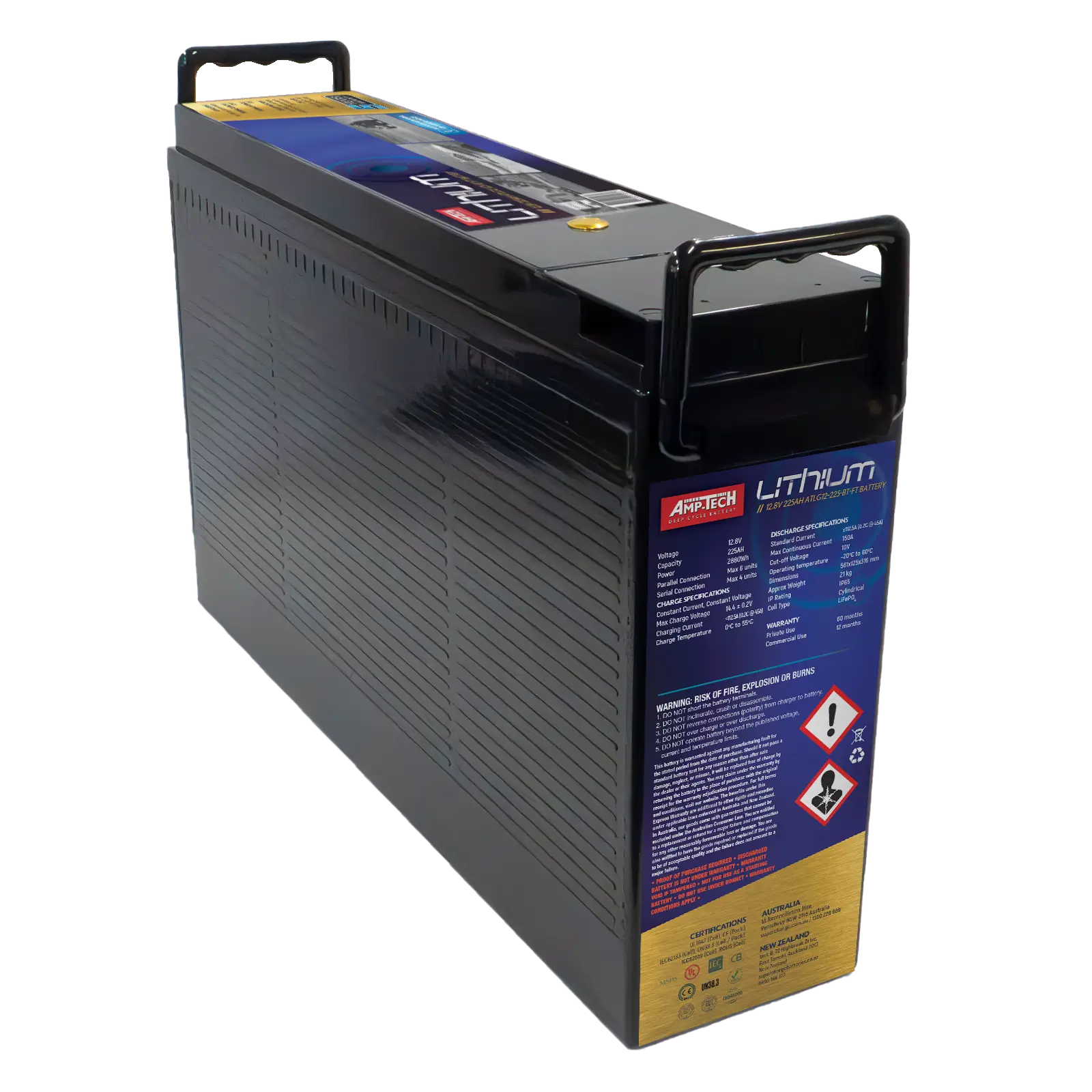

| ATLG12-225BT-FT | 12.8 | LiFePO4 | 225 | 561 | 125 | 316 | 316 | - | E | 60 | 12 | ||||||||
| Type | Size | Nominal Voltage | Technology | AH @ | Overall Dimension (mm) | Post | Assembly | Warranty (mths) | Data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (V) | 20hrs | L | W | H | TH | Style | Priv | Comm | Sheet | ||||||||||
| Amptech Lithium 5 - with reset button | |||||||||||||||||||
| ATLG12-120-BT | G24 | 12.8 | LiFePO4 | 120 | 260 | 170 | 208 | 208 | - | D | 60 | 12 | |||||||
| ATLG12-135-BT | G27 | 12.8 | LiFePO4 | 135 | 305 | 169 | 210 | 210 | - | D | 60 | 12 | |||||||
| ATLG12-150-BT | G31 | 12.8 | LiFePO4 | 150 | 330 | 173 | 216 | 216 | - | D | 60 | 12 | |||||||
| ATLG12-240-BT | 2D | 12.8 | LiFePO4 | 240 | 490 | 171 | 240 | 240 | - | D | 60 | 12 | |||||||
| ATLG12-300-BT | 4D | 12.8 | LiFePO4 | 300 | 521 | 238 | 218 | 218 | - | D | 60 | 12 | |||||||
| ATLG12-350-BT | 8D | 12.8 | LiFePO4 | 350 | 521 | 267 | 220 | 220 | - | D | 60 | 12 | |||||||
