Automotive Batteries
SuperCharge Batteries offer longer life, more power and performance with maximum durability and reliability.
With over 95 years experience, Ramcar produces SuperCharge in its world-class facilities in the Philippines. We are the first to introduce industry leading 36 month warranty on our Gold product and now 40 months with our GoldPlus.
SuperCharge maintenance-free automotive batteries are designed using advanced Expanded Grid Technology (EXG) to withstand the extreme driving conditions in Australia. The automotive battery range offers a wide range of applications for makes including Japanese, American and European models.
What is so special about EXG? The benefits are many. The construction of the calcium plates in super compressed rolled strips creates a dense grid pattern allowing for a more compact unit. It is less susceptible to heat corrosion and delivers more efficient cranking power. Also, as the EXG plates are shorter and have minimal gassing, there is less water loss and no acid top up is required.
SuperCharge Batteries have gone further by introducing Optimal Plate Technology (SNT) which is included in our new GoldPlus product range. SNT optimises our plate performance through a special mix of Lead-Calcium-Tin alloy and paste additive that promotes uniform plate structure delivering consistent reliable capacity. SNT also works with our existing EXG high quality grids to improve corrosion and creep resistance to extend the life of the battery.
Read our SuperCharge SuperGuide To Car Batteries to learn more about car batteries and our top ranges.

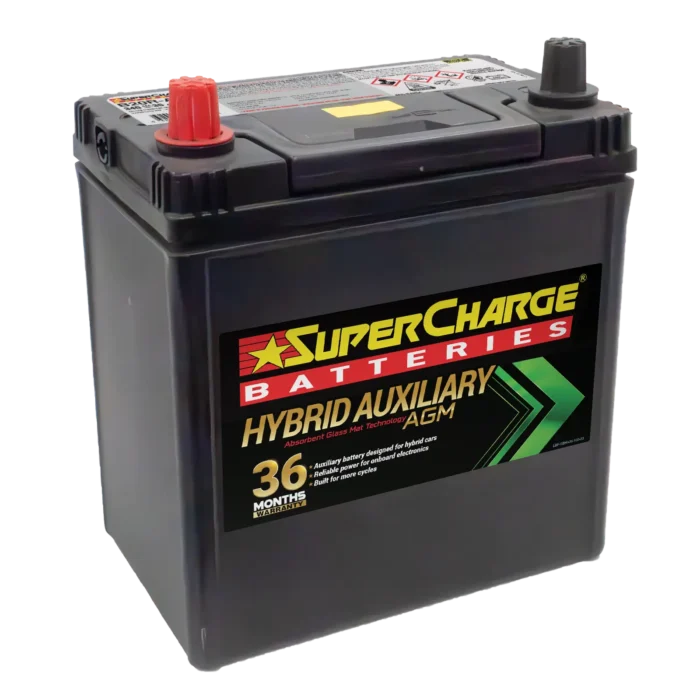

B20R-AGM
Nominal Voltage:
12V
Size:
NS40
CCA @(-18°C):
340
RC @ 25A:
-
AH(20hr):
35
Length:
197mm
Width:
129mm
Height:
203mm
Total Height:
227mm
Battery Type:
Maintenance Free
Technology:
AGM
Accessibility:
TS
Post Style:
PT
Assembly:
D
Hydro:
NO
Ledge:
NL
Warranty Comm:
12mths
Warranty Priv:
36mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut

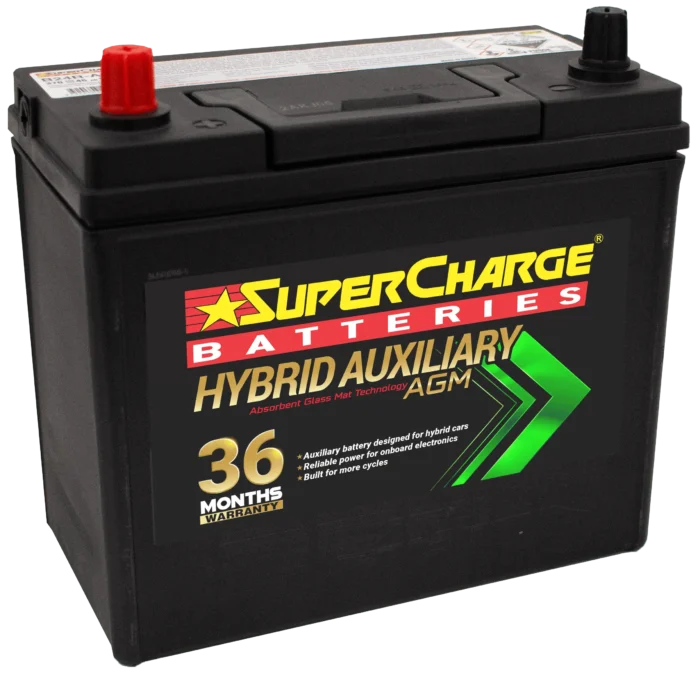

B24R-AGM
Nominal Voltage:
12V
Size:
NS60
CCA @(-18°C):
370
RC @ 25A:
-
AH(20hr):
45
Length:
236mm
Width:
125mm
Height:
200mm
Total Height:
224mm
Battery Type:
Maintenance Free
Technology:
AGM
Accessibility:
TS
Post Style:
PT
Assembly:
D
Hydro:
NO
Ledge:
NL
Warranty Comm:
12mths
Warranty Priv:
36mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut

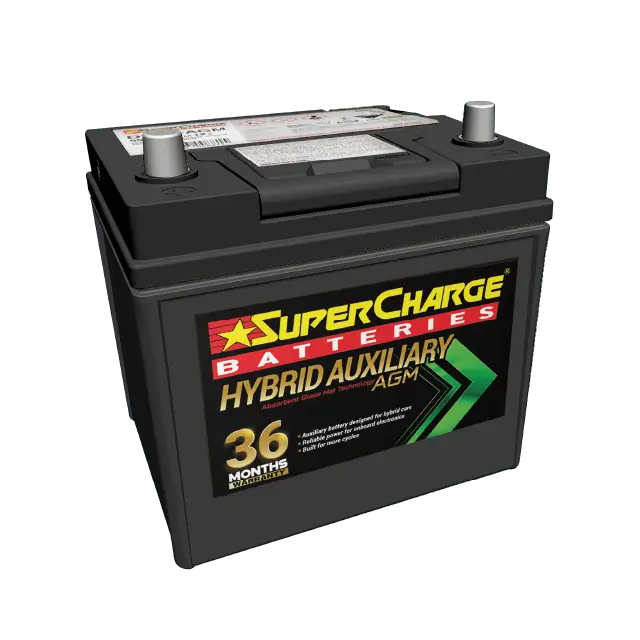

D23R-AGM
Nominal Voltage:
12V
Size:
D23
CCA @(-18°C):
550
RC @ 25A:
-
AH(20hr):
50
Length:
220mm
Width:
170mm
Height:
200mm
Total Height:
220mm
Battery Type:
Maintenance Free
Technology:
AGM
Accessibility:
TS
Post Style:
STD
Assembly:
D
Hydro:
NO
Ledge:
NL
Warranty Comm:
12mths
Warranty Priv:
36mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
LN0MF
Nominal Voltage:
12V
Size:
LN0MF
CCA @(-18°C):
320
RC @ 25A:
55
AH(20hr):
40
Length:
174mm
Width:
174mm
Height:
190mm
Total Height:
190mm
Battery Type:
Maintenance Free
Technology:
EFB
Accessibility:
TS
Post Style:
STD
Assembly:
C
Hydro:
YES
Ledge:
EL & FL
Warranty Comm:
12mths
Warranty Priv:
36mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
LN1MF
Nominal Voltage:
12V
Size:
N44H
CCA @(-18°C):
450
RC @ 25A:
91
AH(20hr):
52
Length:
207mm
Width:
174mm
Height:
190mm
Total Height:
190mm
Battery Type:
Maintenance Free
Technology:
EFB
Accessibility:
TS
Post Style:
STD
Assembly:
C
Hydro:
YES
Ledge:
EL & FL
Warranty Comm:
12mths
Warranty Priv:
36mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
