Truck Batteries
SuperCharge Batteries offer longer life, more power and performance with maximum durability and reliability.
With over 95 years experience, Ramcar produces SuperCharge in its world-class facilities in the Philippines.
What is so special about Expanded Grid Technology (EXG)? The benefits are many. The construction of the calcium plates in super compressed rolled strips creates a dense grid pattern allowing for a more compact unit. It is less susceptible to heat corrosion and delivers more efficient cranking power. Also, as the EXG plates are shorter and have minimal gassing, there is less water loss and no acid top up is required.
SuperCharge Batteries continue to lead the way in technology, product, performance and warranty coverage. They are built for Australian conditions for long haul and highway applications.
SuperCharge Batteries have now gone further by using hybrid high-density thicker plate design and separators with Glass Mat on its TruckMaster range. These improvements hold active material more effectively resulting in enhanced puncture, tear and vibration resistance for longer life. SuperCharge TruckMaster – outstanding durability!
NS70
Nominal Voltage:
12V
Size:
NS70
CCA @(-18°C):
615
RC @ 25A:
95
AH(20hr):
70
Length:
259mm
Width:
173mm
Height:
202mm
Total Height:
223mm
Battery Type:
Maintenance Free
Technology:
SMF CAL
Accessibility:
TS
Post Style:
STD
Assembly:
D
Hydro:
YES
Ledge:
FL
Warranty Comm:
12mths
Warranty Priv:
30mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
Share
NS70L
Nominal Voltage:
12V
Size:
NS70
CCA @(-18°C):
615
RC @ 25A:
95
AH(20hr):
70
Length:
259mm
Width:
173mm
Height:
202mm
Total Height:
223mm
Battery Type:
Maintenance Free
Technology:
SMF CAL
Accessibility:
TS
Post Style:
STD
Assembly:
C
Hydro:
YES
Ledge:
FL
Warranty Comm:
12mths
Warranty Priv:
30mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
Share

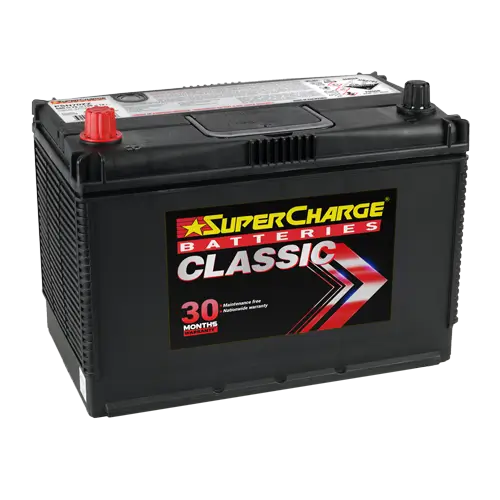

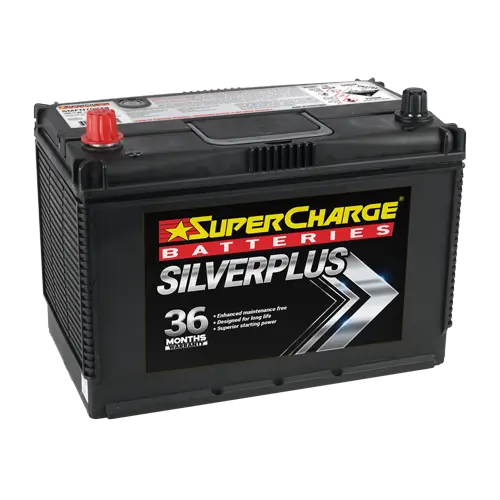

N70ZZX
Nominal Voltage:
12V
Size:
N70
CCA @(-18°C):
680
RC @ 25A:
130
AH(20hr):
75
Length:
304mm
Width:
173mm
Height:
203mm
Total Height:
224mm
Battery Type:
Maintenance Free
Technology:
SMF CAL
Accessibility:
TS
Post Style:
STD
Assembly:
D
Hydro:
YES
Ledge:
FL
Warranty Comm:
12mths
Warranty Priv:
30mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
Share
N70ZZLX
Nominal Voltage:
12V
Size:
N70
CCA @(-18°C):
680
RC @ 25A:
130
AH(20hr):
75
Length:
304mm
Width:
173mm
Height:
203mm
Total Height:
224mm
Battery Type:
Maintenance Free
Technology:
SMF CAL
Accessibility:
TS
Post Style:
STD
Assembly:
C
Hydro:
YES
Ledge:
FL
Warranty Comm:
12mths
Warranty Priv:
30mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
Share

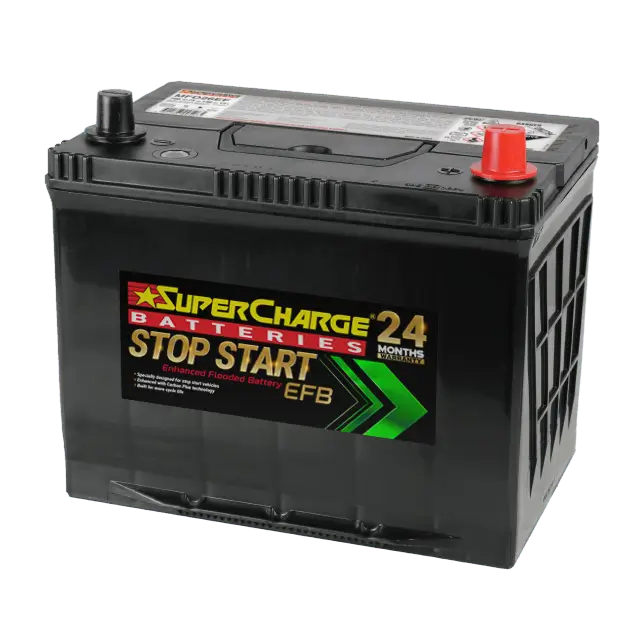

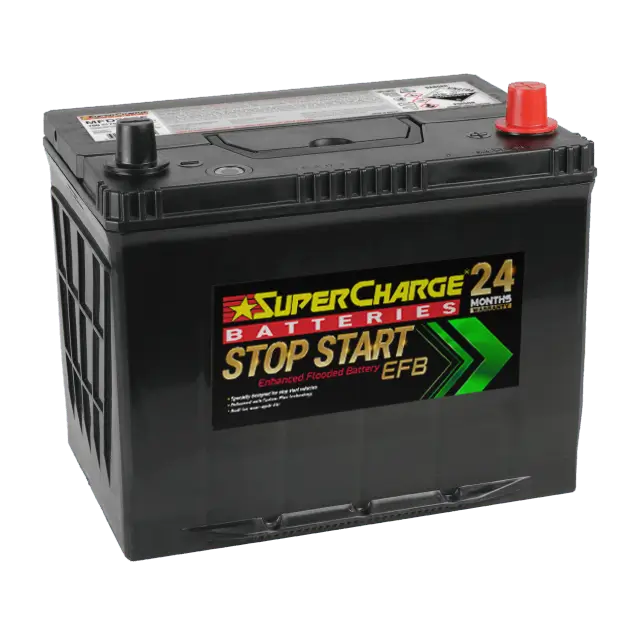

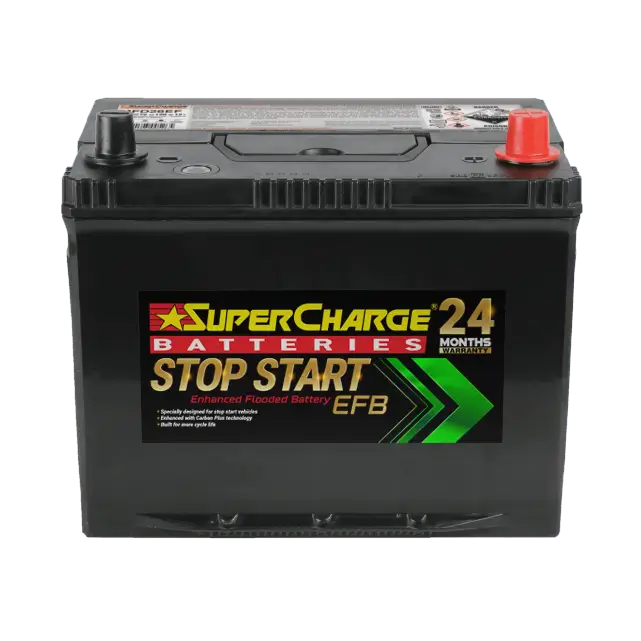

Stop-Start MFD26EF EFB Battery
MFD26EF
12V 75AH EFB Battery
The MFD26EF is a high-output, next-generation battery designed to meet the demands of modern stop-start vehicles. Built to exceed OE2 performance and safety standards, it delivers consistent and reliable power for frequent engine restarts and high electrical consumption. Its advanced compact design improves energy efficiency, ensuring fast recharge capability and stable performance across all driving conditions.
Engineered with hardened framed plates and corrosion-resistant alloys, the MFD26EF offers exceptional durability and long service life. Its vibration-resistant construction enhances reliability on rough roads, while its ability to handle repeated deep discharge cycles makes it ideal for stop-start systems. With a fully optimised design for in-cabin installation, the MFD26EF provides a safe, efficient, and dependable power solution for modern vehicles.
Features
Specially designed for stop start vehicles
Enhanced with Carbon Plus technology
Built for more cycle life
The Supercharge MFD26EF Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Find a DealerNeed help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
View the Full Buying GuideTechnical Specifications
| Size | NS70 |
| Volts | 12V |
| Technology | EFB SS |
| CCA | 700 |
| RC | 130 |
| AH | 75 |
| Length, mm | 258 |
| Width, mm | 172 |
| Height, mm | 200 |
| Total Height, mm | 220 |
| Assembly | C |
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 24 months |
| Warranty (Commercial Use) | 12 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
Show Abbreviations Show Battery Assemblies Show Applications| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What vehicles is the MFD26EF suitable for?
The MFD26EF is designed for modern stop-start vehicles requiring frequent engine restarts and stable power delivery.
Is the MFD26EF durable for harsh conditions?
Yes, it features corrosion-resistant alloys and a vibration-resistant design for improved durability and lifespan.
Does it support high electrical demand systems?
Absolutely. It is engineered for high efficiency energy output and fast recovery performance.
Can it be installed inside the cabin?
Yes, the MFD26EF is specifically designed to be safe for in-cabin installation.
Similar Size Batteries
Current Selection
MFD26EF
12V 75AH EFB Battery
Need to find a compatible battery for your vehicle?

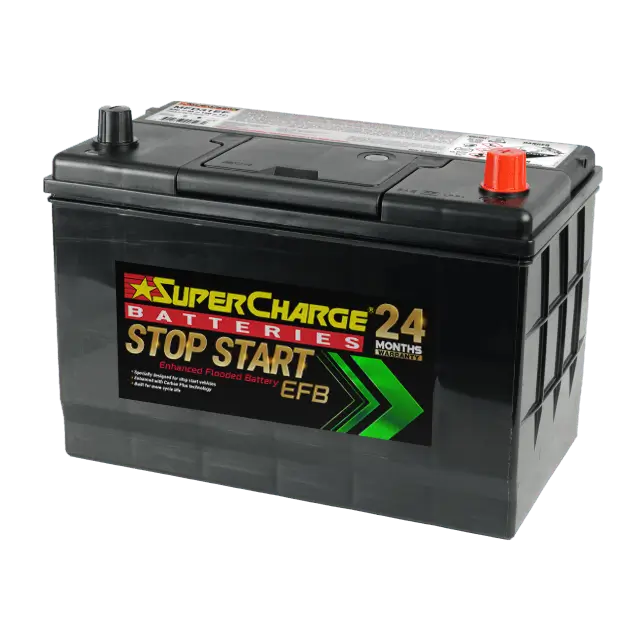

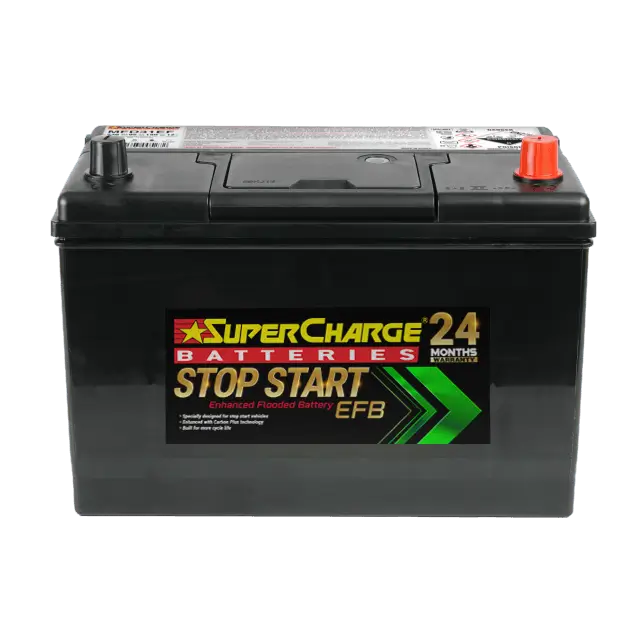

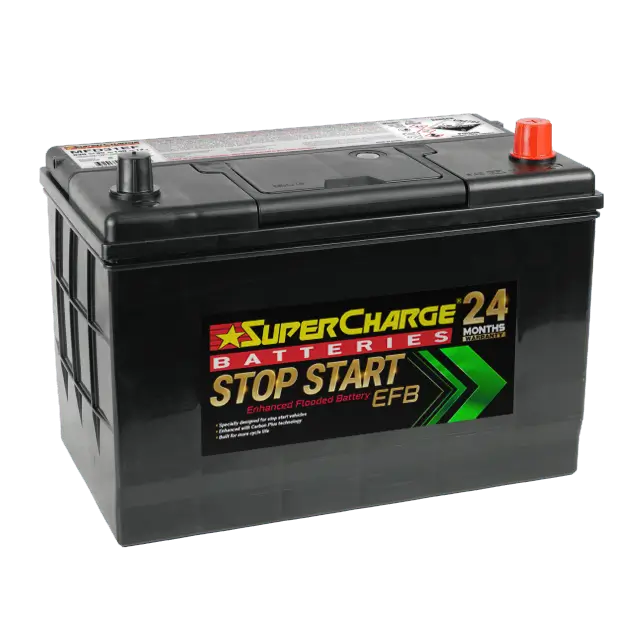

Find a BatteryStop-Start MFD31EF EFB Battery
MFD31EF
12V 95AH EFB Battery
The MFD31EF is a premium battery engineered for the rigorous demands of modern stop-start vehicles. Designed to exceed OE2 performance and safety standards, it delivers dependable power for frequent engine restarts and high electrical loads. Its advanced compact construction enhances energy density, providing efficient power output and faster recharge to keep your vehicle running smoothly in all driving conditions.
Built for strength and longevity, the MFD31EF features hardened framed plates and corrosion-resistant alloys that help extend battery life. Its vibration-resistant design ensures reliability on rough roads, while its ability to handle repeated discharge cycles makes it ideal for stop-start systems. Suitable for in-cabin installation, the MFD31EF offers a safe, durable, and high-performing solution for today’s vehicles.
Features
Specially designed for stop start vehicles
Enhanced with Carbon Plus technology
Built for more cycle life
The Supercharge MFD31EF Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Find a DealerNeed help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
View the Full Buying GuideTechnical Specifications
| Size | N70 |
| Volts | 12V |
| Technology | EFB SS |
| CCA | 830 |
| RC | 155 |
| AH | 95 |
| Length, mm | 303 |
| Width, mm | 172 |
| Height, mm | 200 |
| Total Height, mm | 220 |
| Assembly | C |
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 24 months |
| Warranty (Commercial Use) | 12 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
Show Abbreviations Show Battery Assemblies Show Applications| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What vehicles are compatible with the MFD31EF?
The MFD31EF is ideal for stop-start vehicles that require reliable performance and frequent energy cycling.
Does the MFD31EF support high electrical demands?
Yes, it is designed to deliver high efficiency energy output and quick recovery for modern vehicle electronics.
Is this battery built for durability?
Absolutely. It includes corrosion-resistant alloys and a vibration-resistant structure for extended service life.
Can the MFD31EF be installed inside the cabin?
Yes, it is specifically designed to be safe for in-cabin installation.
Similar Size Batteries
Current Selection
MFD31EF
12V 95AH EFB Battery
Need to find a compatible battery for your vehicle?
Find a Battery
EN150EFL
Nominal Voltage:
12V
Size:
N150
CCA @(-18°C):
1000
RC @ 25A:
360
AH(20hr):
180
Length:
510mm
Width:
222mm
Height:
196mm
Total Height:
217mm
Battery Type:
Maintenance Free
Technology:
EFB SS
Accessibility:
TS
Post Style:
STD
Assembly:
E
Hydro:
NO
Ledge:
NL
Warranty Comm:
24mths
Warranty Priv:
24mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
Share
SMFNS70X
Nominal Voltage:
12V
Size:
NS70
CCA @(-18°C):
700
RC @ 25A:
125
AH(20hr):
75
Length:
259mm
Width:
173mm
Height:
202mm
Total Height:
223mm
Battery Type:
Maintenance Free
Technology:
SMF CAL
Accessibility:
TS
Post Style:
STD
Assembly:
D
Hydro:
YES
Ledge:
FL
Warranty Comm:
18mths
Warranty Priv:
36mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
Share
SMFNS70LX
Nominal Voltage:
12V
Size:
NS70
CCA @(-18°C):
700
RC @ 25A:
125
AH(20hr):
75
Length:
259mm
Width:
173mm
Height:
202mm
Total Height:
223mm
Battery Type:
Maintenance Free
Technology:
SMF CAL
Accessibility:
TS
Post Style:
STD
Assembly:
C
Hydro:
YES
Ledge:
FL
Warranty Comm:
18mths
Warranty Priv:
36mths
Abbreviations and Battery Assemblies
AP: Automotive Post
CV: Central Venting
CT: Centered Terminal
DFA: Dual Fit Aligned Terminals
DFP: Dual Fit Parallel Terminals
DST: Dual System Terminals
DT: Automotive Post & Stud
DWNT: Dual Wingnut
EL: End Ledge
ELPT: Embedded Low Profile
EUTR: Embedded Universal/Reverse
F1: F1 Terminal
F1-F2: F1/F2 Terminal
F2: F2 Terminal
F3: F3 Terminal
F3W: F3W Terminal
F5: F5 Terminal
F8: F8 Terminal
F9: F9 Terminal
F10: F10 Terminal
F10M8: F1 Terminal (1.25mmx15mm Stud I))
F11: F11 Terminal
F11M6: F11 Terminal (6mm/8mm Insert)
F12: F12 Terminal
F12M8: F12 Terminal (1.25mmx15mm Stud I)
F13: F13 Terminal
F14: F14 Terminal
F14M8: F14 Terminal (1.25mmx15mm Stud I)
F18: F18 Terminal
F22: F22 Terminal
F3: F3 Terminal
F5: F5 Terminal
F9: F9 Terminal
FL: Front Ledge
FDH: Fold Down Handles
HE: Hydrometer Eye
M6: M6
M8: 1.25mmx15mm Stud I
M8-DT: Automotive Post & Stud (1.25mmx15mm Stud I)
OLT: Offset Lug Terminal
PT: Pencil Terminal
RT: Recessed Terminal
RPH: Rope Handles
RTH: Retractable Handles
STD: Standard Terminal
ST: Side Terminal
TS: Top Stud Terminal
UT: Universal
WNT: Wingnut
Share

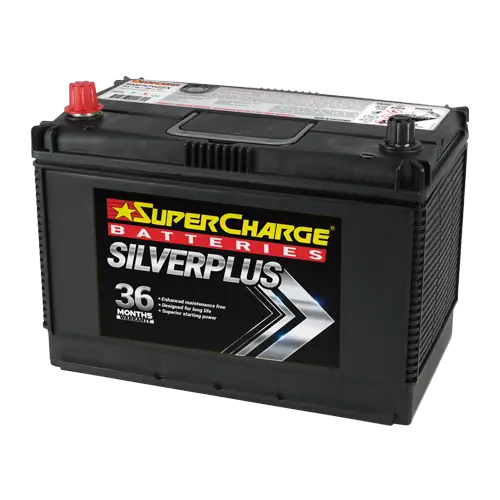

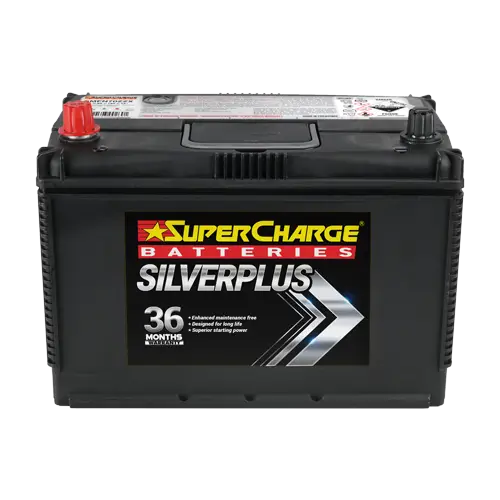

SilverPlus SMFN70ZZX 4WD/SUV/Truck & Industrial Battery
SMFN70ZZX
12V 85AH 4WD/SUV/Truck & Industrial Battery
The SMFN70ZZX is engineered to exceed OE2 requirements, delivering superior performance and longer service life for modern vehicles. Designed with advanced Lead-Calcium Tropicalised Power Plates, it ensures enhanced durability and consistent power output, even in demanding Australian conditions. Its high-efficiency electrical flow design maximises conductivity, helping your vehicle start reliably every time.
Built using hardened alloys and robust intercell connections, the SMFN70ZZX offers exceptional structural strength and resistance to vibration. This fully-sealed maintenance-free battery eliminates the need for topping up, while its high-purity lead and electrolyte formulation improves overall efficiency and lifespan. It’s a dependable, high-performance solution for drivers who expect more from their battery.
Features
Enhanced maintenance free
Designed for long life
Superior starting power
The Supercharge SMFN70ZZX Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Find a DealerNeed help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
View the Full Buying GuideTechnical Specifications
| Size | N70 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 765 |
| RC | 165 |
| AH | 85 |
| Length, mm | 304 |
| Width, mm | 173 |
| Height, mm | 203 |
| Total Height, mm | 224 |
| Assembly | D |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 36 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
Show Abbreviations Show Battery Assemblies Show Applications| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What makes the SMFN70ZZX better than standard batteries?
The SMFN70ZZX exceeds OE2 requirements, offering improved lifespan, reliability, and stronger performance compared to standard batteries.
Is the SMFN70ZZX maintenance-free?
Yes, it is a fully sealed maintenance-free battery, so there’s no need to check or refill electrolyte levels.
Is this battery suitable for Australian conditions?
Absolutely. It features tropicalised power plates designed to handle high temperatures and harsh environments.
How does it improve vehicle performance?
Its high-efficiency electrical flow design ensures better conductivity, resulting in reliable starts and consistent power delivery.
Similar Size Batteries
Current Selection
SMFN70ZZX
12V 85AH 4WD/SUV/Truck & Industrial Battery
GoldPlus
Classic
Need to find a compatible battery for your vehicle?
Find a Battery
