N200L-AGM

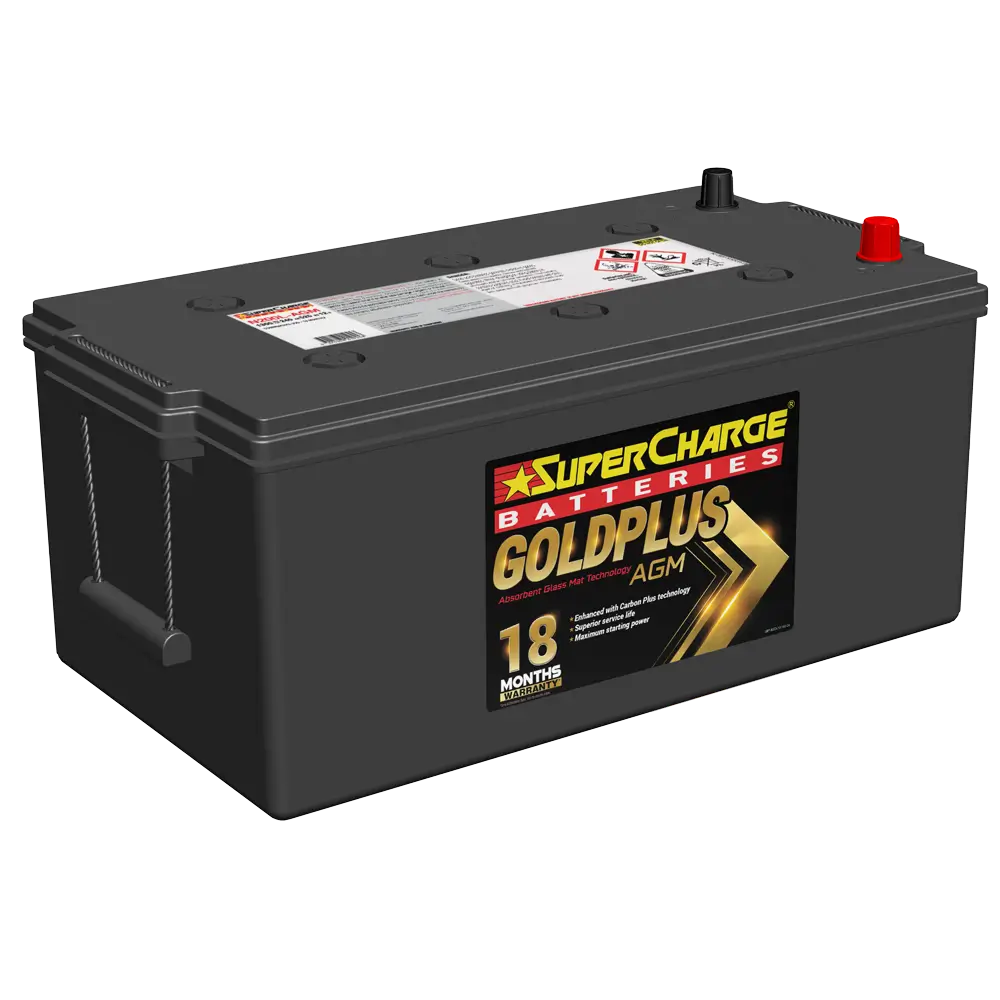

GoldPlus N200L-AGM Truck Battery
N200L-AGM
12V 240AH Truck Battery
The N200L-AGM European Truck Battery uses Absorbent Glass Mat (AGM) technology to provide a robust and efficient solution for demanding heavy-duty applications. Its advanced AGM construction securely holds the electrolyte within the separator material, while high-purity lead and hardened alloy components support efficient electrical performance. A dense internal structure and durable intercell connections contribute to the battery’s strength and reliability in commercial vehicle environments.
Designed as a fully sealed Maintenance-Free battery, the N200L-AGM is formulated for high state-of-charge retention and efficient energy delivery. Its AGM technology supports controlled electrolyte management and helps maintain consistent electrical performance, while the battery’s high-efficiency flow design optimises current movement through the internal components. This combination makes the N200L-AGM well suited to European truck applications where durability, efficiency and reduced maintenance are important.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge N200L-AGM Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right 4WD battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | N200 |
| Volts | 12V |
| Technology | AGM |
| CCA | 1300 |
| RC | 525 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
240 |
| Length, mm | 517 |
| Width, mm | 272 |
| Height, mm | 218 |
| Total Height, mm | 238 |
| Assembly |
E
|
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | NO |
| Base Warranty (Private Use) | 18 months |
| Warranty (Commercial Use) | 18 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What technology does the N200L-AGM use?
The N200L-AGM uses Absorbent Glass Mat (AGM) technology, with the electrolyte absorbed within the separator material.
What type of vehicles is the N200L-AGM designed for?
The N200L-AGM is designed as a European Truck Battery for demanding commercial and heavy-duty vehicle applications.
What are the benefits of AGM construction?
AGM construction provides controlled electrolyte retention and supports efficient electrical performance within a fully sealed battery design.
Is the N200L-AGM maintenance-free?
Yes. The N200L-AGM features a fully sealed Maintenance-Free construction, eliminating the need for routine electrolyte top-ups.
