Ritar EV Series Batteries
Designed for frequent deep cycle discharge.
EV (Electric Vehicle) series is specially designed for frequent deep cycle discharge. By using the specially designed active material and strong grids, the EV series sealed lead acid battery offers reliable performance in high load situations and can deliver more than 300 cycles at 100% DOD.
Suitable for mobility scooters, electric wheel chairs, golf buggies etc.
Designed for frequent deep cycle discharge.
Features
- Voltage class: 6V/8V/12V
- Capacity range: 10Ah-400Ah
- Designed for light electric vehicle use
- Patent EV deep cycle formula of active material
- High performance AGM separator
- Excellent cycle life and recovery performance in deep cycle use
- Application: electric motorcycles, electric bikes, golf cars, wheelchairs, electric tractors, etc.
| Type | Nominal Voltage | AH @ | Capacity @ | Overall Dimension (mm) | Post | Data | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| (V) | 20hrs | Rating | L | W | H | TH | Style | Sheet | ||
| Electric Vehicle AGM Batteries | ||||||||||
| EV6-200S | 6V | 200AH | C20/1.75VPC | 306 | 168 | 220 | 227 | f12 | ||
| EV6-200 (RA6-200EV) | 6V | 200AH | C10/1.80VPC | 322 | 177.5 | 226 | 231 | f14 | ||
| EV6-220 (RA6-220EV) | 6V | 220AH | C10/1.80VPC | 306 | 168 | 220 | 227 | f12 | ||
| EV6-225S (RA6-225SEV) | 6V | 225AH | C20/1.75VPC | 243 | 187.5 | 275 | 275 | f14 | ||
| EV6-225H (RA6-225HEV / RA6-225EV) | 6V | 225AH | C10/1.80VPC | 260 | 180 | 263 | 282 | f14m8 | ||
| EV6-335 (RA6-335EV) | 6V | 335AH | C10/1.80VPC | 295 | 178 | 346 | 364 | f22 | ||
| EV6-400 (RA6-400EV) | 6V | 400AH | C10/1.80VPC | 295 | 178 | 404 | 423 | f22 | ||
| EV12-14 (RT12140EV) | 12V | 14AH | C20/1.75VPC | 151 | 98 | 99 | 105 | f2 | ||
| EV12-22 (RT12220EV) | 12V | 22AH | C20/1.75VPC | 181 | 77 | 167 | 167 | f13 | ||
| EV12-24 (RT12240EV) | 12V | 24AH | C20/1.75VPC | 182.5 | 78.5 | 170 | 170 | f18 | ||
| EV12-26 (RT12260EV) | 12V | 26AH | C20/1.75VPC | 166 | 176 | 125 | 125 | f13 | ||
| EV12-33 (RA12-33EV) | 12V | 33AH | C10/1.80VPC | 195 | 130 | 155 | 168 | f11 | ||
| EV12-45 (RA12-45EV) | 12V | 45AH | C10/1.80VPC | 198 | 166 | 169 | 169 | f11 | ||
| EV12-55 (RA12-55EV) | 12V | 55AH | C10/1.80VPC | 229 | 138 | 211 | 216 | f11m6 | ||

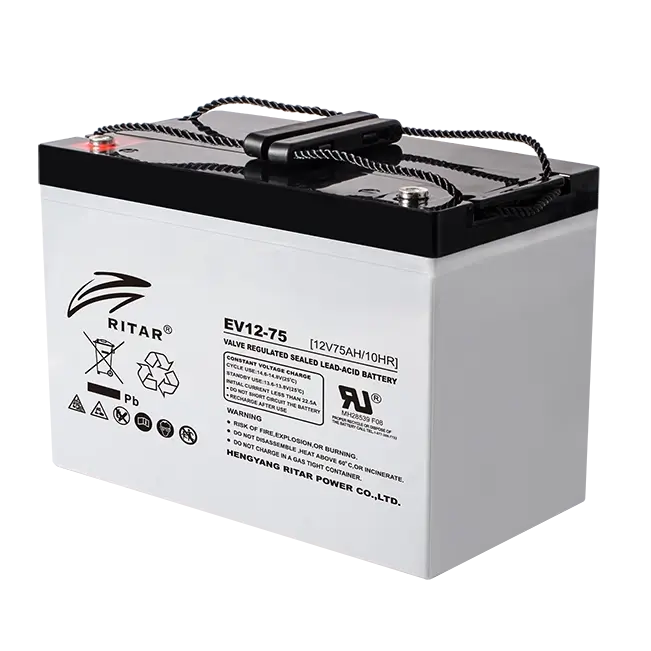

| EV12-75 (RA12-75EV) | 12V | 75AH | C10/1.80VPC | 260 | 169 | 211 | 216 | f12 | ||
| EV12-145 (RA12-145EV) | 12V | 145AH | 340 | 173 | 280 | 285 | f12 | |||
| EV12-215 (RA12-210EV) | 12V | 215AH | C20/1.75VPC | 382 | 179 | 351 | 370 | f22 | ||
