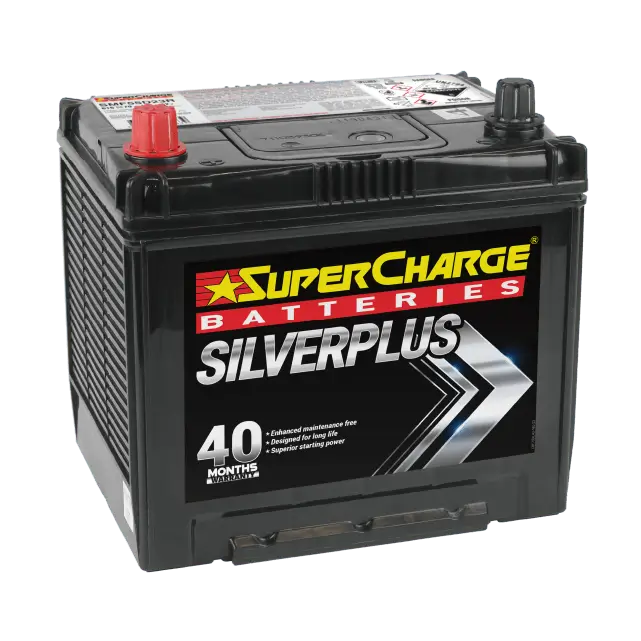

SMF55D23R

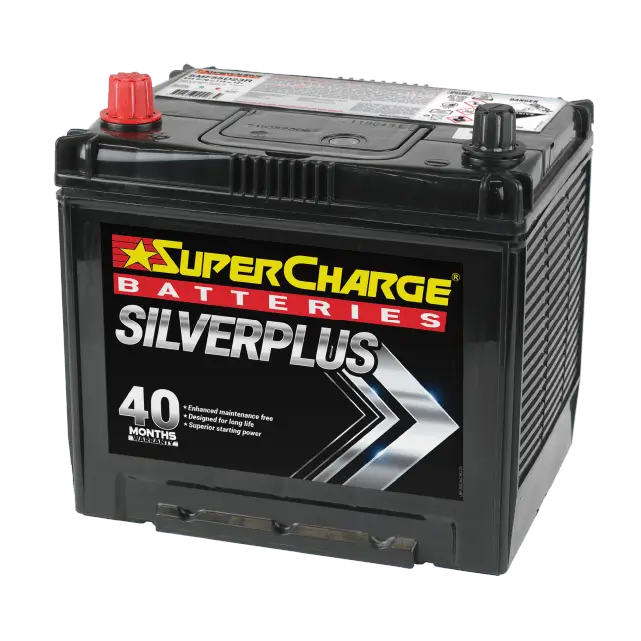

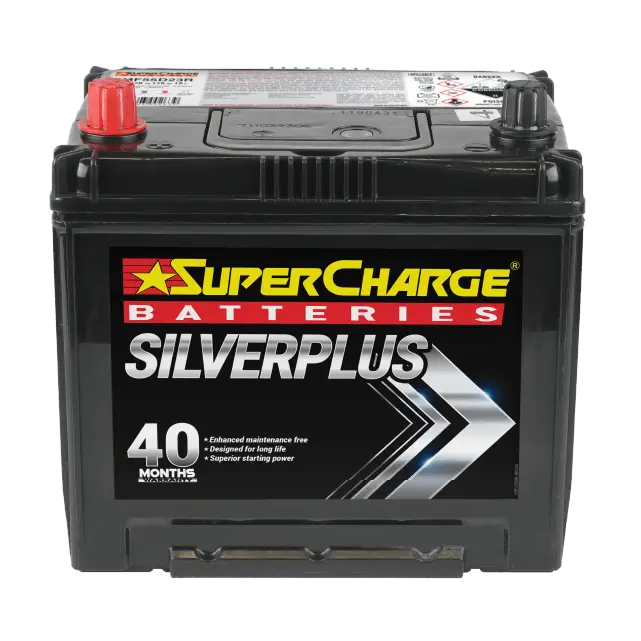

SilverPlus SMF55D23R Car Battery
SMF55D23R
12V 70AH Car Battery
The SMF55D23R Japanese Automotive Battery is developed to deliver dependable starting power for compatible Japanese vehicles. It features Lead-Calcium Tropicalised Power Plates designed to support consistent performance in demanding conditions, including warmer environments. Hardened alloys and intercell connections contribute to a robust internal structure, helping maintain reliable electrical connectivity for everyday automotive use.
Designed for convenience, the SMF55D23R has a fully sealed, maintenance-free construction that eliminates the need for routine electrolyte top-ups. Its high-efficiency electrical flow design helps deliver power effectively, while high-purity lead and electrolyte contribute to dependable operation. Combining practical durability with simplified maintenance, the SMF55D23R is suitable for vehicles requiring compatible Japanese automotive battery specifications.
Features
Enhanced maintenance free
Designed for long life
Superior Starting Power
The Supercharge SMF55D23R Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right Car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | D23 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 615 |
| RC | 115 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
70 |
| Length, mm | 233 |
| Width, mm | 173 |
| Height, mm | 201 |
| Total Height, mm | 222 |
| Assembly |
D
i
|
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 36 months |
| Extended Warranty (Private Use) | 40 months |
| Commercial Use Warranty | 18 months |
| Taxi/Rideshare Warranty | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What vehicles is the SMF55D23R suitable for?
The SMF55D23R is a Japanese Automotive Battery intended for vehicles that require a matching battery size, terminal arrangement, and electrical specifications.
How do tropicalised power plates benefit this battery?
The Lead-Calcium Tropicalised Power Plates are designed to support reliable performance in demanding operating conditions, including areas with higher temperatures.
Does the SMF55D23R need regular maintenance?
No. Its fully sealed, maintenance-free design removes the need for routine electrolyte top-ups, helping simplify ongoing battery care.
Which features help support the battery's electrical performance?
Hardened alloys and intercell connections contribute to durable construction, while the efficient electrical flow design and high-purity lead and electrolyte help support effective power delivery.
Same Size Batteries

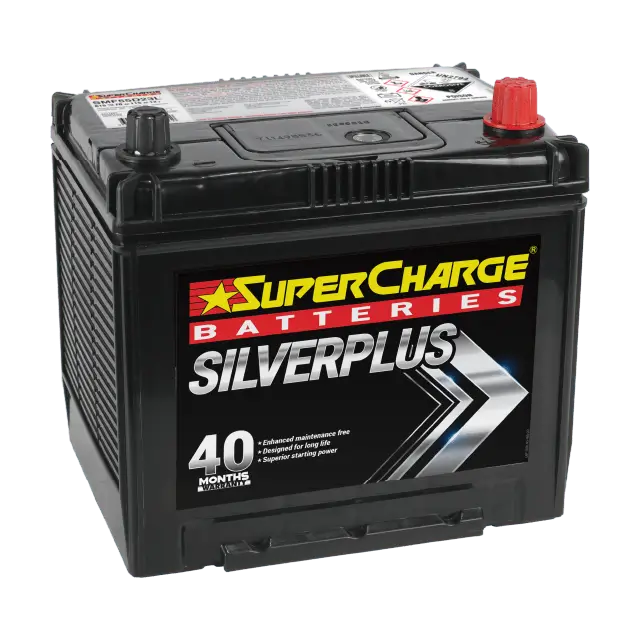

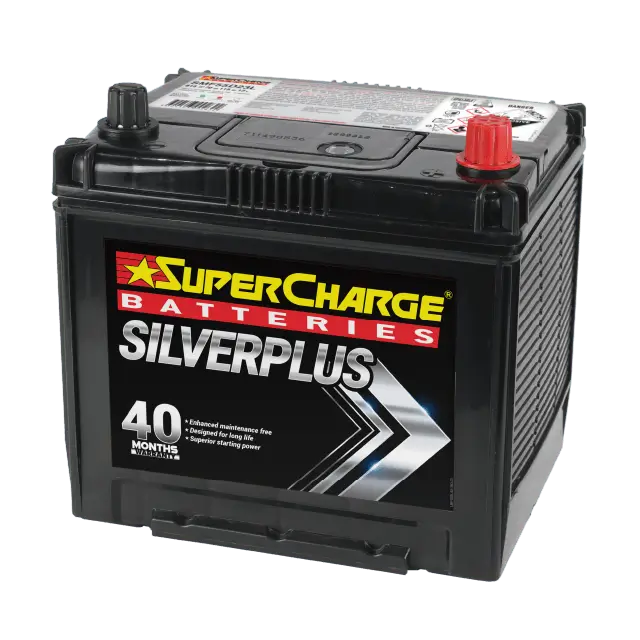

SMF55D23L
SilverPlus SMF55D23L Car Battery
SMF55D23L
12V 70AH Car Battery
The SMF55D23L Japanese Automotive Battery is designed to deliver reliable starting power for compatible Japanese vehicles. It incorporates Lead-Calcium Tropicalised Power Plates to support dependable operation in demanding conditions, including warmer climates. Hardened alloys and intercell connections help reinforce the battery's internal structure, contributing to durability and consistent electrical connectivity during everyday use.
The SMF55D23L combines practical construction with the convenience of a fully sealed, maintenance-free design, eliminating the need for routine electrolyte top-ups. Its high-efficiency electrical flow design supports effective power delivery, while high-purity lead and electrolyte contribute to reliable operation. Designed for convenient ownership and dependable performance, it is suited to vehicles requiring compatible Japanese automotive battery specifications.
Features
Enhanced maintenance free
Designed for long life
Superior Starting Power
The Supercharge SMF55D23L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right Car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | D23 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 615 |
| RC | 115 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
70 |
| Length, mm | 233 |
| Width, mm | 173 |
| Height, mm | 201 |
| Total Height, mm | 222 |
| Assembly |
C
i
|
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 36 months |
| Extended Warranty (Private Use) | 40 months |
| Commercial Use Warranty | 18 months |
| Taxi/Rideshare Warranty | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the SMF55D23L Japanese Automotive Battery designed for?
It is intended for compatible Japanese vehicles that require a battery matching the recommended dimensions, terminal layout, and electrical specifications.
How do Lead-Calcium Tropicalised Power Plates help the battery?
These plates are designed to support consistent operation under demanding conditions, including environments with elevated temperatures.
What maintenance is required for the SMF55D23L?
Its fully sealed construction means routine electrolyte top-ups are not necessary, reducing the need for regular battery maintenance.
How does the SMF55D23L support consistent electrical performance?
Hardened alloys and intercell connections help maintain durable construction, while its efficient electrical flow design and high-purity lead and electrolyte support effective power delivery.
Same Size Batteries

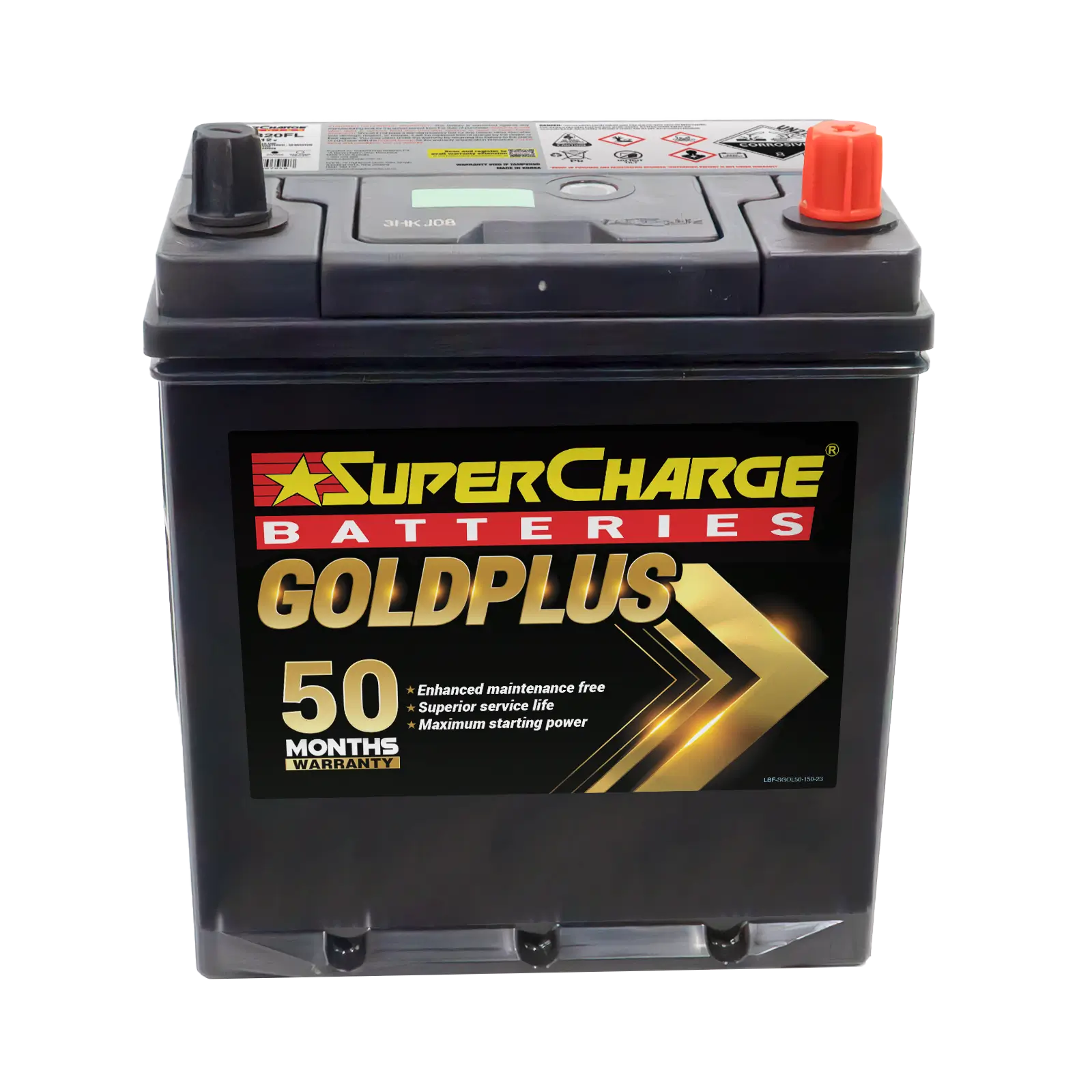

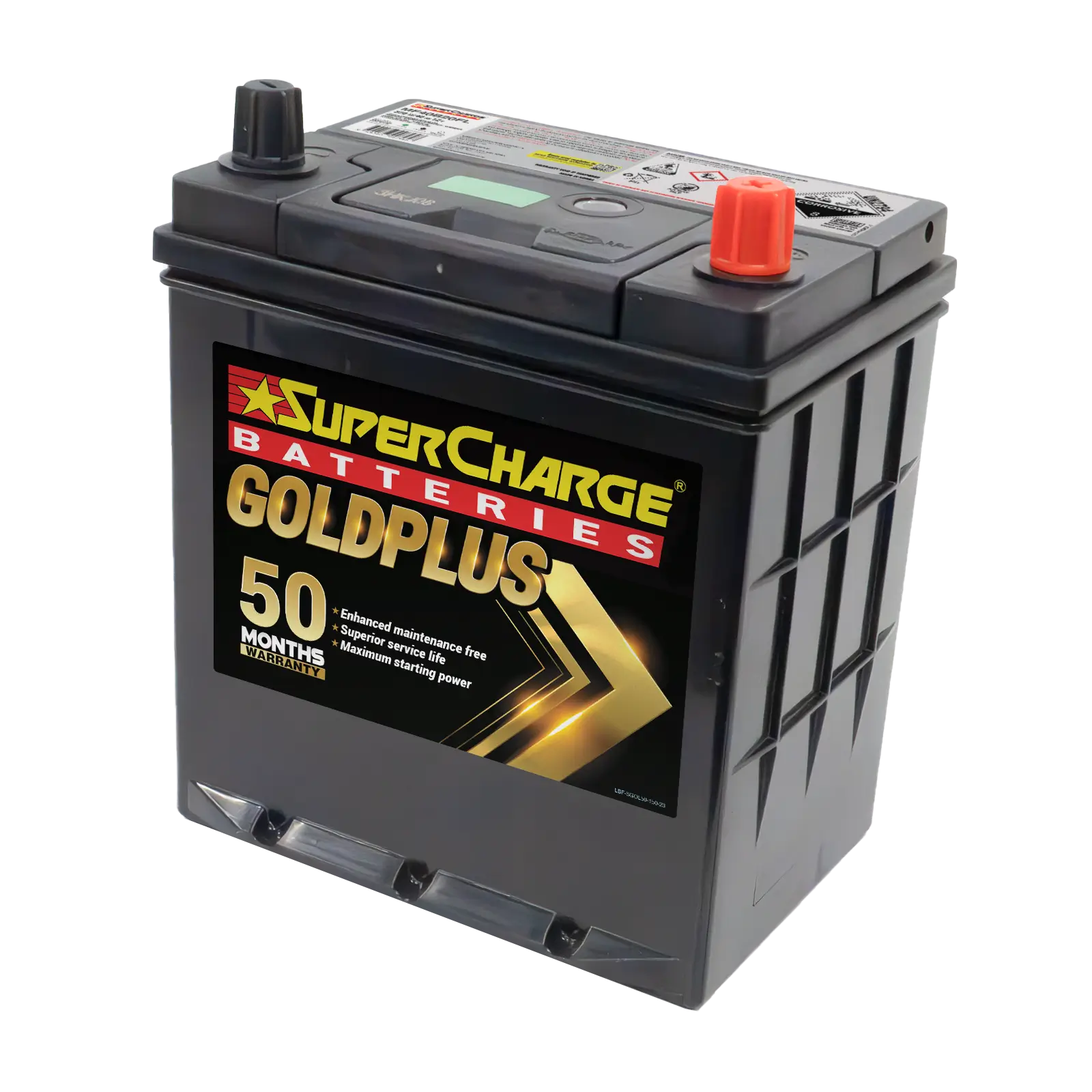

MF40B20FL

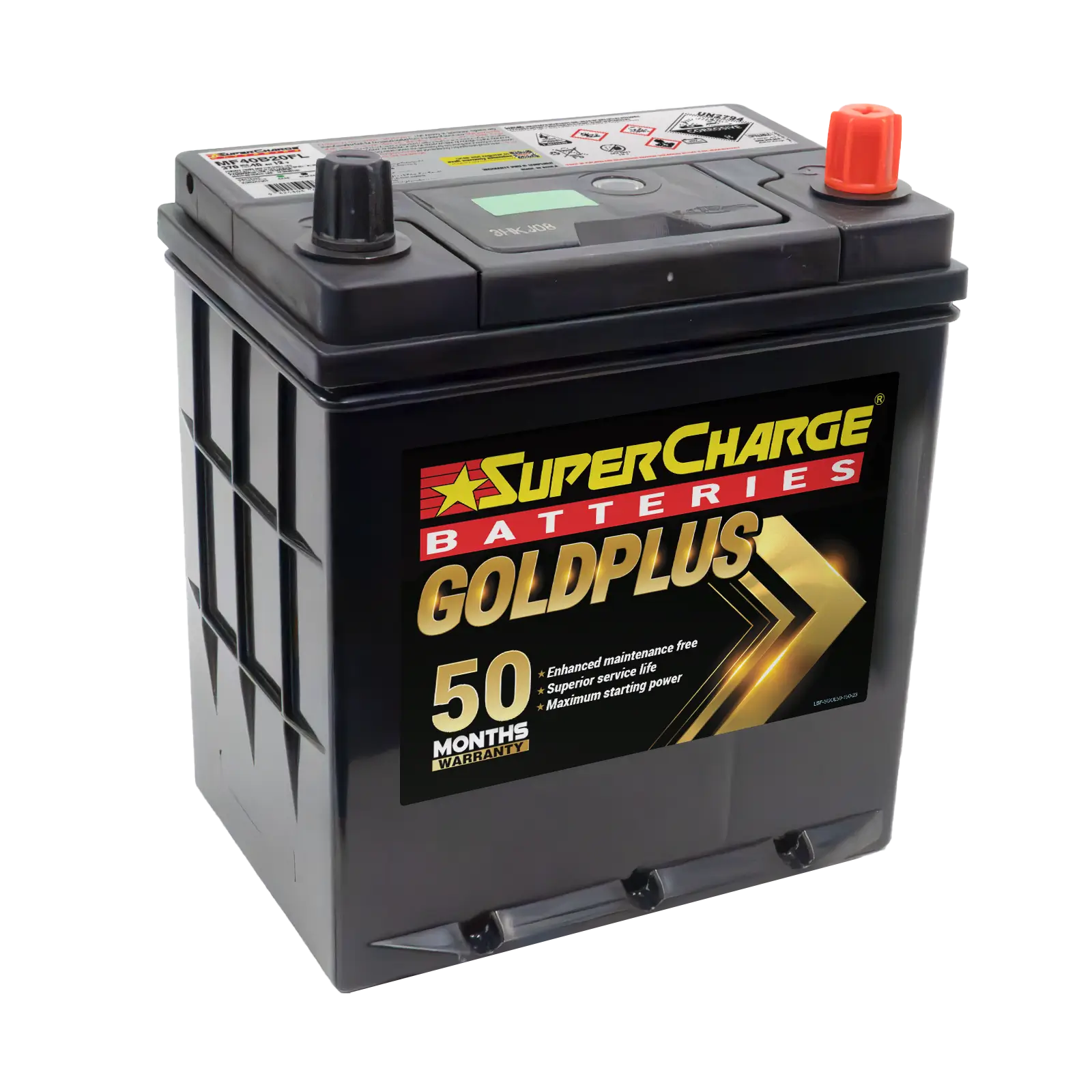

GoldPlus MF40B20FL Car Battery
MF40B20FL
12V 40AH Car Battery
The MF40B20FL car battery is designed to provide dependable starting power and efficient electrical performance for compatible automotive applications. Built for everyday driving, this automotive battery supports consistent energy delivery for engine starting and essential vehicle electrical systems. Its compact battery format makes the MF40B20FL a practical option for vehicles requiring this specific battery size and terminal configuration.
For correct vehicle fitment, the MF40B20FL battery should be matched against the vehicle manufacturer’s recommended battery specifications. Checking the battery dimensions, terminal layout, polarity and starting requirements helps ensure the battery is correctly installed and compatible with the vehicle’s electrical and charging system. The MF40B20FL is intended for automotive applications where its specific specifications and configuration are required.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF40B20FL Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS40 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 370 |
| RC | - |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
40 |
| Length, mm | 187 |
| Width, mm | 136 |
| Height, mm | 200 |
| Total Height, mm | 220 |
| Assembly | C (Positive Right) |
| Post Type | PT |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MF40B20FL car battery?
The MF40B20FL is an automotive battery designed to provide starting power and electrical energy for compatible vehicles. Its specific battery size and configuration should be matched to the vehicle’s requirements before installation.
What does MF40B20FL indicate?
MF40B20FL identifies a specific automotive battery configuration. The battery code can be used when comparing replacement batteries, but vehicle compatibility should also be confirmed using dimensions, terminal position, polarity and electrical specifications.
Why is the terminal configuration important for the MF40B20FL?
The terminal configuration determines how the battery connects to the vehicle’s electrical system. Matching the MF40B20FL terminal layout and polarity helps ensure the battery can be correctly installed without compatibility issues.
How do I know if the MF40B20FL battery is suitable for my vehicle?
Check the vehicle manufacturer’s recommended battery specifications, including battery size, dimensions, terminal configuration and required starting performance. A battery specialist or vehicle battery finder can also help confirm whether the MF40B20FL battery is suitable.
Same Size Batteries

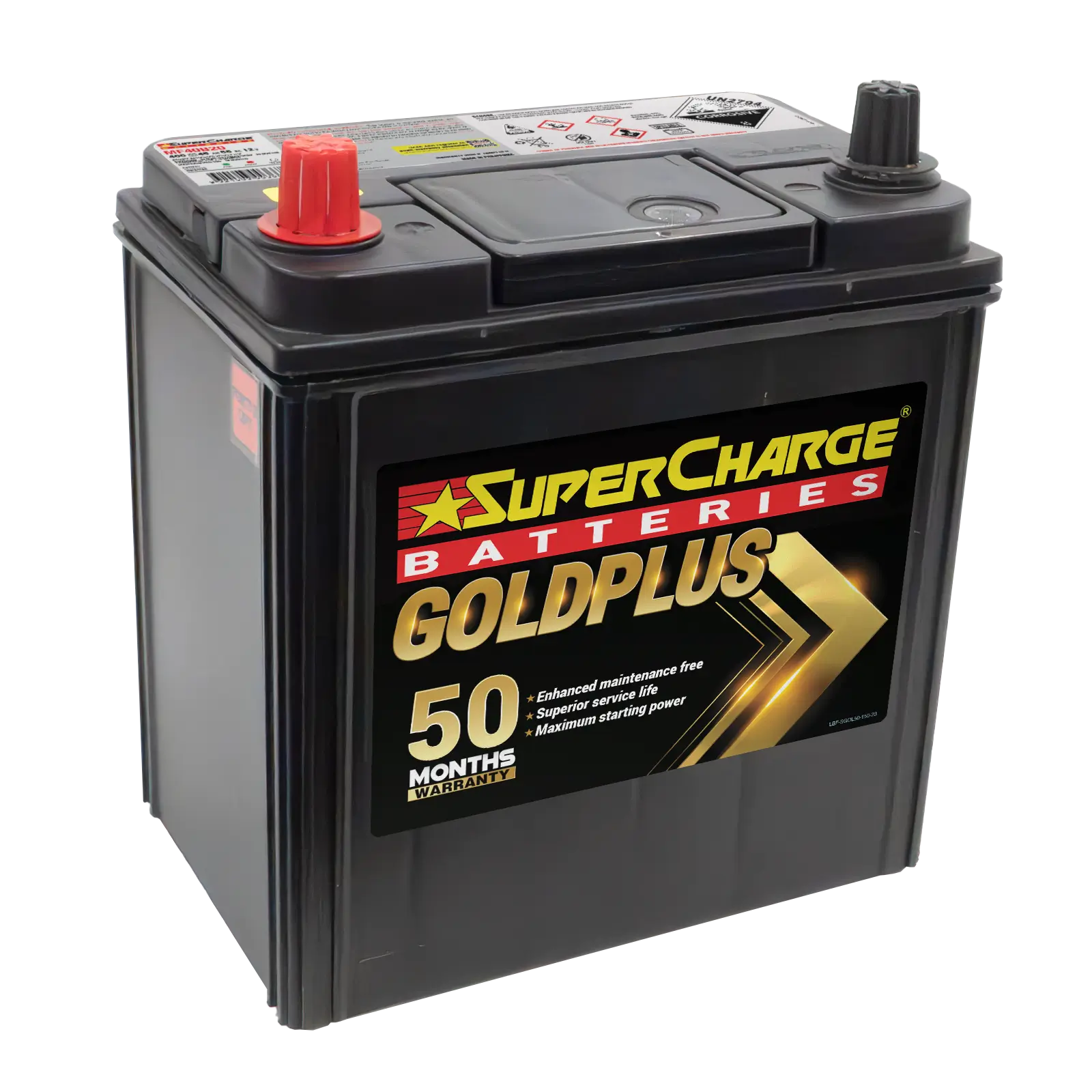

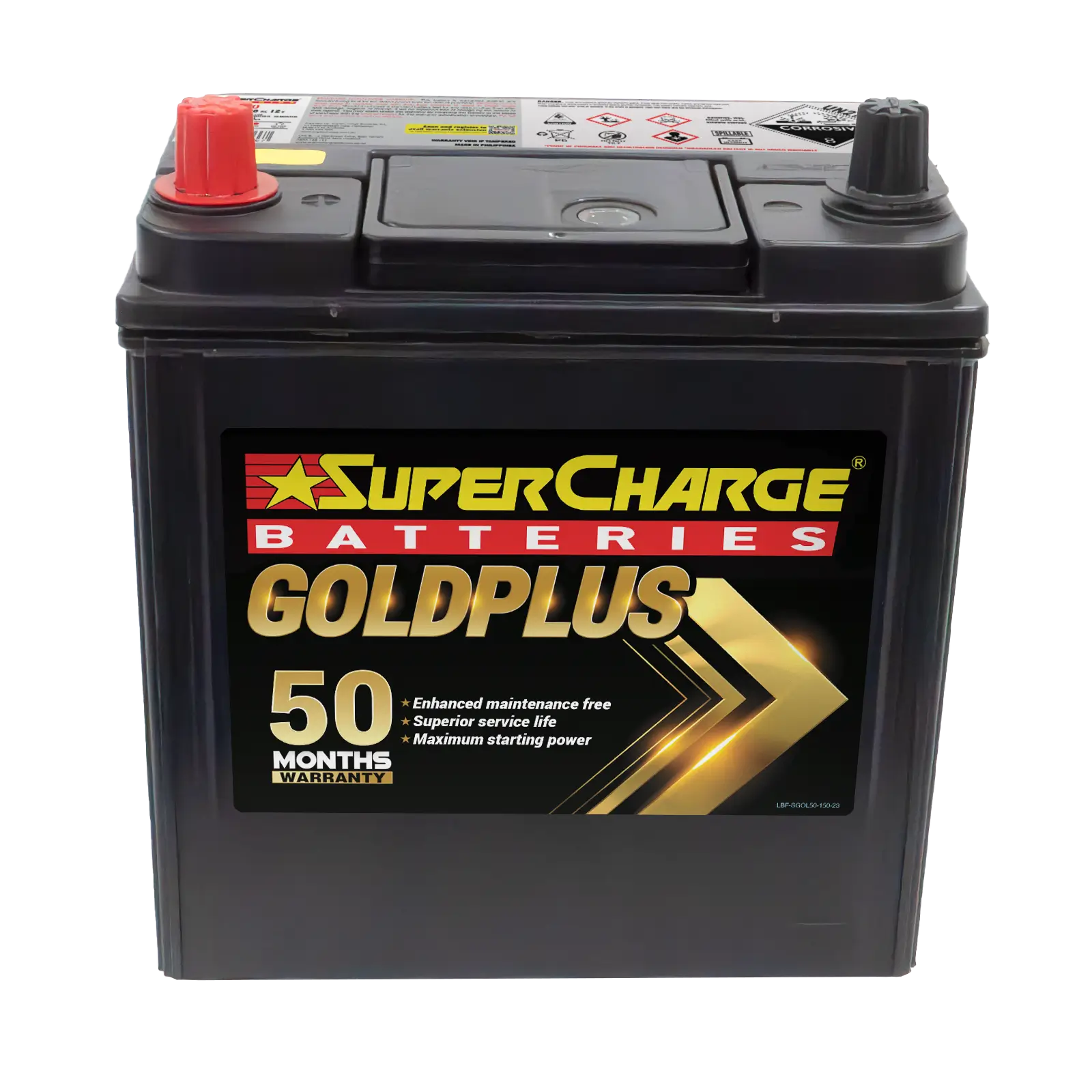

MF40B20

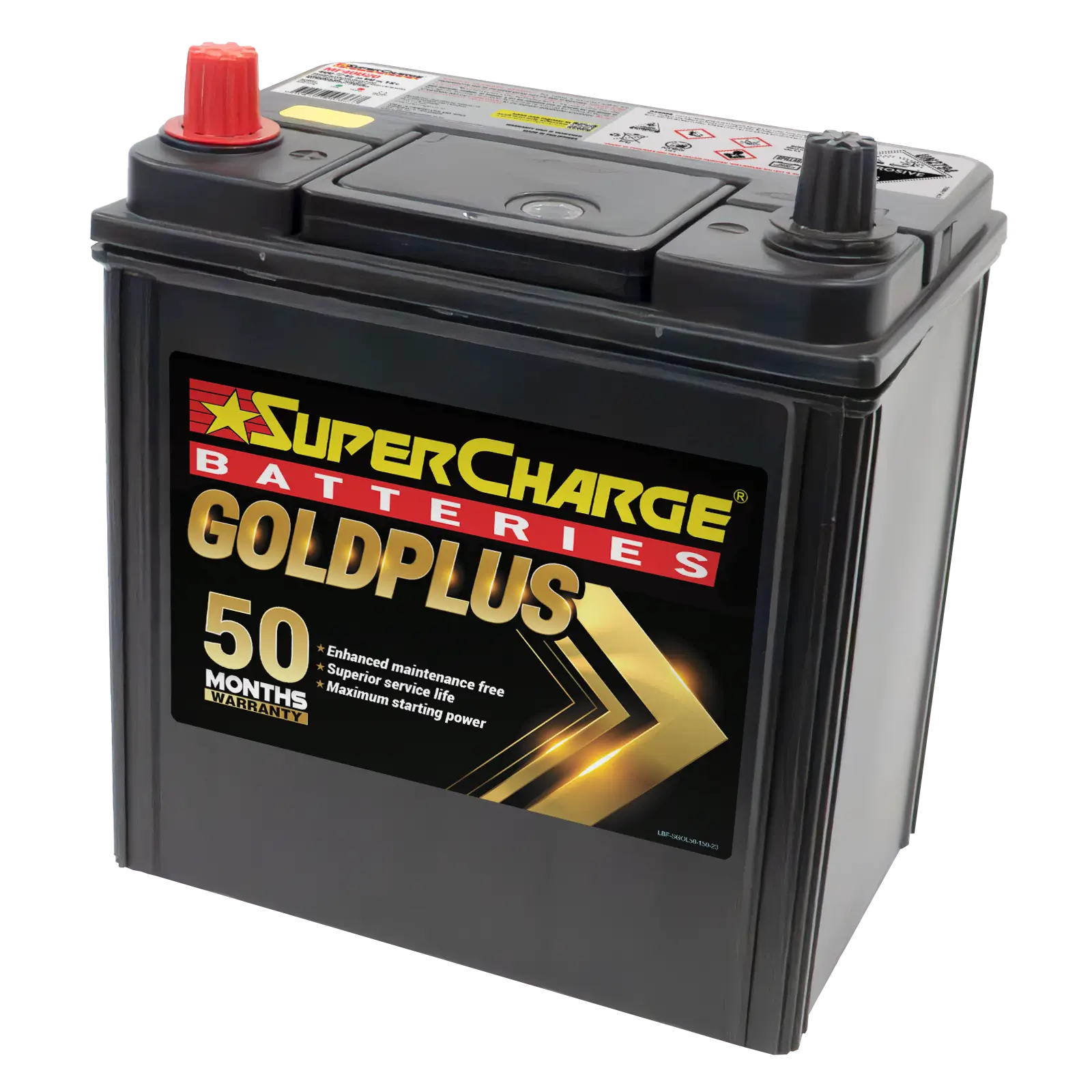

GoldPlus MF40B20 Car Battery
MF40B20
12V 45AH Car Battery
The MF40B20 car battery is designed to provide dependable starting power and efficient electrical performance for compatible automotive applications. Its compact battery format is suited to vehicles requiring the MF40B20 specification, supporting the electrical demands of engine starting and essential vehicle systems. Built for everyday automotive use, the provides a practical battery solution where the correct size and configuration are required.
Choosing the right MF40B20 battery involves checking more than the battery code. Physical dimensions, terminal arrangement, polarity and starting requirements should be matched with the vehicle manufacturer’s specifications to help ensure correct fitment. Confirming these details before installation helps the MF40B20 integrate correctly with the vehicle’s electrical and charging system.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF40B20 Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS40 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 400 |
| RC | 68 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
45 |
| Length, mm | 196 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly | D (Positive Left) |
| Post Type | PT |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MF40B20 car battery?
The MF40B20 is an automotive battery designed to provide starting power and electrical energy for compatible vehicles. Its suitability depends on the specific battery requirements of the vehicle.
What does the MF40B20 battery code mean?
MF40B20 identifies a specific battery size and configuration. The code can help identify a replacement battery, but compatibility should also be confirmed using the battery’s physical dimensions, terminal layout, polarity and electrical specifications.
Why is the battery size important when choosing an MF40B20?
The battery must physically fit within the vehicle’s battery compartment while allowing the terminals and hold-down system to align correctly. Checking the MF40B20 battery dimensions and configuration helps ensure proper installation.
How do I know if the MF40B20 is compatible with my vehicle?
Check your vehicle manufacturer’s recommended battery specifications, including battery size, dimensions, terminal configuration, polarity and starting requirements. A battery specialist or vehicle battery finder can also help confirm whether the MF40B20 battery is suitable.
Same Size Batteries
MF40B20L

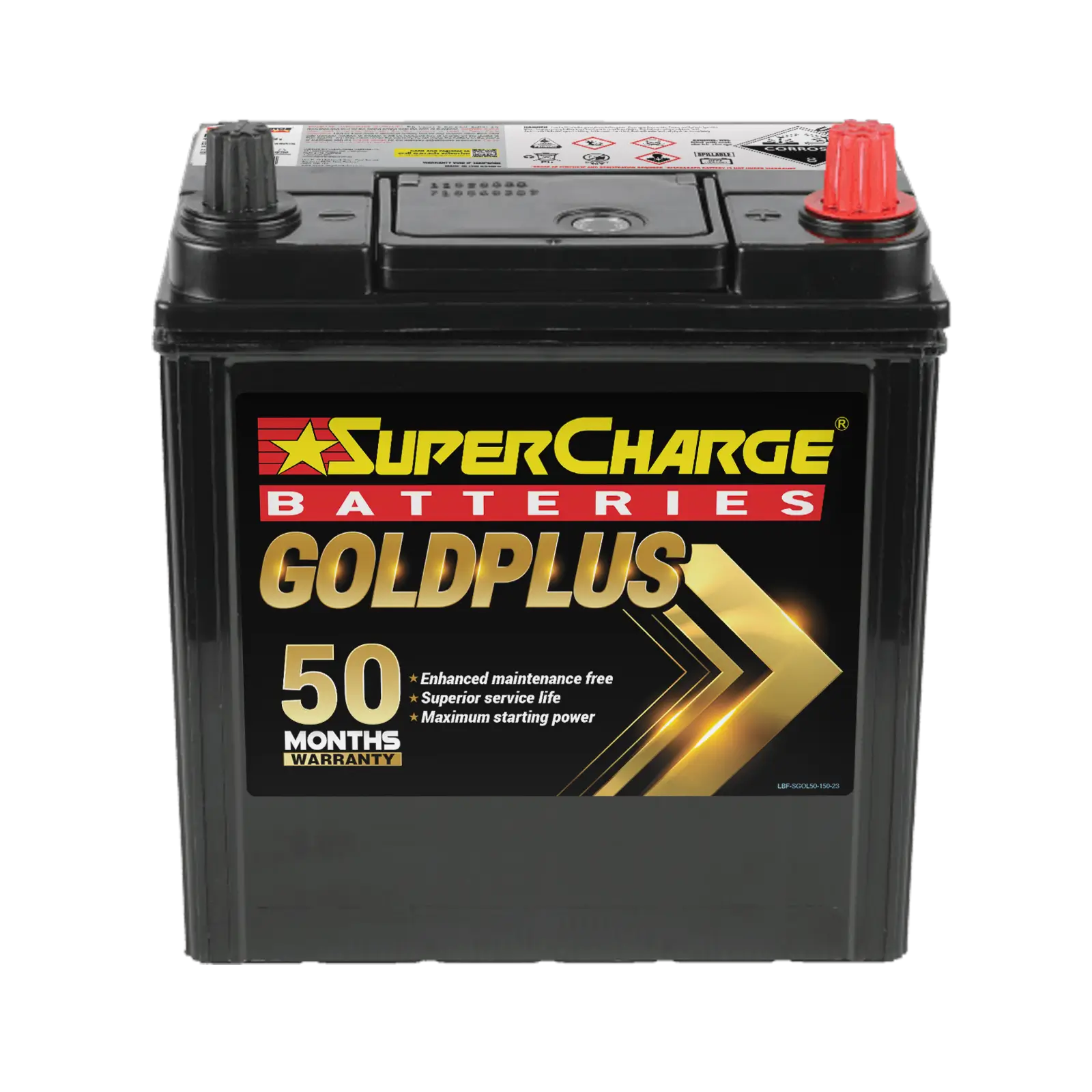

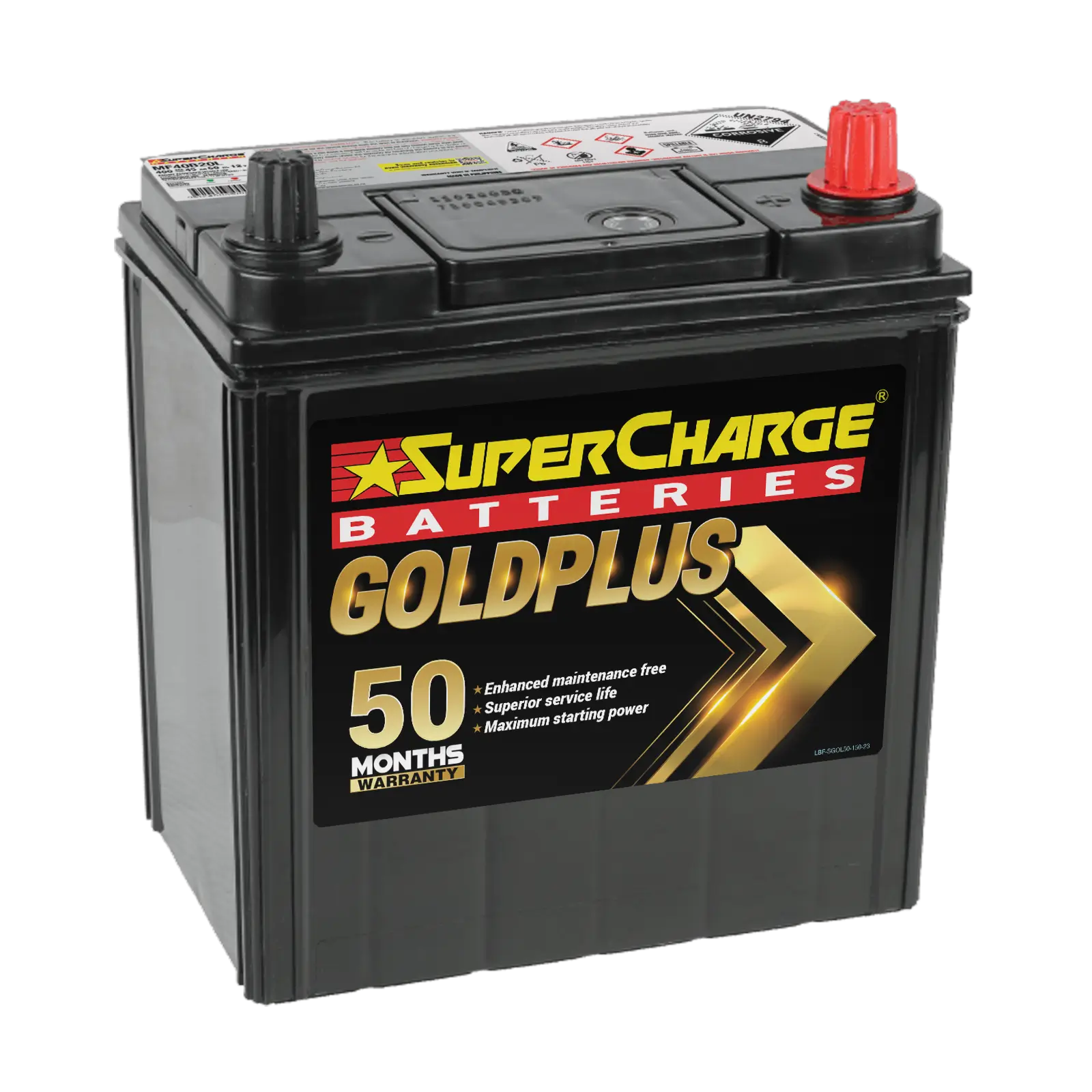

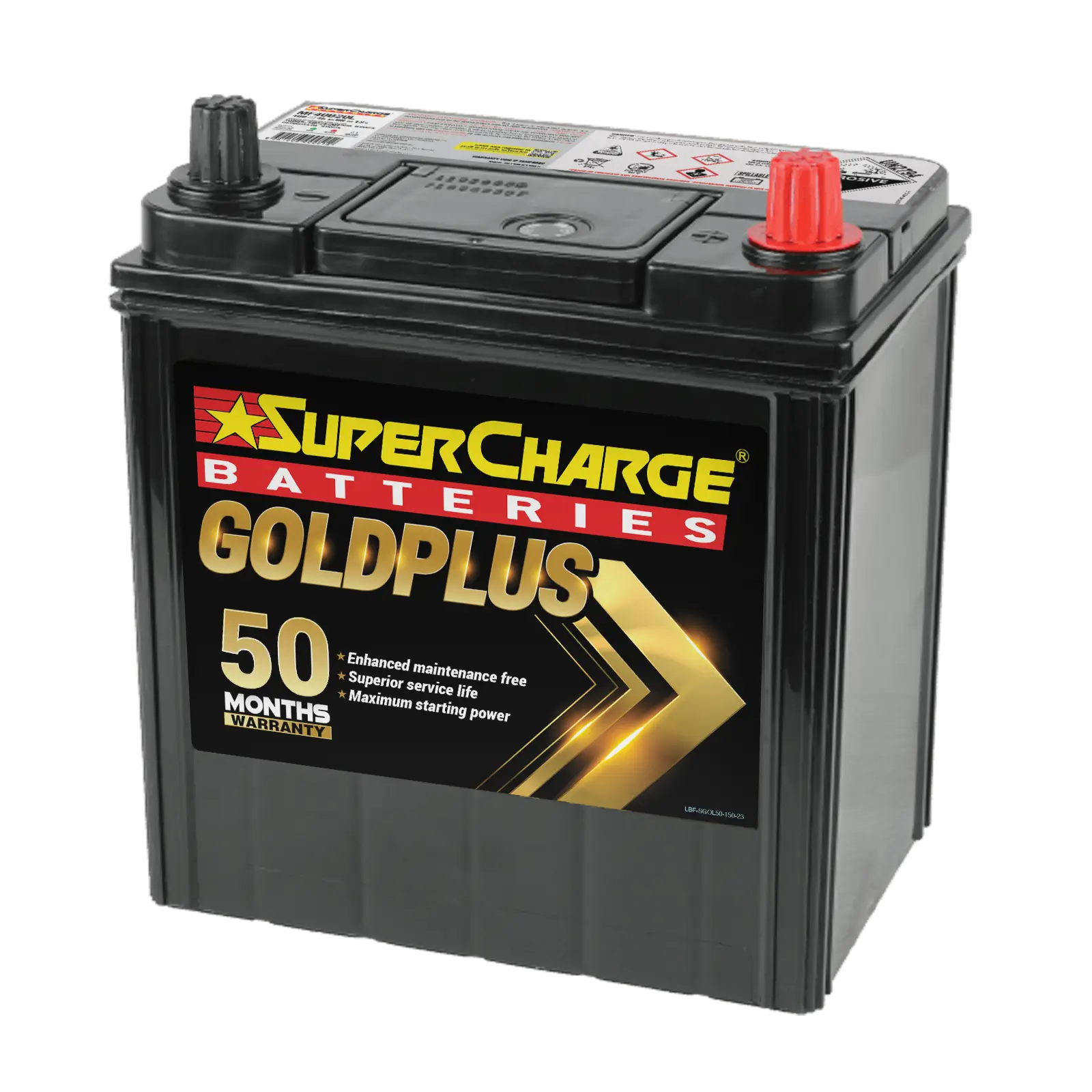

GoldPlus MF40B20L Car Battery
MF40B20L
12V 45AH Car Battery
The MF40B20L car battery is designed to provide dependable starting power and efficient electrical performance for compatible automotive applications. Its compact battery format is suited to vehicles requiring the MF40B20L specification, supporting engine starting and the electrical demands of everyday driving. The MF40B20L provides a practical battery solution for applications where a specific battery size, configuration and terminal arrangement are required.
When selecting an MF40B20L battery, correct fitment is essential for reliable vehicle operation. The battery should be matched with the vehicle manufacturer’s requirements, including physical dimensions, terminal position, polarity and starting performance. Checking these specifications before installation helps ensure the MF40B20L is correctly positioned and compatible with the vehicle’s electrical and charging system.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF40B20L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS40 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 400 |
| RC | 68 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
45 |
| Length, mm | 196 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly | C (Positive Right) |
| Post Type | PT |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MF40B20L car battery?
The MF40B20L is an automotive battery designed to provide starting power and electrical energy for compatible vehicles. Its suitability depends on the battery specifications required by the individual vehicle.
What does the “L” in MF40B20L indicate?
The L in the MF40B20L battery code identifies a particular configuration of the battery, commonly relating to its terminal arrangement or polarity. Always confirm the terminal layout against the vehicle’s existing battery before installation.
Why is the terminal position important for an MF40B20L battery?
The terminal position determines how the battery connects to the vehicle’s electrical cables. Correctly matching the MF40B20L terminal configuration helps ensure the cables reach the terminals properly and the battery can be installed correctly.
How do I know if an MF40B20L battery fits my vehicle?
Check the vehicle manufacturer’s recommended battery specifications, including battery dimensions, terminal position, polarity and required starting performance. A battery specialist or vehicle battery finder can also help confirm whether the MF40B20L battery is suitable for your vehicle.
Same Size Batteries
MF40B20ZA
GoldPlus MF40B20ZA Car Battery
MF40B20ZA
12V 45AH Car Battery
The MF40B20ZA car battery is designed to provide dependable starting power and efficient electrical performance for compatible automotive applications. Its compact battery format is suited to vehicles requiring the MF40B20ZA specification, supporting engine starting and the electrical demands of everyday driving. The MF40B20ZA is a practical automotive battery solution for applications requiring a specific battery size and configuration.
Correct battery selection is important for reliable vehicle operation. When choosing an MF40B20ZA battery, check the required physical dimensions, terminal configuration, polarity and starting performance against the vehicle manufacturer’s specifications. Confirming these details helps ensure the battery is correctly fitted and compatible with the vehicle’s electrical and charging system.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF40B20ZA Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS40 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 400 |
| RC | 68 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
45 |
| Length, mm | 196 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly | D (Positive Left) |
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MF40B20ZA car battery?
The MF40B20ZA is an automotive battery designed to provide starting power and electrical energy for compatible vehicles. Its suitability depends on the specifications required by the vehicle.
What are the key considerations when installing an MF40B20ZA battery?
The key considerations include the battery’s physical dimensions, terminal arrangement, polarity and starting requirements. Matching these specifications with the vehicle helps ensure the MF40B20ZA battery is correctly installed.
Why is the MF40B20ZA battery configuration important?
The battery configuration determines how it fits within the vehicle and connects to the electrical system. Correctly matching the MF40B20ZA configuration helps ensure proper terminal connection and physical fitment.
How can I check if the MF40B20ZA is suitable for my vehicle?
Check the vehicle manufacturer’s recommended battery specifications and compare them with the MF40B20ZA battery specifications. A battery specialist or vehicle battery finder can also help confirm compatibility based on the vehicle’s make, model, year and engine configuration.
Same Size Batteries
MF40B20ZAL

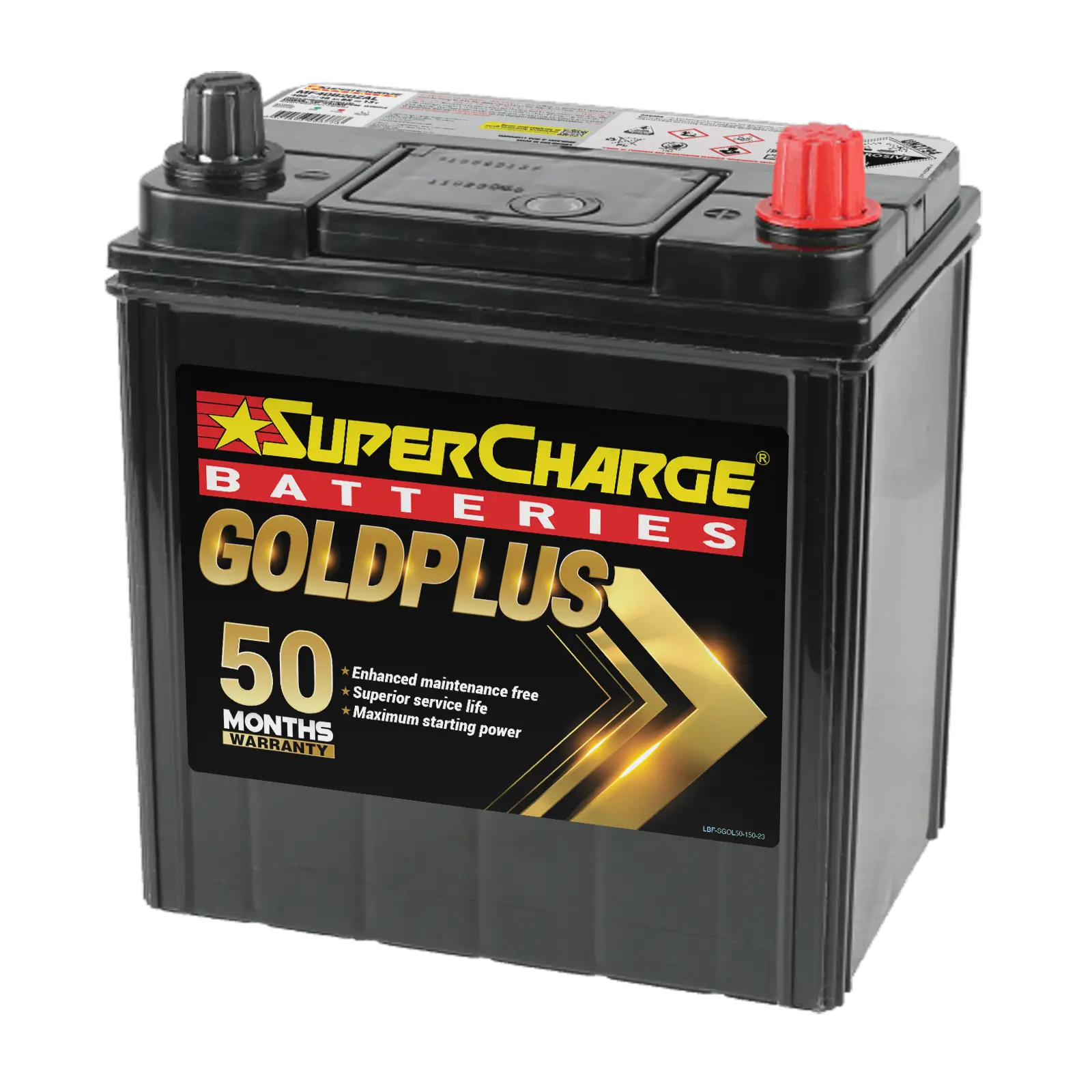

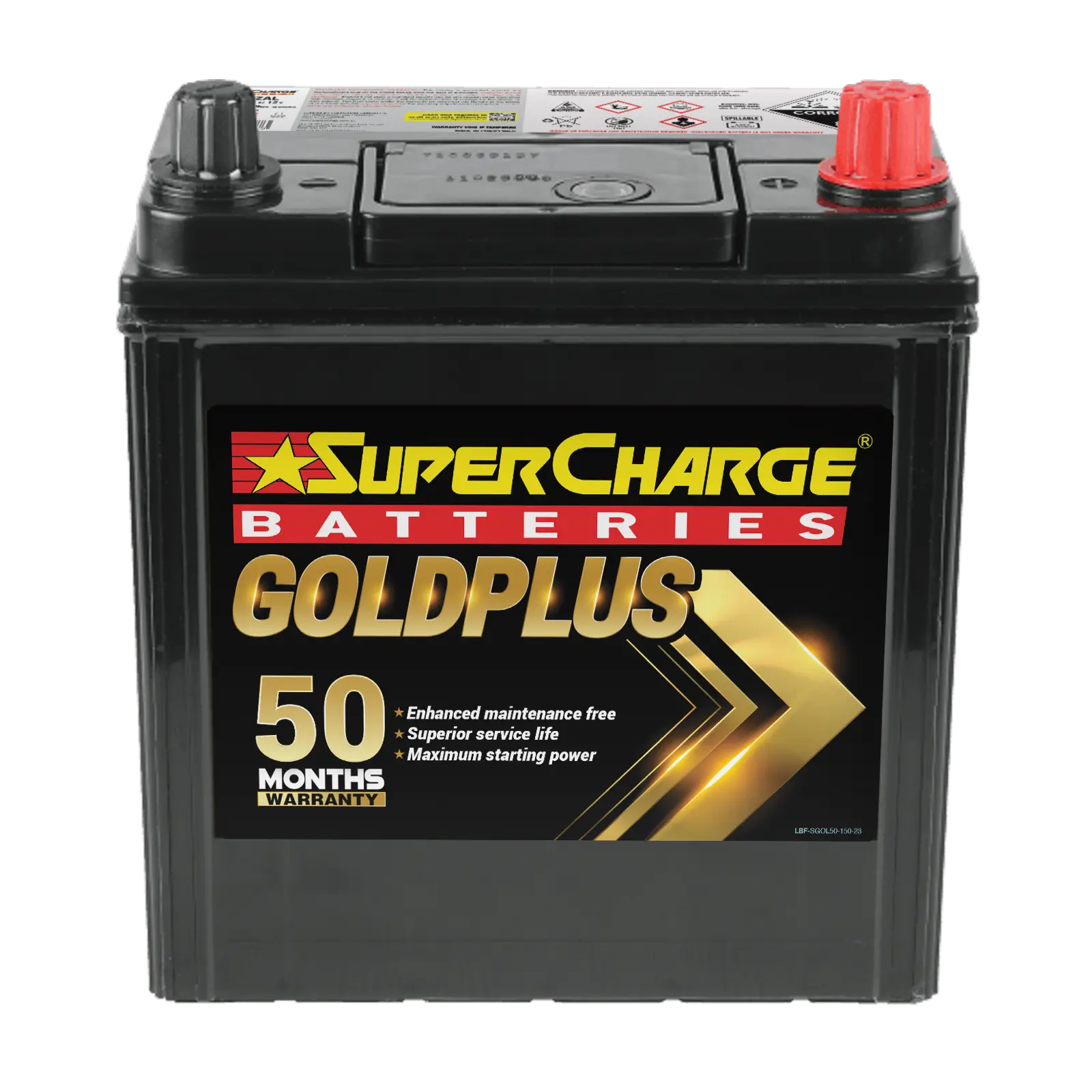

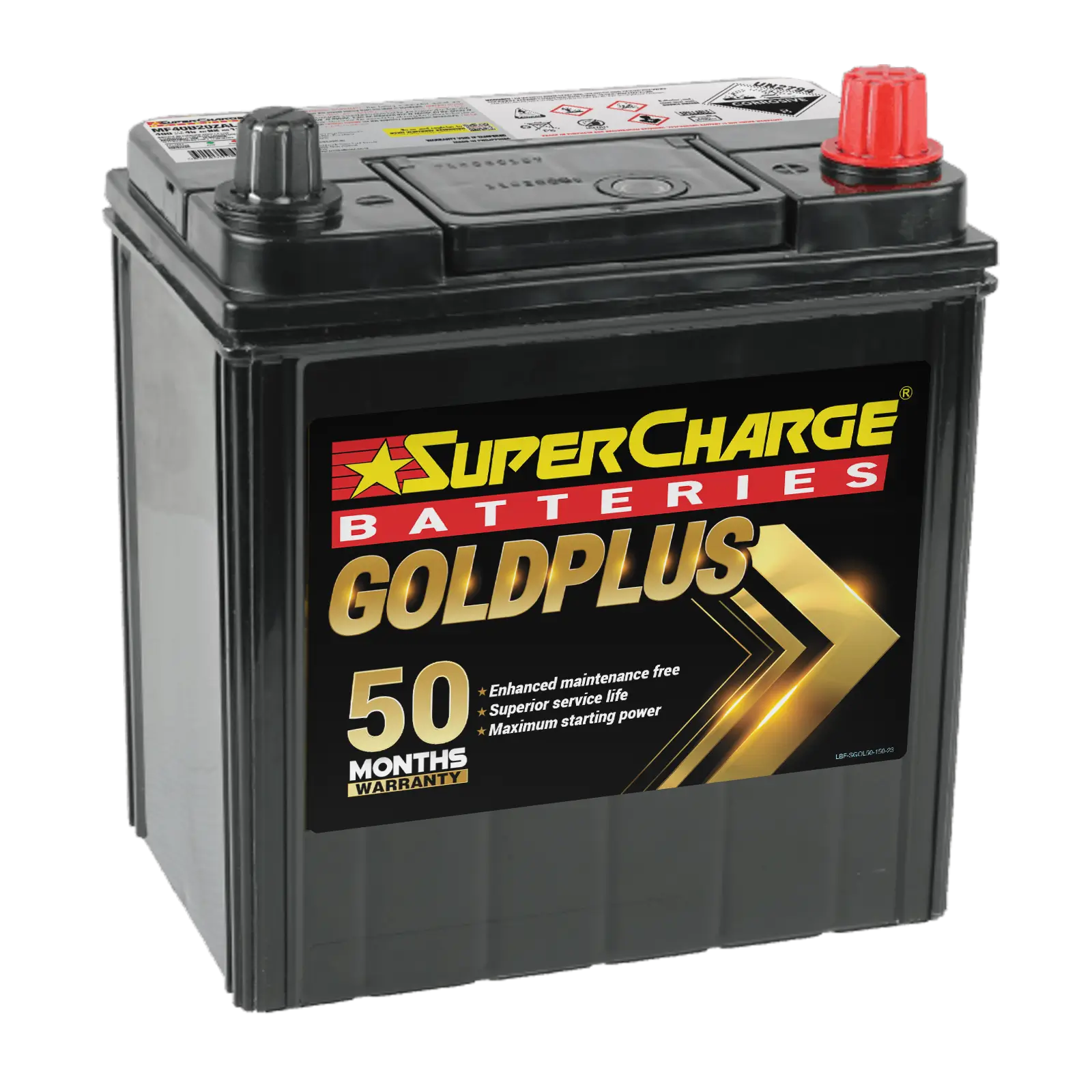

GoldPlus MF40B20ZAL Car Battery
MF40B20ZAL
12V 45AH Car Battery
The MF40B20ZAL car battery is designed to provide reliable starting power and consistent electrical performance for compatible automotive applications. Its compact format makes it suitable for vehicles requiring the MF40B20ZAL battery specification, supporting engine starting and the electrical requirements of everyday driving. The MF40B20ZAL offers a practical replacement solution when the correct battery size, configuration and terminal arrangement are required.
Choosing the correct MF40B20ZAL battery requires matching the battery to the vehicle’s specific requirements. Before installation, check the physical dimensions, terminal position, polarity and required starting performance against the vehicle manufacturer’s specifications. Confirming these details helps ensure correct fitment and compatibility with the vehicle’s electrical and charging system.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF40B20ZAL Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS40 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 400 |
| RC | 68 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
45 |
| Length, mm | 196 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly | C (Positive Right) |
| Post Type | STD |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MF40B20ZAL car battery?
The MF40B20ZAL is an automotive battery designed to provide starting power and electrical energy for compatible vehicles. The correct application depends on the battery specifications required by the vehicle.
What does the “L” in MF40B20ZAL indicate?
The L identifies a particular battery configuration, commonly associated with the terminal arrangement or polarity. The terminal layout should always be compared with the vehicle’s existing battery before installation.
Why is the MF40B20ZAL battery configuration important?
The battery configuration affects how the battery fits into the vehicle and how its terminals connect to the vehicle’s electrical cables. Correct configuration helps ensure proper installation and electrical connection.
How can I check if the MF40B20ZAL is suitable for my vehicle?
Compare the MF40B20ZAL battery specifications with your vehicle manufacturer’s recommended battery requirements. Check dimensions, terminal position, polarity and starting performance, or consult a battery specialist for confirmation.
Same Size Batteries
MF50D20L
GoldPlus MF50D20L Car Battery
MF50D20L
12V 50AH Car Battery
The MF50D20L car battery is designed to provide dependable starting power and efficient electrical performance for compatible automotive applications. Its compact battery format is suited to vehicles requiring the MF50D20L specification, supporting engine starting and the electrical demands of everyday driving. Designed for practical automotive use, the MF50D20L provides a suitable replacement option where its specific battery size and configuration are required.
Selecting the correct MF50D20L battery is important for proper vehicle fitment and electrical performance. Before installation, compare the battery’s physical dimensions, terminal arrangement, polarity and starting requirements with the vehicle manufacturer’s specifications. Confirming these details helps ensure the MF50D20L is correctly fitted and compatible with the vehicle’s electrical and charging system.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF50D20L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | D20 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 460 |
| RC | 80 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
50 |
| Length, mm | 200 |
| Width, mm | 172 |
| Height, mm | 200 |
| Total Height, mm | 220 |
| Assembly | C (Positive Right) |
| Post Type | STD |
| Ledge | FL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MF50D20L battery used for?
The MF50D20L battery is used in compatible automotive applications where its specific battery size, configuration and electrical characteristics are required. It is designed to provide the starting power needed to start the vehicle and support its essential electrical systems.
What should I look for when replacing an MF50D20L battery?
When replacing an MF50D20L, compare the existing battery with the replacement for physical size, terminal arrangement, polarity and required starting performance. These specifications help ensure the replacement battery is appropriate for the vehicle.
How can I help maintain the performance of an MF50D20L battery?
Regular vehicle use, maintaining a healthy charging system and limiting unnecessary electrical loads when the engine is switched off can help support battery performance. If starting becomes noticeably slower, having the MF50D20L battery and charging system tested can help identify potential issues.
What can cause an MF50D20L battery to lose performance?
Battery performance can be affected by factors such as repeated short trips, prolonged periods without use, extreme temperatures, charging-system problems and normal battery ageing. Identifying the underlying cause can help determine whether the MF50D20L battery needs charging, testing or replacement.
Same Size Batteries
MF55B24R
GoldPlus MF55B24R Car Battery
MF55B24R
12V 56AH Car Battery
The MF55B24R car battery is designed to provide dependable starting power and consistent electrical performance for compatible automotive applications. Its battery construction is suited to everyday vehicle use, supporting the energy demands of engine starting and essential electrical systems. The MF55B24R provides a practical replacement option for vehicles requiring this specific battery size and configuration.
For reliable battery performance, the MF55B24R should be selected according to the vehicle’s required battery specifications. Physical dimensions, terminal arrangement, polarity and starting requirements are important considerations when replacing an existing battery. Correctly matching these specifications helps support proper installation and dependable operation of the vehicle’s electrical and charging systems.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF55B24R Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS60 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 500 |
| RC | 90 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
56 |
| Length, mm | 236 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly | D (Positive Left) |
| Post Type | PT |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
What is the MF55B24R battery designed to do?
The MF55B24R battery is designed to supply the electrical power required for engine starting and support the vehicle’s essential electrical systems. It is intended for compatible automotive applications requiring its specific battery configuration.
How long does an MF55B24R battery last?
Battery service life can vary depending on driving conditions, climate, vehicle usage, charging-system condition and maintenance. Frequent short trips and prolonged periods of inactivity can place additional demands on an automotive battery.
What can affect the starting performance of an MF55B24R?
Starting performance can be affected by battery age and condition, temperature, the vehicle’s electrical load and the condition of the charging and starting systems. Slow engine cranking can be a sign that the MF55B24R battery or another part of the vehicle’s starting system should be tested.
How should an MF55B24R battery be stored when not in use?
If an MF55B24R battery is not being used for an extended period, it should be stored in appropriate conditions and checked periodically to help prevent excessive discharge. Keeping the battery in good condition during storage can help support its performance when returned to service.
Same Size Batteries
MF55B24L

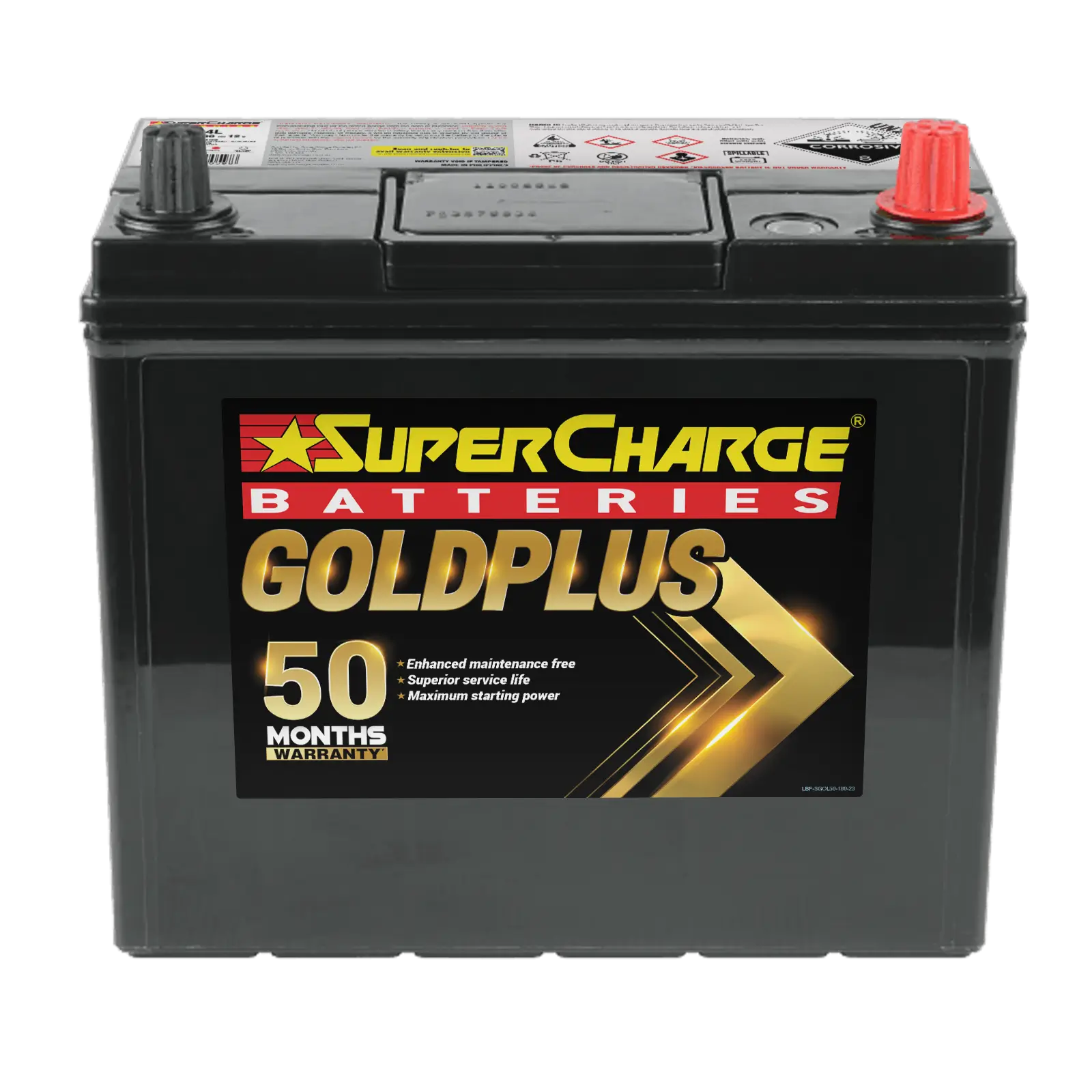

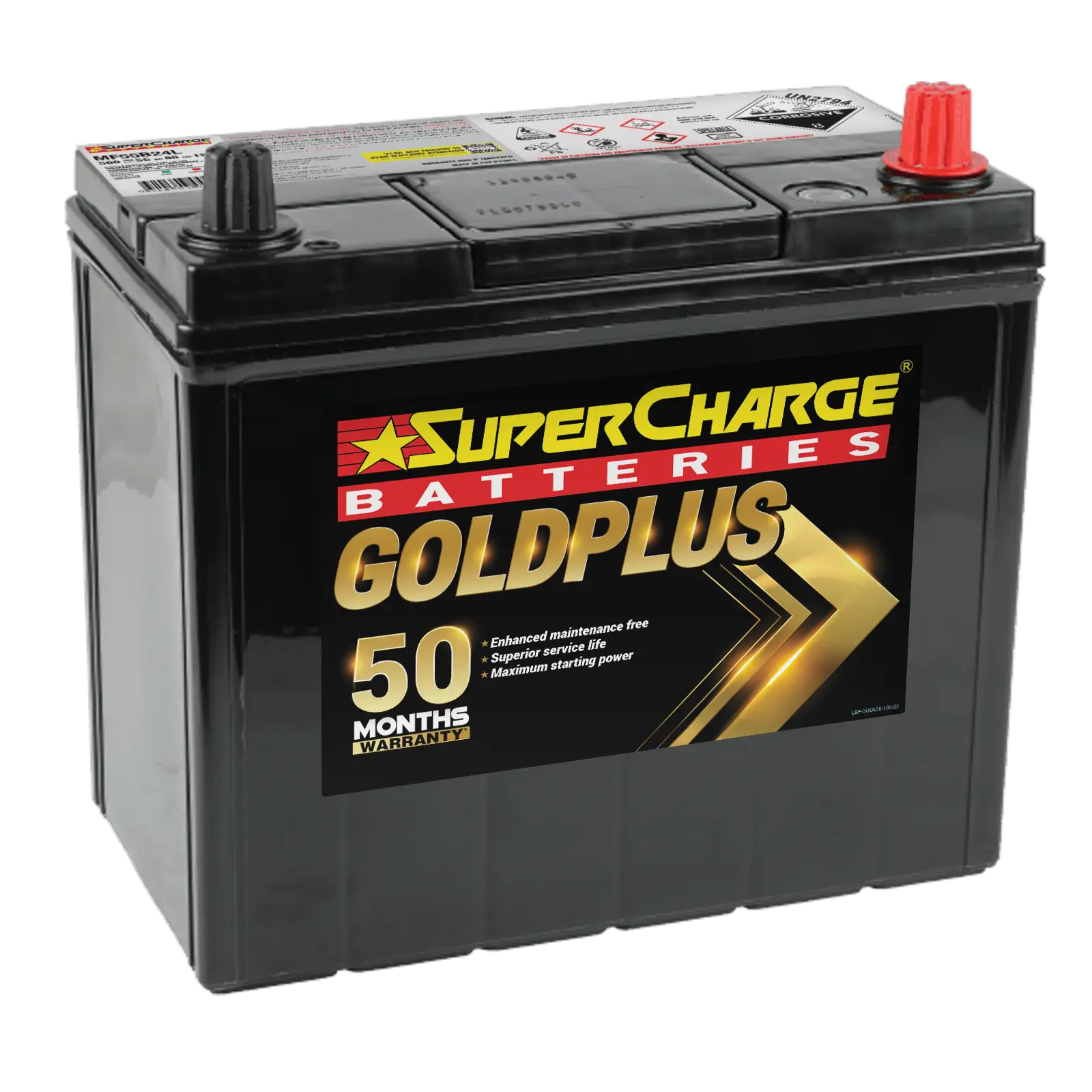

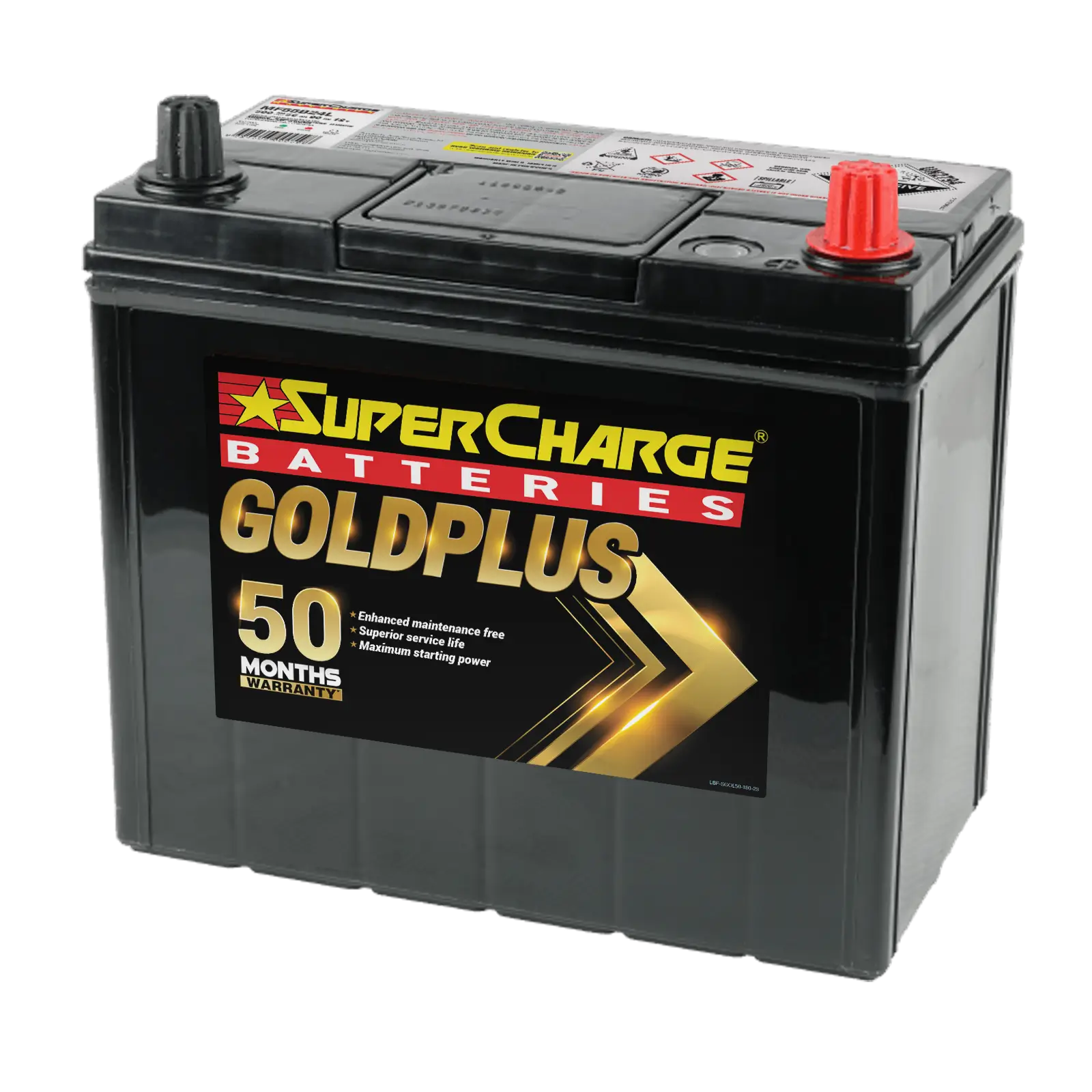

GoldPlus MF55B24L Car Battery
MF55B24L
12V 56AH Car Battery
The MF55B24L car battery is designed to deliver dependable starting power and consistent electrical energy for compatible automotive applications. Engineered for everyday vehicle use, it supports the power requirements of engine starting and essential electrical systems. The MF55B24L offers a practical replacement solution for vehicles requiring this particular battery size and configuration.
Maintaining the correct battery specifications is important for reliable automotive performance. When replacing an MF55B24L battery, factors such as physical dimensions, terminal arrangement, polarity and starting requirements should be checked against the vehicle’s recommended specifications. Proper selection and installation help the battery work effectively with the vehicle’s electrical and charging systems.
Features
Enhanced maintenance free
Superior service life
Maximum starting power
The Supercharge MF55B24L Battery is available through our nationwide dealer network across Australia. Contact your local store for pricing, availability, and professional advice.
Need help choosing the right car battery?
Our complete buying guide explains how to select the correct battery size, understand ratings like CCA and reserve capacity, and tips for installation and maintenance.
Technical Specifications
| Size | NS60 |
| Volts | 12V |
| Technology | SMF CAL |
| CCA | 500/td> |
| RC | 90 |
|
AH
i
Ampere Hour (Ah)
A higher Ah rating indicates greater capacity but only Deep Cycle Batteries are designated to provide power for longer periods before recharging. |
56 |
| Length, mm | 236 |
| Width, mm | 128 |
| Height, mm | 199 |
| Total Height, mm | 219 |
| Assembly | C (Positive Right) |
| Post Type | PT |
| Ledge | NL |
| Accessibility | TS |
| Hydro Eye | YES |
| Base Warranty (Private Use) | 40 months |
| Extended Warranty (Private Use) | 50 months |
| Warranty (Commercial Use) | 18 months |
| Warranty (Taxi/Ride Share) | 12 months |
Technical References
| AP | Automotive Post | CV | Central Venting |
| CT | Centered Terminal | DFA | Dual Fit Aligned Terminals |
| DFP | Dual Fit Parallel Terminals | DST | Dual System Terminals |
| DT | Automotive Post & Stud | DWNT | Dual Wingnut |
| EL | End Ledge | ELPT | Embedded Low Profile |
| EUTR | Embedded Universal/Reverse | F1 | F1 Terminal |
| F1-F2 | F1/F2 Terminal | F2 | F2 Terminal |
| F3 | F3 Terminal | F3W | F3W Terminal |
| F5 | F5 Terminal | F8 | F8 Terminal |
| F9 | F9 Terminal | F10 | F10 Terminal |
| F10M8 | F1 Terminal (1.25mmx15mm Stud I) | F11 | F11 Terminal |
| F11M6 | F11 Terminal (6mm/8mm Insert) | F12 | F12 Terminal |
| F12M8 | F12 Terminal (1.25mmx15mm Stud I) | F13 | F13 Terminal |
| F14M8 | F14 Terminal (1.25mmx15mm Stud I) | F14 | F14 Terminal |
| F18 | F18 Terminal | F22 | F22 Terminal |
| FL | Front Ledge | FDH | Fold Down Handles |
| HE | Hydrometer Eye | M6 | M6 |
| M8-DT | Automotive Post & Stud (1.25mmx15mm Stud I) | M8 | 1.25mmx15mm Stud I |
| OLT | Offset Lug Terminal | PT | Pencil Terminal |
| RT | Recessed Terminal | RPH | Rope Handles |
| RTH | Retractable Handles | STD | Standard Terminal |
| ST | Side Terminal | TS | Top Stud Terminal |
| UT | Universal | WNT | Wingnut |
| A (6 Volts) |
|
| C (12 Volts) |
|
| D (12 Volts) |
|
| E (12 Volts) |
|
| F (12 Volts) |
|
| G (12 Volts) |
|
| H (12 Volts) |
|
| Make | Model | Year |
Downloads
Frequently Asked Questions
How do lead-calcium tropicalised power plates benefit the MF55B24L battery?
The MF55B24L car battery features lead-calcium tropicalised power plates designed to support dependable battery performance in demanding operating conditions. This plate technology helps the battery deliver starting power while supporting durability in warmer climates.
How does the MF55B24L battery retain its charge?
The MF55B24L battery is formulated for high state-of-charge retention, helping it preserve stored electrical energy when the vehicle is not in use. Actual charge retention depends on factors such as temperature, battery condition and storage duration.
Why does the MF55B24L use hardened alloys and intercell connections?
The MF55B24L is assembled using hardened alloys and intercell connections to support structural strength and electrical conductivity within the battery. Combined with its high-efficiency electrical flow design, these components help facilitate effective energy transfer during battery operation.
Is the MF55B24L battery maintenance-free?
Yes. The MF55B24L car battery features a fully sealed, maintenance-free design, eliminating the need for routine electrolyte top-ups under normal operating conditions. Its high-purity lead and electrolyte, together with its dense and compact construction, support efficient battery operation and practical everyday use.
