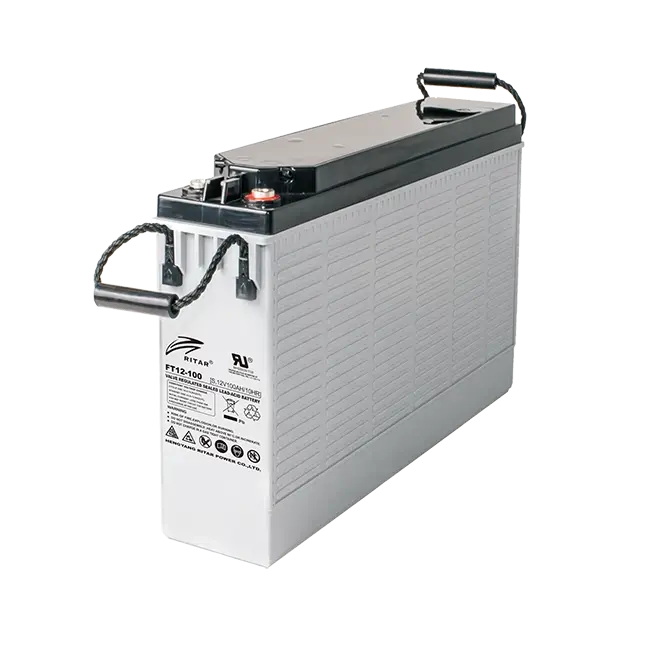

Ritar FT Series Batteries

Specially designed for telecom. 12 years design life.

FT (Front Terminal) Series is specially designed for telecom use with 12 years design life in float service. By adopting a new AGM separator and centralised venting system, the battery can be installed in any position while maintaining high relaibility.

The dimensions of the Ritar FT battery is designed for 19″ and 23″ cabinet installation. It is suitable for UPS/EPS applications.

Specially designed for Telecom.


  • Voltage class: 12V
  • Capacity range: 55Ah~185Ah
  • Designed for telecom use
  • Long design life
  • Low self-discharge rate
  • Excellent high rate discharge performance
  • Application: telecom systems, UPS/EPS, control systems, electric power systems, etc.
Type Nominal Voltage AH @ Capacity @ Overall Dimension (mm) Post Data
(V) 20hrs Rating L W H TH Style Sheet
Front Terminal Batteries
FT12-55 (RA12-55F)12V55AHC10/1.80VPC291106230230f11
FT12-105 (RA12-105F)12V105AHC10/1.80VPC508110236236f8
FT12-125 (RA12-125F)12V125AHC10/1.80VPC552239239f9
FT12-150 (RA12-150F)12V150AHC10/1.80VPC565110288288f9
